2009 HONDA PILOT Owners Manual

To replay the current track
continuously, press and release the
RPT button, or use the interface
selector to scroll down, select
TRACK REPEAT, and press ENTER
on the interf ace selector. As a
reminder, you will see REPEAT next
toTRACKonthescreenandRPTin
the audio display. To turn this
feature off, press and hold the RPT
button until you hear a beep, or
highlight TRACK REPEAT (if not
already highlighted), and press
ENTER on the interf ace selector
again.To replay the current disc
continuously, press the RPT button
repeatedly until you see D-RPT in
the audio display, or use the
interf ace selector to scroll down,
select DISC REPEAT, and press
ENTER on the interf ace selector. As
a reminder, you will see REPEAT
next to DISC on the screen and
D-RPT in the audio display. To turn
this feature off, press and hold the
RPT button until you hear a beep, or
highlight DISC REPEAT (if not
already highlighted), and press
ENTER on the interf ace selector
again.To play the tracks of the current disc
in random order, press and release
the RDM button, or use the interface
selector to scroll down, select
TRACK RANDOM, and press
ENTER on the interf ace selector. As
a reminder, you will see RANDOM
next to TRACK on the screen and
RDM in the audio display. To turn
this feature off, press and hold the
RDM button until you hear a beep,
or highlight TRACK RANDOM (if
not already highlighted), and press
ENTER on the interf ace selector
again.
Playing Discs (Models with navigation system)
T rack Repeat
Disc Repeat Random Play
Features
277
——
y
y
(/yy
2009 Pilot

µ
µ
µ
µ
µ µ
µ
µ
To take the system out of disc mode,
press the AM or FM button, the
button, AUX button, or CD/
AUX button. To return to disc mode,
press the CD button or CD/AUX
button.
If you turn the system of f while a
disc is playing, either with the
power/volume knob or the ignition
switch, play will continue at the same
point when you turn it back on. The CD changer can play CD-Rs and
CD-RWscompressedinMP3and
WMA format. When playing a disc in
MP3 or WMA, you will see ‘‘MP3’’ or
‘‘WMA’’ on the center display. A disc
can support more than 99 f olders,
and each folder can hold up to 255
playable f iles.
When there are more than 99 f olders
in a disc, the center display only
shows two digits.
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1), 16/
22.05/24 kHz (MPEG2)
Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bit rate and multi-session.
Maximum layers
(including ROOT): 8 layers
The specif ications f or compatible
WMA f iles are: Sampling f requency:
22.05/32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers
To play an MP3/WMA disc, use the
disc controls previously described,
along with the f ollowing inf ormation.
Playing Discs (Models with navigation system)
To Stop Playing a Disc Playing an MP3/WMA Disc
278
——
y
y
(/yy
2009 Pilot

Changing and Selecting the Folders/Files

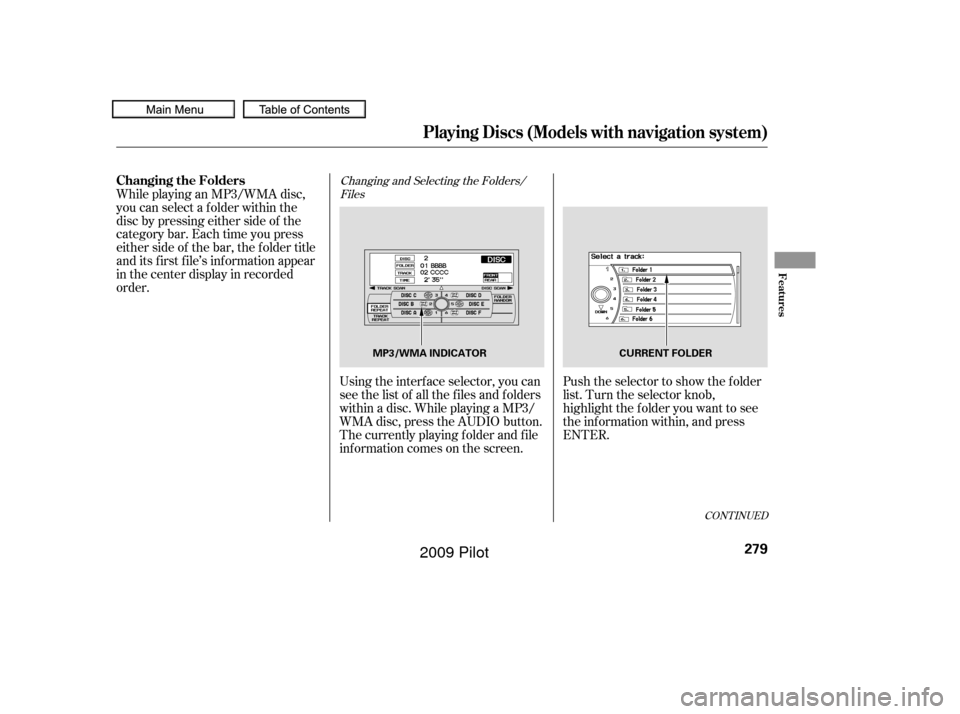

Using the interf ace selector, you can
see the list of all the f iles and f olders
within a disc. While playing a MP3/
WMA disc, press the AUDIO button.
The currently playing f older and f ile
inf ormation comes on the screen. Push the selector to show the f older
list. Turn the selector knob,
highlight the f older you want to see
the information within, and press
ENTER.
While playing an MP3/WMA disc,
you can select a f older within the
disc by pressing either side of the
category bar. Each time you press
either side of the bar, the folder title
and its f irst f ile’s inf ormation appear
in the center display in recorded
order.
CONT INUED
Playing Discs (Models with navigation system)
Changing the Folders
Features
279
MP3/WMA INDICATOR
CURRENT FOLDER
——
y
y
(/yy
2009 Pilot

This feature, when activated,
samples the f irst f ile of each f older
f or 10 seconds. To scan a f older,
press the SCAN button repeatedly
until you see F-SCAN in the audio
display. You will see SCAN next to
FOLDERandF-SCANintheaudio
display.
To listen to the rest of the folder,
press and hold the SCAN button
until you hear a beep. If you do not,
the system advances to the next
f older, plays 10 seconds of it, and
continues throughout the rest of the
f older same way. When the system
samples the f irst f ile of all f olders,
f older scan is canceled, and the last
f ile played comes back.

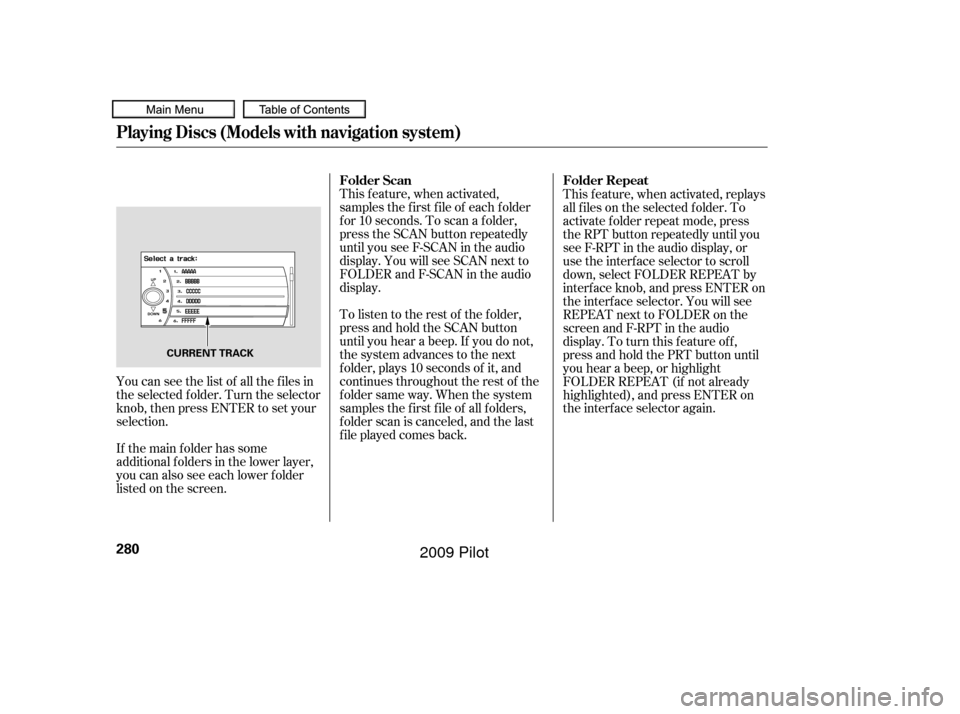

You can see the list of all the f iles in
the selected f older. Turn the selector
knob, then press ENTER to set your
selection.
If the main folder has some
additional f olders in the lower layer,
you can also see each lower folder
listedonthescreen. This f eature, when activated, replays
all f iles on the selected f older. To
activate f older repeat mode, press
the RPT button repeatedly until you
seeF-RPTintheaudiodisplay,or
use the interf ace selector to scroll
down, select FOLDER REPEAT by
interf ace knob, and press ENTER on
the interf ace selector. You will see
REPEAT next to FOLDER on the
screen and F-RPT in the audio
display. To turn this feature off,
press and hold the PRT button until
you hear a beep, or highlight
FOLDER REPEAT (if not already
highlighted), and press ENTER on
the interf ace selector again.
Playing Discs (Models with navigation system)
Folder Repeat
Folder Scan
280
CURRENT TRACK
——
y
y
(/yy
2009 Pilot

To remove a dif f erent disc f rom the
changer,firstselectitbypressing
the corresponding number on the
preset button or turning the
interf ace knob, and pressing ENTER
on the interf ace selector. When that
disc begins playing, press the eject
button.
When you press the eject button
while listening to the radio, or with
the audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the discs f rom the changer.
You can also eject discs when the
ignition switch is of f :
To eject one disc, press and release
the eject button.
To eject all discs, press and hold the
eject button.
This f eature, when activated, plays in
the current f older in random order.
To activate folder random play, press
the RDM button; or use the interface
selector to scroll down, select
FOLDER RANDOM by interf ace
knob, and press ENTER on the
interf ace selector. You will see
RANDOM next to FOLDER on the
screen and F-RDM in the audio
display. To turn this feature off,
press and hold the RDM button until
you hear a beep, or highlight
FOLDER RANDOM (if not already
highlighted), and press ENTER on
the interf ace selector again.
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the audio display.
When you remove the disc f rom the
slot, the system begins the load
sequence so you can load another
disc. If you do not load another disc,
the load sequence is canceled, and
the system continues playing in the
previous mode.
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds.
Playing Discs (Models with navigation system)
Removing Discs f rom the
Changer
Folder Random
Features
281
——
y
y
(/yy
2009 Pilot

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Solution
Error Message
284
High Temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page
284). Insert the disc again. If the code
does not disappear, or the disc(s) cannot be
removed, consult your dealer. Do not try to
force the disc out of the player.
Disc Changer Error Messages
282
HEAT ERROR
UNSUPPORTED BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
——
y

y
(/yy
2009 Pilot

When using CD-R or CD-RW discs,
use only high quality discs labeled
f or audio use.
When recording a CD-R or
CD-RW, the recording must be
closedforittobeusedbythedisc
changer.When a disc is not being played,
store it in its case to protect it f rom
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the
recording surf ace of the disc,
causing skipping or other problems.
Remove these pieces by rubbing the
inner and outer edges with the side
of a pencil or pen.
Never try to insert f oreign objects in
the disc changer. Handle a disc by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
f rom f inger prints, liquids, and f elt-
tip pens, can cause the disc to not
play properly, or possibly jam in the
drive.
To clean a disc, use a clean sof t cloth.
Wipe across the disc f rom the center
to the outside edge.
Play only standard, round, 5-inch
(12 cm) discs. Smaller or odd-
shaped discs may jam in the drive
or cause other problems.
Handle your discs properly to
prevent damage and skipping.
General Inf ormation
Protecting Discs
Protecting Your Discs
Features
283
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——
y
y
(/yy
2009 Pilot

The in-dash disc player/changer has
a sophisticated and delicate
mechanism. If you insert a damaged
disc as indicated in this section, it
maybecomestuckinsideand
damage the audio unit.

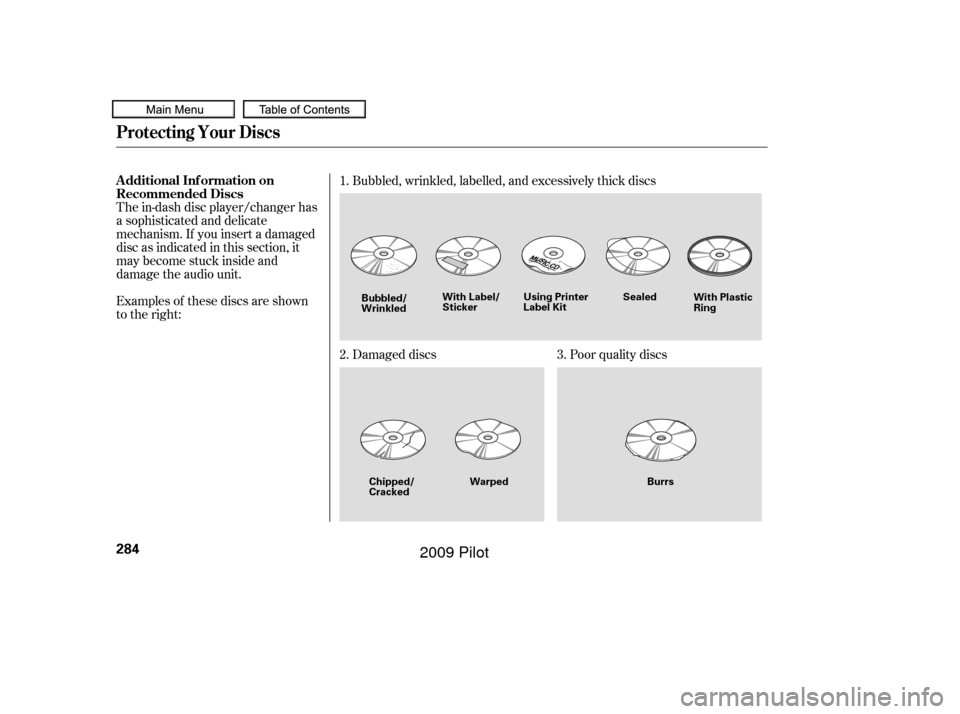

Examples of these discs are shown
to the right:Bubbled, wrinkled, labelled, and excessively thick discs
Damaged discs
Poor quality discs
1.
2.
3.
Protecting Your Discs
Additional Inf ormation on
Recommended Discs
284
Sealed
With Plastic
Ring
Bubbled/
Wrinkled Using Printer
Label Kit
Warped Burrs
Chipped/
Cracked With Label/
Sticker
——
y
y
(/yy
2009 Pilot
