2009 HONDA PILOT Owners Manual

ÛÝÛÝ
ÛÝ
To change the display, press the
INFO( / )buttononthesteering
wheel repeatedly until the main
menu appears (see page ). With the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown in the
next
page each time you press the INFO
( / ) button or SEL/RESET
button.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
In the multi-information display, the
system message is also displayed
(see page ) and you can
customize your vehicle control
settings (see page ).
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably.
Others help to keep you aware of the
periodic maintenance your vehicle
needs f or continued trouble-f ree
driving.
When you open the driver’s door, a
‘‘Welcome’’ message is shown on the
multi-inf ormation display.
You can also change the display by
pressing the select/reset knob in the
instrument panel.86
92
95
CONT INUED
On Touring models
Multi-Inf ormation Display
Inst rument s and Cont rols
85
INFO ( / )
BUTTON
SEL/
RESET
BUTTON
——
y

y
(/yy
2009 Pilot

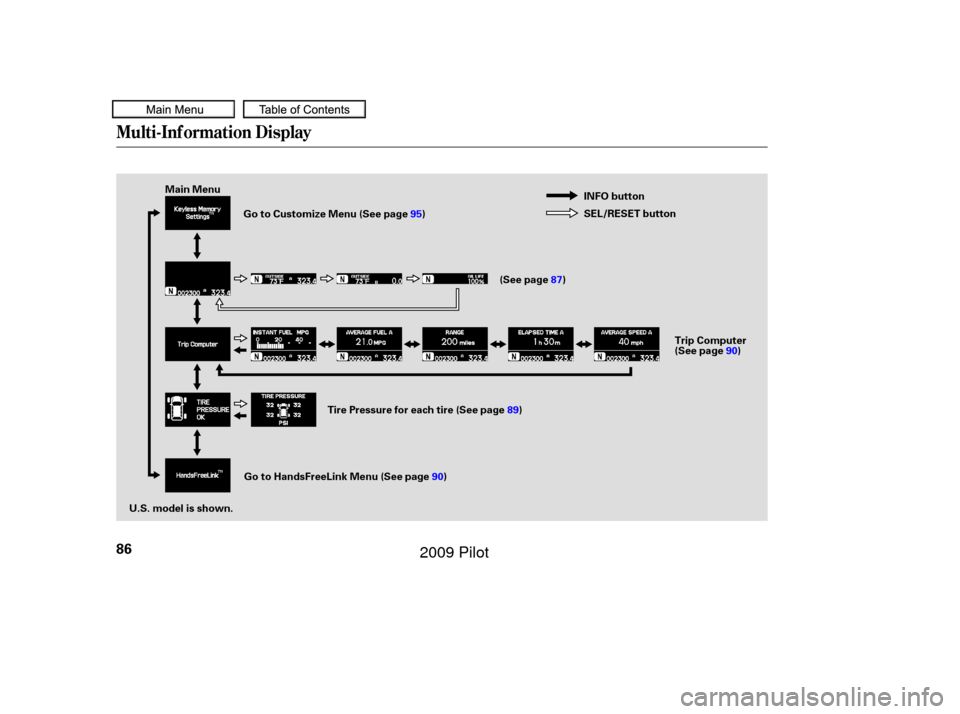

Multi-Inf ormation Display
86
INFO button
SEL/RESET button
GotoCustomizeMenu(Seepage95 )
(See page87)
Tire Pressure for each tire (See page 89)
Go to HandsFreeLink Menu (See page 90)
U.S. model is shown. Main Menu
Trip Computer
(See page90)
——
y
y
(/y
y
2009 Pilot

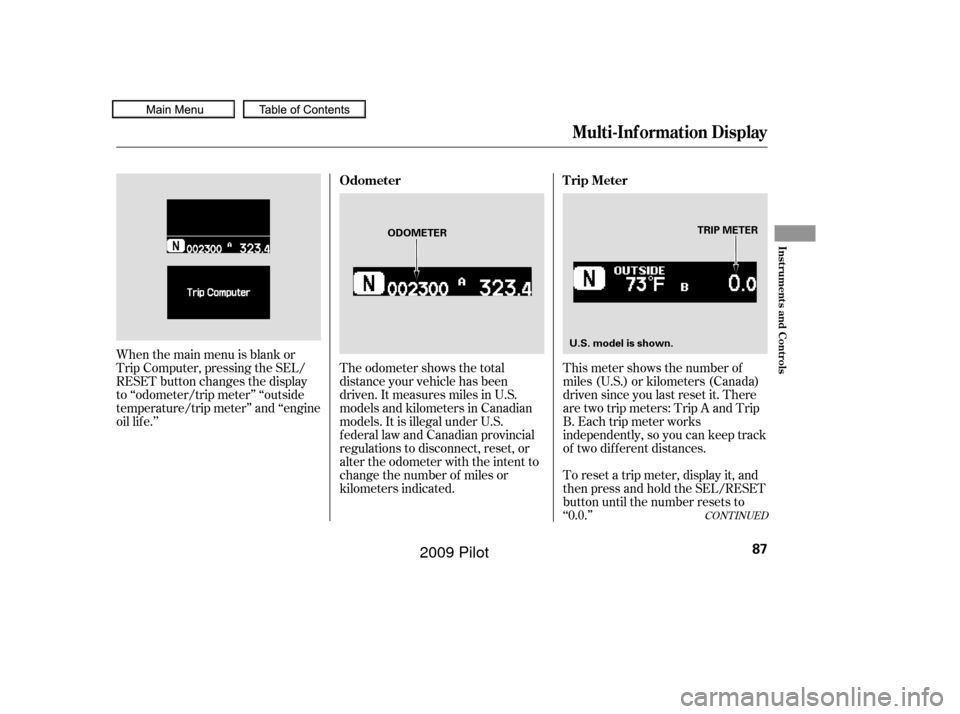

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. There
are two trip meters: Trip A and Trip
B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it, and
then press and hold the SEL/RESET
button until the number resets to
‘‘0.0.’’
When the main menu is blank or
Trip Computer, pressing the SEL/
RESET button changes the display
to ‘‘odometer/trip meter’’ ‘‘outside
temperature/trip meter’’ and ‘‘engine
oil lif e.’’
CONT INUED
Multi-Inf ormation Display
Trip Meter
Odometer
Inst rument s and Cont rols
87
TRIP METER
ODOMETER
U.S. model is shown.
——
y
y
(/yy
2009 Pilot

When you reset Trip A, AVERAGE
FUEL A, AVERAGE SPEED A, and
ELAPSED TIME A are reset at the
same time. When you reset Trip B,
AVERAGE FUEL B, AVERAGE
SPEED B, and ELAPSED TIME B
are reset.
You can customize the Trip A,
AVERAGE FUEL A, AVERAGE
SPEED A, and ELAPSED TIME A
reset condition on the multi-

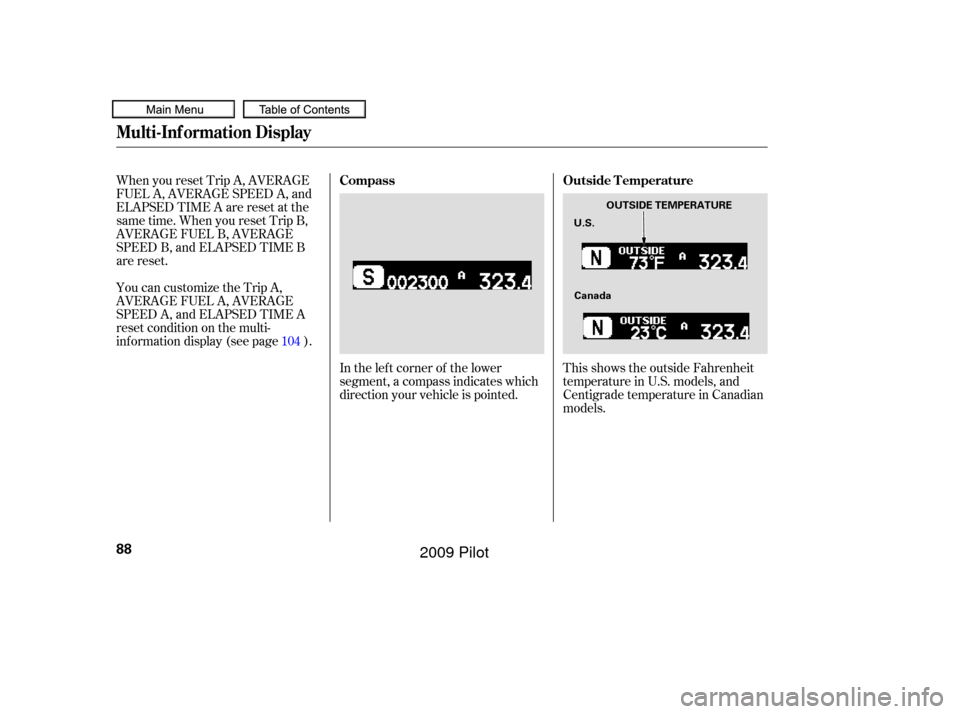

inf ormation display (see page ).This shows the outside Fahrenheit
temperature in U.S. models, and
Centigrade temperature in Canadian
models.
In the lef t corner of the lower
segment, a compass indicates which
direction your vehicle is pointed.
104
Multi-Inf ormation Display
Outside Temperature
Compass
88
U.S. OUTSIDE TEMPERATURE
Canada
——
y
y
(/yy
2009 Pilot

Whenthetirepressuremonitoris
shown on the multi-inf ormation
display, press the SEL/RESET
button. The display changes as
shown.
You can see the pressure of each tire
in this monitor. If one or more tires
are low, inflate them to the correct
pressure. For more inf ormation, see
page .
This shows the remaining lif e of the
engine oil. It shows 100% af ter the
engine oil is replaced and the display
is reset. The engine oil lif e is
calculated based on engine operating
conditions and accumulated engine
revolutions. For more inf ormation,
see page .
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see page ).
459
103
428
Tire Pressure Monitor
Engine Oil L if e
Multi-Inf ormation Display
Inst rument s and Cont rols
89
U.S.
Canada
ENGINE OIL LIFE
——
y
y
(/yy
2009 Pilot

You can receive or make phone calls
f rom your cell phone through your
vehicle’s Bluetooth
HandsFreeLink(HFL) system
without touching your cell phone. To use the system, your cell phone
and the HFL system must be linked.
Not all cell phones are compatible
with this system. Ref er to page
for instructions on how to link
your cell phone to the HFL and how
to receive or make phone calls, or
visit the handsf reelink.com website.
Along with the trip meter, the trip
computer calculates these values:Instantaneous f uel mileage
Average Fuel Economy
Range
Average Vehicle Speed
Elapsed Time
360
Multi-Inf ormation Display
Trip Computer
BluetoothHandsFreeL ink
90
——
y
y
(/yy
2009 Pilot

This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles(U.S.) or kilometers (Canada),
so it will vary with changes in speed,
traf f ic, etc.
This shows the average speed you
are traveling in miles per hour (mph)
forU.S.modelsorkilometersper
hour (km/h) f or Canadian models.This shows the time passed traveled
since you last reset it. When you turn
the ignition switch to the ON (II)
position, ELAPSED TIME is reset.
You can customize the TRIP A INFO
(Trip A, AVERAGE FUEL A,
ELAPSED TIME A, and AVERAGE
SPEED A) reset condition in the
multi-inf ormation display (see page
).
This shows your current f uel
mileage.
This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or liter/100 km (Canadian models)
since you last reset the Trip A or
Trip B.
104
RANGE
AVERAGE SPEED A/B EL A PSED T IME A /B
INST A NT FUEL MPG (U.S.
models)/INST A NT FUEL L /100 km(Canadian models)
AVERAGE FUEL A/B
Multi-Inf ormation Display
Inst rument s and Cont rols
91
——
y

y
(/yy
2009 Pilot

ÛÝ
ÛÝ
If there is a problem with your
vehicle, f or example, the engine oil
level is low or a door is not f ully
closed, the multi-inf ormation display
will show you the problem. It does
this by interrupting the current
display with one or more messages. The system message(s) triggers the
appropriate indicator(s) on the
instrument panel, including the
system message indicator, to come
on. The system message indicator
does not go of f until the problem(s)
is corrected.
You will also hear a beep when the
system message comes on f or the
first time.
When there are several messages to
be shown, the system switches the
messages every 5 seconds.
The message is shown until you
push the INFO ( or ) button.
To see the message again, press the
INFO ( or ) button, 5 seconds
after the display disappears.
Here is a list of messages shown on
the multi-information display:
Multi-Inf ormation Display
System Messages
92
SYSTEM MESSAGE INDICATOR
——
