2009 HONDA PILOT Owners Manual

CONT INUED
Press and hold the remote
transmitter button and one of the
HomeLink buttons at the same
time.If the red indicator in HomeLink
begins to f lash slowly at f irst,
then rapidly, release both
buttons, and go to step 4.
If the red indicator in HomeLink
continues to f lash slowly (does
not f lash rapidly), your remote
transmitter may stop
transmitting after a short time.
Go to step 3. Press and hold the remote
transmitter button and one of the
HomeLink buttons at the same
time. While continuing to hold the
HomeLink button, press and
release the remote transmitter
button every 2 seconds.
If the red indicator in HomeLink
begins to f lash slowly at f irst,
then rapidly, release both
buttons, and go to step 4.
If the red indicator in HomeLink
continues to f lash slowly (does
not begin to f lash rapidly),
repeat steps 1 thru 3. Test the HomeLink button by
pushing it f or about 1 second.
If the button works,
programming is complete.
If the button does not work go
to step 5.
PushandholdtheHomeLink
button and watch the red indicator
on HomeLink. If the indicator stays on, press
the HomeLink button again; the
remotely controlled device
should operate.
If the indicator f lashes rapidly
f or 2 seconds then stays on, you
have a rolling code transmitter:
go to ‘‘Training with a Rolling
Code System’’ (see page ).
2.
3.4.
5.
358
HomeL inkUniversal Transceiver
Features
357
——
y


y
(/yy
2009 Pilot

Press the training button on the
garage door opener unit until the
indicator next to the button comes
on. The indicator may blink, or
comeonandstayon.Youthenhave approximately 30 seconds to
complete the f ollowing steps.
Press and hold the button on
HomeLink f or 3 to 4 seconds.
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Find the ‘‘training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The f ollowing procedure
synchronizes HomeLink to the
garage door opener so it sends and
receives the correct codes. For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Information from
the remote control and the garage
door opener is needed bef ore
HomeLink can operate the garage
door opener. Repeat these steps to train the
other two HomeLink buttons to
operate any other compatible
remotely controlled devices
around your home (lighting,
automatic gate, security system,
etc.).
Press the HomeLink button again
f or about 1 second. It should
operate the garage door.
2.
4.
5.
1.
3.
6.
HomeL inkUniversal Transceiver
T raining With a Rolling Code
System
358
TRAINING BUTTON
——
y


y
(/yy
2009 Pilot

Youshoulderaseallthreecodes
bef ore selling the vehicle. Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red
indicator begins to f lash, then
release the buttons.
If you want to retrain a programmed
button f or a new device, you do not
have to erase all button memory.
You can replace the existing memory
code using this procedure:If a standard transmitter was
programmed, the indicator will
stay on f or about 25 seconds.
HomeLink
is a registered
trademark of Johnson Controls, Inc. If you have problems with training
the HomeLink Universal Transceiver,
or would like inf ormation on home
products that can be operated by
HomeLink, call (800) 355-3515. On
the Internet, go to
If a rolling code transmitter was
previously programmed, the
indicator will f lash rapidly f or 2
seconds, and then stay on f or
about 23 seconds.
Press and hold the HomeLink
button to be trained until the
HomeLink indicator begins to
flash slowly. Once the HomeLink indicator
begins to f lash slowly, continue to
hold the HomeLink button, and
f ollow steps 3 thru 6 under
‘‘Training HomeLink’’ (see page
).
1. 2.
356
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
www.home
link.com.Erasing Codes
Retraining a Button
Customer Assistance
HomeL inkUniversal Transceiver
Features
359
——
y

y
(/yy
2009 Pilot

HFL recognizes simple voice
commands, such as phone numbers
and names. It uses these commands
to automatically dial, receive, and
store numbers. For more
inf ormation on voice control, see
UsingVoiceControlonpage .
Here are the main features of the
HFL. Instructions f or using the HFL
begin on page . Bluetooth
is a registered trademark
of Bluetooth SIG, Inc.
Bluetooth is the wireless technology
that links your phone to the HFL.
TheHFLusesaClass2Bluetooth,
which means the maximum range
between your phone and vehicle is
30 f eet (10 meters).
Your vehicle is equipped with the
Bluetooth
HandsFreeLink(HFL).
HFL uses Bluetooth
technology to
link your cellphone to your vehicle.
With HFL, you can place and receive
calls through your vehicle’s audio
system, without the distraction of
handling your cellphone. To use this
f eature, you need a Bluetooth-
compatible cellphone with the Hands
Free Prof ile. For more inf ormation,
and a list of compatible cellphones,
visit , or call
(888) 528-7876. In Canada, visit , or call (888) 9-HONDA-9.
The HFL is available in both English
and French (Canadian models only).
To change the language, see page . To use the HFL, your phone must
have approved Bluetooth capability
along with the Hands Free Prof ile.
This type of phone is available
through many phone makers and
cellular carriers. You can also find an
approved phone by visiting , or by calling
the Hands Free Link
consumer
support at (888) 528-7876. In Canada,
visit , or call (888)
9- HONDA-9.
The Bluetooth
word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Honda
Motor Co., Ltd. is under license.
Other trademarks and trade names
are those of their respective owners.
With a linked phone, the HFL allows
you to send and receive calls in your
vehicle without holding the phone.
The HFL can store up to 50 names
and phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
102
372 364
handsf reelink.honda.com
www.
honda.ca handsf reelink.honda.com
www.honda.ca
On Touring models
BluetoothHandsFreeL ink
Voice Control
Bluetooth
Wireless Technology
Incoming/Outgoing Calls
Phonebook
360
——
y


y
(/yy
2009 Pilot

To operate the HFL, use the HFL
Talk and Back buttons on the left
side of the steering wheel.
The HFL buttons are used as
f ollows:
HFLTalk:Thisbuttonisusedbefore
you give a command, to answer
incoming calls, and to conf irm
system inf ormation.
The HFL microphone is on the
ceiling, between the f ront map lights
and the console buttons. On models
with navigation system, the
microphone is shared with the
navigation system.
When the HFL is in use, the sound
comes through the vehicle’s f ront
audio system speakers. If the audio
system is in use while operating
either of the HFL buttons or making
a call, the HFL over-rides the audio
system. To change the volume level,
use the audio system volume knob,
or the steering wheel volume
controls.
Your vehicle’s HFL system has the
cellular phonebook import f unction.
This allows you to import your
cellular phonebook to the HFL.
Using the navigation system, you can
makeacalldirectlyandstorea
desired number in the HFL f rom the
list shown on the navigation display.
For more inf ormation on how to
import the phonebook or to make a
call, see page .
You can also store the desired
number to the HFL directly f rom
your mobile phone using the receive
contact f unction in the HFL.
372
CONT INUED
BluetoothHandsFreeL ink
HFL Buttons
Microphone
Audio System
Features
361
HFL TALK BUTTON
HFL BACK BUTTON
——
y

y
(/yy
2009 Pilot

Press and release the button, then
wait f or a beep bef ore giving a
command.
HFLBack:Thisbuttonisusedto
end a call, go back to the previous
voice control command, and to
cancel an operation.When you are dialing or receiving
calls with the audio system in use,
you will see the HFL screen on the
navigation display.
You will also see ‘‘HANDS FREE
LINK’’ on the center display.
‘‘ ’’ indicator will be displayed on
the center display if your phone is
linked to the Bluetooth compatible
cell phone.
BluetoothHandsFreeL ink
Inf ormation Display
362
——
y

y
(/yy
2009 Pilot

Î
Πε
µ µ
µ

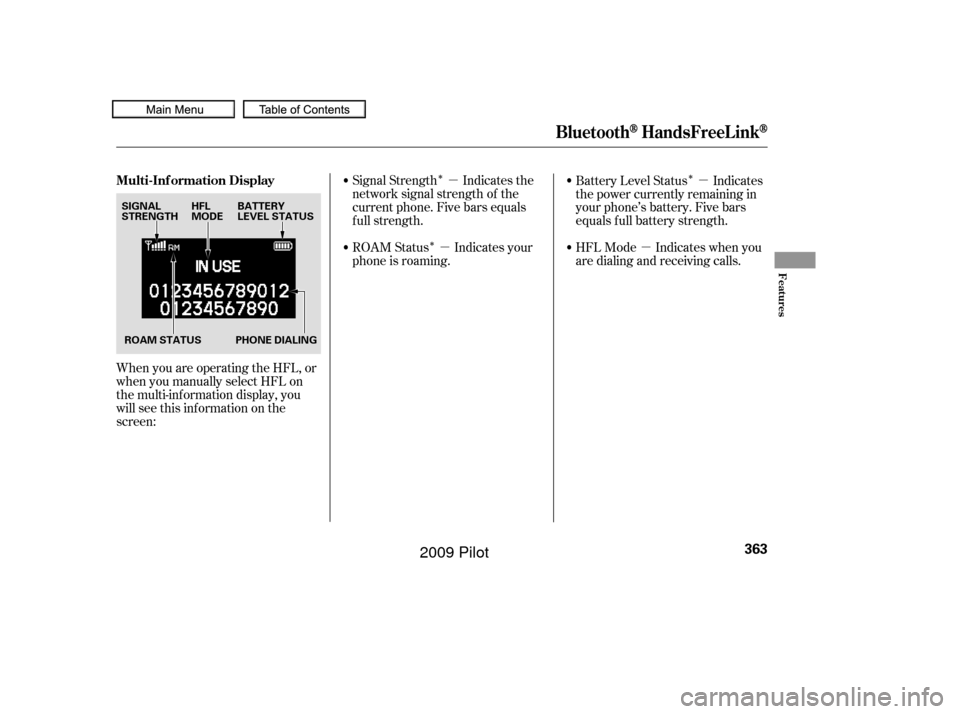

When you are operating the HFL, or
when you manually select HFL on
the multi-information display, you
will see this inf ormation on the
screen: Signal Strength Indicates the
network signal strength of the
current phone. Five bars equals
f ull strength.
ROAM Status Indicates your
phone is roaming.
Battery Level Status Indicates
the power currently remaining in
your phone’s battery. Five bars
equals f ull battery strength.
HFL Mode Indicates when you
are dialing and receiving calls.
BluetoothHandsFreeL ink
Multi-Inf ormation Display
Features
363
SIGNAL
STRENGTH
BATTERY
LEVEL STATUS
HFL
MODE
ROAM STATUS PHONE DIALING
——
y

y
(/yy
2009 Pilot

µ
Î Here are some guidelines f or using
voice control:
To enter a command, press and
release the Talk button. Then,
af ter the beep, say your command
in a clear, natural tone.
Close the windows and the
moonroof .
TheHFLisoperatedbytheHFL
Talk and Back buttons on the left
side of the steering wheel. The next
f ew pages provide instructions f or all
basic f eatures of the HFL.
Phone Dialing Indicates the
number you entered or the
number of the incoming call.
Some phones do not send this
inf ormation to the HFL.
: Using Voice Control
How to Use the HFL
A ll phones may not
operate identically, and some
may cause inconsistent
operation of the HFL .
BluetoothHandsFreeL ink
364
NOTE:
——
