2009 HONDA PILOT Owners Manual

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight and T emperature
Sensors
Climate Control System
Features
205
TEMPERATURE/HUMIDITY SENSOR
SUNLIGHT SENSOR
——
y

y
(/y
y
2009 Pilot

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For vehicles with rear entertainment
system, see pages through . For LX models, see pagesthrough .
For vehicles with navigation system,
see pages through . For vehicles without navigation
system, see pages through . 208 223
224 249
250 305 315 346
Audio System
206
LX models EX and EX-L models without rear
entertainment system
EX-L models with rear entertainment system
——
y
y
(/y

y
2009 Pilot

Audio System
Features
207

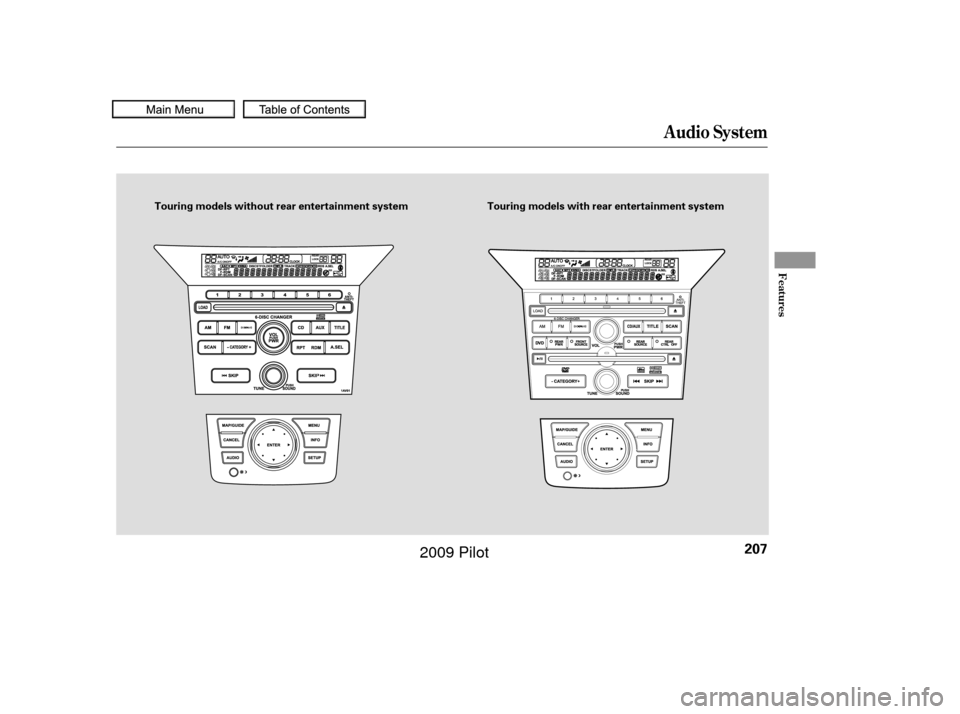

Touring models without rear entertainment systemTouring models with rear entertainment system
——
y
y
(/y
y
2009 Pilot

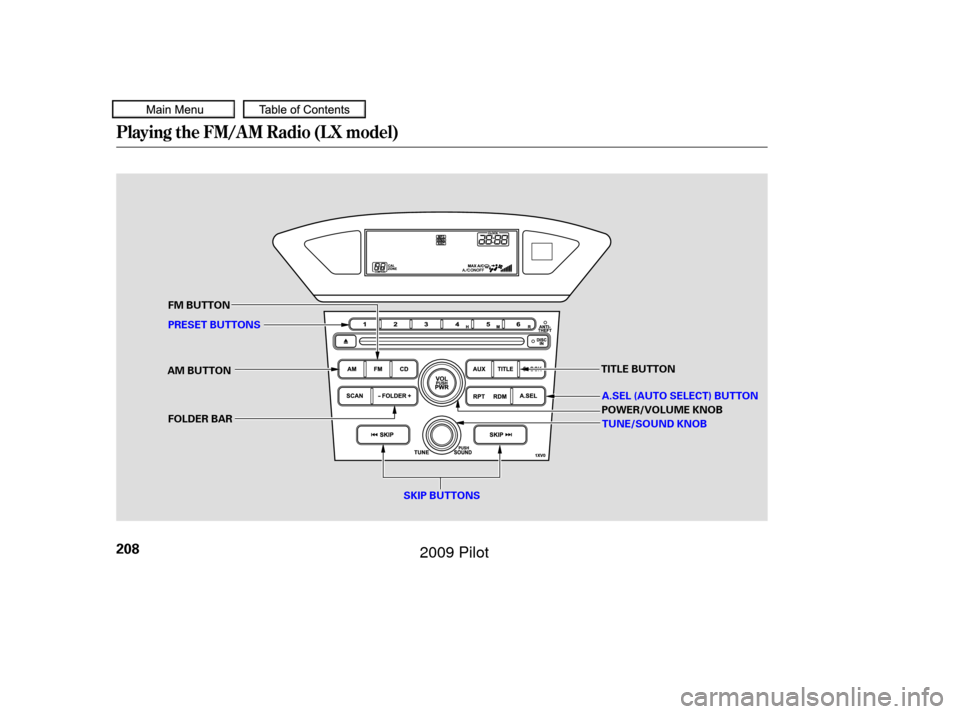

Playing the FM/AM Radio (LX model)
208
SKIP BUTTONS
PRESET BUTTONS FM BUTTON
AM BUTTON POWER/VOLUME KNOB
TITLE BUTTON
TUNE/SOUND KNOB
FOLDER BAR A.SEL (AUTO SELECT) BUTTON
——
y
y
(/y
y
2009 Pilot

µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip, scan, the preset
buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency.
The skip f unction searches
up and down f rom the current
f requency to f ind a station with a
strong signal. To activate it, press
either of the SKIP buttons ( or ), then release it. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
211
CONT INUED
To Select a Station
To Play the FM/AM Radio
TUNE
SK IPSCAN
Playing the FM/AM Radio (LX model)
Features
209
——
y
y
(/y
y
2009 Pilot

µ
µ
µ If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. Pick a preset button (1 6), and
hold it until you hear a beep. Usethetune,skip,scan,orRDS
function to tune the radio to a
desired station. Press the A. SEL button. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
For inf ormation on FM/AM radio
f requencies and reception, see page .
1.
2.
3.
4.
306
To turn of f auto select
AUTO SELECT
Preset
Playing the FM/AM Radio (LX model)
210
——
y
y
(/y
y
2009 Pilot

On the FM band, you can select a
favorite station and display the
program service name according to
the inf ormation provided by the
radio data system (RDS).
Theprogramservicenamedisplay
f unction shows the name of the
station you are listening to. With the
audio system on and the FM band
selected, you can turn this f unction
on or of f .If the station you are listening to is
not an RDS station, the display
continues to show the f requency
with the PS name display function on.
To switch the function between on
and off, press and release the TITLE
button. With the system on, you will
see the ‘‘PS NAME ON’’ message on
the display. If the station you are
listening to is an RDS station, the
displayed f requency switches to the
station name.
When you turn of f this f unction by
pressing the TITLE button, the
display shows ‘‘PS NAME OFF.’’
CONT INUED
Playing the FM/AM Radio (LX model)
Radio Data System (RDS)
Program Service (PS) Name DisplayFeatures
211
——
y
y
(/y
y
2009 Pilot

µ´SOFT: Adult hits and sof t music
TOP 40: Top 40 hits
OLDIES: Nostalgia music and oldies
R & B: Rhythm and blues, and sof t
rhythm and blues
Press either side of the FOLDER bar
to select an RDS category. The
displayshowstheselectedRDS
category name f or a f ew seconds.
You can use the search or scan
function to find radio stations on the
selected RDS category. If you do
nothing while the RDS category
name is displayed, the selected
category is canceled. TRAFFIC: Traffic information INFO: News, inf ormation, sports,
talk, f oreign language, personality,
public, college, and weather JAZZ: Jazz CLASSIC: Classical music RELIGION: Religious music and
religious talk
If the system does not find a station,
‘‘NOTHING’’ will be blinking f or
about 5 seconds, then the system
goes back to the last selected station.
On the FM band selected, you can
select the program category
provided by the RDS. Press either
side of the FOLDER bar ( or )
to display and select an RDS
category. The principal RDS
categories are shown as follows;
ALL: All RDS category stations
ROCK: Rock, classic rock and sof t
rock music
COUNTRY: Country music
This f unction searches up and down
a f requency f or the strongest signal
f rom the f requencies that carry the
selected RDS category inf ormation.
This can help you to find a station in
your favorite category. To activate it,
press and release either of the SKIP
buttons ( or ). You will see
the selected RDS category name
blinking while searching it. When
the system finds a station, the
selected RDS category name will be
displayed again for about 10 seconds.
Playing the FM/AM Radio (LX model)
Radio Data System (RDS) Category
RDS Program Search
212
——
y

y
(/y
y
2009 Pilot
