2009 HONDA PILOT Owners Manual

µ
µ
µ
µ
µ´ ´ µ
µ This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, select the disc
random play f rom the menu items.
You will see RANDOM in the display.
Selectthenormalplaymodeto
return to normal play.
This feature,
when activated, replays all the f iles
on the selected f older in the order
they are compressed in MP3 or
WMA. To activate folder repeat
mode, select the f older repeat mode
from the menu items. You will see F-
REPEAT in the display. The system
continuously replays the current
f older. Select the normal play mode
to turn it of f . Selecting a dif f erent
folder with the CATEGORY bar also
turns of f repeat f eature.
This feature
continuously replays the current disc.
To active disc repeat, select the disc
repeat mode f rom the menu items.
You will see D-REPEAT in the
display. Select the normal play mode
to turn it off.
To
select a dif f erent f older, press either
side ( or ) of the CATEGORY
bar. Press the side to skip to the
next f older, and press the side to
skip to the beginning of the previous
f older.
To
continuously replay a track (f ile in
MP3 or WMA mode), select the
track repeat mode f rom the menu
items. You will see REPEAT in the
display. Select the normal play mode
to turn it off.
Pressing either side of the SKIP bar
also turns of f the repeat f eature.
In MP3 or WMA mode In MP3 or WMA mode
Playing Discs (EX and EX-L models)
RANDOM (Random within a
disc)
FOLDER REPEAT
DISC REPEAT
FOLDER SELECTION
REPEAT (Track Repeat)
Features
245
——
y
y
(/yy
2009 Pilot

µ
µ µ
This f eature, when
activated, samples the first file in
each f older on the disc in the order
they are recorded. To activate the
f older scan f eature, press and
release the SCAN button repeatedly.
You will see F-SCAN in the display.
The system will then play the first
f ile in the main f olders f or about 10
seconds. If you do nothing, the
system will then play the f ollowing
f irst f iles f or 10 seconds each. When
it plays a file that you want to
continue listening to, press and hold
the SCAN button.
Pressing either side of the SKIP bar,
or selecting a dif f erent disc (using
the preset buttons) or f older (using
the CATEGORY bar) turns of f the
SCAN or F-SCAN f eature.
This
f eature, when activated, plays the
f iles within the current f older in
random order, rather than in the
order they are compressed in MP3
or WMA. To activate folder random
play, select the f older random mode
from the menu items. You will see
F-RANDOM in the display. The
system will then select and play f iles
randomly. This continues until you
deactivate f older random play by
selecting the normal play mode, or
you select a dif f erent f older with the
CATEGORY bar. The SCAN f unction
samples all the tracks on the disc in
the order they are recorded on the
disc (all f iles in the selected f older in
MP3 or WMA mode). To activate the
scan feature, press and release the
SCAN button. You will see SCAN in
the display. You will get a 10 second
sampling of each track/f ile in the
disc/f older. Press and hold the
SCAN button until you hear a beep
to get out of scan mode and play the
last track sampled.
In MP3 or WMA mode
In MP3 or WMA mode
F-SCAN
FOLDER RANDOM SCAN
Playing Discs (EX and EX-L models)
246
——
y
y
(/y
y
2009 Pilot

µ
CONT INUED
This f eature, when
activated, samples the first track in
each disc in order (the f irst f ile in
themainfolderoneachdiscinMP3
or WMA mode). To activate the disc
scan feature, press and release the
SCAN button repeatedly until
D-SCAN shows in the display. The
system will then play the f irst track/
f ile in the f irst main f older in the f irst
disc f or about 10 seconds. If you do
nothing, the system will then play
the f ollowing f irst track/f ile f or 10
seconds each. When it plays a track/
file that you want to continue
listening to, press and hold the
SCAN button again. Each time you press and release the
SCAN button, the mode changes
from scan, disc scan, then to normal
playing.
Each time you press and release the
SCAN button, the mode changes
f rom f ile scan, f older scan, disc scan,
then to normal playing.You can also eject the disc when the
ignition switch is of f .
When the f irst track in the last disc,
or the f irst f ile in the last main f older
in the last disc begins to play, the
disc scan mode will be canceled.
Pressing either side of the SKIP bar
or selecting a dif f erent f older with
the CATEGORY bar also turns off
the scan feature.
Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
the disc af ter 10 seconds and begin
playing.
To play the radio when a disc is
playing, press the AM, FM, AM/FM,
or XM (if equipped) button. Press
the CD (CD/AUX on models with
XM satellite radio) button again to
switch back to the disc changer.
In MP3 or WMA mode
D-SCAN
To Stop Playing a Disc
Playing Discs (EX and EX-L models)
Features
247
——
y
y
(/yy
2009 Pilot

If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
To remove the disc currently in play,
press the eject button. When a disc is
removed f rom a slot, the system
automatically begins the load
sequence so you can load another
disc in that position. If you do not
remove the disc f rom the changer
within 10 seconds, the disc will
reload into the slot. Then the system
returns to the previous mode (AM,
FM, or XM).To remove a different disc from the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.
For inf ormation on how to handle
and protect compact discs, see page
.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst.
283
Protecting Discs
Removing Discs f rom t he In-dash
Disc Changer
Playing Discs (EX and EX-L models)
248
——
y
y
(/yy
2009 Pilot

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Solution
Error Message
284
High temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page
284). Insert the disc again. If the code
does not disappear, or the disc(s) cannot be
removed, consult your dealer. Do not try to
force the disc out of the player.
Disc Changer Error Messages (EX and EX-L models)
Features
249
HEAT ERROR
UNSUPPORTED BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
——
y


y
(/yy
2009 Pilot

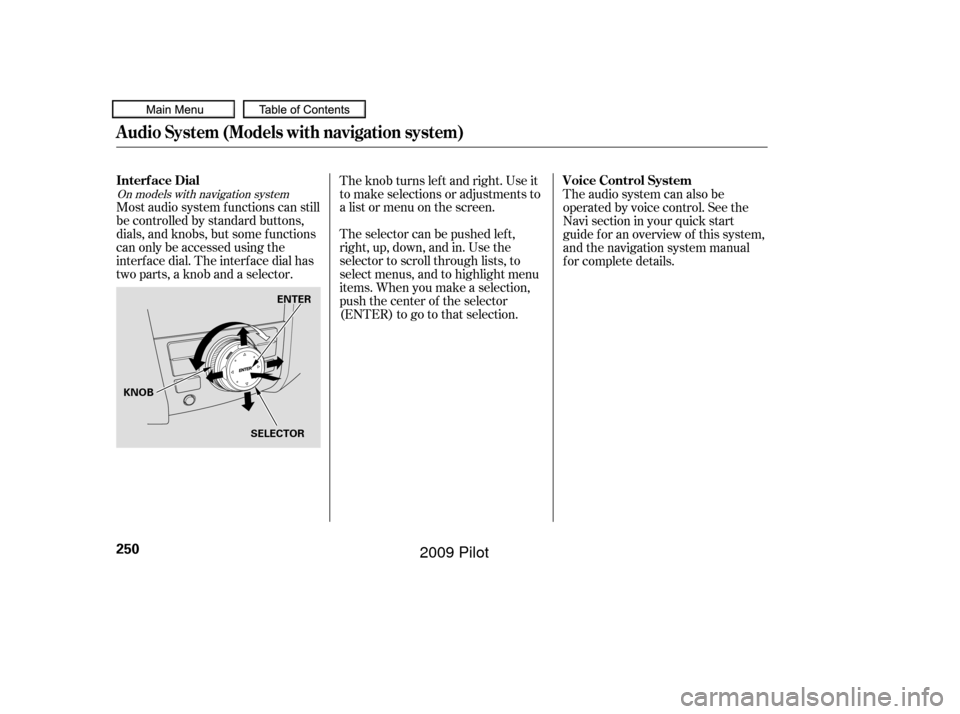

The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection. The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.
Most audio system f unctions can still
be controlled by standard buttons,
dials, and knobs, but some f unctions
can only be accessed using the
interf ace dial. The interf ace dial has
two parts, a knob and a selector. The audio system can also be
operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
On models with navigation system
Interf ace Dial
Voice Control System
Audio System (Models with navigation system)
250
SELECTOR
KNOB ENTER
——
y

y
(/yy
2009 Pilot

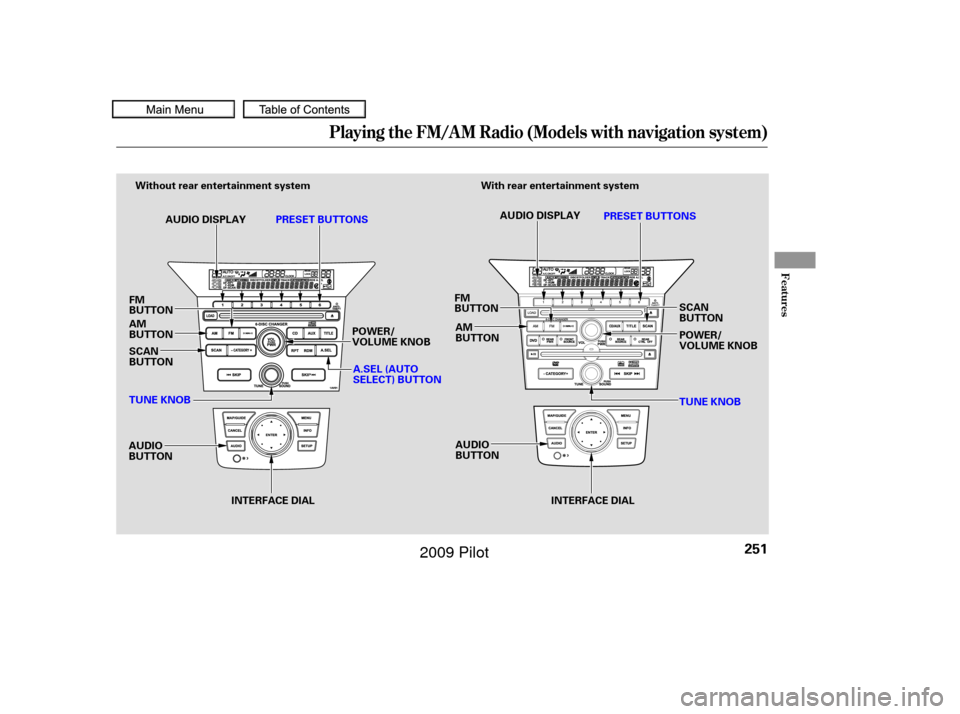

Playing the FM/A M Radio (Models with navigation system)
Features
251
INTERFACE DIALAUDIO DISPLAY
PRESET BUTTONS
With rear entertainment system
Without rear entertainment system
INTERFACE DIAL
FM
BUTTON
AM
BUTTON
SCAN
BUTTON
AUDIO DISPLAY
PRESET BUTTONS
TUNE KNOB
AUDIO
BUTTON POWER/
VOLUME KNOB
AUDIO
BUTTON AM
BUTTON
FM
BUTTON
SCAN
BUTTON
TUNE KNOB POWER/
VOLUME KNOB
A.SEL (AUTO
SELECT) BUTTON
——
y


y
(/yy
2009 Pilot

µUse the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. To tune with the
interf ace dial, push the selector
down, and turn the knob to TUNE.
Then press ENTER on the selector,
andturntheknobtothedesired
f requency. To exit the TUNE mode,
press ENTER on the selector.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
power/volume knob, the AM, or FM
button. Adjust the volume by turning
the power/volume knob. The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, press
the AM or FM button. You can also
change bands by pushing the
interf ace selector up. Each time you
push it up, the band will change to
FM1, FM2, or AM. On the FM bands,
STEREO will be shown on the
navigation screen and ST on the
audio display, if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select.
TUNE
To Play the FM/AM Radio
To Select a Station
Playing the FM/A M Radio (Models with navigation system)
252

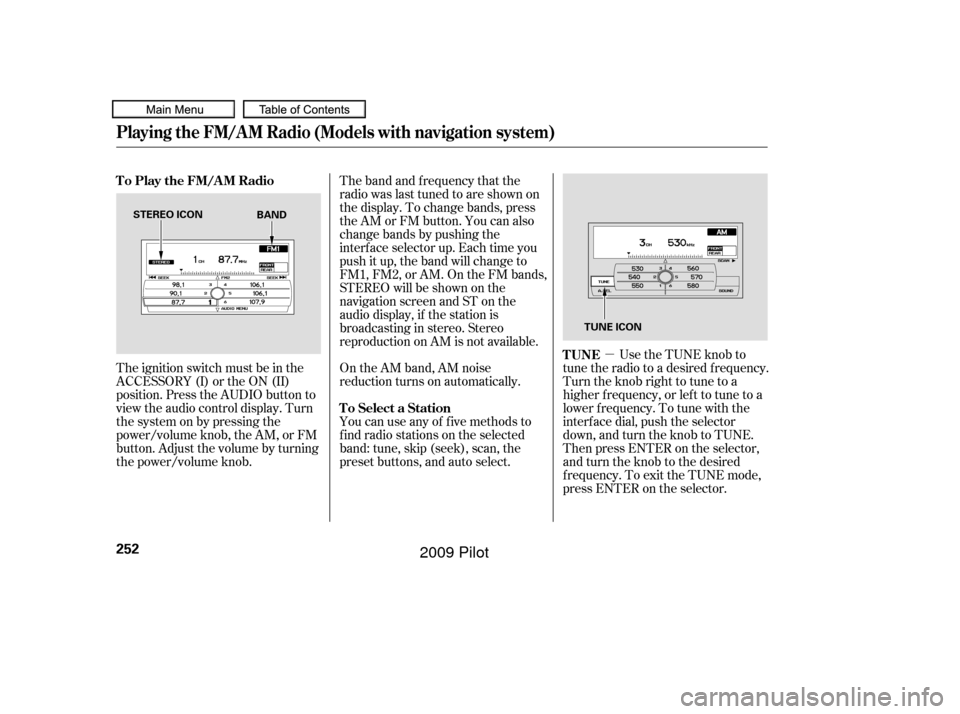

STEREO ICON TUNE ICON
BAND
——
y

y
(/yy
2009 Pilot
