2009.5 Peugeot 308 SW BL Dag Owner's Manual

ii
60
COMFORT When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.

 Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).
Automatic operation

 Press the "AUTO" button.
The indicator lamp on the
button comes on. 2. Driver's side adjustment
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend the use of this mode: it
permits automatic and optimised adjust-
ment of all of the functions, passenger
compartment temperature, air fl ow, air
distribution and air recirculation, in ac-
cordance with the comfort value that you
have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

 To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp on the
button switches off and the indicator
lamp on the "AUTO" button comes
on.
1. Automatic comfort programme
3. Passenger side adjustment

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

!
i
61
COMFORT
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.

 Pressing the "AUTO" button returns
the system to completely automatic
operation.

 Press this button to switch
off the air conditioning. 6. Air distribution adjustment

 Press one or more buttons to
direct the air fl ow towards:
7. Air fl ow adjustment
 Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
8. Air intake/Air recirculation Switching the system off

 Turn the air fl ow control to the left
until all of the indicator lamps switch
off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no longer
guaranteed but a slight fl ow of air, due
to the movement of the vehicle, can still
be felt.

 Turn the air fl ow dial to the right
or press the "AUTO" button to
reactivate the system with the values
set before it was switched off.

 Press this button for
recirculation of the interior
air. The indicator lamp on
the button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and deterio-
ration of the air quality).
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested.
 As soon as possible, press this
button again to permit the intake of
outside air and prevent the formation
of condensation. The indicator lamp
on the button switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.

 Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono-zone/Dual-zone

 Press this button to equalise
the comfort value on the
passenger side with that
on the driver's side (mono
zone). The indicator lamp
on the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).

 Press this button again to return
to automatic operation of the air
conditioning. The indicator lamp on
the "A/C" button comes on.

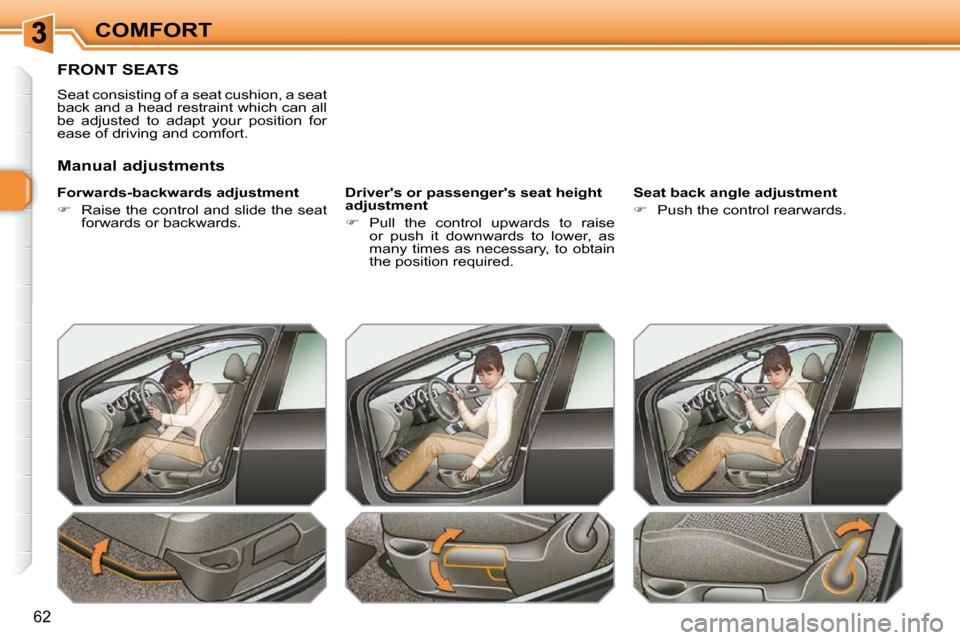

62
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment

 Raise the control and slide the seat
forwards or backwards. Driver's or passenger's seat height
adjustment

 Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. Seat back angle adjustment

 Push the control rearwards.
Manual adjustments

i

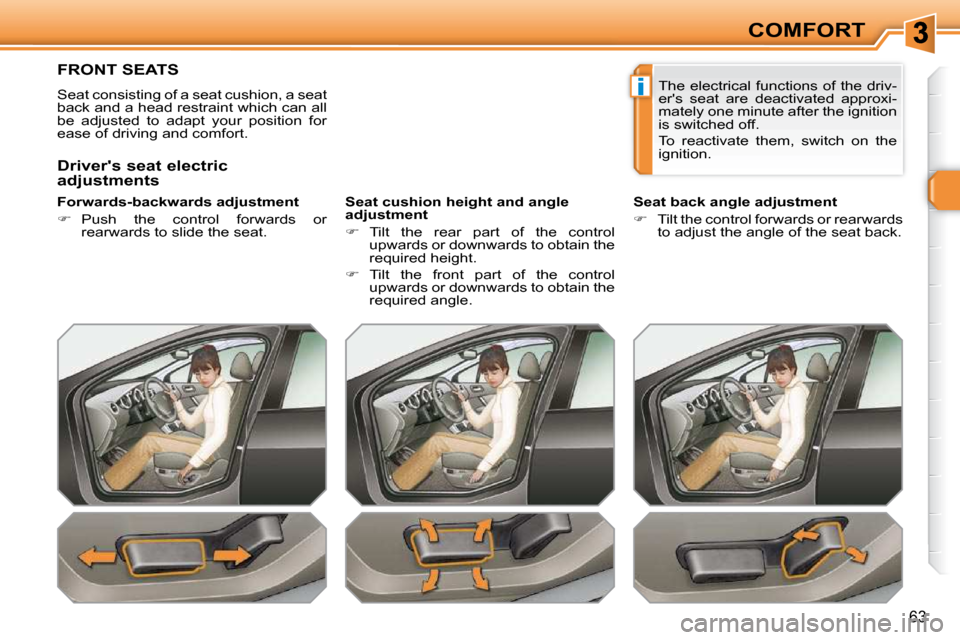

63
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment

 Push the control forwards or
rearwards to slide the seat. Seat cushion height and angle
adjustment

 Tilt the rear part of the control
upwards or downwards to obtain the
required height.

 Tilt the front part of the control
upwards or downwards to obtain the
required angle. Seat back angle adjustment

 Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver's seat electric
adjustments The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.

!
i

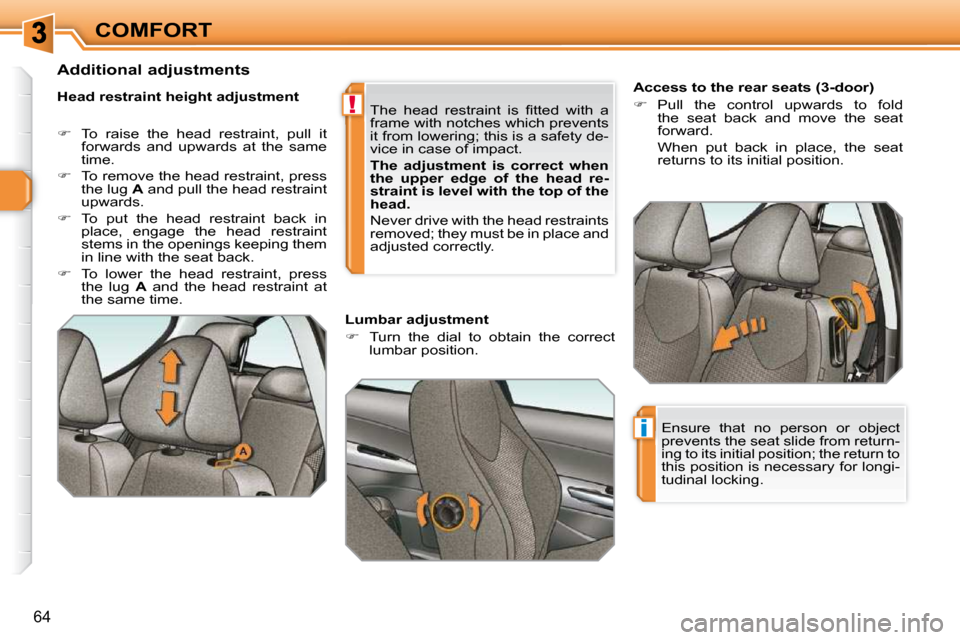

64
COMFORT
Access to the rear seats (3-door)

 Pull the control upwards to fold
the seat back and move the seat
forward.
When put back in place, the seat returns to its initial position.
Head restraint height adjustment

 To raise the head restraint, pull it
forwards and upwards at the same
time.

 To remove the head restraint, press
the lug A and pull the head restraint
upwards.

 To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

 To lower the head restraint, press
the lug A and the head restraint at
the same time. The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.

The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment

 Turn the dial to obtain the correct
lumbar position.

Additional adjustments
Ensure that no person or object
prevents the seat slide from return-
ing to its initial position; the return to
this position is necessary for longi-
tudinal locking.

i
65
COMFORT
Table position for front
passenger seat
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.

 Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.

 Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. Do not forget to fold the "aircraft"
type table fi xed on the back of the
seat fi rst.
Heated seats control
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:

0
: Off.

1
: Low.

2
: Medium.

3
: High.

i!
66
COMFORT

Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
er's seat and the door mirrors return to
the position stored by the remote con-
trol key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and door mirrors.
Each remote control key can store one
specifi c setting.
Ignition on

 Briefl y press button 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. Vehicle moving

 Press and hold button 1 or 2 until
the audible signal is heard indicating
the end of the adjustment.
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and the door
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the position has been stored.

i
65
COMFORT
Table position for front
passenger seat
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.

 Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.

 Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. Do not forget to fold the "aircraft"
type table fi xed on the back of the
seat fi rst.
Heated seats control
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:

0
: Off.

1
: Low.

2
: Medium.

3
: High.
