FITTINGS
BOOT FITTINGS

1. Rear parcel shelf
(see details on following page)

2. 12 V
accessories socket
(see details on following page)

3. Hooks
(see details on following page)

4. Stowing rings

5. Storage tray

6. High load retaining net
(see details on following page)

7. Luggage retaining strap

i
112
FITTINGS

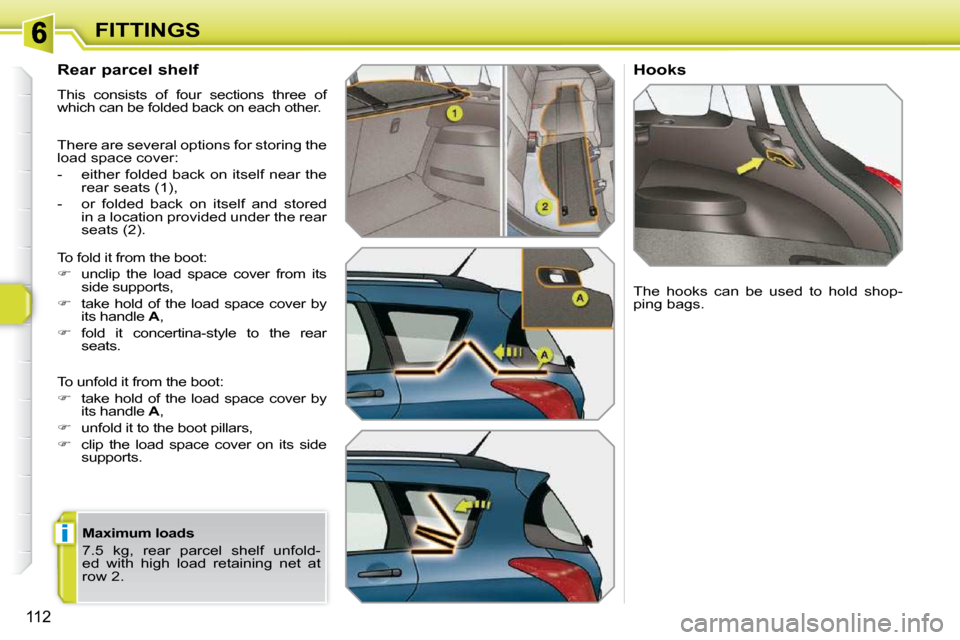

Rear parcel shelf
This consists of four sections three of
which can be folded back on each other.
There are several options for storing the
load space cover:
- either folded back on itself near the rear seats (1),
- or folded back on itself and stored in a location provided under the rear
seats (2).
To fold it from the boot:

 unclip the load space cover from its
side supports,

 take hold of the load space cover by
its handle A ,

 fold it concertina-style to the rear
seats.
To unfold it from the boot:

 take hold of the load space cover by
its handle A ,

 unfold it to the boot pillars,

 clip the load space cover on its side
supports. Hooks
Maximum loads
7.5 kg, rear parcel shelf unfold-
ed with high load retaining net at
row 2. The hooks can be used to hold shop-
ping bags.

i
i
113
FITTINGS
High load retaining net
Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:


open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 slacken the straps fully,

 fi x the snap hook of each of the
straps on the corresponding bar 3 ,
located under the cushion of the
rear seats,

 fold the rear seats,

 tighten the straps,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 fold or remove the load space cover,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2 , then do the same with the
other end,

 fi x the snap hook of each of the
straps in the corresponding ring 4 ,
located on the rear seats mechanism
support,

 tighten the straps,

 check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the storage
tray on the fl oor.

FITTINGS
BOOT FITTINGS

1. Load space screen
(see details on following page)

2. Storage box

3. 12 V
accessories socket
(see details on following page)

4. Hooks
(see details on following page)

5. Stowing rings

6. High load retaining net
(see details on following page)

7. Rear armrests with can holder

8. Luggage retaining strap

9. Location for torch or for Hi-Fi
amplifi er
(see details on following page)

i
115
FITTINGS

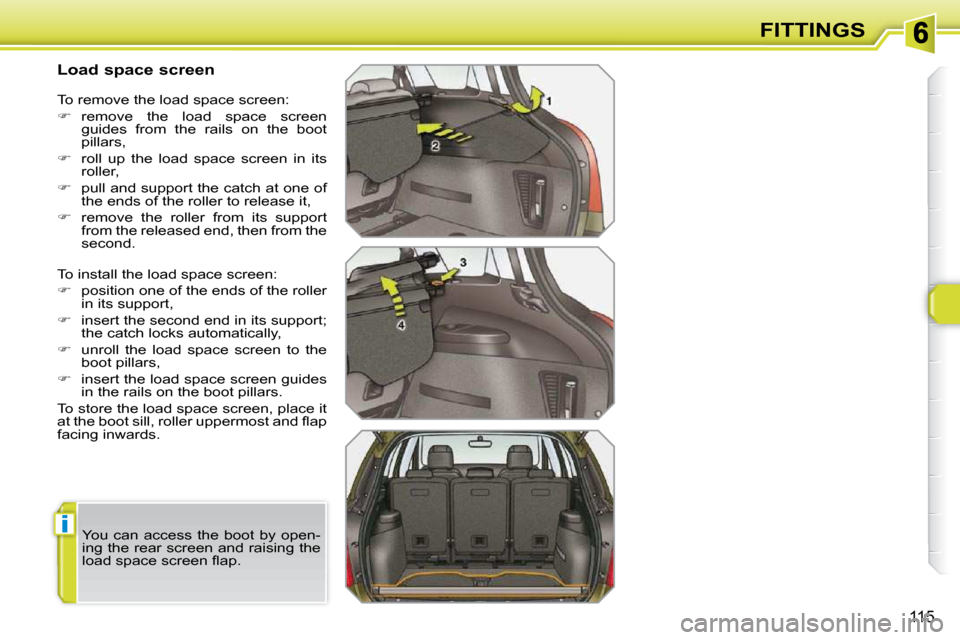

Load space screen
To install the load space screen:

 position one of the ends of the roller
in its support,

 insert the second end in its support;
the catch locks automatically,

 unroll the load space screen to the
boot pillars,

 insert the load space screen guides
in the rails on the boot pillars.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards.
To remove the load space screen:

 remove the load space screen
guides from the rails on the boot
pillars,

 roll up the load space screen in its
roller,

 pull and support the catch at one of
the ends of the roller to release it,

 remove the roller from its support
from the released end, then from the
second.
You can access the boot by open-
ing the rear screen and raising the
load space screen fl ap.

i
116
FITTINGS
High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row. 12 V accessories socket

 In order to connect a 12 V accessory
(max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.

 Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):

 roll up or remove the load space
screen,


open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 attach the snap hook of each of the
net's straps in the corresponding
ring 2 , located on the lower fi xing of
the rear side seat belt,

 tighten the straps,

 check that the net is hooked and
tightened correctly. Hooks
The hooks permit the securing of shop-
ping bags.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

!i
117
FITTINGS
Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
For the boot lighting function, refer to
the "Visibility - § Boot lighting" section.
Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approxi-
mately 45 minutes and charges while
you are driving. Use

 Extract the torch from its location
pulling it upwards.

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch off the torch, this switches it off
automatically. Side blinds
Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.

 Pull the blind by the central tab.

 Position the blind attachments on
the corresponding hooks.
Observe the polarities when fi tting
the accumulators.
Never replace the accumulators
with batteries. It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

i
118

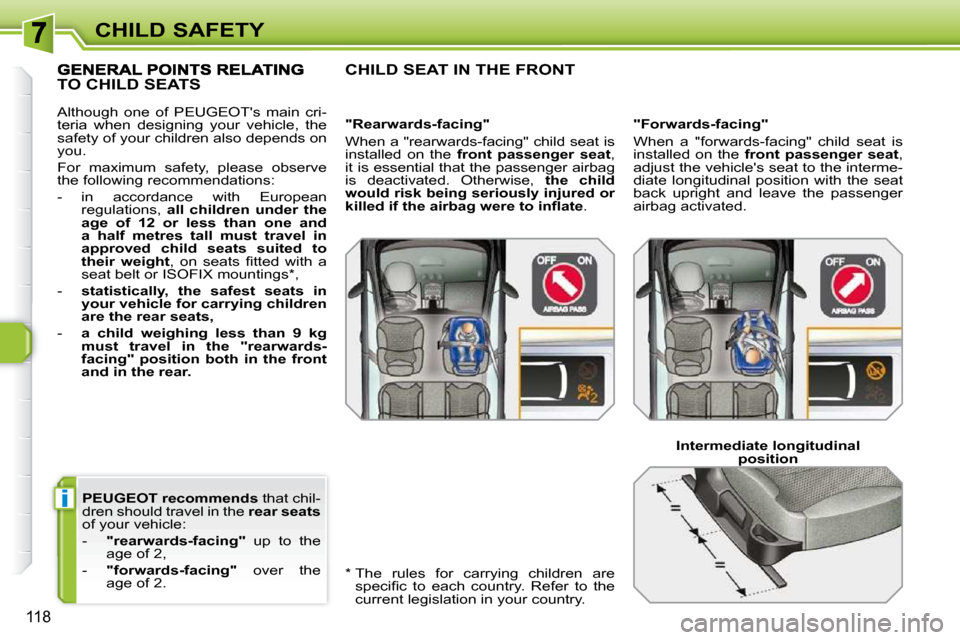

CHILD SAFETY

PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
TO CHILD SEATS CHILD SEAT IN THE FRONT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate .
* The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European
regulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight , on seats fi tted with a
seat belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Intermediate longitudinal position
