2009.5 Peugeot 308 SW BL Dag Owner's Manual

!
67
COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort
and safety) and a low position (rear visi-
bility).
They can also be removed.
To remove a head restraint:

 pull the head restraint fully forwards
and upwards at the same time,

 then, press the lug A . Removing the seat cushion

 Move the corresponding front seat
forwards if necessary.

 Raise the seat cushion 1 lifting it
with a hand from the rear.

 Tilt the seat cushion 1 fully against
the front seat.

 Remove the seat cushion 1 from its
fi xings by pulling upwards.
Refitting the seat cushion

 Position the seat cushion 1 vertically in
its fi xings.

 Fold down the seat cushion 1 .

 Press on the seat cushion to secure it.
Bench seat, the left-hand (2/3) or right-
hand (1/3) section of which can be folded
to adapt the boot load space.

!
i
68
COMFORT
Folding the seat
In order to fold a rear seat without any
risk of damage, always start with the
seat cushion,

never with the seat
back:

 move the corresponding front seat
forwards if necessary,

 raise the seat cushion 1 lifting it with
a hand from the rear,

 tilt the seat cushion 1 fully against
the front seat,
Returning the seat back to its
original position
When returning the rear seat back to its
original position:

 put the seat back 3 in the upright
position and secure it,

 fold the seat cushion 1 ,

 refi t the head restraints or put them
back in place.

 check that the seat belt is positioned
correctly on the side of the seat
back,

 lower or remove the head restraints
if necessary,

 pull the control 2 forwards to release
the seat back 3 ,

 tilt the seat back 3 .
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion
1 can be removed
to increase the loading volume.

ii
i

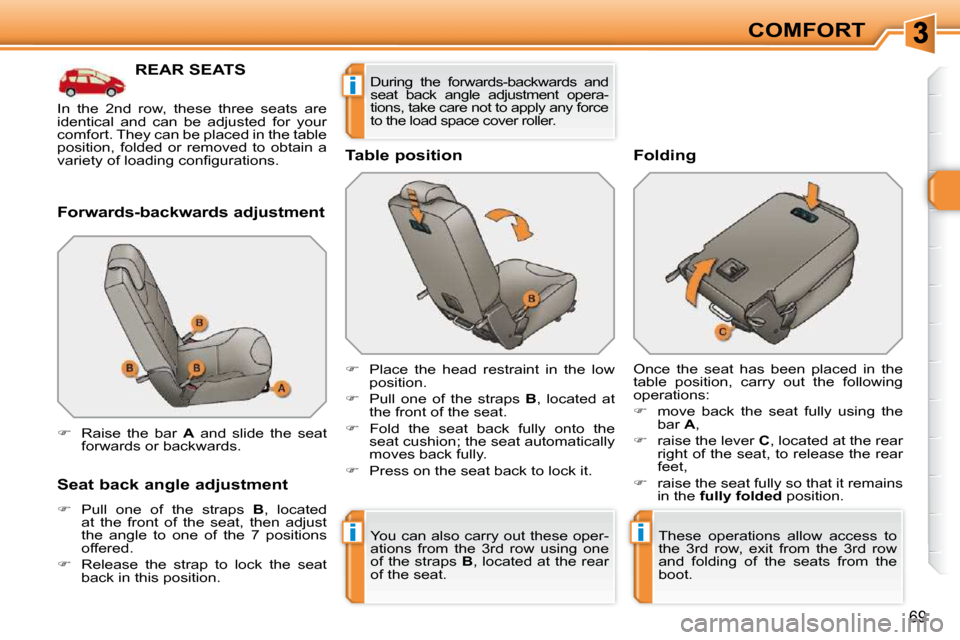

69
COMFORT
REAR SEATS
Forwards-backwards adjustment
Seat back angle adjustment

 Pull one of the straps B , located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.

 Release the strap to lock the seat
back in this position. Table position

 Raise the bar A and slide the seat
forwards or backwards.
 Place the head restraint in the low
position.

 Pull one of the straps B , located at
the front of the seat.

 Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.

 Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:

 move back the seat fully using the
bar A ,

 raise the lever C , located at the rear
right of the seat, to release the rear
feet,

 raise the seat fully so that it remains
in the fully folded position.
You can also carry out these oper-
ations from the 3rd row using one
of the straps B , located at the rear
of the seat. These operations allow access to
the 3

rd row, exit from the 3 rd row
and folding of the seats from the
boot.
In the 2nd row, these three seats are
identical and can be adjusted for your
comfort. They can be placed in the table
position, folded or removed to obtain a
variety of loading confi gurations.
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space cover roller.

!
70
COMFORT
Removal Installation
Once the seat has been folded, carry
out the following operations:

 pull the red strap D to release the
front feet of the seat,

 lift the seat and carry it using the
carrying handle E .
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E provided
for this purpose (weight of the seat:
approximately 18 kg).
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather.
Locked Released

 Tilt the folded seat rearwards; the front
and rear feet lock automatically.

 Pull one of the straps B to release the
seat back, then raise it.

 Check that no object is obstructing
the anchorages on the fl oor, so
preventing correct locking seat's
feet.

 Carry the seat using the carrying
handle E .

 Put the front feet of the seat in place
in the corresponding anchorages.

 Raise the lever C to check that the
rear feet are released.

!

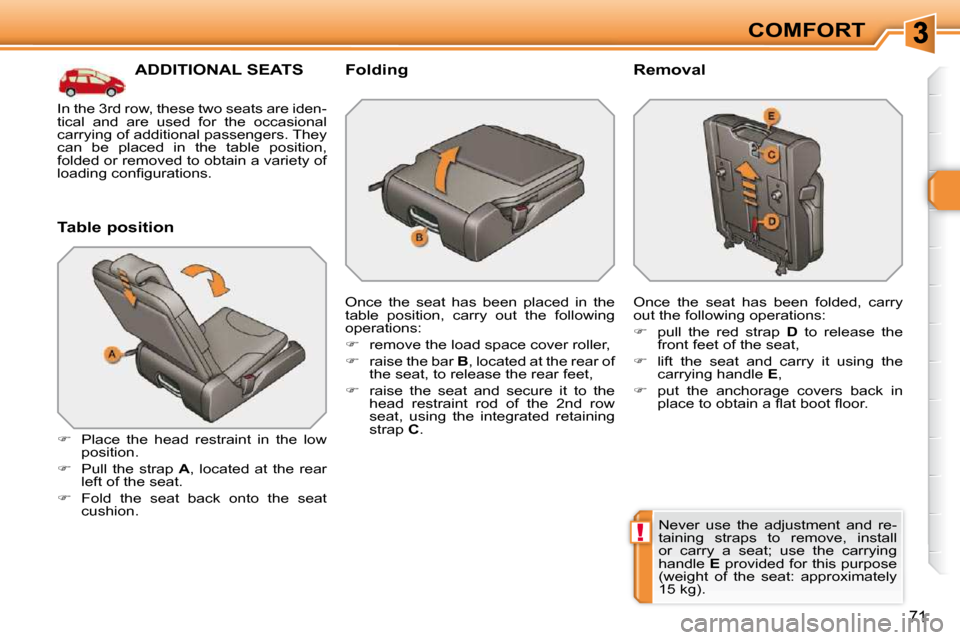

71
COMFORT
ADDITIONAL SEATS
Table position

 Place the head restraint in the low
position.

 Pull the strap A , located at the rear
left of the seat.

 Fold the seat back onto the seat
cushion. Folding
Once the seat has been placed in the
table position, carry out the following
operations:

 remove the load space cover roller,

 raise the bar B , located at the rear of
the seat, to release the rear feet,

 raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C . Removal
Once the seat has been folded, carry
out the following operations:

 pull the red strap D to release the
front feet of the seat,

 lift the seat and carry it using the
carrying handle E ,

 put the anchorage covers back in
place to obtain a fl at boot fl oor.
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E provided for this purpose
(weight of the seat: approximately
15 kg).
In the 3rd row, these two seats are iden-
tical and are used for the occasional
carrying of additional passengers. They
can be placed in the table position,
folded or removed to obtain a variety of
loading confi gurations.

72
COMFORT
Installation

 First remove the anchorage covers
on the fl oor.

 Carry the seat using the carrying
handle E .

 Put the seat's front feet in place in
the corresponding anchorages.

 Raise the bar B to check that the
rear feet are released.

 Tilt the folded seat rearwards; the
front and rear feet lock automati-
cally.

 Raise the seat back.

i
!

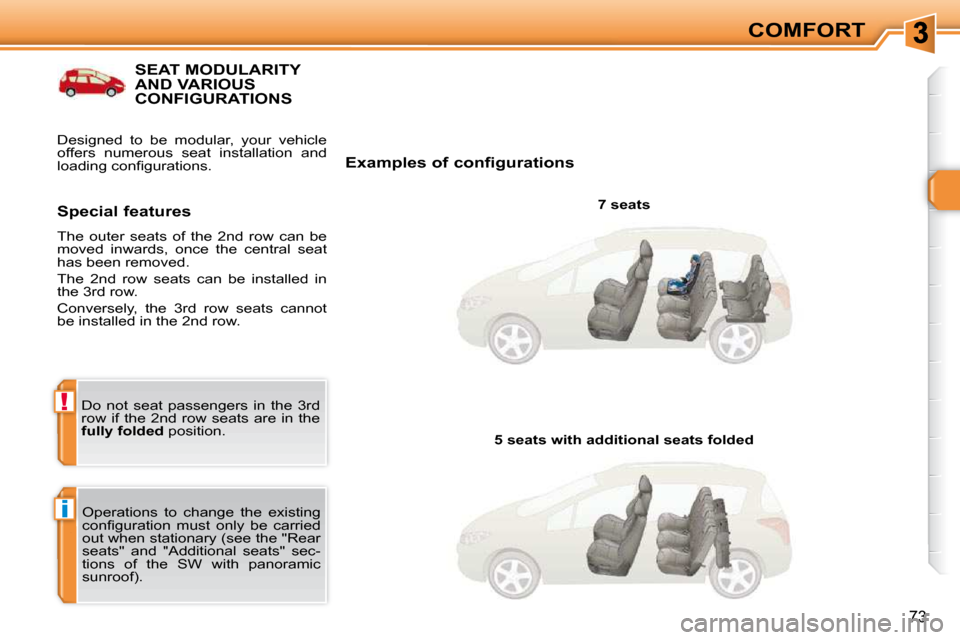

73
COMFORT
SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of configurations 7 seats
Operations to change the existing
confi guration must only be carried
out when stationary (see the "Rear
seats" and "Additional seats" sec-
tions of the SW with panoramic
sunroof).
Special features
The outer seats of the 2nd row can be
moved inwards, once the central seat
has been removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 seats with additional seats folded
Do not seat passengers in the 3rd
row if the 2nd row seats are in the

fully folded position.
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.

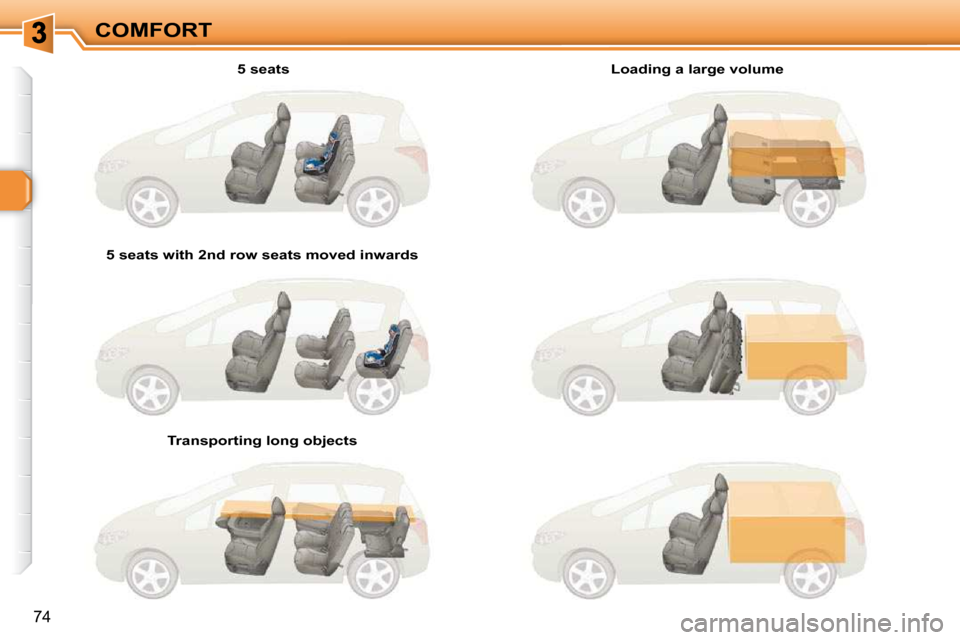

74
COMFORT 5 seats
5 seats with 2nd row seats moved inwards
Transporting long objects Loading a large volume
