PRACTICAL INFORMATION
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
The maximum towing load on a long
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Side wind

 Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

 To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting

 Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
 If the warning lamp and the

STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads

 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
vehicle to more signifi cant stress and its
driver must be particularly careful.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to a
PEUGEOT dealer.
If the trailer is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted using the electrical
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.

11
ii
PRACTICAL INFORMATION

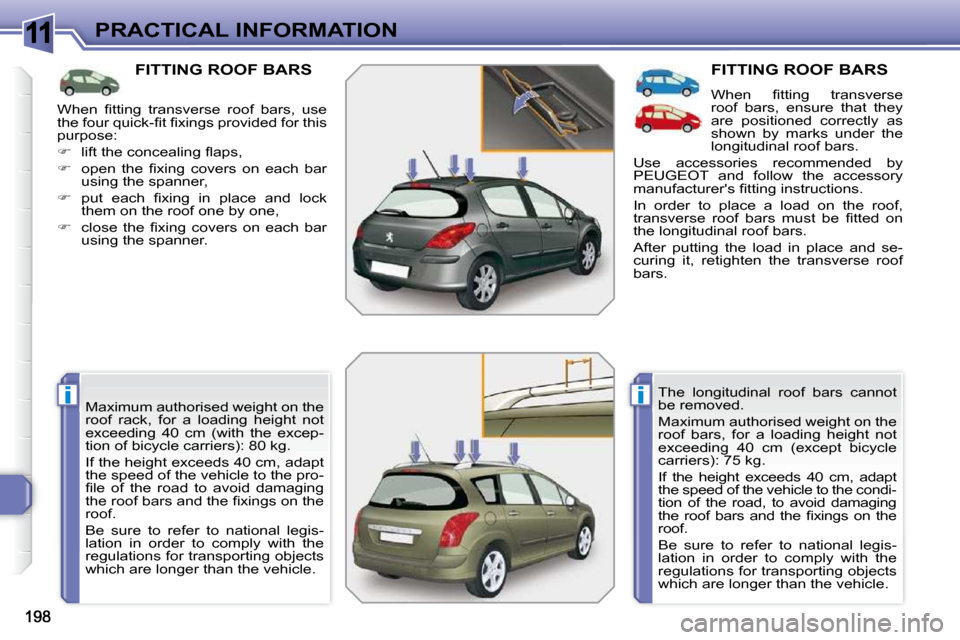

FITTING ROOF BARS
Maximum authorised weight on the
roof rack, for a loading height not
exceeding 40 cm (with the excep-
tion of bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS
When fi tting transverse
roof bars, ensure that they
are positioned correctly as
shown by marks under the
longitudinal roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fi tting instructions.
In order to place a load on the roof,
transverse roof bars must be fi tted on
the longitudinal roof bars.
After putting the load in place and se-
curing it, retighten the transverse roof
bars.
The longitudinal roof bars cannot
be removed.
Maximum authorised weight on the
roof bars, for a loading height not
exceeding 40 cm (except bicycle
carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the condi-
tion of the road, to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:

 lift the concealing fl aps,

 open the fi xing covers on each bar
using the spanner,

 put each fi xing in place and lock
them on the roof one by one,

 close the fi xing covers on each bar
using the spanner.

11
i
199
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
mats ** , boot tray, luggage
net, coat hook fi tted to head
restraints, aluminium or PVC
door sills.
anti-theft alarm, window en-
graving, wheel security locks,
breathalyzer, fi rst aid kit,
warning triangle, high vizibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
Trailer towbar which must be fi tted by
the PEUGEOT network.
** To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting

 Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

 Press around its edge to engage its
fi xing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the ambient temperature exceeds 10 °C,
- when towing,
-
at speeds above 75 mph (120 km/h).
Removal

 Use a screwdriver as a lever to
release each fi xing clip in turn.
* According to country.

11
i
199
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
mats ** , boot tray, luggage
net, coat hook fi tted to head
restraints, aluminium or PVC
door sills.
anti-theft alarm, window en-
graving, wheel security locks,
breathalyzer, fi rst aid kit,
warning triangle, high vizibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
Trailer towbar which must be fi tted by
the PEUGEOT network.
** To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting

 Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

 Press around its edge to engage its
fi xing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the ambient temperature exceeds 10 °C,
- when towing,
-
at speeds above 75 mph (120 km/h).
Removal

 Use a screwdriver as a lever to
release each fi xing clip in turn.
* According to country.

11
!
i
i
200
PRACTICAL INFORMATION The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
Please note this specifi c warning.
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory
to have a high visibilty jacket, warn-
ing triangle and spare bulbs avail-
able in the vehicle.
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van. seat covers compatible with lat-
eral airbags, aluminium gear le-
ver knob, foglamps, sunroof *** ,
door defl ectors, spoiler, styling
strips, alloy wheels, trims, sport
exhaust, body kit.
screenwash, interior and exte-
rior maintenance and cleaning
products.
*** Sunroof which must be fi tted by the PEUGEOT network.
"In-car technology":
audio systems, audio/tele-
phone, amplifi ers, satellite
navigation systems, Bluetooth
system, CD changer, speak-
ers, DVD player, connection
kit for MP3 player or portable
CD player, USB Box, rear
parking sensors.
Installation of
radiocommunication
transmitters
It is advisable to contact a repre-
sentative of the PEUGEOT marque
before installing accessory radio-
communication transmitters with
an external aerial on your vehicle.
The PEUGEOT network will pro-
vide you with the specifi cations
(frequency band, maximum out-
put power, aerial position, spe-
cial installation conditions) of the
transmitters which can be fi tted, in
accordance with the Vehicle Elec-
tromagnetic Compatibility Directive
(2004/104/CE).

12
201
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:

4C... 4A... 4G... 4E... 4H...
8FS-C 8FR-0 5FW-C 5FW-F

PETROL ENGINES
1.4 litre VTi 16V
95
hp
1.4 litre VTi 16V
98
hp
1.6 litre VTi 16V 120
hp
Cubic capacity (cc) 1 397 1 397 1 598
Bore x stroke (mm) 77 x 75 77 x 75 77 x 85.8
Max power: EU standard (kW) 70 72 88
Max power engine speed (rpm) 5 750 6 000 6 000
Max torque: EU standard (Nm) 136 136 160
Max torque engine speed (rpm) 4 250 4 000 4 250
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Auto.
(4-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25 - 4.25 4.25
Gearbox - Final drive 1.9 - 1.9 -

4C...: 5-door.

4A...: 3-door.
4G...: 3-door "Van".

4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.

12
202
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:
4C... 4A... 4E... 4H...
N6A-B
N6A-C
5FX-H 5FT-F 5FV-8 5FV-A

PETROL ENGINES
1.6 litre 16V
108
hp
1.6 litre THP
16V 150
hp
1.6 litre THP
16V 140
hp
1.6 litre THP 16V 156
hp
Cubic capacity (cc) 1 587 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 78 110 103 115
Max power engine speed (rpm) 5 800 5 800 6 000 6 000
Max torque: EU standard (Nm) 142 240 240
Max torque engine speed (rpm) 4 000 1 400 1 400
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes

GEARBOXES Manual
(5-speed) Manual
(6-speed) Auto.
(4-speed) Manual
(6-speed) Auto.
(6-speed)

OIL CAPACITIES (in litres)
Engine (with fi lter replacement) 3.25 4.25 4.25 - -
Gearbox - Final drive 1.9 1.9 - - -

4C...: 5-door.

4A...: 3-door.
4E...: SW with rear bench seat.

4H...: SW with panoramic sunroof.

12
203
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:
4C... 4A... 4E... 4H...
5FY-H
RFJ-B
RFJ-C
RFJ-E
RFJ-F

PETROL ENGINES

1.6 litre THP 16V 175
hp
2 litre 16V 140
hp
Cubic capacity (cc) 1 598 1 997
Bore x stroke (mm) 77 x 85.8 85 x 88
Max power: EU standard (kW) 128 103
Mex power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 240 200
Max torque engine speed (rpm) 1 600 4 000
Fuel Unleaded Unleaded
Catalytic converter Yes Yes

GEARBOXES Manual
(6-speed) Manual
(5-speed) Auto.
(4-speed)

OIL CAPACITIES (in litres)
Engine (with fi lter replacement) 4.25 5 5
Gearbox - Final drive 1.9 1.9 -

4C...: 5-door.

4A...: 3-door.
4E...: SW with rear bench seat.

4H...: SW with panoramic sunroof.
