30
INSTRUMENTS and CONTROLS Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately 6 litres of
fuel left in the tank.
It is imperative that you refuel to avoid
running out of fuel.
This warning lamp comes on again
each time the ignition is switched on,
u n t i l s u f fi c i e n t f u e l h a s b e e n a d d e d .
Capacity of the tank: approximately
60 litres . Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle as
soon as it is safe to do so.
Airbags.
If this comes on, it indicates the
occurrence of a fault in one of
the airbag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened their seat belt. According to
version and/or country, the unfastening
of the seat belt only may be detected for
the front passenger.
It also indicates that one or more rear
passengers have unfastened their seat
belt (on the 2nd row rear seats only on
the SW with panoramic sunroof).
Water in diesel * .
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the injection
system on Diesel engines. Door open.
A door, the boot or the rear
screen is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle as soon as it is safe to do so.
S p e c i fi c w a r n i n g l a m p s
* According to country.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning lamp and the indicator
lamp on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assist system. -
if the speed is below 6 mph (10 km/h), this
warning lamp comes on continuously.
- if the speed is higher than 6 mph (10 km/h),
this warning lamp comes on continuously,
accompanied by an audible signal.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.
Page 11 of 313
!
32
INSTRUMENTS and CONTROLS Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e b r a k e fl u i d level,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning lamp and the indicator lamp
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR sys-
tem or in the hill start assist.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.
Door open.
A door, the boot or the rear
screen is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
t e r y i s fl a t . Fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately
6 litres of
fuel remaining in the tank.
Fill up as soon as possible to avoid run-
ning out of fuel.
This warning lamp reappears each time
t h e i g n i t i o n i s s w i t c h e d o n u n t i l s u f fi c i e n t
fuel has been added.
Capacity of the tank: approximately
60 litres .
S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wiper stalk, it indi-
c a t e s t h a t t h e s c r e e n w a s h fl u i d
level is low.
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u i d
reservoir when you next stop. -
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,
- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.
Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Page 12 of 313
INSTRUMENTS and CONTROLS Water in diesel * .
If this is displayed, it indicates
the presence of water in the
d i e s e l fi l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
P a r t i c l e e m i s s i o n fi l t e r
(Diesel).
If this is displayed, linked with
the service warning lamp, it indi-
cates the start of saturation of the parti-
c l e e m i s s i o n fi l t e r o r a l o w d i e s e l a d d i t i v e
reservoir level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer without
delay.
D e fl a t e d t y r e .
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible. Punctured tyre.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking sensor system. 6-speed electronic gear control
gearbox or automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
6-speed electronic gear control gear-
box or automatic gearbox. The gearbox
will then operate in down-grade mode,
locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed
electronic gear control gear-
box or automatic gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in
order to start the engine.
* According to country.
Page 64 of 313
i
!
80
ACCESS

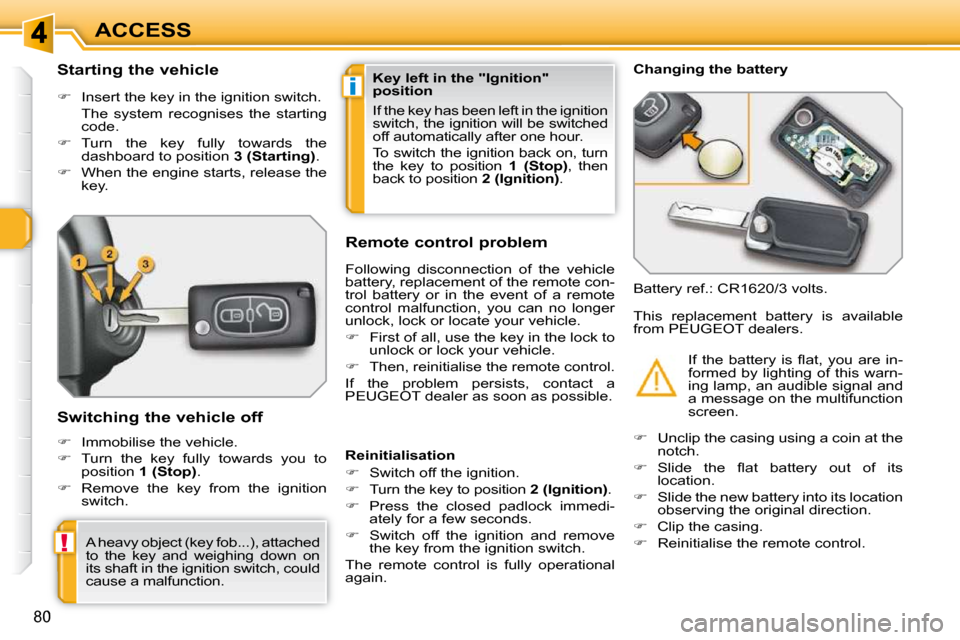

Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the
dashboard to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its location
observing the original direction.
Clip the casing.
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 65 of 313
!
81
ACCESS

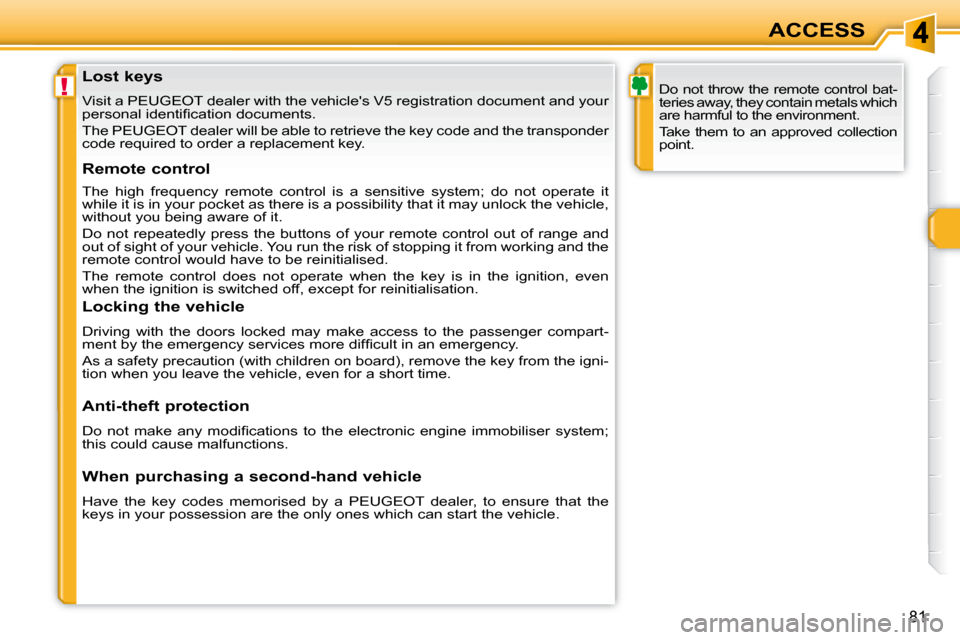

Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration docume nt and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 67 of 313
!
81
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration docume nt and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 68 of 313
i
!
80
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the
dashboard to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its location
observing the original direction.
Clip the casing.
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 137 of 313
!
i
!
141
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and engage
a gear.
PARKING BRAKE
Applying
Pull the parking brake lever fully up
to immobilise your vehicle. When the vehicle is being driven,
if this warning lamp and the
STOP
warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on
or has not been properly released.
Releasing
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
