2009.5 Peugeot 308 SW BL Dag Owner's Manual

11
i
181

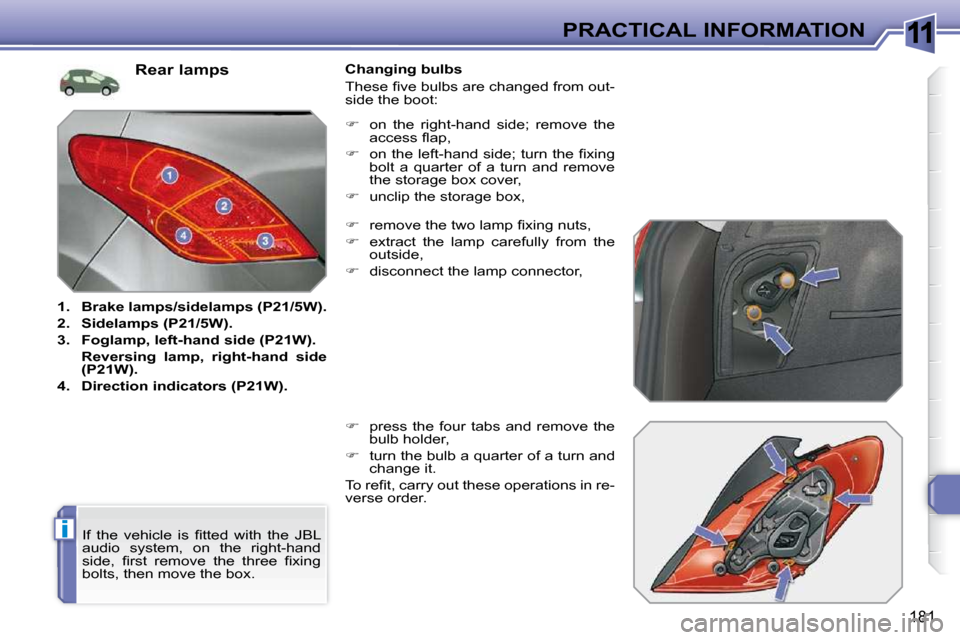

PRACTICAL INFORMATION
Rear lamps

1. Brake
lamps/
sidelamps
(
P21
/
5W
).

2. Sidelamps
(
P21
/
5W
).

3. Foglamp,
left-hand side (
P21W
).
Reversing
lamp,
right-hand side
(
P21W
).

4. Direction indicators (
P21W
). Changing bulbs
These fi ve bulbs are changed from out-
side the boot:

 remove the two lamp fi xing nuts,

 extract the lamp carefully from the
outside,

 disconnect the lamp connector,

 press the four tabs and remove the
bulb holder,

 turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in re-
verse order.
If the vehicle is fi tted with the JBL
audio system, on the right-hand
side, fi rst remove the three fi xing
bolts, then move the box.
 on the right-hand side; remove the
access fl ap,

 on the left-hand side; turn the fi xing
bolt a quarter of a turn and remove
the storage box cover,

 unclip the storage box,

11
182
PRACTICAL INFORMATION
Changing third brake lamp bulbs
(4 bulbs W5W)

 Unclip the tailgate upper trim from
left to right.

 Unscrew the two lamp fi xing nuts A .

 Unclip the lamp's central pin.

 Extract the lamp from the outside.

 Disconnect the bulb holder connector
and the wash-wipe pipe.

 Unclip the bulb holder from the lamp
by pressing on the two tabs B .

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Do not apply force to the lamp when
tightening the nuts. Changing the number plate lamp
bulbs (W5W)

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb and change it.

11
183
PRACTICAL INFORMATION
Rear lamps

1. Brake
lamps/
sidelamps
(
P21
/
5W
).

2. Sidelamps
(
P21
/
5W
).

3. Foglamp,
left-hand side (
P21W
)
Reversing
lamp,
right-hand side
(
P21W
).

4. Direction indicators (
P21W
) Changing bulbs
These fi ve bulbs are changed from out-
side the boot:

 unclip the lamp connector,

 separate the fi ve tabs and remove
the bulb holder,

 turn the bulb a quarter of a turn and
change it.

 open the boot,

 unscrew the two lamp fi xing bolts,

 extract the lamp carefully pulling
it from the bottom and pivoting it
towards the outside,
To refi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.

11
184
PRACTICAL INFORMATION
Changing the number plate lamp
bulbs (W5W)

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb and change it. Changing the third brake lamp
(SW - diodes)
On the versions with opening rear
screen, for the replacement of this type
of diode lamp, contact a PEUGEOT
dealer.
Changing the third brake lamp
(SW - 4 bulbs W5W)

 Remove the two lamp fi xing nuts A .

 Take out the lamp from the outside.

 Disconnect the connector and the
screenwash pipe from the lamp.

 Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Do not force the lamp when tightening
the nuts.

11
!
i
185
PRACTICAL INFORMATION PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Access to the tools
The extraction pliers and the spare fus-
es are installed on the back of the dash-
board fusebox cover.
To gain access to them:

 turn the screw a quarter of a turn to
the left,

 unclip the cover by pulling at the top
right,

 remove the cover completely,

 remove the pliers. Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below.
Correct Incorrect

11PRACTICAL INFORMATION
Dashboard fuses
The fusebox is placed in the lower sec-
tion of the dashboard (left-hand side).
Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse tables

Fuse N° Rating Functions

F1 15 A Rear wiper.

F2 30 A Locking and deadlocking earth.

F3 5 A Airbags and pretensioners control unit.

F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.

F5 30 A Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.

F6 30 A Rear one-touch electric windows, trailer fusebox.

F7 5 A Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor illumination, glove box
illumination, torch.

F8 20 A Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection.

F9 30 A Front 12 V socket.

F10 15 A Steering mounted controls, alarm siren, alarm
control unit.

F11 15 A Low current ignition switch.

11PRACTICAL INFORMATION

Fuse N° Rating Functions

G36 30 A Driver and passenger heated seats.

G37 5 A Driving position memory unit, lighting rheostat.

G38 30 A Driver's seat memory unit.

G39 30 A Trailer fusebox supply.

G40 30 A Hi-Fi amplifi er.

Fuse N° Rating Functions

F12 15 A
Instrument panel, seat belt and passenger's front a
irbag
warning lamps display, air conditioning, driver's s eat
memory unit, 2nd row rear seat switches, driving sc hool
module.

F13 5 A Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.

F14 15 A Multifunction screen, amplifi er, Bluetooth system,
rain/brightness sensor, parking sensors control
unit.

F15 30 A Locking and deadlocking.

F17 40 A Rear screen and door mirrors demist/defrost.

SH - PARC shunt.

11
188
PRACTICAL INFORMATION
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox. Fuse table

Fuse N° Rating Functions

F1 20 A Engine control unit supply, injection pump and EGR
electrovalves (2 l HDI 16V), injectors (2 l HDI 16V).

F2 15 A Horn.

F3 10 A Front/rear wash-wipe.

F4 20 A Headlamp wash.

F5 15 A Purge canister, turbine discharge and Turbo
pressure regulation electrovalves (1.6 l THP 16V),
oil vapour heater (1.6 l THP 16V), diesel heater
(1.6 l HDI 16V).

F6 10 A Vehicle speed sensor, ABS/ESP control unit.

F7 10 A Power steering control unit, automatic gearbox,
engine coolant level detector.

F8 25 A Starter motor control.

F9 10 A Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel).

F10 30 A Engine control unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat) (Diesel:
electrovalves, heaters).

F11 40 A Air conditioning blower.
