278
7
6
5
4
3
2
1
03

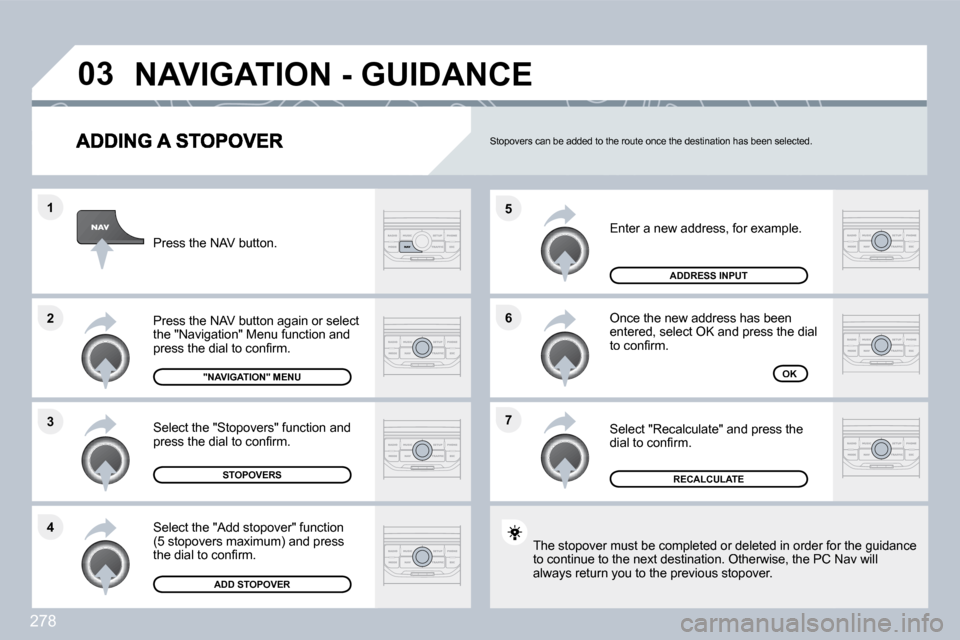

Enter a new address, for example.
Once the new address has been entered, select OK and press the dial to confi rm.
Select "Recalculate" and press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Add stopover" function (5 stopovers maximum) and press the dial to confi rm.
Select the "Stopovers" function and press the dial to confi rm.
OK
ADDRESS INPUT
ADD STOPOVER
STOPOVERS
"NAVIGATION" MENU
RECALCULATE
The stopover must be completed or deleted in order
for the guidance The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the PC N PC Nav will always return you to the previous stopover.
Stopovers can be added to the route once the destination has been selected.
NAVIGATION - GUIDANCE

279
8
6
7
4
3
5
2
1
03 NAVIGATION - GUIDANCE

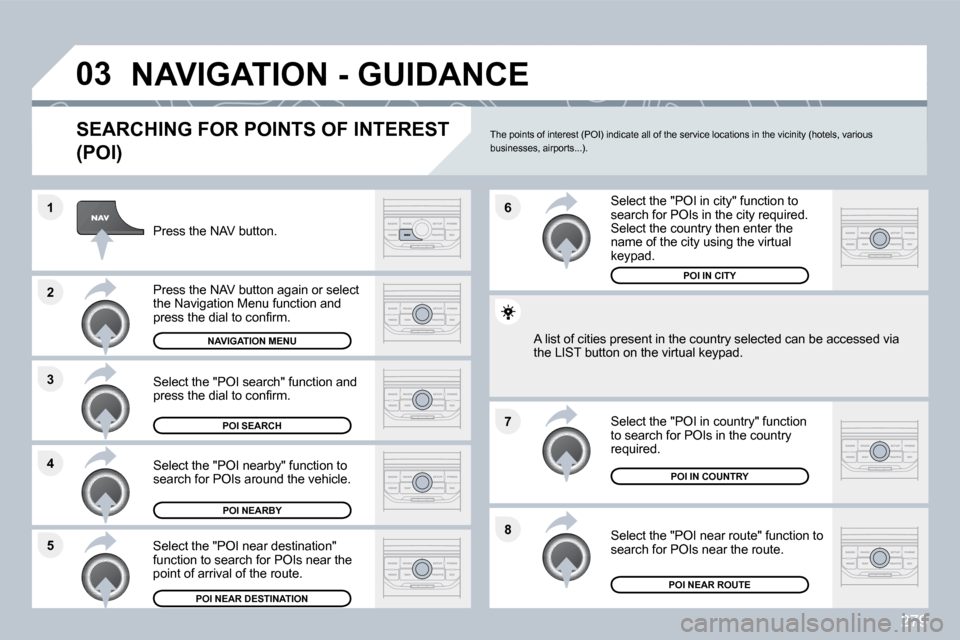

SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm.
NAVIGATION MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION POI NEAR ROUTE
POI IN COUNTRY
POI IN CITY
A list of cities present in the country selected
can be accbe accessed via the LIST button on the virtual keypad.
The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

280
03 NAVIGATION - GUIDANCE

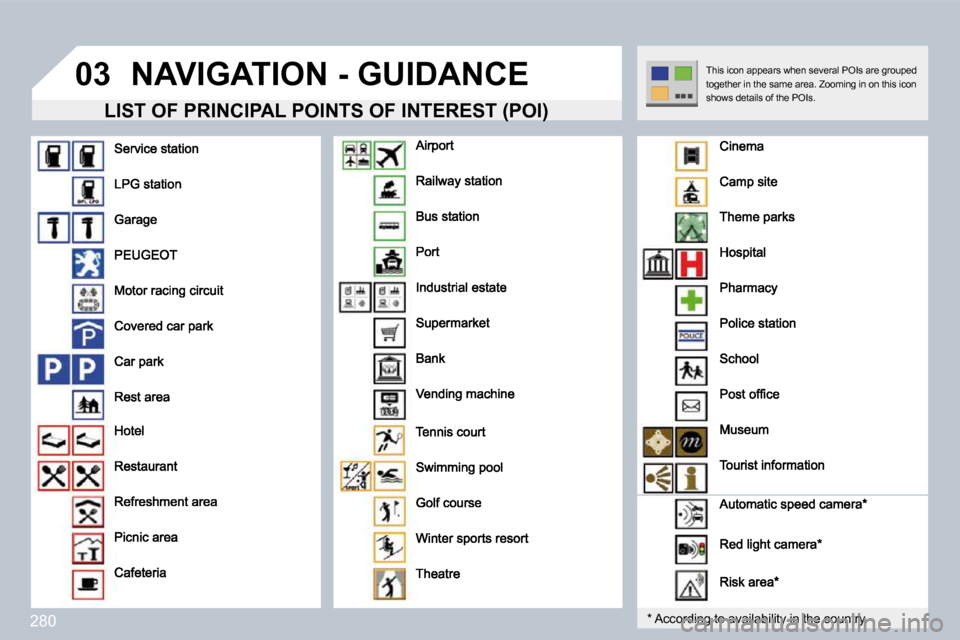

LIST OF PRINCIPAL POINTS OF INTEREST (POI) LIST OF PRINCIPAL POINTS OF INTEREST (POI)
* According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.

281
5
6
3
2
1
4
03
NAVIGATION SETTINGS
Select "Set parameters for risk areas" to gain access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "Settings" function and press the dial to confi rm.
POI CATEGORIES ON MAP
SETTINGS
SET PARAMETERS FOR RISK AREAS
NAVIGATION MENU
NAVIGATION - GUIDANCE
Select the "Navi volume" function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
NAVI VOLUME
The volume of the Risk Areas POIs alert can only
be adjusted during this type of alert.
UPDATING THE RISK AREAS POIs
This requires an SDHC (High Capacity) compatible r eader. Download the update fi le from the Internet (www.peugeot.fr or www.peugeot.co.uk). Open this fi le and copy the extracted documents to the DATABASE folder on the SD card, replacing the existing fi les.

282
2
1
3 4
5

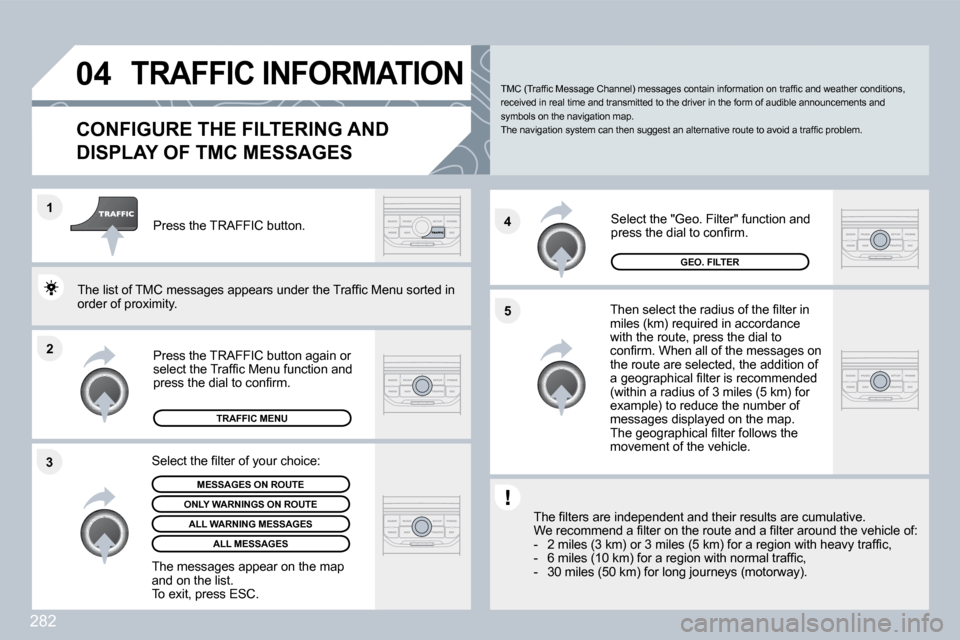

04 TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES
Then select the radius of the fi lter in miles (km) required in accordance with the route, press the dial to confi rm. When all of the messages on the route are selected, the addition of a geographical fi lter is recommended (within a radius of 3 miles (5 km) for example) to reduce the number of messages displayed on the map. The geographical fi lter follows the movement of the vehicle.
The fi lters are independent and their results are
cumulative. The fi lters are independent and their results are cumulative. We recommend a fi lter on the route and a fi lter ar ound the vehicle of: We recommend a fi lter on the route and a fi lter around the vehicle of: - 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c, - 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c, - 6 miles (10 km) for a region with normal traffi c, - 30 miles (50 km) for long journeys (motorway).
Press the TRAFFIC button again or select the Traffi c Menu function and press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the driver in the form of audible announcements and symbols on the navigation map. The navigation system can then suggest an alternat ive route to avoid a traffi c problem.
Select the "Geo. Filter" function and press the dial to confi rm.
MESSAGES ON ROUTE
The list of TMC messages appears under the Traffi c Menu sorted in The list of TMC messages appears under the Traffi c Menu sorted in order of proximity.
ONLY WARNINGS ON ROUTE
TRAFFIC MENU
Select the fi lter of your choice:
ALL WARNING MESSAGES
ALL MESSAGES
The messages appear on the map and on the list. To exit, press ESC.
GEO. FILTER

283
04
2
1
3
2
1
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, par
example:
Black and blue triangle: general information, for example:
With the current audio source displayed on the screen, press the dial.
The shortcut menu for the source appears and give s access to: The shortcut menu for the source appears and gives access to:
Select Traffi c Announcements (TA) and press the dial to confi rm and go to the associated settings.
TA
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good rece ption of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, J ukebox, ...) is interrupted automatically to play the TA message. N ormal playback of the audio source resumes at the end of the transmission of the message.
RECEIVING TA MESSAGES

284
3
2
1
1
05
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and prov
idesovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TA
RDS, if displayed, allows you to continue listening to the same RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative freque ncies. However, in station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during the territory. This explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
REGIONAL PROG.
RADIOTEXT
RDS
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad fo r moor more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stothe stored radio station.
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

285
06 MUSIC MEDIA PLAYERS
CD, MP3/WMA CD
INFORMATION AND ADVICE
In order to be able to play a recorded CDR or CDRW, when In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard. If the disc is recorded in another format it may not be pla be played correctly. It is recommended that the same recording standard is always used It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is In the particular case of a multi-session CD, the Joliet standard is recommended.
The PC Nav will only play audio fi les with the extension ".mp3" with The PC Nav will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and the exte nsion ".wma" a speed of between 8 Kbps and 320 Kbps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1, 2 & 2. 5 Au 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
It is advisable to restrict fi le names to 20 characters, without using It is advisable to restrict fi le names to 20 characters, without using special characters (e.g.: " " ? ; ù) to avoid any p lay or display special characters (e.g.: " " ? ; ù) to avoid any play or display problems.
