2009.5 Peugeot 308 SW BL Dag Owner's Manual

!
81
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration docume nt and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

!
i
79
ACCESS
Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.

 Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle. Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this
position for more than two seconds
to close the windows automatically
in addition to locking (according to
version).

 Turn the key to the right again
within fi ve seconds to deadlock the
vehicle. Folding the key

 First press button A to fold the key. Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.

 Press the closed padlock on the
remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

!
81
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration docume nt and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

i
!
80
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the
dashboard to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to
position 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its
location.

 Slide the new battery into its location
observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

!
i
82
ACCESS
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as a self-
protection function. Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
on button A fl ashes once per second.
The exterior perimeter protection is acti-
vated, 5 seconds after the locking button
on the remote control is pressed.
The interior volumetric protection is acti-
vated, 45 seconds after the locking but-
ton on the remote control is pressed.
Exterior perimeter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Self-protection function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation

 Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indicator
lamp on button A switches off.
If an opening - door or boot - is
not closed fully, the vehicle is not
locked, but the exterior perimeter
protection will be activated after
45 seconds at the same time as
the interior volumetric protection.

!
i

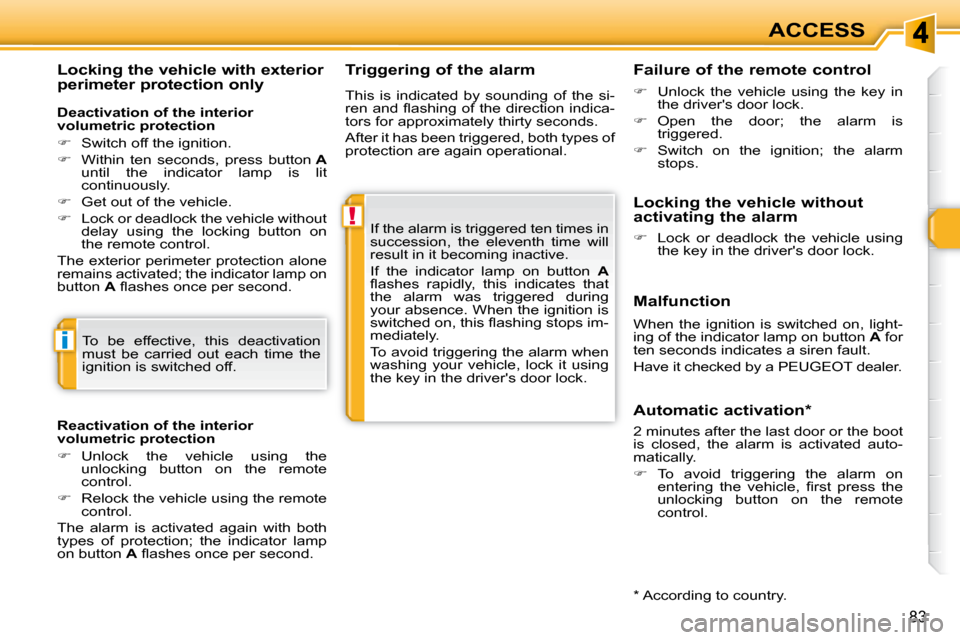

83
ACCESS
Triggering of the alarm
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is
triggered.

 Switch on the ignition; the alarm
stops.
Malfunction

 Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic activation *
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, both types of
protection are again operational.
Failure of the remote control
Locking the vehicle without
activating the alarm
When the ignition is switched on, light-
ing of the indicator lamp on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
* According to country.
2 minutes after the last door or the boot
is closed, the alarm is activated auto-
matically.

 To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection

 Unlock the vehicle using the
unlocking button on the remote
control.

 Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp
on button A fl ashes once per second.
Locking the vehicle with exterior
perimeter protection only
Deactivation of the interior
volumetric protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator lamp is lit
continuously.

 Get out of the vehicle.

 Lock or deadlock the vehicle without
delay using the locking button on
the remote control.
The exterior perimeter protection alone
remains activated; the indicator lamp on
button A fl ashes once per second.

i
i
!
84
ACCESS The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control panel, carry out
the operation from the control panel
of the passenger door concerned,
and vice versa.
ELECTRIC WINDOWS
Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.

1. Driver's electric window control.

2. Passenger's electric window
control.

3. Rear right electric window
control.

4. Rear left electric window control.

5. Deactivation of the rear electric
window and door controls. If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:

 press and hold the control until
the window opens fully,

 then pull the control immediately
and hold it until the window
closes,

 continue to hold the control for
approximately one second after
the window has closed.

The safety
anti
-
pinch
function is
not operational during these op-
erations.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
-
automatic mode

 Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

 Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
-
manual mode

 Press or pull the control gently.
The window stops when the
control is released. After approximately ten consecutive
complete opening/closing move-
ments of the window, a protection
function is activated which only au-
thorises closing of the window to
prevent damage to the electric win-
dow motor.
Once the window is closed, the con-
trols will become available again
after approximately 40 minutes.

!
i
!
85
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it again
until the window closes fully,

 continue to hold the control for
approximately one second after the
window has closed,

 press the control to lower the window
automatically to the low position,

 when the window has reached the
low position, press the control again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Deactivation of the rear electric
window and door controls

 For the safety of your children, press
control 5 to deactivate the rear
electric window controls regardless
of their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.

The safety
anti
-
pinch
function is not
operational during these operations.
