PRACTICAL INFORMATION
CHANGING A WHEEL
Procedure for changing a
faulty wheel for the spare
wheel using the tools pro-
vided with the vehicle.
The wheelbrace 1 is installed in the boot
left-hand side trim.
The tools 2 and 3 are installed in a box,
in the centre of the spare wheel, placed
underneath the vehicle.
To gain access to them:

 open the boot,

 open the access fl ap in the left-hand
side trim,

 remove the wheelbrace from its
support,

 refer to the paragraph "Access to
the spare wheel" on the next page
to retrieve the other tools.

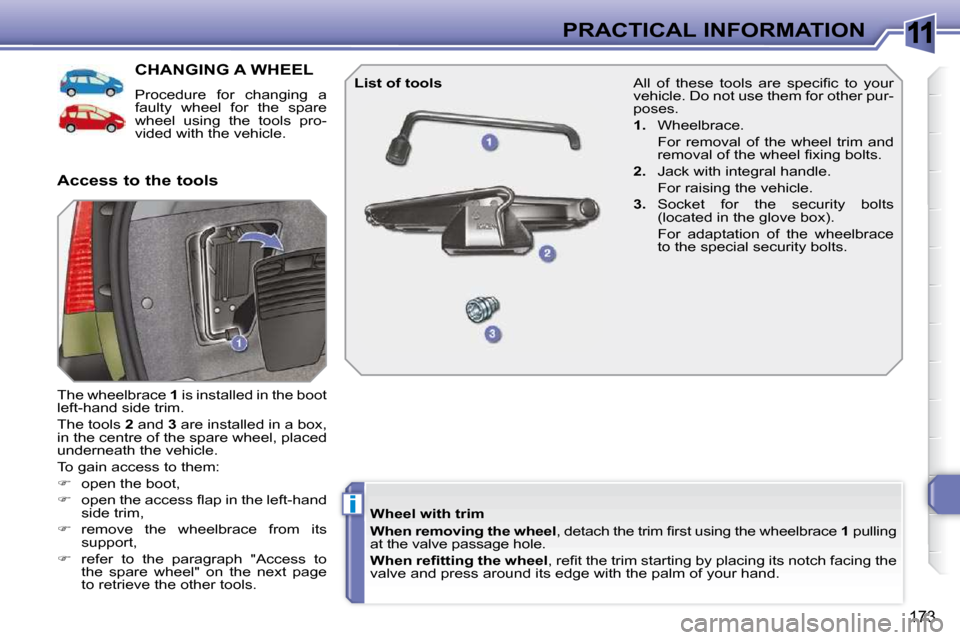

Access to the tools
List of tools
Wheel with trim

When removing the wheel , detach the trim fi rst using the wheelbrace 1 pulling
at the valve passage hole.

When refi tting the wheel , refi t the trim starting by placing its notch facing the
valve and press around its edge with the palm of your hand.
All of these tools are specifi c to your
vehicle. Do not use them for other pur-
poses.

1. Wheelbrace.
For removal of the wheel trim and removal of the wheel fi xing bolts.

2. Jack with integral handle.
For raising the vehicle.

3. Socket for the security bolts
(located in the glove box).
For adaptation of the wheelbrace to the special security bolts.

11
i
174
PRACTICAL INFORMATION
Fixing the steel or "space-
saver" type spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the steel or "space-saver"
type spare wheel. The wheel is
secured by the conical contact of
each bolt.
Access to the spare wheel
The spare wheel is supported by a winch
system underneath the vehicle.
According to country, the spare wheel
may be steel, alloy or of the "space-
saver" type.
Taking out the wheel

 Open the fl ap with the eye to release
the winch and access its control
nut.

 Unscrew this nut fully, using the
wheelbrace 1 , to unwind the winch
cable.

 Detach the wheel/box assembly
from the rear of the vehicle.

 Take out the hook to release the
wheel/box assembly, as shown in
the illustration.

 Take out the black plastic centring
cone.

 Take out the wheel to gain access to
the box.

 Slide the box cover to the centre
and remove it to gain access to the
other tools.

11
ii
175
PRACTICAL INFORMATION
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer. Putting the wheel back in place

 Store the corresponding tools in the
box and close the cover.

 Position the box on the ground and
centre the spare wheel on it.

 Position the black plastic centring
cone (on the steel or "space-saver"
type wheel only).

 Pass the hook into the box cover.

 Raise the wheel/box assembly
underneath the vehicle by tightening
the winch control nut using the
wheelbrace 1 .

 Tighten fully and check that the
wheel is horizontally fl ush against
the fl oor.

 Close the fl ap with the eye to lock
the winch.
If you purchase a wheel of standard
size to replace the "space-saver"
type spare wheel, the spacer, lo-
cated underneath the vehicle, must
be removed. Consult a PEUGEOT
dealer.

11
i
176
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-slip-
pery ground.
Apply the parking brake, switch off
the ignition and engage fi rst gear *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.

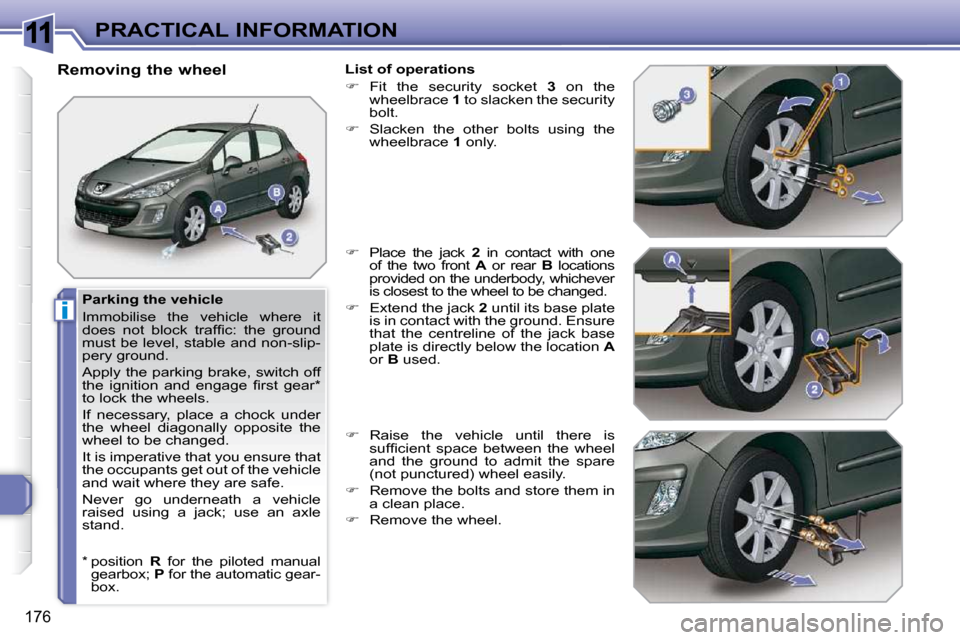

Removing the wheel
List of operations

 Fit the security socket 3 on the
wheelbrace 1 to slacken the security
bolt.

 Slacken the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underbody, whichever
is closest to the wheel to be changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is
suffi cient space between the wheel
and the ground to admit the spare
(not punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.

* position R for the piloted manual
gearbox; P for the automatic gear-
box.

11
i
177
PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the cen-
tral cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.

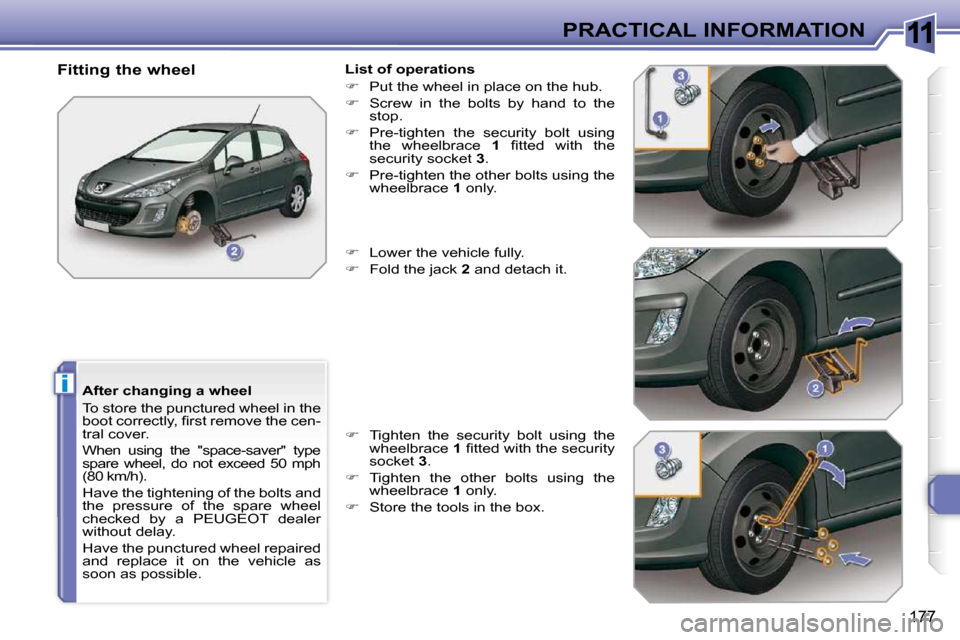

Fitting the wheel
List of operations

 Put the wheel in place on the hub.

 Screw in the bolts by hand to the
stop.

 Pre-tighten the security bolt using
the wheelbrace 1 fi tted with the
security socket 3 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 3 .

 Tighten the other bolts using the
wheelbrace 1 only.

 Store the tools in the box.

11
!
!
!
178
PRACTICAL INFORMATION Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with a
new bulb without the use of tools. Model with halogen headlamps

1. Direction indicators
(PY
21W
amber).

2. Dipped
beam
headlamps
(H7

-

55W).

3. Main beam headlamps (H1

-

55W).

4. Daytime
running lamps/

sidelamps
(P 21/
5W
).

5. Foglamps
(H8

-

35W).
1. Direction indicators
(PY 21W SV silver).

2. Directional dipped/main beam
headlamps (D1S-35W).

3. Additional main beam headlamps
(H1-55W).

4. Daytime running lamps/
sidelamps (P 21/5W).

5. Foglamps (H8-35W).
Model with xenon and dir
ectional
headlamps
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so as
not to damage their protective
coating and seals.

 Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
minutes (risk of serious burns).
It is imperative to use only anti-ul-
traviolet (UV) type bulbs in order
not to damage the headlamp. Front lamps

11
i
!
179
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs

 Remove the protective cover by
pulling on the tab.

 Disconnect the bulb connector.

 Compress the springs to release the
bulb.

 Remove the bulb and change it
To refi t, carry out these operations in re-
verse order.
Changing daytime running lamp/
sidelamp bulbs

 Remove the protective cover by
pulling on the tab.

 Disconnect the bulb connector.

 Turn the bulb holder a quarter of a
turn and extract it.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Changing dipped beam headlamp
bulbs

 Remove the protective cover by
pulling on the tab.

 Disconnect the bulb connector.

 Spread the springs to release the
bulb.

 Extract the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Changing direction indicator bulbs

 Turn the bulb holder a quarter of a
turn and extract it.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the seal-
ing of the headlamp.

11
180
PRACTICAL INFORMATION Changing foglamp bulbs

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the
repeater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
To replace these bulbs consult a
PEUGEOT dealer.
