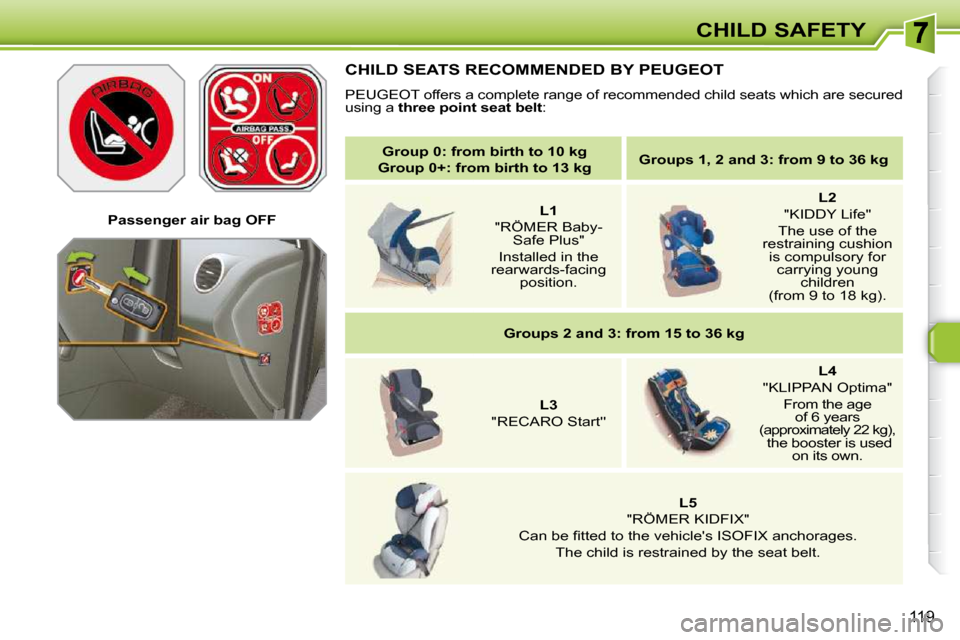

119
CHILD SAFETY

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"RÖMER Baby- Safe Plus"
Installed in the
rearwards-facing position.


L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''

L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.


L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX anchorages.
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended chi
ld seats which are secured
using a three point seat belt :

119
CHILD SAFETY

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"RÖMER Baby- Safe Plus"
Installed in the
rearwards-facing position.


L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''

L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.


L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX anchorages.
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended chi
ld seats which are secured
using a three point seat belt :

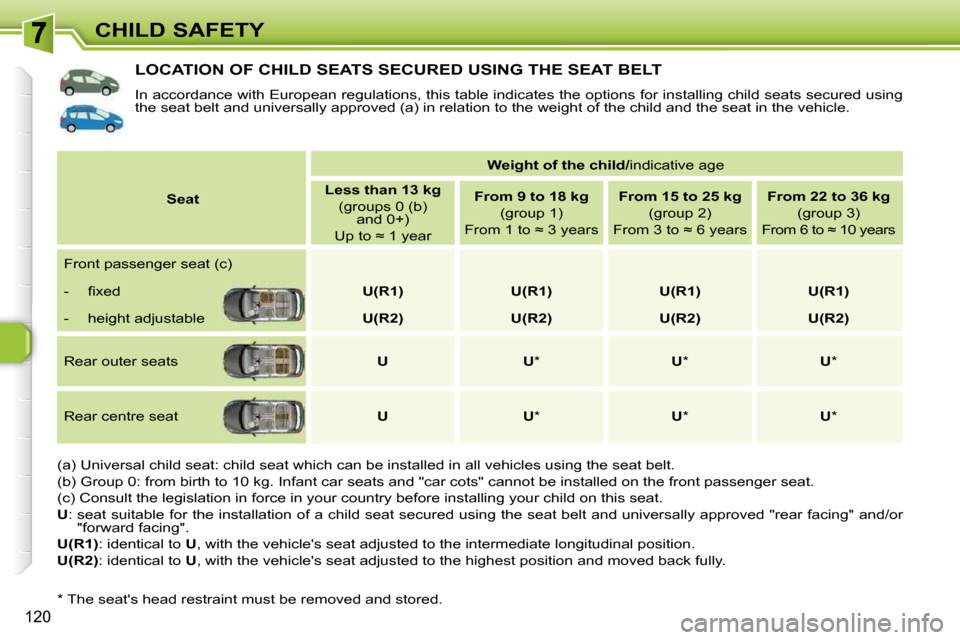

120
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" ca nnot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".

U(R1) : identical to U , with the vehicle's seat adjusted to the intermediate lo ngitudinal position.

U(R2) : identical to U , with the vehicle's seat adjusted to the highest positio n and moved back fully.
* The seat's head restraint must be removed and stored.
Seat
Weight of the child/ indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat (c)
- fi xed
U(R1) U(R1) U(R1) U(R1)
- height adjustable U(R2) U(R2) U(R2) U(R2)
Rear outer seats
U U * U * U *
Rear centre seat
U U * U * U *

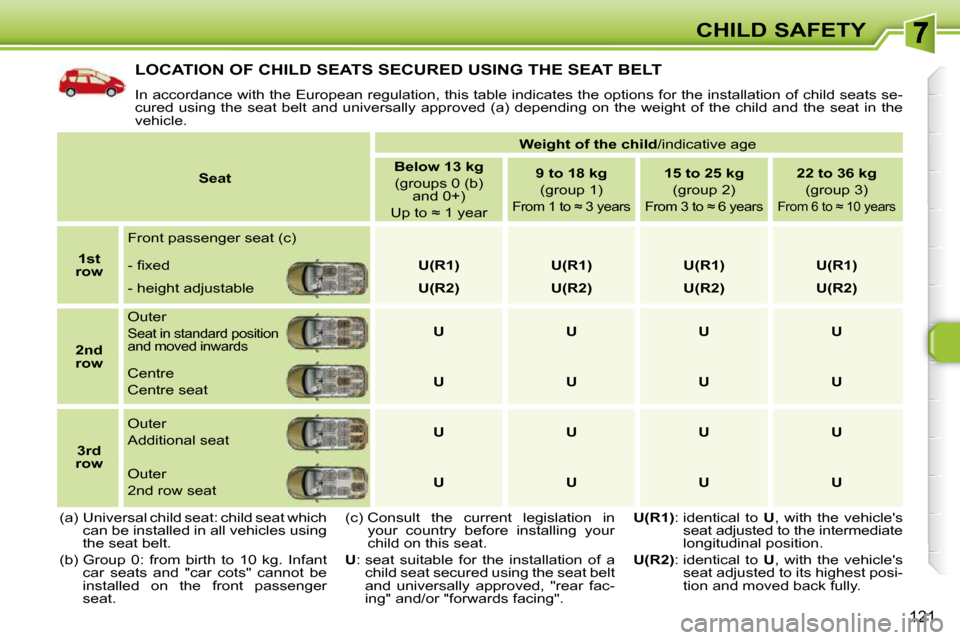

121
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation, this table indicates the options for the installation of child seats se-
cured using the seat belt and universally approved (a) dependin g on the weight of the child and the seat in the
vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be
installed on the front passenger
seat.
Seat
Weight of the child /indicative age

Below 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
9 to 18 kg
(group 1)
From 1 to ≈ 3 years
15 to 25 kg
(group 2) From 3 to ≈ 6 years

22 to 36 kg
(group 3)
From 6 to ≈ 10 years

1st
row Front passenger seat (c)
- fi xed

U(R1) U(R1) U(R1) U(R1)
- height adjustable U(R2) U(R2) U(R2) U(R2)

2nd
row Outer
Seat in standard position
and moved inwards
U U U U
Centre
Centre seat
U U U U

3rd
row Outer
Additional seat

U U U U
Outer
2nd row seat
U U U U
(c) Consult the current legislation in
your country before installing your
child on this seat.

U : seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear fac-
ing" and/or "forwards facing".
U(R1) : identical to U , with the vehicle's
seat adjusted to the intermediate
longitudinal position.

U(R2) : identical to U , with the vehicle's
seat adjusted to its highest posi-
tion and moved back fully.

!
122
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

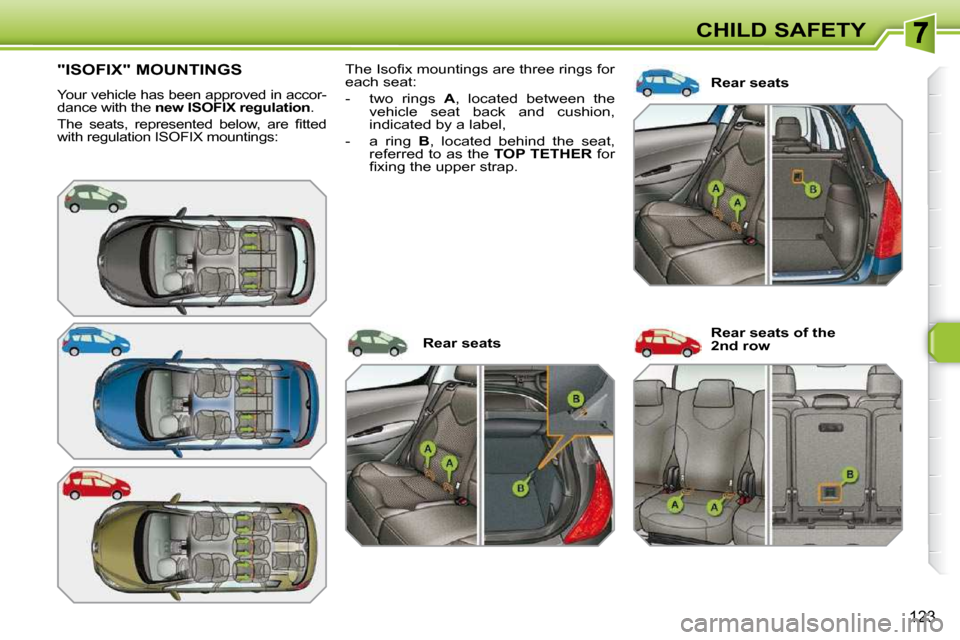

123
CHILD SAFETY
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation .
The seats, represented below, are fi tted
with regulation ISOFIX mountings: Rear seats
The Isofi x mountings are three rings for
each seat:
- two rings
A , located between the
vehicle seat back and cushion,
indicated by a label,
- a ring B , located behind the seat,
referred to as the TOP TETHER for
fi xing the upper strap.
Rear seats Rear seats of the
2nd row

i
!
i

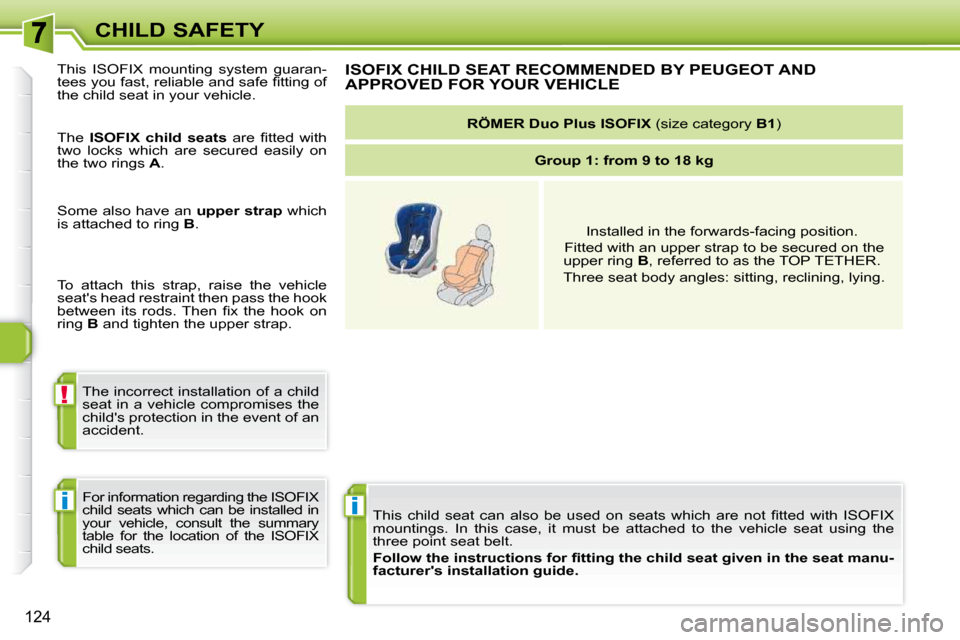

124
CHILD SAFETY This child seat can also be used on seats which are not fi tt ed with ISOFIX
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg

Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
tees you fast, reliable and safe fi tting of
the child seat in your vehicle.
The
ISOFIX child seats are fi tted with
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B and tighten the upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.

i
!
i
124
CHILD SAFETY This child seat can also be used on seats which are not fi tt ed with ISOFIX
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg

Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
tees you fast, reliable and safe fi tting of
the child seat in your vehicle.
The
ISOFIX child seats are fi tted with
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B and tighten the upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
