28
INSTRUMENTS and CONTROLS
Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has been switched off
intentionally.
Passenger's airbag system
deactivation.
The passenger's airbag system
is put into service automatically
when the vehicle is started.
A s p e c i fi c c o n t r o l s w i t c h , l o c a t e d o n t h e
passenger's side of the dashboard, per-
mits deactivation of the system. This is
c o n fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp on the instrument panel
or on the seat belt and passenger's
front airbag warning lamps display. Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e d a s h -
board, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp and of the
indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lamps S p e c i fi c d e a c t i v a t i o n w a r n i n g l a m p s Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.
Automatic rain sensitive
windscreen wipers.
If this is displayed, it indicates that
you have deactivated automatic
rain sensitive windscreen wipers.
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic illumination of
headlamps.
If this is displayed, it indicates
that you have deactivated auto-
matic illumination of headlamps.
Page 36 of 313
i
i
56
COMFORT
If after an extended stop in sunshine,
the interior temperature is very high,
fi r s t v e n t i l a t e t h e p a s s e n g e r c o m -
partment for a few moments.
P u t t h e a i r fl o w c o n t r o l a t a s e t t i n g
high enough to quickly change the
air in the passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
In order for these systems to be fully effective, follow the o peration and main-
tenance guidelines below:
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard ; this is used
for regulation of the air conditioning system.
Operate the air conditioning system for at least 5 to 10 mi nutes, once or
twice a month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s p e c i a l a c t i v e a d d i t i v e , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly as recommended in the Warranty and
Maintenance Record.
If the system does not produce cold air, deactivate it and contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available e ngine power and so
improves the towing ability. The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
Page 64 of 313
i
!
80
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the
dashboard to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its location
observing the original direction.
Clip the casing.
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 68 of 313
i
!
80
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the
dashboard to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its location
observing the original direction.
Clip the casing.
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 127 of 313
!
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
repair and assembly procedures
used by PEUGEOT dealers.
After an impact, have these systems
checked by a PEUGEOT dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
in the centre of the dashboard.
If this warning lamp comes on on
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h)
(except in the case of the 1.6 l THP 16V
175 bhp petrol engine).
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, this indicates a
malfunction of these systems.
Have the systems checked by a PEUGEOT
dealer.

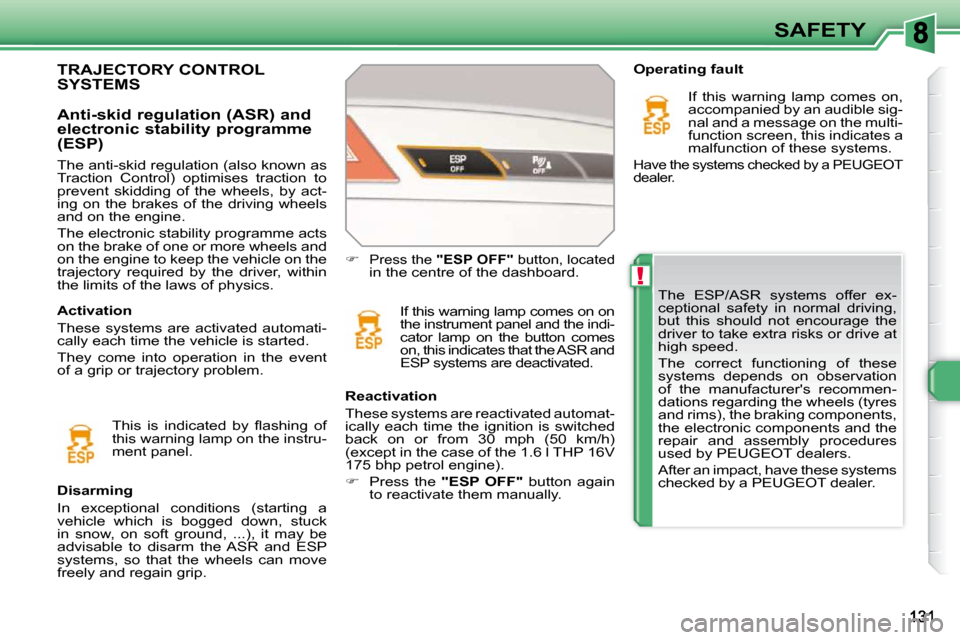

TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel.
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
Page 133 of 313
i
!
137
SAFETY

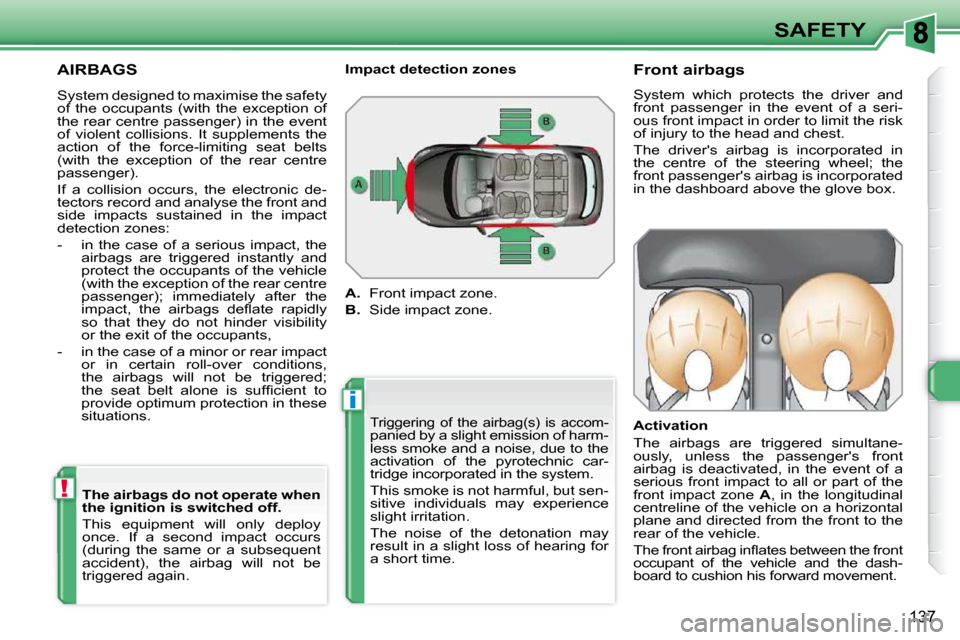

AIRBAGS
Triggering of the airbag(s) is accom-panied by a slight emission of harm-
less smoke and a noise, due to the
activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and chest.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
front impact zone
A , in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e f r o n t
occupant of the vehicle and the dash-
board to cushion his forward movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags do not operate when
the ignition is switched off.
This equipment will only deploy
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not be
triggered again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions,
the airbags will not be triggered;
t h e s e a t b e l t a l o n e i s s u f fi c i e n t t o
provide optimum protection in these
situations.
Page 136 of 313
!
140

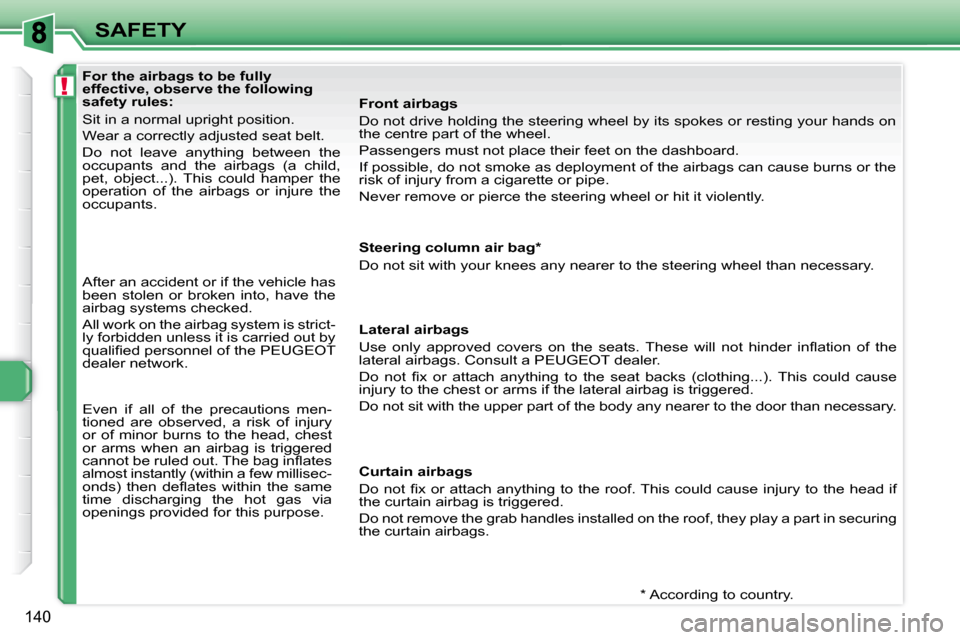

SAFETY
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
* According to country.
Lateral airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i
n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s ( c l o t h i n g . . . ) . T h i s c o u l d c a u s e
injury to the chest or arms if the lateral airbag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles installed on the roof, the y play a part in securing
the curtain airbags.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via
openings provided for this purpose. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Steering column air bag *
Do not sit with your knees any nearer to the steering wheel than necessary.
Page 182 of 313

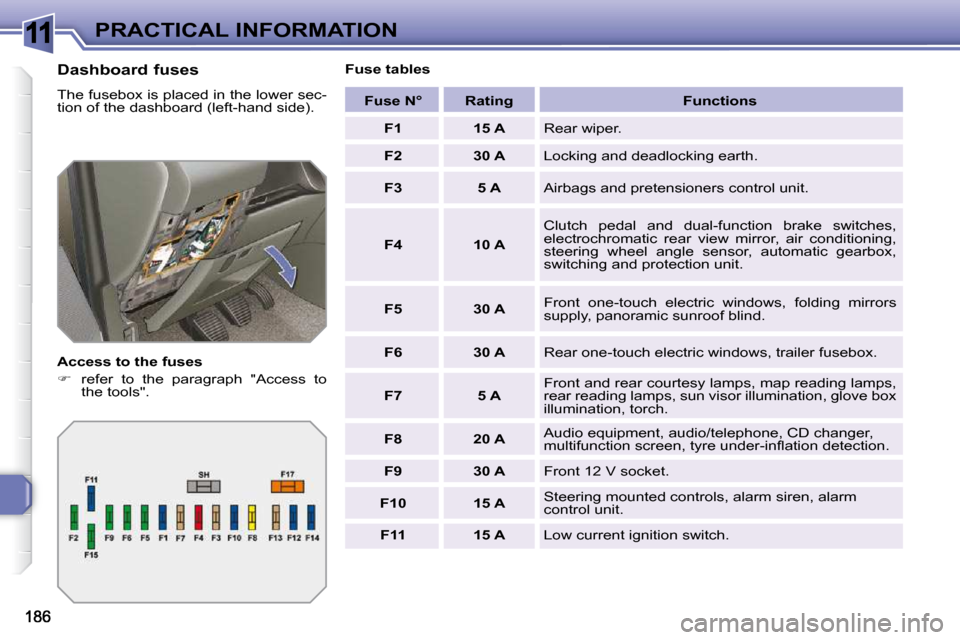

11PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
t i o n o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 30 A Locking and deadlocking earth.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6 30 A R e a r o n e - t o u c h e l e c t r i c w i n d o w s , t r a i l e r f u s e b o x .
F7 5 A Front and rear courtesy lamps, map reading lamps,
r e a r r e a d i n g l a m p s , s u n v i s o r i l l u m i n a t i o n , g l o v e b o x
illumination, torch.
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n s c r e e n , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket.
F10 15 A Steering mounted controls, alarm siren, alarm
control unit.
F11 15 A Low current ignition switch.
