PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B

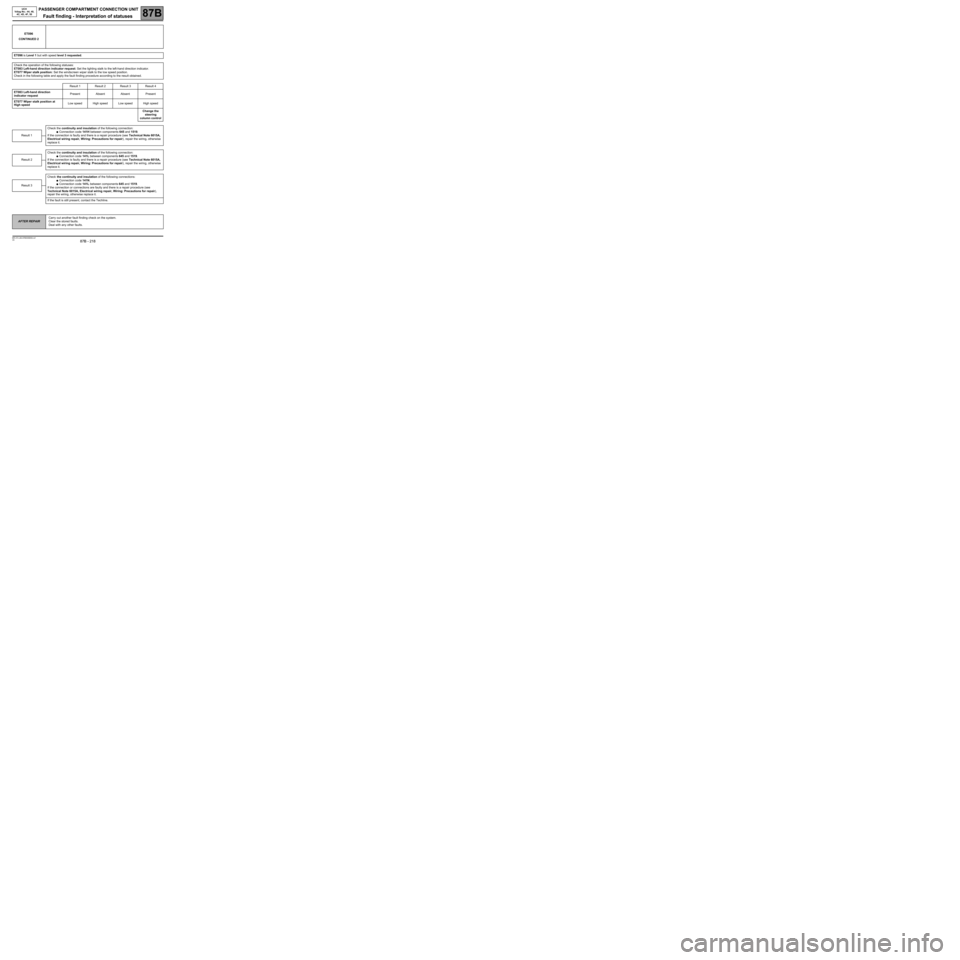

87B - 217
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 217V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 1
Check the continuity and insulation of the following connection:
●Connection code 141H between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141H.
●Connection code 141K between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 218
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 218V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 2
ET096 is Level 1 but with speed level 3 requested.
Check the operation of the following statuses:
ET083 Left-hand direction indicator request: Set the lighting stalk to the left-hand direction indicator.
ET077 Wiper stalk position: Set the windscreen wiper stalk to the low speed position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET083 Left-hand direction
indicator requestPresent Absent Absent Present
ET077 Wiper stalk position at
High speedLow speed High speed Low speed High speed
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141H between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connection:
●Connection code 141L between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141N.
●Connection code 141L between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 1
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 219
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 219V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 3
NOTESNo faults should be present or stored.
ET096 is Level 1 but with speed level 4 requested.
Check the operation of the following statuses:
ET077 Wiper stalk position: set the windscreen wiper stalk to high speed.
ET081 Lighting stalk position: set the lighting stalk to main beam headlights position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET077 Wiper stalk position at
high speedHigh speed Low speed Low speed High speed
ET081 Lighting stalk in the main
beam headlights position Dipped
headlightsMain beamDipped
headlightsMain beam
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141H between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Result 1
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 220
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 220V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 4
Check the continuity and insulation of the following connection:
●Connection code 141K between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141H.
●Connection code 141K between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 221
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 221V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET097
REAR SCREEN WIPER PARK POSITION
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET097 is Absent.
Check the condition and connection of the rear screen wiper connector (tabs bent, broken, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE2 connector of the UCH (tabs bent, broken).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 36C between components 645 and 211.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the continuity of the earth on connection MZ of component 211.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the rear screen wiper motor.
Check fitting.
If everything is OK, replace the wiper motor.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET097/UCH_V48_ET097/ UCH_V4C_ET097/
UCH_V4D_ET097 /UCH_V4F_ET097/UCH_V50_ET097

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 222
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 222V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET098
TRIP COMPUTER BUTTON
NOTESNo faults should be present or stored.
This status must change to Pressed when the button is pressed.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET098 is Released with the button pressed.
Check the operation of the following statuses:
ET082 Rear fog light request: Set the lighting stalk to the rear fog light position.
ET081 Lighting stalk position: Set the lighting stalk to dipped headlights position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET082 Rear fog lights requestPresent Absent Absent Present
ET081 Dipped headlights wiper
stalk positionOffDipped
headlightsOffDipped
headlights
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141K between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
If the fault is still present, contact the Techline.
Result 1
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET098/UCH_V48_ET098/ UCH_V4C_ET098/
UCH_V4D_ET098 /UCH_V4F_ET098/UCH_V50_ET098

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 223
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 223V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50

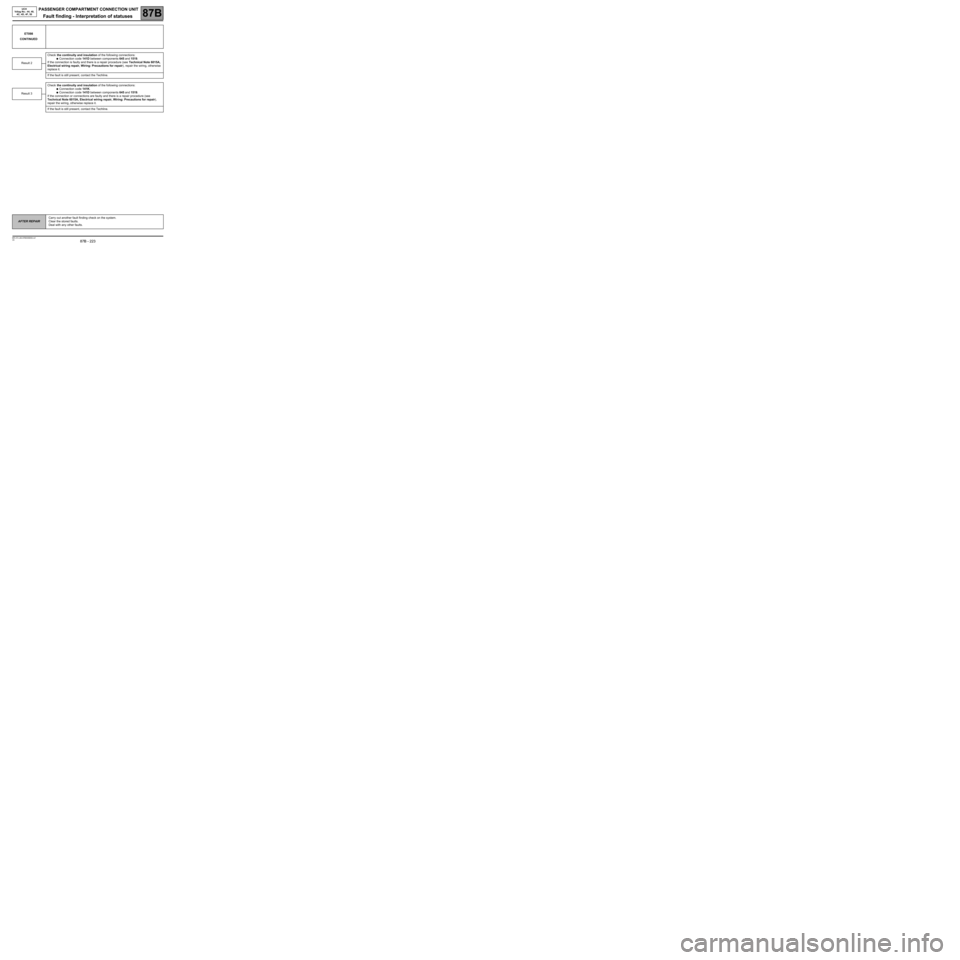

ET098
CONTINUED
Check the continuity and insulation of the following connections:
●Connection code 141D between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
If the fault is still present, contact the Techline.
Check the continuity and insulation of the following connections:
●Connection code 141K.
●Connection code 141D between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 224
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 224V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET108
AUTOMATIC GEARBOX LEVER POSITION
NOTESNo faults should be present or stored.
ABSENT, no automatic gearbox.
NOT IN NEUTRAL, with a gear shift to position D.
NEUTRAL, gear selector lever on position N.
REVERSE, gear selector lever on position R.
P, gear selector lever on position P.
If there is an incorrect position, run fault finding on the automatic gearbox.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET108/UCH_V48_ET108/ UCH_V4C_ET108/
UCH_V4D_ET108 /UCH_V4F_ET108/UCH_V50_ET108
