PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 345
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 345V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP26The sunroof is difficult to close or the anti-pinch is triggered
without any apparent obstacles
NOTESOnly check this customer complaint after performing a complete check with the
diagnostic tool.
For vehicles with Mégane II phase 2 bodywork, (see MR 366, Fault finding, 87D
Electric windows - Sunroof, Fault finding chart).
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Initialise the sunroof (see MR fault finding 87D Electric sunroof: Initialisation).
Has the fault been solved?
YESNO
End of fault finding.
Open the sunroof fully (if not possible, see Defect mode and
safe mode).
Remove the sunroof motor (see MR 364 Mechanical, 87D
Electric windows - Sunroof, Sunroof motor: Removal -
Refitting).
Slide the moving panel of the sunroof manually.
Does the moving panel slide without a point of
resistance?
NO YES
Replace the sunroof motor (see 87D Electric windows -
Sunroof: Removal - Refitting).
Remove the moving sunroof panel
(see MR Bodywork, 52A, Non-side opening
element mechanisms, Mobile sunroof
panel: Removal - Refitting).
Visually check that no foreign bodies
(sand, leaves, etc.) are present in the rails.
Are there any foreign bodies in the rails?
YES NO
Clean the mechanism and the rails with an air gun. Refit the sunroof mobile panel (see MR 365 Bodywork, 52A,
Non-side opening element mechanisms, Moving sunroof panel: Removal - Refitting).
Initialise the sunroof (see MR fault finding 87D Electric sunroof: Initialisation).
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP26 /UCH_V48_ALP26/UCH_V4C_ALP26/
UCH_V4D_ALP26/UCH_V4F_ALP26/UCH_V50_ALP26

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 346
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 346V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP26
CONTINUED
Manually check that all of the linkages (front and rear) slide correctly.
Lubricate the rails, linkages and mechanisms (see MR 365 Bodywork, 52A, Non-side opening element
mechanisms, Mobile sunroof panel: Removal - Refitting). Refit the moving sunroof panel. Initialise the sunroof
(see Section: Electric sunroof: Initialisation).
Is the fault still present?
YESNO
Is the anti-pinch triggered when the sunroof
reaches the deflector?
YES NO
Remove the sunroof deflector (see MR Bodywork,
52A Non-side opening element mechanisms,
Sunroof deflector: Removal - Refitting). Initialise
the sunroof (see Section: Electric sunroof:
Initialisation).
Does the anti-pinch still trigger?
YES NO
Replace the sunroof (see MR Bodywork, Non-side
opening element mechanisms, Sunroof:
Removal - Refitting).
End of fault finding.
Replace the sunroof (see MR Bodywork, Non-side
opening element mechanisms, Sunroof:
Removal - Refitting).
Replace the sunroof deflector (see MR 365
Bodywork, 52A Non-side opening element
mechanisms, Sunroof deflector: Removal -
Refitting).
Initialise the sunroof (see MR fault finding 87D
Electric sunroof: Initialisation).
AFTER REPAIRCarry out a complete check using the diagnostic tool.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 347
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 347V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP27 Locking/unlocking fault when pressing card button.
NOTESCheck that there is no APC or card in the card reader.
Check that no opening element is detected as open by the UCH (look at the symbol on
the instrument panel).
First carry out a function fault finding check.
Test with the other card.
Check the condition of the battery (inserted the wrong way round, flat, incorrect
model).
If the fault is still present after having carried out a test with the other card, it could be that:
–There may be radiofrequency interference in the area (ET066 Card button press received is NO for both
cards). Move the vehicle to try again.
–The UCH which has just been replaced does not have the correct part number (external or internal UCH
aerial). Use the correct UCH part number.
–If the vehicle is a Scenic II fitted with a tyre pressure monitoring system, check that the external UCH aerial
is connected correctly.
–Check that the UCH for the vehicle is not blank. Check that the UCH on the vehicle has not been used on
another vehicle.
Check that statuses ET066 Card button press received and ET067 Card button press recognised are YES
after pressing the card's lock or unlock button.
If not, apply the fault finding procedures for those statuses.
Check that statuses ET066 Card button press received and ET067 Card button press recognised are YES
after pressing the card's lock or unlock button.
If not, apply the fault finding procedures for those statuses.
Check that status ET014 Control power level is not APC.
If not, apply the fault finding procedures for this status.
Check that statuses ET041 Opening rear screen, ET042 Passenger's door, ET050 Tailgate/Boot, ET051 Rear
left-hand door, ET052 Rear left-hand door and ET053 Driver's door are CLOSED.
If not, apply the fault finding procedures for those statuses.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP27 /UCH_V48_ALP27/UCH_V4C_ALP27/
UCH_V4D_ALP27/UCH_V4F_ALP27/UCH_V50_ALP27

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 348
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 348V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP28 Fault locking/unlocking boot via card button
NOTESCheck that there is no APC or card in the card reader.
First carry out a function fault finding check.
Test with the other card.
Check the condition of the batteries.
Check if the direction indicator lights flash once on unlocking and twice on locking.
NOYES
Check that statuses ET066 Card button press received and ET067 Card button press
recognised are YES after pressing the card's lock or unlock button.
If not, apply the fault finding procedures for those statuses.
Check that the boot is not detected as OPEN using status ET050 Tailgate/Boot.
If not, apply the fault finding procedures for this status.
Check that the boot is not detected as OPEN using status ET050 Tailgate/Boot.
If not, apply the fault finding procedures for this status.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP28 /UCH_V48_ALP28/UCH_V4C_ALP28/
UCH_V4D_ALP28/UCH_V4F_ALP28/UCH_V50_ALP28

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 349
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 349V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP29 Boot opening fault (not hands-free)
NOTESFirst carry out a function fault finding check.
The vehicle or boot must be unlocked.
Check that status ET061 Open tailgate request becomes PRESENT after pressing the boot opening button.
If not, apply the fault finding procedures for this status.
Check that the boot is not detected as OPEN using status ET050 Tailgate/Boot.
If not, apply the fault finding procedures for this status.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP29 /UCH_V48_ALP29/UCH_V4C_ALP29/
UCH_V4D_ALP29/UCH_V4F_ALP29/UCH_V50_ALP29

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 350
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 350V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50

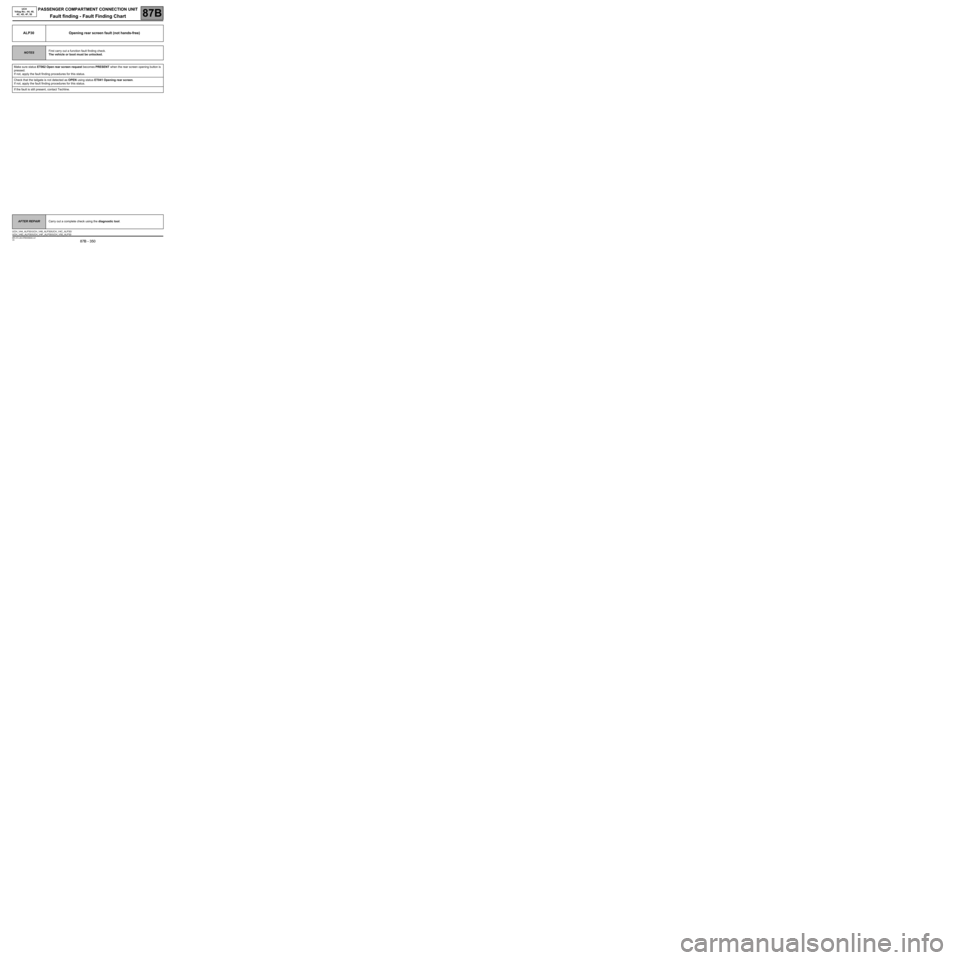

ALP30 Opening rear screen fault (not hands-free)
NOTESFirst carry out a function fault finding check.
The vehicle or boot must be unlocked.
Make sure status ET062 Open rear screen request becomes PRESENT when the rear screen opening button is
pressed.
If not, apply the fault finding procedures for this status.
Check that the tailgate is not detected as OPEN using status ET041 Opening rear screen.
If not, apply the fault finding procedures for this status.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP30 /UCH_V48_ALP30/UCH_V4C_ALP30/
UCH_V4D_ALP30/UCH_V4F_ALP30/UCH_V50_ALP30

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 351
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 351V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP31 Fault locking/unlocking the fuel filler flap
NOTESFirst carry out a function fault finding check.
The locking/unlocking should function on the driver's door. Use Wiring
Diagrams Technical Note for MEGANE II or SCENIC II.
With the flap open, try locking and unlocking to make sure the lock bolt slides properly.
If the locking finger slides correctly, check that the flap is correctly positioned in relation to the movement of the
locking finger.
Check the condition and connection of the fuel filler flap lock connector.
Check for the earth on both connections of the flap lock connector.
Check while:
Locking, for earth on connection 20BH of component 844 and for + 12 V on connection 20BC of component 844.
Unlocking, for earth on connection 20BC of component 844 and for + 12 V on connection 20BH of component 844.
If correct, replace the fuel filler flap lock.
Check the insulation and continuity of the following connections:
●Connection code 20BH.
●Connection code 20BC.
Between components 844 and 645.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP31 /UCH_V48_ALP31/UCH_V4C_ALP31/
UCH_V4D_ALP31/UCH_V4F_ALP31/UCH_V50_ALP31

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 352
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 352V9 MR-372-J84-87B000$946.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP32 Unlocking fault in hands-free mode
NOTESCheck that there is no after ignition feed.
Conduct the tests with the other cards allocated to the vehicle.
First carry out a function fault finding check.
Carry out a conformity check before using this procedure.
The card may be inhibited: unlock the vehicle by pressing the card button and check to see if the hands-free
unlocking fault is still present.
If the fault only affects one card, replace the faulty card.
If the unlocking fault in hands-free mode affects all the cards:
Check that the optical sensors are receiving power by checking status ET054 Optical sensors supplied.
Unless the vehicle has not been unlocked for over 72 hours, pulling the handle activates it.
If not, apply the fault finding procedures for this status.
Check that statuses ET055, ET056 or ET057 become active when a hand is passed in front of the corresponding
sensor.
Test on all the doors.
If any status fails to change, apply the fault finding procedure associated with that status.
Note:
One of these statuses becomes active if the vehicle has not been unlocked for 72 hours and the corresponding
door handle is pulled.
Make sure that the cards belong to the vehicle and are properly configured by running command SC005 Check
card.
If the cards belong to the vehicle but have a faulty configuration, program the cards.
Run command AC037 Transmitter aerial fault finding and see if a fault appears.
In the event of a present or stored fault, refer to the procedure for this fault.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP32 /UCH_V48_ALP32/UCH_V4C_ALP32/
UCH_V4D_ALP32/UCH_V4F_ALP32/UCH_V50_ALP32
