PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 289
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 289V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC036
CONTINUED 1
BOOT INTERNAL AERIAL
Check the condition and connection of the aerial connector (bent, broken tabs, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE3 connector of the UCH (tabs bent, broken, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections to + 12 V and to earth:
●Connection code 26AV.
●Connection code 26AW between components 645 and 1397.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Replace the aerial if necessary.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 290
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 290V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC036
CONTINUED 2
CENTRE INTERNAL AERIAL
Check the condition and connection of the aerial connector (bent, broken tabs, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE3 connector of the UCH (tabs bent, broken, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections to + 12 V and to earth:
●Connection code 26AX.
●Connection code 26AY between components 645 and 1398.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Replace the aerial if necessary.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 291
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 291V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC037
TRANSMITTER AERIAL FAULT FINDING
NOTESNo faults should be present or stored.
Special note:
This command is used to run fault finding on the internal and external transmitter
aerials on open circuit or short circuit to + 12 V.
This command takes 1 minute.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
After activating the command, perform fault reading.
If one (or more) fault(s) concerning the aerials appear(s), refer to the processing of this (these) fault(s).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 292
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 292V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC076

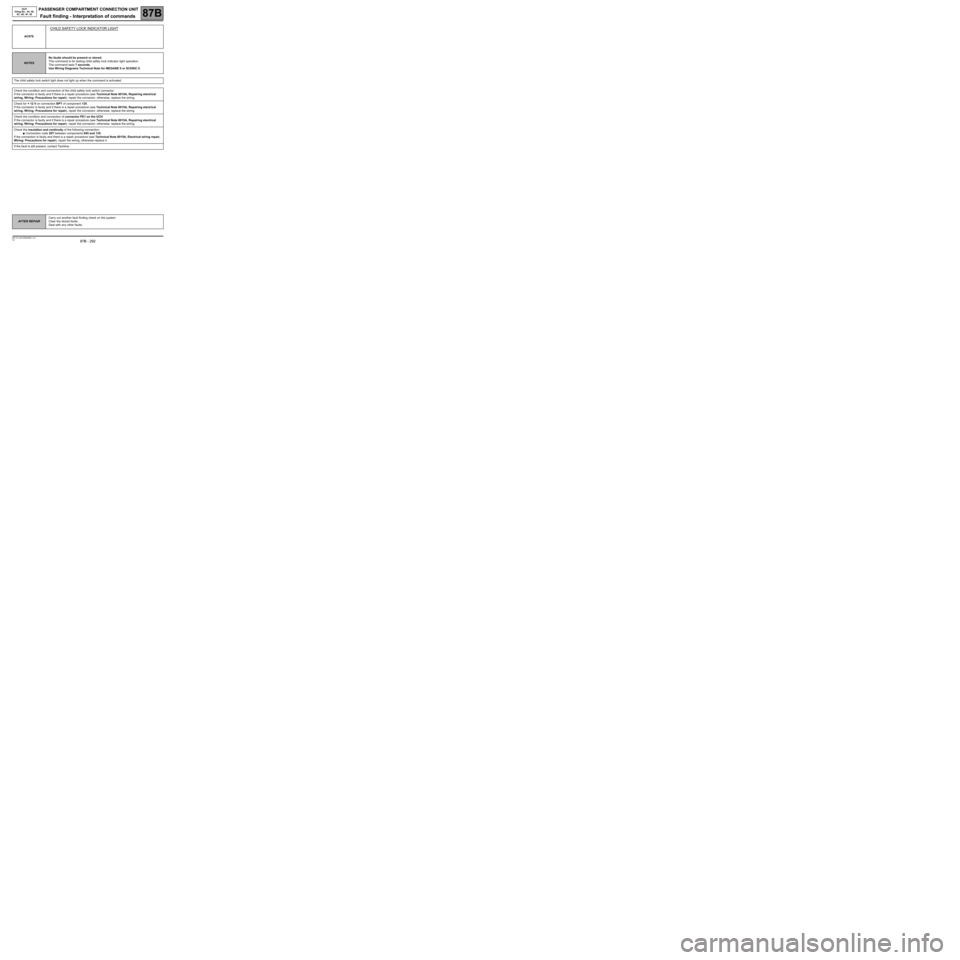

CHILD SAFETY LOCK INDICATOR LIGHT
NOTESNo faults should be present or stored.
This command is for testing child safety lock indicator light operation.
The command lasts 7 seconds.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
The child safety lock switch light does not light up when the command is activated.
Check the condition and connection of the child safety lock switch connector.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for + 12 V on connection BPT of component 135.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of connector PE1 on the UCH
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 20T between components 645 and 135.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -293
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -293V9 MR-372-J84-87B000$860.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
NOTESOnly consult these customer complaints after a complete check using the diagnostic
tool.
NO DIALOGUE WITH THE COMPUTER ALP1
LIGHTING
NO REAR FOG LIGHTS ALP2
NO RIGHT-HAND DIRECTION INDICATOR ALP3
NO LEFT-HAND DIRECTION INDICATOR ALP4
NO SIDE LIGHTS (LIGHTS WITHOUT XENON BULB)ALP5
NO DIPPED BEAM LIGHTS (LIGHTS WITHOUT XENON BULB)ALP6
NO MAIN BEAM LIGHTS (LIGHTS WITHOUT XENON BULB)ALP7
NO FRONT FOG LIGHTS ALP8
MR-372-J84-87B000$860.mif

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -294
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -294V9 MR-372-J84-87B000$860.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
WIPERS, WASHERS
NO REAR SCREEN WIPER ALP9
NO FIXED PARK POSITION FOR REAR WIPER ALP10
NO WINDSCREEN WIPER PARK POSITION ALP11
NO WINDSCREEN WIPER ALP12
NO FRONT AND REAR SCREEN WASHER ALP 13
NO HEADLIGHT WASHERS (ONLY IF VDIAG 44 UPC)ALP14

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -295
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -295V9 MR-372-J84-87B000$860.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ELECTRIC WINDOWS
PASSENGER WINDOW DOES NOT OPERATE (DRIVER AND
PASSENGER ELECTRIC WINDOWS)ALP15
PASSENGER WINDOW DOES NOT OPERATE (DRIVER AND
PASSENGER ONE TOUCH ELECTRIC WINDOWS)ALP16
PASSENGER WINDOW DOES NOT OPERATE (DRIVER ONE TOUCH
ELECTRIC WINDOWS AND PASSENGER ELECTRIC WINDOWS)ALP17
DRIVER WINDOW DOES NOT OPERATE (DRIVER AND PASSENGER
ELECTRIC WINDOWS)ALP18
DRIVER WINDOW DOES NOT OPERATE (DRIVER AND PASSENGER
ONE TOUCH ELECTRIC WINDOWS)ALP19
DRIVER WINDOW DOES NOT OPERATE (DRIVER ONE TOUCH
ELECTRIC WINDOWS AND PASSENGER ELECTRIC WINDOW)ALP20
REAR LEFT-HAND WINDOW DOES NOT OPERATE (REAR ONE
TOUCH ELECTRIC WINDOWS)ALP21
REAR RIGHT-HAND WINDOW DOES NOT OPERATE (REAR ONE
TOUCH ELECTRIC WINDOWS)ALP22
WINDOWS DO NOT OPERATE (DRIVER AND PASSENGER
ELECTRIC WINDOWS) ALP23

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -296
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -296V9 MR-372-J84-87B000$860.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50

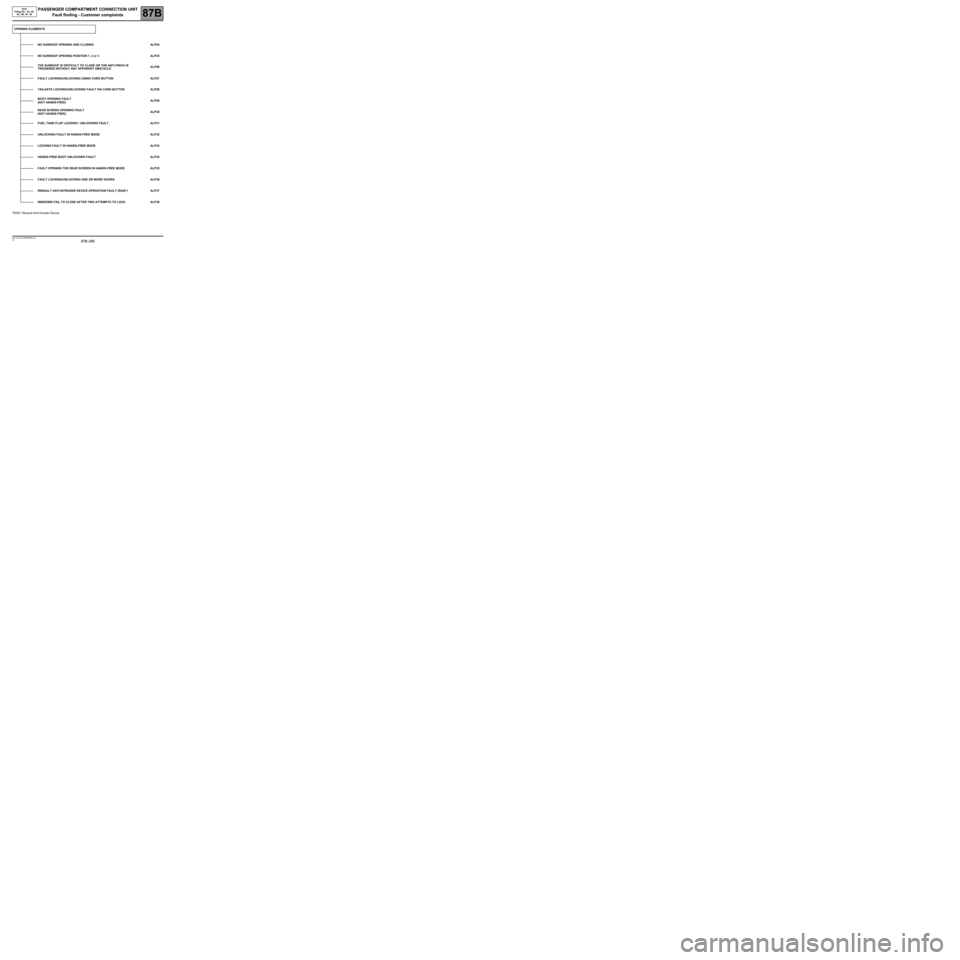

*RAID: Renault Anti-Intruder DeviceOPENING ELEMENTS
NO SUNROOF OPENING AND CLOSING ALP24
NO SUNROOF OPENING POSITION 1, 2 or 3 ALP25
THE SUNROOF IS DIFFICULT TO CLOSE OR THE ANTI-PINCH IS
TRIGGERED WITHOUT ANY APPARENT OBSTACLEALP26
FAULT LOCKING/UNLOCKING USING CARD BUTTON ALP27
TAILGATE LOCKING/UNLOCKING FAULT VIA CARD BUTTON ALP28
BOOT OPENING FAULT
(NOT HANDS-FREE)ALP29
REAR SCREEN OPENING FAULT
(NOT HANDS-FREE)ALP30
FUEL TANK FLAP LOCKING / UNLOCKING FAULT ALP31
UNLOCKING FAULT IN HANDS-FREE MODE ALP32
LOCKING FAULT IN HANDS-FREE MODE ALP33
HANDS-FREE BOOT UNLOCKING FAULT ALP34
FAULT OPENING THE REAR SCREEN IN HANDS-FREE MODE ALP35
FAULT LOCKING/UNLOCKING ONE OR MORE DOORS ALP36
RENAULT ANTI-INTRUDER DEVICE OPERATION FAULT (RAID*) ALP37
WINDOWS FAIL TO CLOSE AFTER TWO ATTEMPTS TO LOCK ALP38
