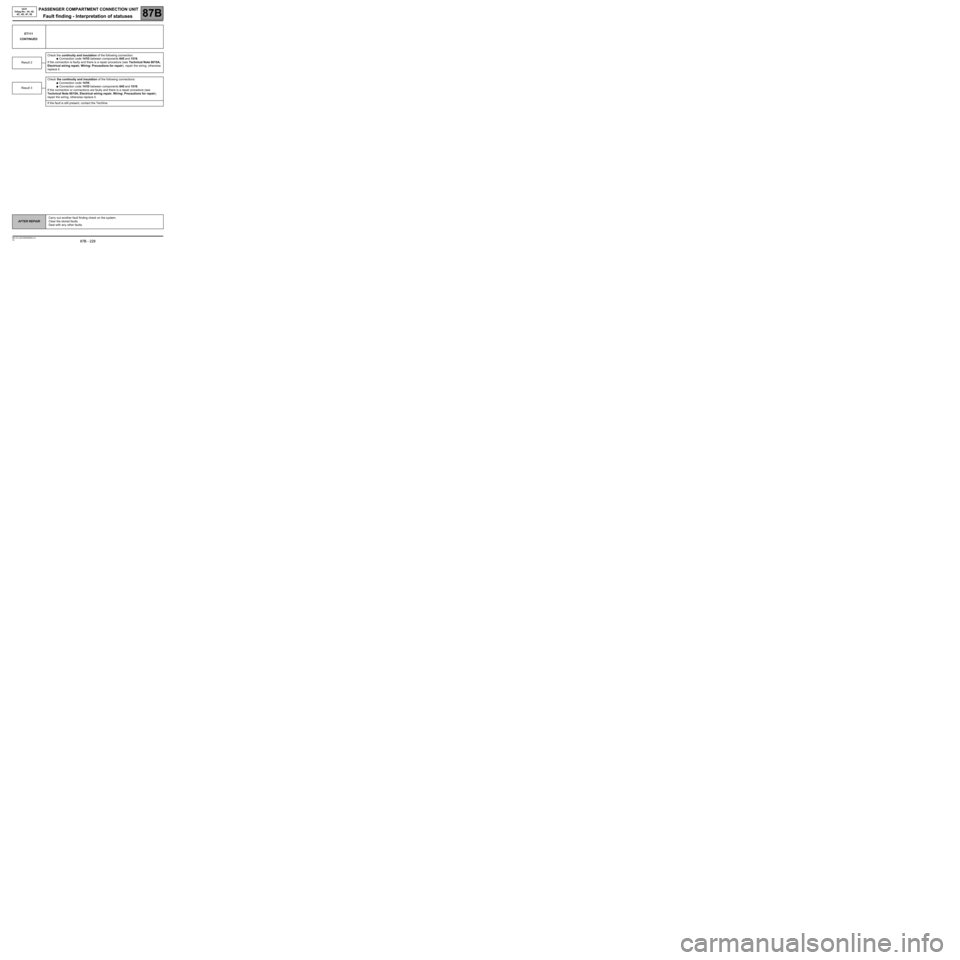

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 225
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 225V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET109
REVERSE GEAR ENGAGED
NOTESNo faults should be present or stored.
ET109 is NO when reverse gear is engaged.
Run complete fault finding on the Protection and Switching Unit.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET109/UCH_V48_ET109/ UCH_V4C_ET109/
UCH_V4D_ET109 /UCH_V4F_ET109/UCH_V50_ET109

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 226
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 226V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET110
UCH REQUEST TO INJECTION COMPUTER OR PROTECTION
AND SWITCHING UNIT
NOTESNo faults should be present or stored.
This status gives information concerning the type of request made by the UCH to these computers.
"ENGINE STOP": when an engine stop is requested.
"INACTIVE": without action on the vehicle.
"+ AFTER IGNITION FEED": on pressing the start button for more than 5 seconds.
"START": when starting is requested.
If the status does not correspond to the current user request, carry out a test of the multiplex network.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET110/UCH_V48_ET110/UCH_V4C_ET110/
UCH_V4D_ET110/UCH_V4F_ET110/UCH_V50_ET110

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 227
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 227V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET111
FRONT FOG LIGHTS REQUEST
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET111 is Absent with the stalk in front fog lights position.
Check the operation of the following statuses:
ET083 Left-hand direction indicator request: Set the control stalk to the left-hand indicator.
ET080 Rear screen wiper request: Set control stalk to rear screen wiper request.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET083 Left-hand direction
indicator requestPresent Absent Absent Present
ET080 Rear screen wiper requestAbsent Present Absent Present
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141K between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Result 1
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET111/UCH_V48_ET111/UCH_V4C_ET111/
UCH_V4D_ET111/UCH_V4F_ET111/UCH_V50_ET111

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 228
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 228V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET111
CONTINUED
Check the continuity and insulation of the following connection:
●Connection code 141D between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141K.
●Connection code 141D between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 229
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 229V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET112
INTERIOR LIGHTING CONTROL
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET112 is Inactive but the interior lights are operating.
Check whether the footwell/floor switches operate correctly; if YES, contact the Techline.
If NO, check the earth on connection 13AC of component 645, if there is an earth, check the continuity and
insulation of the wiring harness between the UCH and the switch connectors (see wiring diagram).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
If the fault is still present, replace the faulty switch.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET112/UCH_V48_ET112/UCH_V4C_ET112/
UCH_V4D_ET112/UCH_V4F_ET112/UCH_V50_ET112

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 230
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 230V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET113
AUTOMATIC LIGHTING BUTTON
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET113 Released with one press on the button.
Check the operation of the following statuses:
ET083 Left-hand direction indicator request: Set the control stalk to the left-hand indicator.
ET096 Windscreen wiper stalk intermittent speed ring position: Set the stalk to the rear fog light position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET083 Left-hand direction
indicator requestPresent Absent Absent Present
ET096 Windscreen wiper
intermittent ring position4141
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141L between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Result 1
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET113/UCH_V48_ET113/UCH_V4C_ET113/
UCH_V4D_ET113/UCH_V4F_ET113/UCH_V50_ET113

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 231
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 231V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET113
CONTINUED
Check the continuity and insulation of the following connection:
●Connection code 141M between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141M.
●Connection code 141C between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 232
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 232V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET114
WIPER REQUEST BY RAIN SENSOR
NOTESNo faults should be present or stored.
Make sure that the vehicle is fitted with the rain and light sensor.
The status should change to ACTIVE if there is any water on the windscreen on the
sensor position.
Make sure that the other positions of the wiper control are working properly.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the rain and light sensor connector (tabs broken, bent, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the + 12 V APC on connection BPT of component 1415.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
If the + 12 V feed is not correct, check the insulation, continuity and the absence of interference resistance
of the following connection:
●Connection code BPT between components 645 and 1415.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the + 12 V feed is not correct for vehicles manufactured after June 2005, check the insulation, continuity and
the absence of interference resistance on the following connection:
●Connection code BPT between component 645 and fuse F5F (7.5A) (on the Protection and Switching
Unit).
Check for earth on the MAM connection of component 1415.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the UCH connector (tabs broken, bent, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connection:
●Connection code 14S between components 645 and 1415.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check configuration LC044 Rain/light sensor.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET114/UCH_V48_ET114/UCH_V4C_ET114/
UCH_V4D_ET114/UCH_V4F_ET114/UCH_V50_ET114
