2008 NISSAN TEANA sensor

VTL-60
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
FOOT DUCT : Removal and Installation
INFOID:0000000003774716
REMOVAL
Driver side
1. Remove instrument driver lower panel. Refer to IP-11, "Exploded View".
2. Remove mounting screws (A), and then remove foot duct (left)
(1).
Passenger side
1. Remove blower unit assembly. Refer to VTL-29, "Exploded View".
2. Remove mounting screws (A) and harness clip, and then
remove foot duct (right) (1).
INSTALLATION
Installation is basically the reverse order of removal.

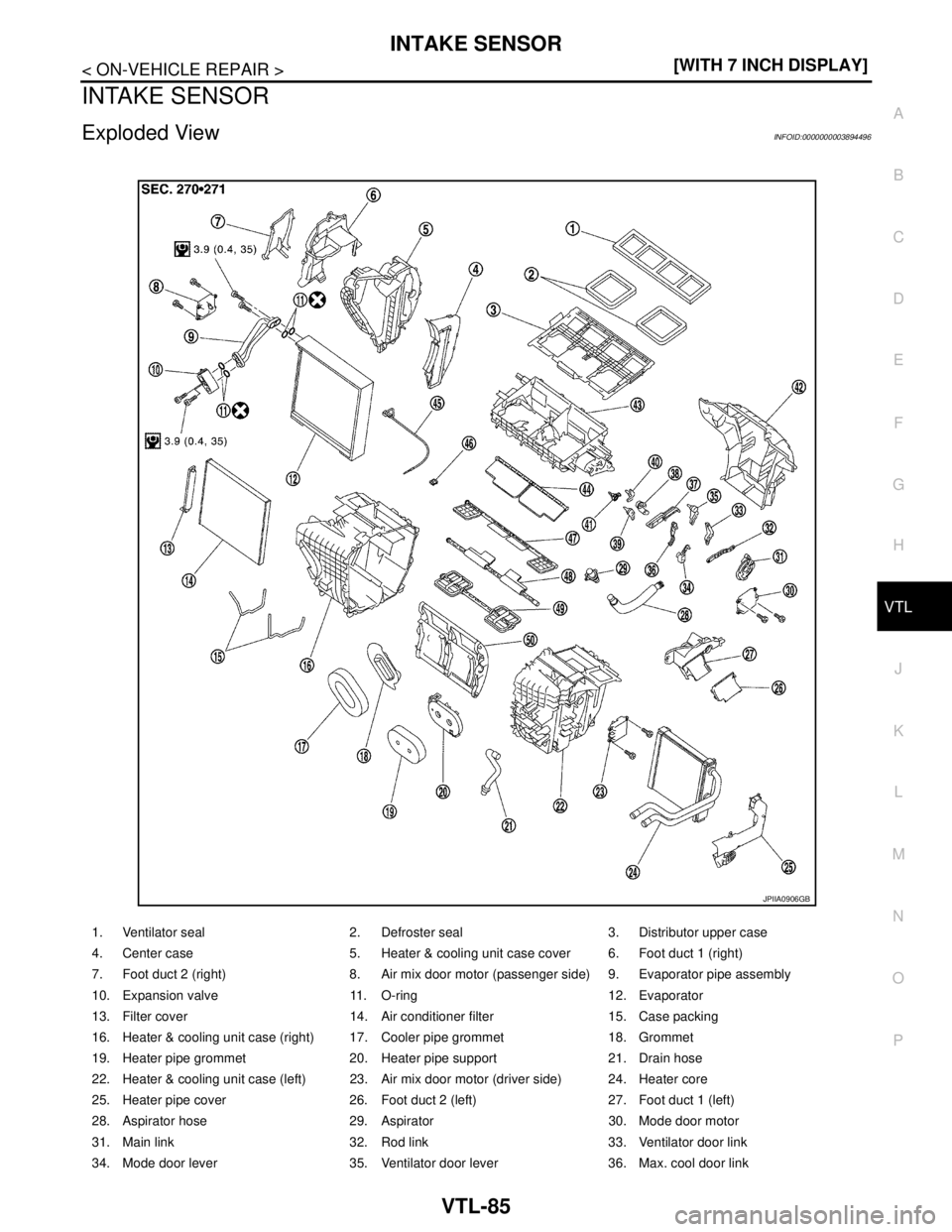

1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
37. Defroster door link 38. Foot door link 39. Max. cool door lever
40. Foot door lever 41. Defroster door lever 42. Adapter case
43. Distributor lower case 44. Ventilator door 45. Intake sensor
46. Intake sensor bracket 47. Foot door 48. Max. cool door
49. Defroster door 50. Air mix door (Slide door)
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0944ZZ
JPIIA0945ZZ

VTL-66
< PRECAUTION >[WITH 7 INCH DISPLAY]
PRECAUTIONS
Ventilate work area before resuming service if accidental system discharge occurs. Additional health
and safety information may be obtained from refrigerant and lubricant manufacturers.
 Never release refrigerant into the air. Use approved recovery/recycling equipment to capture the
refrigerant each time an air conditioning system is discharged.
 Wear always eye and hand protection (goggles and gloves) when working with any refrigerant or air
conditioning system.
 Never store or heat refrigerant containers above 52°C (126°F).
 Never heat a refrigerant container with an open flame; Place the bottom of the container in a warm
pail of water if container warming is required.
 Never intentionally drop, puncture, or incinerate refrigerant containers.
 Keep refrigerant away from open flames: poisonous gas is produced if refrigerant burns.
 Refrigerant displaces oxygen, therefore be certain to work in well ventilated areas to prevent suffo-
cation.
 Never pressure test or leakage test HFC-134a (R-134a) service equipment and/or vehicle air condi-
tioning systems with compressed air during repair. Some mixtures of air and HFC-134a (R-134a)
have been shown to be combustible at elevated pressures. These mixtures, if ignited, may cause
injury or property damage. Additional health and safety information may be obtained from refriger-
ant manufacturers.
Refrigerant ConnectionINFOID:0000000003894451
A new type refrigerant connection has been introduced to all refrigerant lines except the following locations.
 Expansion valve to evaporator
 Refrigerant pressure sensor to liquid tank
O-RING AND REFRIGERANT CONNECTION
CAUTION:
The new and former refrigerant connections use different O-ring configurations. Never confuse O-
rings since they are not interchangeable. Refrigerant may leak at the connection if a wrong O-ring is
installed.
F. Former type refrigerant connection N. New type refrigerant connection
:O-ring size
JPIIA0986ZZ

PRECAUTIONS
VTL-67
< PRECAUTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P O-Ring Part Numbers and Specifications
WARNING:
Check that all refrigerant is discharged into the recycling equipment and the pressure in the system is
less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.
CAUTION:
Observe the following when replacing or cleaning refrigerant cycle components.
 Store it in the same way at it is when mounted on the car when the compressor is removed. Failure
to do so causes lubricant to enter the low-pressure chamber.
 Use always a torque wrench and a back-up wrench when connecting tubes.
 Plug immediately all openings to prevent entry of dust and moisture after disconnecting tubes.
 Connect the pipes at the final stage of the operation when installing an air conditioner in the vehicle.
Never remove the seal caps of pipes and other components until just before required for connection.
 Allow components stored in cool areas to warm to working area temperature before removing seal
caps. This prevents condensation from forming inside A/C components.
 Remove thoroughly moisture from the refrigeration system before charging the refrigerant.
 Replace always used O-rings.
 Apply lubricant to circle of the O-rings shown in illustration when connecting tube. Be careful not to
apply lubricant to threaded portion.
 O-ring must be closely attached to the groove portion of tube.
 Be careful not to damage O-ring and tube when replacing the O-ring.
 Connect tube until a click can be heard. Then tighten the nut or bolt by hand. Check that the O-ring is
installed to tube correctly.
Connection type Piping connection point Part number QTY O-ring size
NewLow-pressure flexible hose to low-pressure pipe 92474 N8210 1 19
High-pressure pipe to condenser pipe assembly (Outlet) 92471 N8210 1 8
Condenser pipe assembly (Inlet) to high-pressure flexible
hose92472 N8210 1 12
Condenser assembly to condenser pipe as-
semblyInlet 92472 N8210 1 12
Outlet 92471 N8210 1 8
Low-pressure pipe to expansion valve 92473 N8210 1 16
High-pressure pipe to expansion valve 92471 N8210 1 8
Compressor to low-pressure flexible hose 92474 N8210 1 19
Compressor to high-pressure flexible hose 92472 N8210 1 12
Liquid tank to condenser assemblyInlet
92471 N82101
8
Outlet 1
FormerRefrigerant pressure sensor to liquid tank J2476 89956 1 10
Expansion valve to evaporator pipe assemblyInlet 92475 71L00 1 12
Outlet 92475 72L00 1 16
Evaporator to evaporator pipe assemblyInlet 92475 71L00 1 12
Outlet 92475 72L00 1 16
Name : NISSAN A/C System Oil Type S

AMBIENT SENSOR
VTL-81
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
AMBIENT SENSOR
Exploded ViewINFOID:0000000003894488
Removal and InstallationINFOID:0000000003943129
REMOVAL
1. Remove engine under cover. Refer to EXT-28, "Exploded View".
2. Disconnect ambient sensor connector (A), and then remove
ambient sensor (1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Ambient sensor
JPIIA0898ZZ
JPIIA0899ZZ

VTL-82
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
GAS SENSOR
GAS SENSOR
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Exploded ViewINFOID:0000000003894490
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and Installation
INFOID:0000000003894491
REMOVAL
1. Remove mounting bolt (A), and then remove gas sensor (1).
2. Disconnect gas sensor connector (B).
INSTALLATION
Installation is basically the reverse order of removal.
1. Gas sensor
JPIIA0900ZZ
JPIIA0901ZZ

IN-VEHICLE SENSOR
VTL-83
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
IN-VEHICLE SENSOR
Exploded ViewINFOID:0000000003894492
Removal and InstallationINFOID:0000000003894493
REMOVAL
1. Remove instrument lower panel LH. Refer to IP-11, "Exploded View".
2. Remove mounting screw (A), and then remove in-vehicle sensor
(1).
INSTALLATION
Installation is basically the reverse order of removal.
1. In-vehicle sensor 2. Instrument lower panel LH
JPIIA0902ZZ
JPIIA0903ZZ

VTL-84
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]

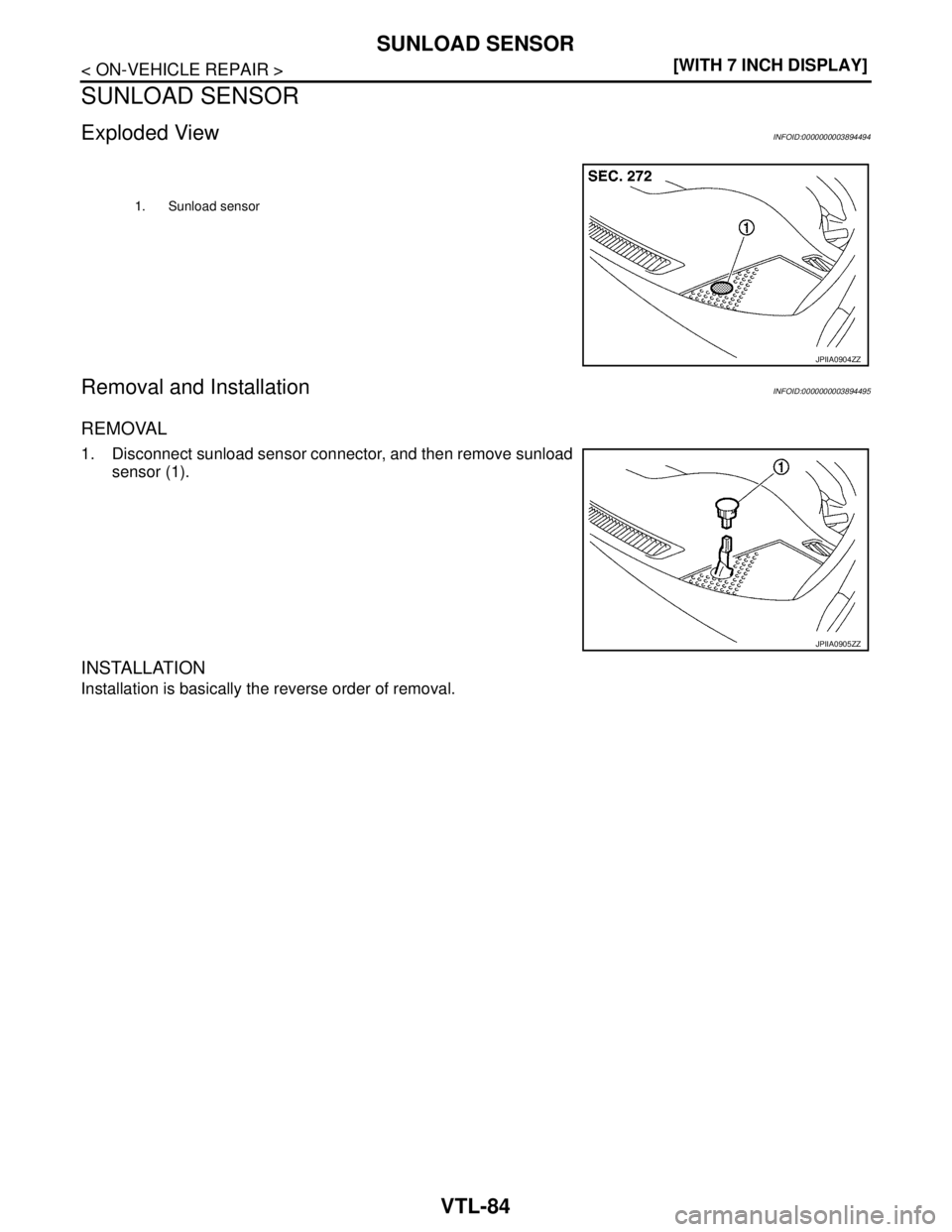

SUNLOAD SENSOR
SUNLOAD SENSOR
Exploded ViewINFOID:0000000003894494
Removal and InstallationINFOID:0000000003894495
REMOVAL
1. Disconnect sunload sensor connector, and then remove sunload
sensor (1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Sunload sensor
JPIIA0904ZZ
JPIIA0905ZZ

INTAKE SENSOR
VTL-85
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
INTAKE SENSOR
Exploded ViewINFOID:0000000003894496
1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
JPIIA0906GB
