2008 MITSUBISHI GRANDIS Owner's Manual (in English)

Starting and driving

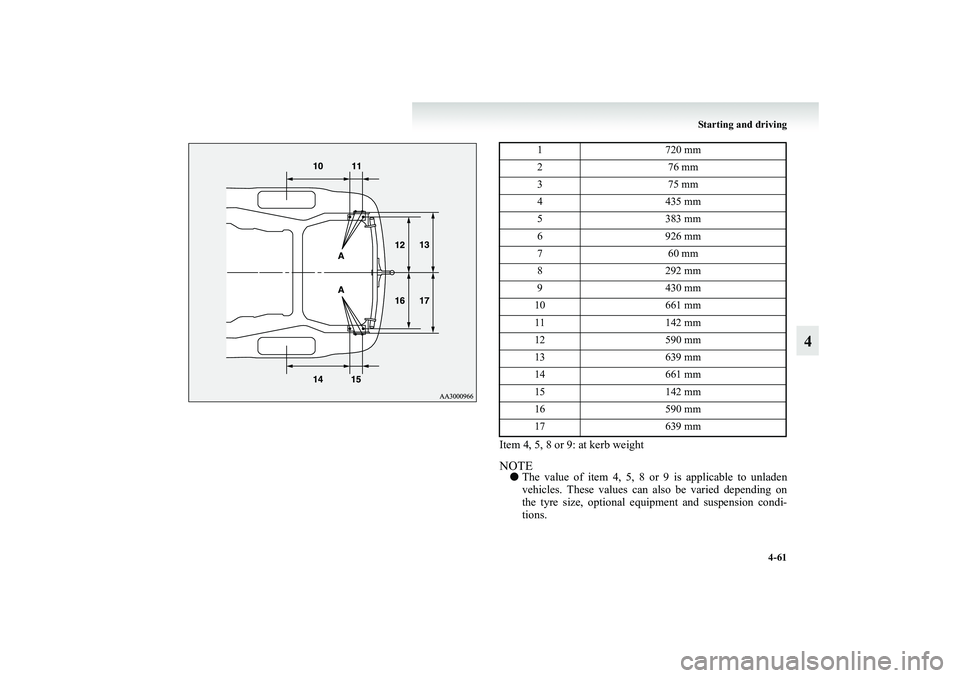

4-61
4
Item 4, 5, 8 or 9: at kerb weightNOTE●The value of item 4, 5, 8 or 9 is applicable to unladen
vehicles. These values can also be varied depending on
the tyre size, optional equipment and suspension condi-
tions.
1 720 mm
2 76 mm
3 75 mm
4 435 mm
5 383 mm
6 926 mm
7 60 mm
8 292 mm
9 430 mm
10 661 mm
11 142 mm
12 590 mm
13 639 mm
14 661 mm
15 142 mm
16 590 mm
17 639 mm
BK-XP08E1ENUK.en-uk.book Page 61 Monday, August 13, 2007 2:20 PM

4-62 Starting and driving
4
Operating hints●Do not let the clutch slip (vehicles with M/T only) and do
not increase the engine speed more than necessary when
starting.
●Be sure that the driving speed does not exceed the
100 km/h (62 mph) for trailer operation.
It is also recommended that you obey the local regulations
in case driving speed with a trailer is limited to less than
100 km/h (62 mph).
●To prevent shocks from the overrun brake, depress the
brake pedal lightly at first and then more strongly.
●To make full use of engine braking, change to a lower
gear before descending a slope.
●The body, brakes, clutch, and chassis will be under addi-
tional strain when towing a trailer.
●The heavier weight and higher rolling and air resistance
will increase fuel consumption.Additional precautions for vehicles equipped with A/TThe 2nd gear (in sports mode) is recommended on slopes or at
low speed. Use the 1st gear (in sports mode) in mountainous
areas in order to make better use of engine braking and to assist
the brake system. However, be sure that the speed does not
exceed the maximum speed limit for the selected gear.BK-XP08E1ENUK.en-uk.book Page 62 Monday, August 13, 2007 2:20 PM

5
For pleasant driving
Ventilators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Front automatic air conditioning . . . . . . . . . . . . . .5- 7
Rear heater*/Rear cooler* . . . . . . . . . . . . . . . . . . .5- 15
Rear automatic air conditioning* . . . . . . . . . . . . . .5- 16
Important operation tips for the air conditioning . .5- 19
Air purifier (with deodorizing function) . . . . . . . .5- 20
LW/MW/FM electronic tuning radio with
CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 21
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 47
Handling of compact discs . . . . . . . . . . . . . . . . . . .5- 49
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 53
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 54
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . . . .5- 55
Accessory socket* . . . . . . . . . . . . . . . . . . . . . . . . .5- 57
Interior lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 58
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 63
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 68
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 69
Card holder*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 72
Personal table . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 72
Tonneau cover* . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 73Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 77
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 77
Cargo net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 78
Warning triangle retaining bands . . . . . . . . . . . . . 5- 78
● For details on a vehicle equiped with a Multi Display
Station (MDS), refer to a separate operation manual.
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM

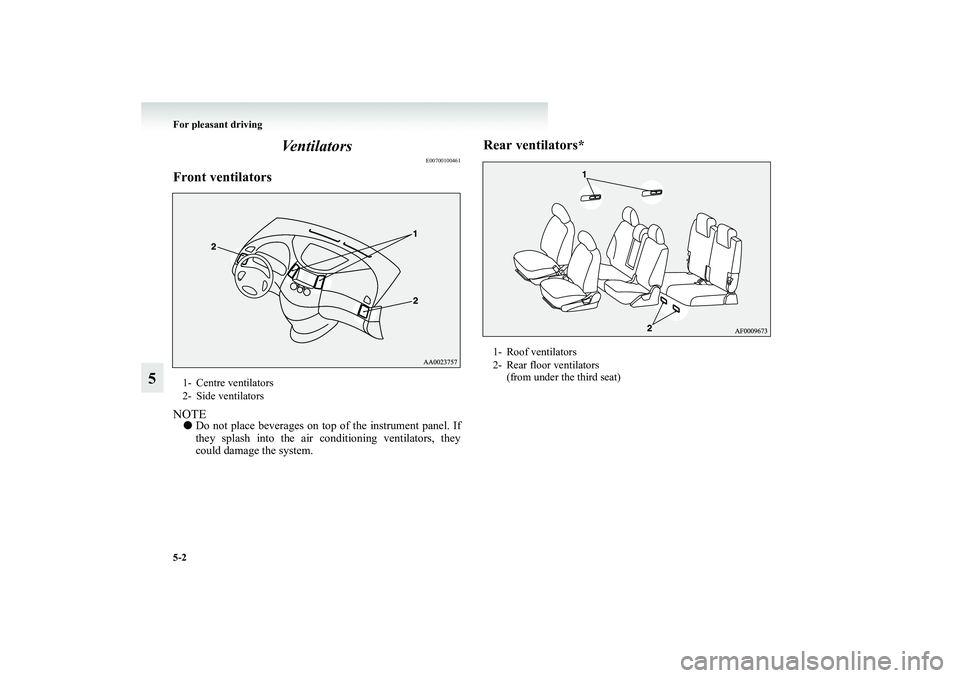

5-2 For pleasant driving
5Ventilators
E00700100461
Front ventilatorsNOTE●Do not place beverages on top of the instrument panel. If
they splash into the air conditioning ventilators, they
could damage the system.
Rear ventilators*
1- Centre ventilators
2- Side ventilators
1- Roof ventilators
2- Rear floor ventilators
(from under the third seat)
BK-XP08E1ENUK.en-uk.book Page 2 Monday, August 13, 2007 2:20 PM

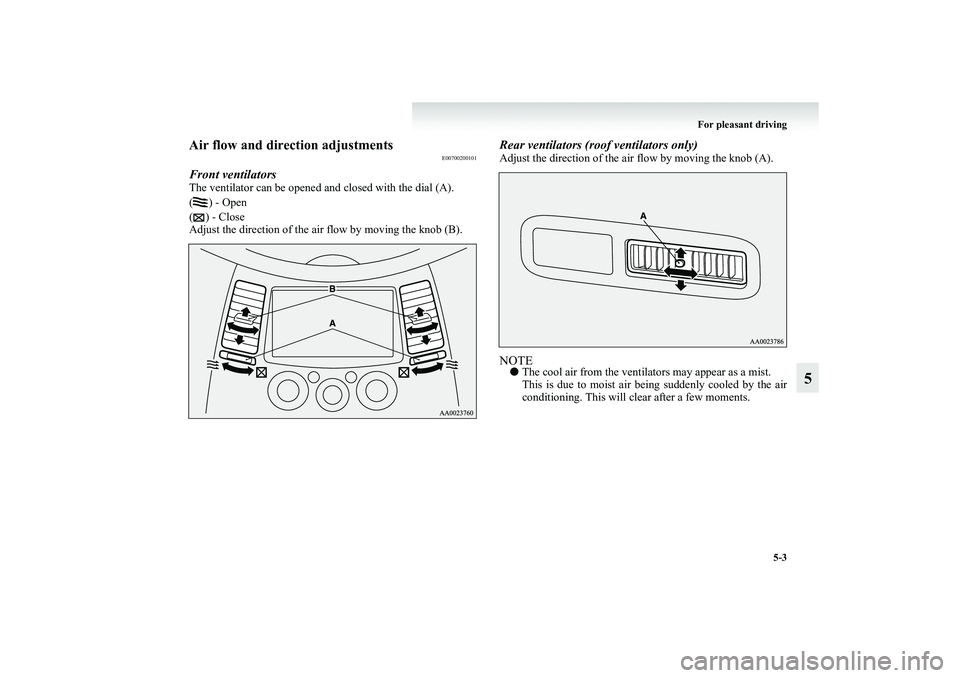

For pleasant driving
5-3
5
Air flow and direction adjustments
E00700200101
Front ventilatorsThe ventilator can be opened and closed with the dial (A).
() - Open
( ) - Close
Adjust the direction of the air flow by moving the knob (B).
Rear ventilators (roof ventilators only)Adjust the direction of the air flow by moving the knob (A).NOTE●The cool air from the ventilators may appear as a mist.
This is due to moist air being suddenly cooled by the air
conditioning. This will clear after a few moments.
BK-XP08E1ENUK.en-uk.book Page 3 Monday, August 13, 2007 2:20 PM

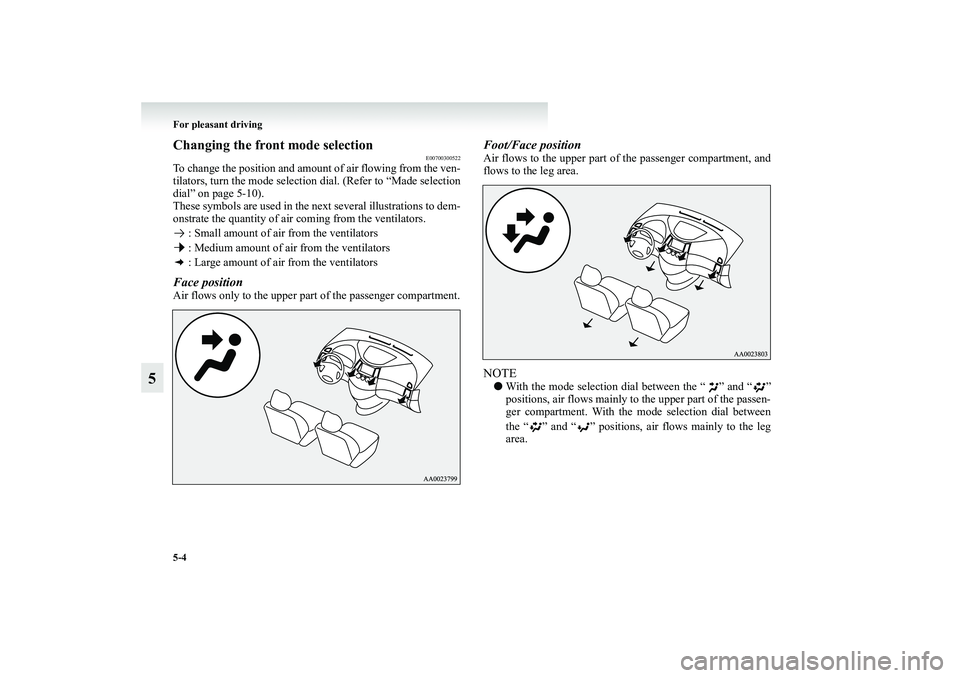

5-4 For pleasant driving
5
Changing the front mode selection
E00700300522
To change the position and amount of air flowing from the ven-
tilators, turn the mode selection dial. (Refer to “Made selection
dial” on page 5-10).
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the ventilators.
: Small amount of air from the ventilators
: Medium amount of air from the ventilators
: Large amount of air from the ventilatorsFace positionAir flows only to the upper part of the passenger compartment.
Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE●With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM

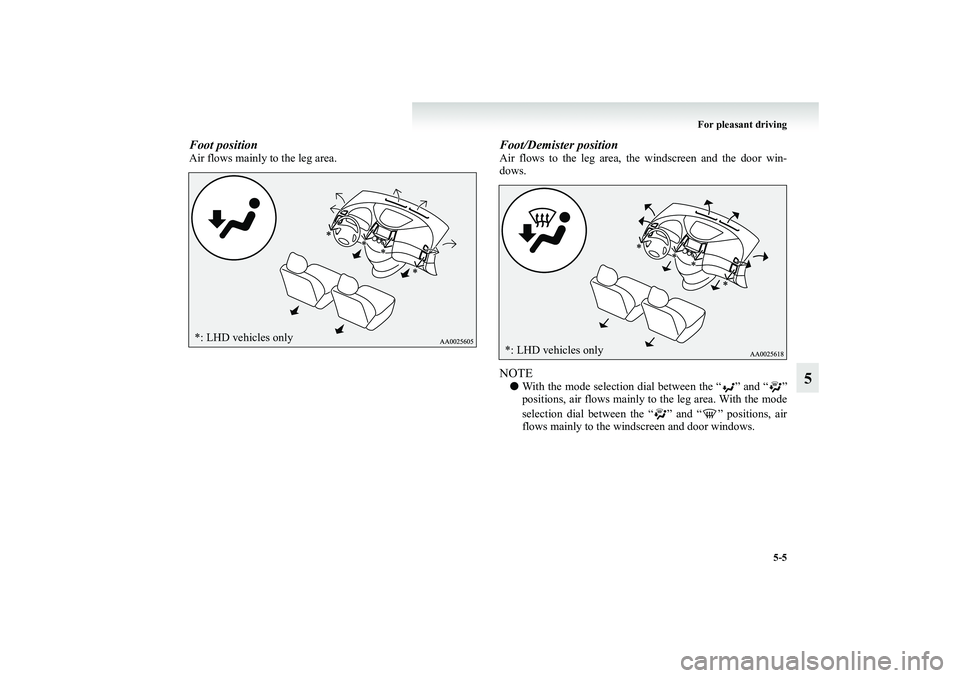

For pleasant driving
5-5
5
Foot positionAir flows mainly to the leg area.
Foot/Demister positionAir flows to the leg area, the windscreen and the door win-
dows.NOTE●With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ” and “ ” positions, air
flows mainly to the windscreen and door windows.
*: LHD vehicles only
*: LHD vehicles only
BK-XP08E1ENUK.en-uk.book Page 5 Monday, August 13, 2007 2:20 PM

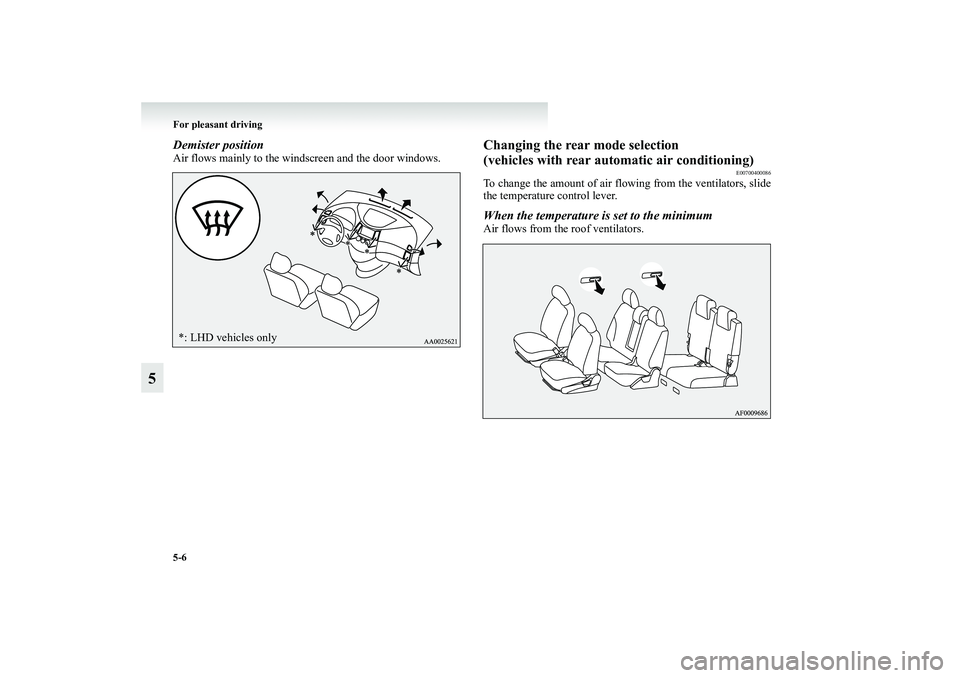

5-6 For pleasant driving
5
Demister positionAir flows mainly to the windscreen and the door windows.
Changing the rear mode selection
(vehicles with rear automatic air conditioning)
E00700400086
To change the amount of air flowing from the ventilators, slide
the temperature control lever.When the temperature is set to the minimumAir flows from the roof ventilators.
*: LHD vehicles onlyBK-XP08E1ENUK.en-uk.book Page 6 Monday, August 13, 2007 2:20 PM
