Instruments and controls
3-11
3
Check engine warning lamp (petrol-
powered vehicles)
E00502600501
This lamp is a part of an onboard diagnostic sys-
tem which monitors the emissions, engine and
automatic transmission control systems.
If a problem is detected in one of these systems,
this lamp illuminates or flashes.
Although your vehicle will usually be drivable
and not need towing, we recommend you to have
the system checked as soon as possible.
This lamp will also illuminate for a few seconds
when the ignition key is turned to the “ON” posi-
tion. If it does not go off after a few seconds, we
recommend you to have the vehicle checked.
●If the brake warning lamp comes on at
the same time as the ABS warning
lamp, the brake force distribution
function may not be working, so hard
braking could make the vehicle unsta-
ble. Avoid hard braking and high-
speed driving. Stop the vehicle in a safe
place and we recommend you to con-
sult a MITSUBISHI MOTORS
Authorized Service Point.●The vehicle should be brought to a halt
in the following manner when brake
performance has deteriorated.
• Depress the brake pedal harder than
usual.
Even if the brake pedal moves down
to the very end of its possible stroke,
keep it pressed down hard.
• Should the brakes fail, use engine
braking to reduce your speed and
slowly pull the parking brake lever to
park your vehicle.
Depress the brake pedal to operate
the stop lamp (brake lamp) to alert
the vehicles behind you.CAUTION
!
CAUTION
!●Prolonged driving with this lamp on
may cause further damage to the emis-
sion control system. It could also affect
fuel economy and drivability.●If the lamp does not illuminate when
the ignition key is turned to the “ON”
position, we recommend you to have
the system checked.
BK-XP08E1ENUK.en-uk.book Page 11 Monday, August 13, 2007 2:20 PM

3-12 Instruments and controls
3
NOTE●The engine electronic control module
accommodating the onboard diagnostic sys-
tem has various fault data (especially about
the exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag-
nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp
is ON.
Check engine warning lamp (diesel-
powered vehicles)
E00502600628
This lamp is a part of an onboard diagnostic sys-
tem which monitors the emissions control sys-
tems.
If a problem is detected in one of these systems,
this lamp illuminates.
Although your vehicle will usually be drivable
and not need towing, we recommend you to have
the system checked as soon as possible.
This lamp will also illuminate for a few seconds
when the ignition key is turned to the “ON” posi-
tion. If it does not go off after a few seconds, we
recommend you to have the vehicle checked.
●If the lamp illuminates or flashes while
the engine is running, avoid driving at
high speeds and we recommend you to
have the system checked.
During vehicle operation with the
lamp illuminated or flashing, the vehi-
cle may not accelerate when you
depress the accelerator pedal.
When the vehicle is stationary with the
lamp illuminated or flashing, you must
depress the brake pedal more firmly
than usual since the engine idling
speed is higher than usual and the
vehicle with an A/T has a stronger ten-
dency to creep forward.
CAUTION
!
CAUTION
!●Prolonged driving with this lamp on
may cause further damage to the emis-
sion control system. It could also affect
fuel economy and drivability.●If the lamp does not illuminate when
the ignition key is turned to the “ON”
position, we recommend you to have
the system checked.
BK-XP08E1ENUK.en-uk.book Page 12 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-13
3
NOTE●The engine electronic control module
accommodating the onboard diagnostic sys-
tem has various fault data (especially about
the exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag-
nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp
is ON.
Charge warning lamp
E00502700300
This lamp illuminates when the ignition key is
turned “ON”, and the lamp goes off after the
engine has started.
●If the lamp illuminates while the
engine is running, avoid driving at
high speeds and we recommend you to
have the system checked.
During vehicle operation with the
lamp illuminated, the vehicle may not
accelerate when you depress the accel-
erator pedal.
When the vehicle is stationary with the
lamp illuminated, you must depress
the brake pedal more firmly than usual
since the engine idling speed is higher
than usual.
CAUTION
!
CAUTION
!●If it illuminates while the engine is run-
ning, there is a problem in the charg-
ing system. In this case, immediately
park your vehicle in a safe place and
we recommend you to have it checked.
BK-XP08E1ENUK.en-uk.book Page 13 Monday, August 13, 2007 2:20 PM

3-14 Instruments and controls
3
Oil pressure warning lamp
E00502800330
This lamp illuminates when the ignition key is
turned “ON”, and the lamp goes off after the
engine has started. If it illuminates while the
engine is running, the oil pressure is too low.
If the warning lamp illuminates while the engine
is running, turn the engine off and have it
inspected.NOTE●The oil pressure warning lamp should not
be treated as an indication of the engine’s
oil level. The oil level must be checked
using the dipstick.
Door-ajar warning lamp
E00503300417
This lamp illuminates when a door or tailgate is
either open or incompletely closed.
If the vehicle speed reaches approximately
8 km/h (5 mph) with a door or the tailgate open
or incompletely closed, the warning lamp flashes
8 times and a buzzer simultaneously sounds
8 times as a warning.NOTE●On vehicles with keyless entry system, the
lamp remains illuminated for a certain
period and then goes out automatically to
prevent complete discharge of the battery.
Refer to “Lamps (room lamps, etc.) auto-
cutout function” on page 5-63.
●It is possible to change the buzzer setting
for either of the following types of opera-
tion. For further information, we recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• No buzzer operation (buzzer disabled)
• Continuous buzzer operation
CAUTION
!●If this lamp illuminates when the
engine oil level is not low, have it
inspected.●This warning lamp does not indicate
the amount of oil in the crankcase.
This must be determined by checking
the oil level on the dipstick, while the
engine is switched off.●If you continue driving with low engine
oil level or with this warning lamp illu-
minated, engine seizure may occur.
CAUTION
!●Before moving your vehicle, check that
the warning lamp is OFF.
BK-XP08E1ENUK.en-uk.book Page 14 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-15
3 Multi centre display
E00503600120
When the ignition switch is in the “ACC” position, the digital
clock is displayed in the multi centre display. When the igni-
tion switch is in the “ON” position, the momentary fuel con-
sumption and outside temperature are displayed besides the
digital clock.
WARNING
!●When operating the system for a prolonged period,
make sure the vehicle is parked in a well ventilated
area to avoid the accumulation of toxic fumes inside
and outside of the passenger compartment.
CAUTION
!●The driver should not operate the display while the
vehicle is in motion.●When operating the system, stop the vehicle in a safe
area.
BK-XP08E1ENUK.en-uk.book Page 15 Monday, August 13, 2007 2:20 PM

3-16 Instruments and controls
3
NOTE●The display unit (ex. km or mile) and brightness can be changed as desired. (Refer to “ Display brightness adjustment” on page
3-27 and “Display unit selection” on page 3-29.) When the system cannot provide a definite value for momentary fuel con-
sumption/average fuel consumption/driving range/average speed, it is displayed as “---”.
●The figure of the display varies according to the conditions under which a vehicle is travelling (road conditions, the manner in
which the vehicle is being driven, etc.).
Observe display for reference because the figure of the display may differ from the actual figure.A- Outside temperature → p. 3-20
B- Driving information → p. 3-21
C- Digital clock → p. 3-17
BK-XP08E1ENUK.en-uk.book Page 16 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-17
3

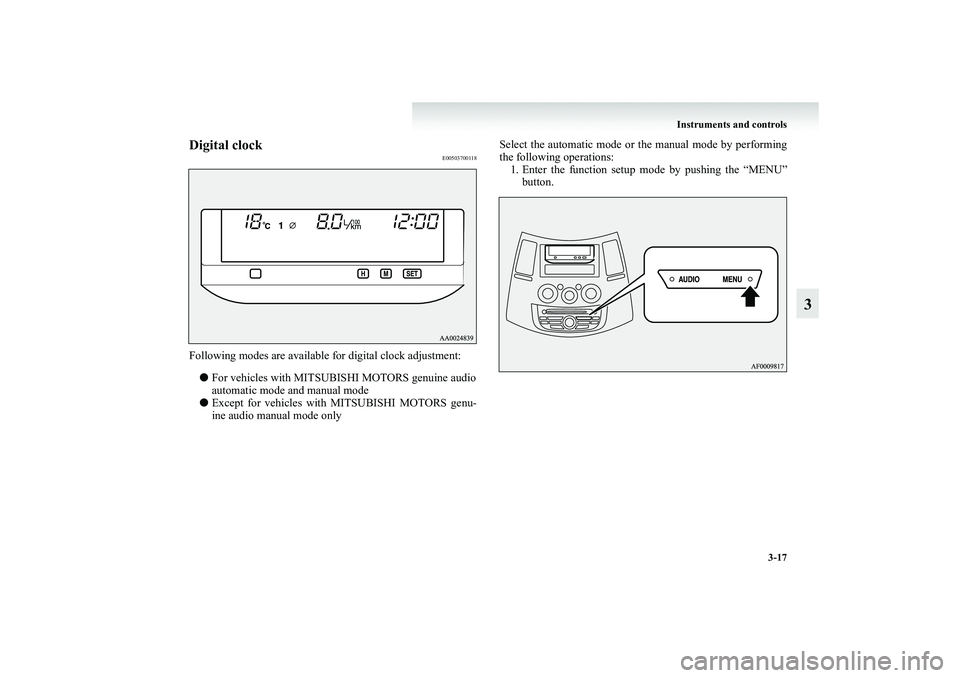

Digital clock
E00503700118
Following modes are available for digital clock adjustment:
●For vehicles with MITSUBISHI MOTORS genuine audio
automatic mode and manual mode
●Except for vehicles with MITSUBISHI MOTORS genu-
ine audio manual mode onlySelect the automatic mode or the manual mode by performing
the following operations:
1. Enter the function setup mode by pushing the “MENU”
button.
BK-XP08E1ENUK.en-uk.book Page 17 Monday, August 13, 2007 2:20 PM

3-18 Instruments and controls
3
2. Press the “MENU” button repeatedly to select the CT
(Clock Time) mode.
The order is: AF → CT → REG → TP-S → PH → MUTE
(with PH OFF, this mode is not displayed) → Language of
PTY display → Function setup mode OFF
(Refer to “Function setup mode” on page 5-35.)
NOTE●Although “PH” and “MUTE” appear on the display, the
PH and MUTE functions are inoperative.
