2008 MITSUBISHI GRANDIS Owner's Manual (in English)

Instruments and controls
3-43
3
NOTE●It is possible to spray washer fluid without activating the
wipers. To do so, hold the lever in the pulled position and
turn the ignition switch to the “ON” or “ACC” position.
●It is possible to cause the wipers never to operate when
washer fluid is sprayed. For further information, we rec-
ommend you to consult a MITSUBISHI MOTORS
Authorized Service Point.
On a vehicle equipped with a Multi Display Station
(MDS), the functions can be adjusted on the screen. For
details, refer to a separate operation manual.
Rear window wiper and washer
E00507300460
The rear window wiper and washer switch can be operated
with the ignition switch in the “ON” or “ACC” position.
Turn the knob, and the rear window wiper will operate.INT - The wiper operates continuously for several seconds then
operates intermittently at intervals of about every 8 sec-
onds
OFF - Off
-The washer fluid will be sprayed onto the rear window
when the knob is turned fully in either direction.
The wipers operate automatically several times while the
washer fluid is being sprayed
BK-XP08E1ENUK.en-uk.book Page 43 Monday, August 13, 2007 2:20 PM

3-44 Instruments and controls
3
NOTE●To ensure a clear rearward view, the wiper performs a
number of continuous operations either when the switch is
moved to the “INT” position or when the gearshift lever
(M/T) or the selector lever (A/T) is moved to the “R”
position while the switch is in the “INT” position.
Following this continuous operation, the wiper will auto-
matically switch to intermittent operation.
●It is possible to spray washer fluid without activating the
wiper. To do so, hold the knob at the end of the lever in the
“ ” position and turn the ignition switch to the “ON” or
“ACC” position.
●It is possible to activate the following functions. For fur-
ther information, we recommend you to consult a MIT-
SUBISHI MOTORS Authorized Service Point.
On a vehicle equipped with a Multi Display Station
(MDS), the functions can be adjusted on the screen. For
details, refer to a separate operation manual.
• Adjustment of the interval for intermittent operation
• Causing the wipers to switch to continuous operation
when the knob at the end of the lever is turned to the
“INT” position twice within approximately 1 second
• Changing intermittent wiper operation to continuous
wiper operation
• Causing the wiper never to operate when washer fluid is
sprayed
Precautions to observe when using wipers and
washers
E00507600014
●If the moving wipers become blocked by ice or other
deposits on the glass, the motor may burn out even if the
wiper switch is turned to OFF. If obstruction occurs, park
your vehicle in a safe place, turn off the ignition, and
clean the deposits from the glass so that the wipers operate
smoothly.
●Do not use the wipers when the glass is dry. They may
scratch the glass surface or the blades may prematurely
wear out.
●Before using the wipers in cold weather, check that the
wiper blades are not frozen onto the glass. The motor may
burn out if the wipers are used with the blades frozen onto
the glass.
●Avoid using the washer continuously for more than
20 seconds. Do not operate the washer when the fluid res-
ervoir is empty.
Otherwise, the motor may burn out.
●Periodically check the level of washer fluid in the reser-
voir and refill if required.
During cold weather, add a recommended washer solution
that will not freeze in the washer reservoir. Failure to do
so could result in loss of washer function and frost dam-
age to the system components.
BK-XP08E1ENUK.en-uk.book Page 44 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-45
3 Headlamp washer switch
*
E00507800120
The headlamp washer can be operated when the ignition switch
is in the “ON” or “ACC” position and the headlamps are on.
Push the button once and the washer fluid will be sprayed on to
the headlamps.NOTE●If the ignition switch is in the “ON” or “ACC” position
and the headlamps are on, the headlamp washer operates
together with the windscreen washer the first time the
windscreen washer lever is pulled.
●Check the headlamp washers periodically to confirm that
the washer fluid is being sprayed properly on to the head-
lamp lenses.
Rear window demister switch
E00507900176
The rear window demister switch can be operated with the
ignition switch in the “ON” position.
Push the switch to turn on the rear window demister. It will be
turned off automatically in about 20 minutes. To turn off the
demister within about 20 minutes, push the switch again.
The indicator lamp (A) will illuminate while the demister is on.NOTE●When the rear window demister switch is pressed, the out-
side rearview mirrors are defogged or defrosted. Refer to
“Heated mirrors” on page 4-14.
●The demister switch is not to melt snow but to clear mist.
Remove snow before use of the demister switch.
BK-XP08E1ENUK.en-uk.book Page 45 Monday, August 13, 2007 2:20 PM

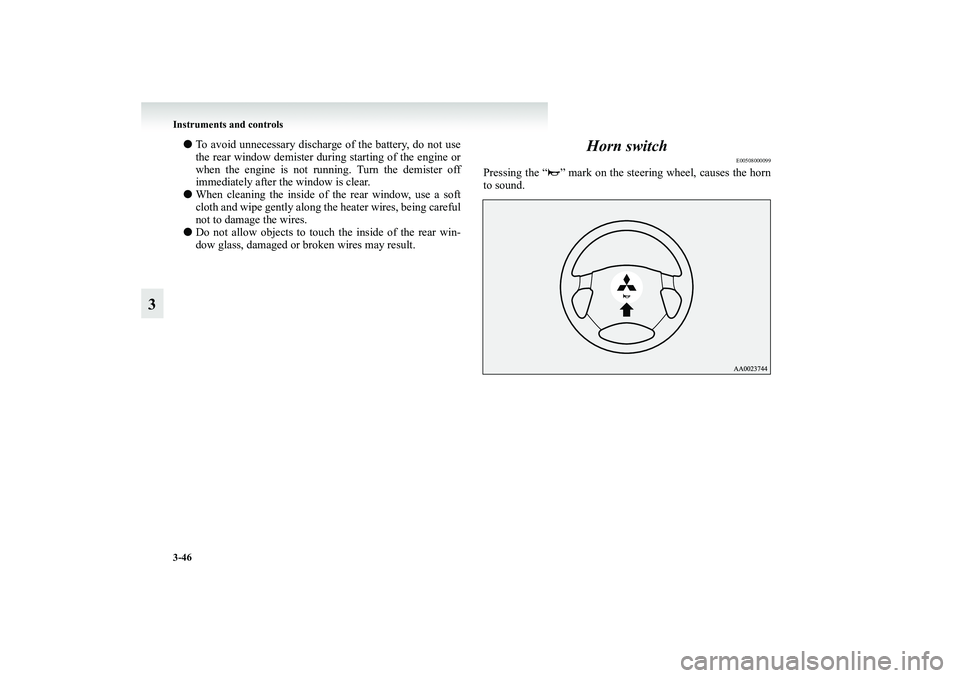

3-46 Instruments and controls
3
●To avoid unnecessary discharge of the battery, do not use
the rear window demister during starting of the engine or
when the engine is not running. Turn the demister off
immediately after the window is clear.
●When cleaning the inside of the rear window, use a soft
cloth and wipe gently along the heater wires, being careful
not to damage the wires.
●Do not allow objects to touch the inside of the rear win-
dow glass, damaged or broken wires may result.
Horn switch
E00508000099
Pressing the “ ” mark on the steering wheel, causes the horn
to sound.
BK-XP08E1ENUK.en-uk.book Page 46 Monday, August 13, 2007 2:20 PM

4
Starting and driving
Economical driving . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 3
Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 3
Running-in recommendations . . . . . . . . . . . . . . . .4- 5
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 6
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7
Steering wheel height adjustment . . . . . . . . . . . . .4- 8
Inside rear-view mirror . . . . . . . . . . . . . . . . . . . . .4- 9
Outside rear-view mirrors . . . . . . . . . . . . . . . . . . .4- 10
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 14
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .4- 17
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 18
Diesel particulate filter (DPF)* . . . . . . . . . . . . . . .4- 21
Manual transmission . . . . . . . . . . . . . . . . . . . . . . .4- 23
Automatic transmission INVECS-II
Sports Mode 4A/T (Intelligent & Innovative
Vehicle Electronic Control System II) . . . . . . . .4- 26
Braking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 35
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . .4- 36
Power steering system . . . . . . . . . . . . . . . . . . . . . .4- 40Active stability control (ASC)*. . . . . . . . . . . . . . . 4- 41
Auto-speed (cruise) control* . . . . . . . . . . . . . . . . . 4- 45
Corner sensor system* . . . . . . . . . . . . . . . . . . . . . 4- 51
Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 57
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 60
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM

4-2 Starting and driving
4Economical driving
E00600100372
For economical driving, there are some technical requirements
that have to be met. The prerequisite for low fuel consumption
is a properly adjusted engine. In order to achieve longer life of
the vehicle and the most economical operation, we recommend
you have the vehicle checked at regular intervals in accordance
with the service standards.
Fuel economy and generation of exhaust gas and noise are
highly influenced by personal driving habits as well as the par-
ticular operating conditions. The following points should be
observed in order to minimize wear of brakes, tyres and engine
as well as to reduce environmental pollution.StartingAvoid rapid acceleration and sudden starts; such operation will
result in higher fuel consumption.ShiftingShift only at an appropriate speed and engine speed. Always
use the highest gear possible.City trafficFrequent starting and stopping increases the average fuel con-
sumption. Use roads with smooth traffic flow whenever possi-
ble. When driving on congested roads, avoid use of a low gear
at high engine speeds.IdlingThe vehicle consumes fuel even during idling. Avoid extended
idling whenever possible.
SpeedThe higher the vehicle speed, the more fuel consumed. Avoid
driving at full speed. Even a slight release of the accelerator
pedal will save a significant amount of fuel.Tyre inflation pressureCheck the tyre inflation pressures at regular intervals. Low tyre
inflation pressure increases road resistance and fuel consump-
tion. In addition, low tyre pressures adversely affect tyre wear
and driving stability.LoadDo not drive with unnecessary articles in the luggage compart-
ment. Especially during city driving where frequent starting
and stopping is necessary, the increased weight of the vehicle
will greatly affect fuel consumption. Also avoid driving with
unnecessary luggage, etc., on the roof; the increased air resist-
ance will increase fuel consumption.Cold engine startingStarting of a cold engine consumes more fuel.
Unnecessary fuel consumption is also caused by keeping a hot
engine running. After the engine is started, commence driving
as soon as possible.Air conditioningThe use of the air conditioning will increase the fuel consump-
tion.
BK-XP08E1ENUK.en-uk.book Page 2 Monday, August 13, 2007 2:20 PM

Starting and driving
4-3
4 Driving, alcohol and drugs
E00600200012
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
Safe driving techniques
E00600300202
Driving safety and protection against injury cannot be fully
ensured. However, we recommend that you pay extra attention
to the following:Seat beltsBefore starting the vehicle, make sure that you and your pas-
sengers have fastened your seat belts.
WARNING
!●NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK-XP08E1ENUK.en-uk.book Page 3 Monday, August 13, 2007 2:20 PM

4-4 Starting and driving
4
Floor mats Carrying children in the vehicle
●Never leave your vehicle unattended with the key in the
ignition and children inside the vehicle. Children may
play with the driving controls and this could lead to an
accident.
●Make sure that infants and small children are properly
restrained in accordance with the laws and regulations,
and for maximum protection in case of an accident.
●Prevent children from playing in the luggage compart-
ment. It is quite dangerous to allow them to play there
while the vehicle is moving.Loading luggageWhen loading luggage, be careful not to load above the height
of seats. This is dangerous not only because rearward vision
will be obstructed, but also the luggage may be projected into
the passenger compartment under hard braking.
WARNING
!●Keep floor mats clear of the pedals by correctly lay-
ing floor mats that are suitable for the vehicle.
To prevent the floor mats from slipping out position,
securely retain them using the hook etc.
Note that laying a floor mat over a pedal or laying
one floor mat on top of another can obstruct pedal
operation and lead to a serious accident.
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM
