2008 MITSUBISHI GRANDIS Owner's Manual (in English)

2
Seat and seat belts
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seat arrangement . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 5
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 6
Second seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 9
Third seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 17
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 19
Making a luggage area . . . . . . . . . . . . . . . . . . . . . .2- 21
Making a flat seat . . . . . . . . . . . . . . . . . . . . . . . . . .2- 25
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 33
Seat belt reminder/warning lamp . . . . . . . . . . . . . .2- 35
Pregnant women restraint . . . . . . . . . . . . . . . . . . .2- 38
Seat belt pre-tensioner system
and force limiter system . . . . . . . . . . . . . . . . . . .2- 39
Child restraint. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 40
Seat belt inspection . . . . . . . . . . . . . . . . . . . . . . . .2- 52
Supplemental restraint system (SRS) - air bag . . .2- 53
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM

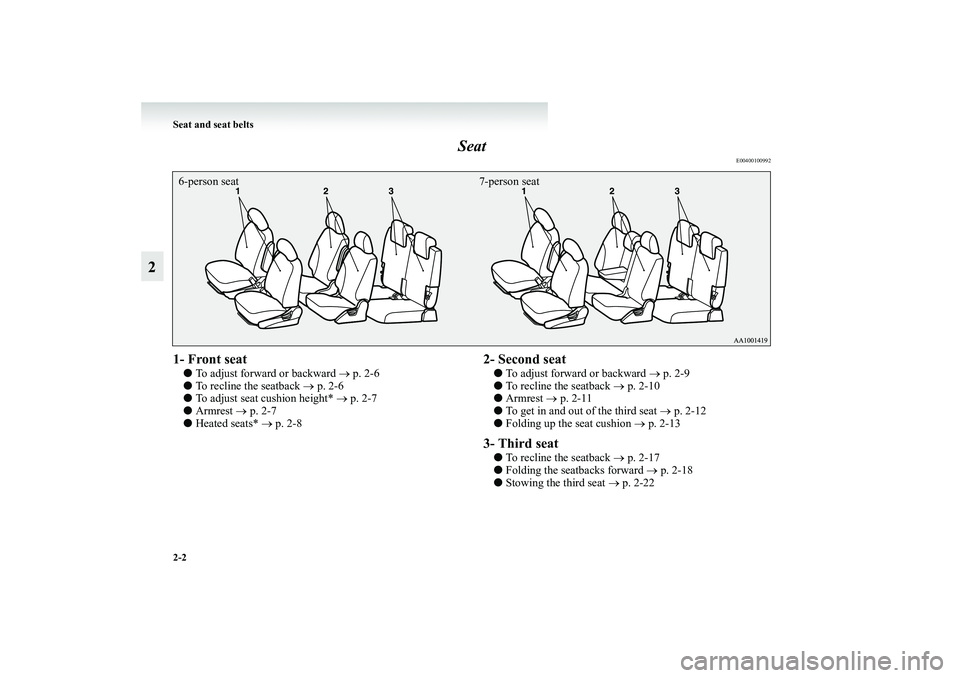

2-2 Seat and seat belts
2Seat
E00400100992
1- Front seat ●To adjust forward or backward → p. 2-6
●To recline the seatback → p. 2-6
●To adjust seat cushion height* → p. 2-7
●Armrest → p. 2-7
●Heated seats* → p. 2-8
2- Second seat●To adjust forward or backward → p. 2-9
●To recline the seatback → p. 2-10
●Armrest → p. 2-11
●To get in and out of the third seat → p. 2-12
●Folding up the seat cushion → p. 2-133- Third seat●To recline the seatback → p. 2-17
●Folding the seatbacks forward → p. 2-18
●Stowing the third seat → p. 2-22
6-person seat 7-person seatBK-XP08E1ENUK.en-uk.book Page 2 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-3
2 Seat arrangement
E00400200430
By operating the seats select the desired seats arrangement.
6-person seat
7-person seat
Normal usageFlat seat
With front and second
seats → p. 2-26With second and third
seats → p. 2-29
BK-XP08E1ENUK.en-uk.book Page 3 Monday, August 13, 2007 2:20 PM

2-4 Seat and seat belts
2
How to stow large
articles
Folding up the second
seat cushion → p. 2-13Folding the third seat-
backs forward
→ p. 2-18Stowing the third seat
→ p. 2-22
6-person seat
7-person seat
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-5
2 Seat adjustment
E00400300402
Adjust the driver’s seat so that you are comfortable and that
you can reach the pedals, steering wheel, switches etc. while
retaining a clear field of vision.
WARNING
!●Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident. After adjustments are made, ensure the
seating is locked in position by attempting to move
the seat forward and rearward without using the
adjusting mechanism.●It is extremely dangerous to ride in the luggage area
of a vehicle. Also, the luggage area and rear seats
should never be used as a play area by children. In a
collision, people or children riding unrestrained in
these areas are more likely to be seriously injured or
killed.
Do not allow people or children to ride in any area of
your vehicle that is not equipped with seats and seat
belts, and make sure that everyone travelling in
your vehicle is in a seat and wearing a seat belt, or in
the case of a child is strapped in a child restraint.
●To minimize the risk of personal injury in the event
of a collision or sudden braking, the seatbacks
should always be in the almost upright position
while the vehicle is in motion. The protection pro-
vided by the seat belts may be reduced significantly
when the seatback is reclined. There is greater risk
that the passenger will slide under the seat belt,
resulting in serious injury, when the seatback is
reclined.
CAUTION
!●Make sure the seat is adjusted by an adult or with
adult supervision for correct and safe operation.●Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.●When sliding the seats, be careful not to catch your
hand or foot.●When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
WARNING
!
BK-XP08E1ENUK.en-uk.book Page 5 Monday, August 13, 2007 2:20 PM

2-6 Seat and seat belts
2Front seat
E00400400012
To adjust forward or backward
E00400500491
Pull the seat adjusting lever and adjust the seat forward or
backward to the desired position. After adjustment, release the
adjusting lever to lock the seat in position.
To recline the seatback
E00400600610
In order to recline the seatback, lean forward slightly, pull the
seatback lock lever up, and then lean backward to the desired
position and release the lever. The seatback will lock in that
position.
WARNING
!●To ensure the seat is locked securely, try to move the
seat forward or backward without using the adjust-
ing lever.
CAUTION
!●The reclining mechanism of the seatback is spring
loaded, causing it to return to the vertical position
when the lock lever is operated. When using the
lever, sit close to the seatback or hold it with your
hand to control its return motion.
BK-XP08E1ENUK.en-uk.book Page 6 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-7
2
To adjust seat cushion height*
E00400700608
Adjust the seat cushion height by repeatedly operating the
lever.
Armrest
E00400900059
To adjust the armrest angle, tip the armrest forward and then
raise it to the desired position.
To return the armrest to its original position, raise it backward.NOTE●Do not stand or sit on the armrest. It could break.
1- Raise
2- Lower
BK-XP08E1ENUK.en-uk.book Page 7 Monday, August 13, 2007 2:20 PM

2-8 Seat and seat belts
2
Heated seats*
E00401100205
The heated seats can be operated with the ignition switch in the
“ON” position.
The indication lamp (A) will illuminate while the heater is on.
NOTE●Do not place heavy objects on the seat or stick pins, nee-
dles, or other pointed objects into it.
●When cleaning the seat, do not use benzene, gasoline,
alcohol, or other organic solvents; this might damage the
surface of the seat and also the heater element.
●If water or any other liquid is spilled on the seat, allow it
to dry thoroughly before attempting to use the heater.
1- Heater high (for quick heating).
2- Heater off.
3- Heater low (to keep the seat warm).
CAUTION
!●Operate in the high position for quick heating. Once
the seat is warm, set the heater to low to keep it
warm. Slight variations in seat temperature may be
felt while using the heated seats. This is caused by
the operation of the heater’s internal thermostat and
does not indicate a malfunction.
●If the following types of persons use the heated seats,
they might become too hot or receive minor burns
(red skin, heat blisters, etc.):
• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or sleep
inducing medication (cold medicine, etc.)
●Do not use a blanket, cushion, or other material with
high heat insulation properties on the seat while
using the heater; this might cause the heater element
to overheat.●Turn the heater off immediately if it appears to be
malfunctioning during use.
CAUTION
!
BK-XP08E1ENUK.en-uk.book Page 8 Monday, August 13, 2007 2:20 PM
