Seat and seat belts
2-63
2
Driver’s and passenger’s front air bag system
E00407400356
The driver’s air bag is located under the padded cover in the
middle of the steering wheel. The front passenger’s air bag is
contained in the instrument panel above the glove box.
The driver’s air bag inflates at two different rates according to
the fore-aft position of the driver’s seat and the severity of the
impact.
The front passenger’s air bag deploys at the same time as the
driver’s air bag, even if the passenger seat is not occupied, and
inflates at two different rates according to the severity of the
impact.
WARNING
!●If the indicator behaves in any of the following ways,
there may be a fault in the air bag system. We rec-
ommend you to have the vehicle inspected by a
MITSUBISHI MOTORS Authorized Service Point
as soon as possible.
• The indicator does not come on when the front
passenger’s air bag ON-OFF switch is turned OFF.
• The indicator stays on when the front passenger’s
air bag ON-OFF switch is turned ON.
●Do not fit any accessory that makes the indicator
impossible to see, and do not cover the indicator
with a sticker. You would not be able to verify the
status of the passenger air bag system.
BK-XP08E1ENUK.en-uk.book Page 63 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-39
3
NOTE●If the lamps are kept flashing for a long time, the battery
will be discharged, resulting in hard engine starting or no
start condition.
●It is possible to cause a buzzer to sound in time with flash-
ing of the turn-signal lamps. For further information, we
recommend you to consult a MITSUBISHI MOTORS
Authorized Service Point.
On a vehicle equipped with a Multi Display Station
(MDS), the functions can be adjusted on the screen. For
details, refer to a separate operation manual.
Fog lamp switch
E00506700018
Front fog lamp switch
E00508300050
The front fog lamps can be operated when the headlamps or
tail lamps are turned on. Push the switch to turn on the front
fog lamps, push the switch again to turn them off.
The indicator lamp in the instrument cluster will illuminate
while the front fog lamps are on.NOTE●The front fog lamps are automatically turned off when the
headlamps and tail lamps turn off. To turn on the front fog
lamps again, push the switch again when the headlamps or
tail lamps are turned on.
BK-XP08E1ENUK.en-uk.book Page 39 Monday, August 13, 2007 2:20 PM

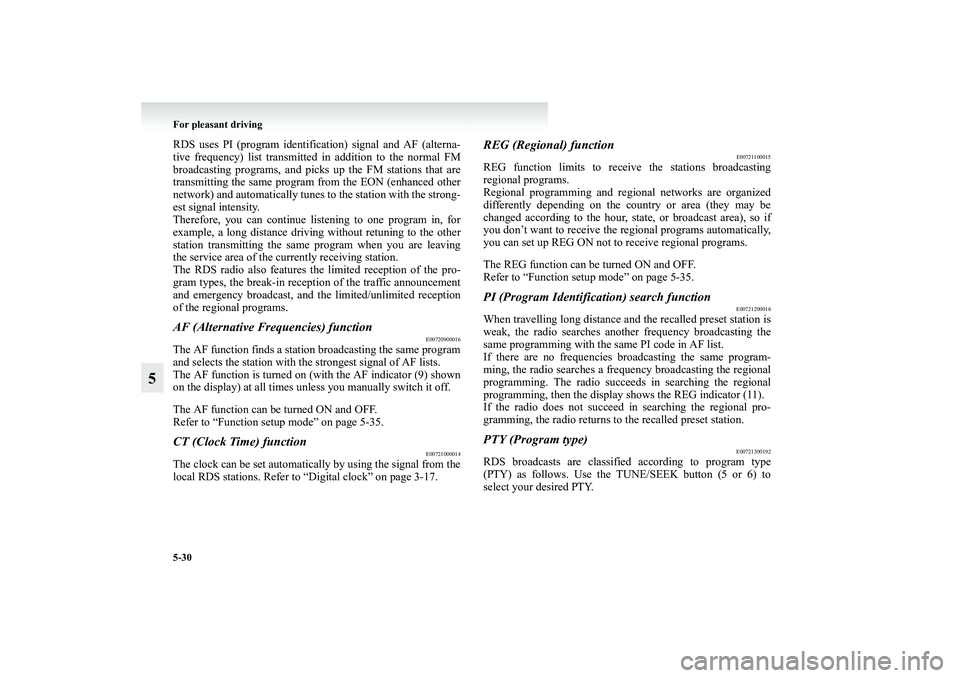

5-30 For pleasant driving
5
RDS uses PI (program identification) signal and AF (alterna-
tive frequency) list transmitted in addition to the normal FM
broadcasting programs, and picks up the FM stations that are
transmitting the same program from the EON (enhanced other
network) and automatically tunes to the station with the strong-
est signal intensity.
Therefore, you can continue listening to one program in, for
example, a long distance driving without retuning to the other
station transmitting the same program when you are leaving
the service area of the currently receiving station.
The RDS radio also features the limited reception of the pro-
gram types, the break-in reception of the traffic announcement
and emergency broadcast, and the limited/unlimited reception
of the regional programs.AF (Alternative Frequencies) function
E00720900016
The AF function finds a station broadcasting the same program
and selects the station with the strongest signal of AF lists.
The AF function is turned on (with the AF indicator (9) shown
on the display) at all times unless you manually switch it off.
The AF function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-35.CT (Clock Time) function
E00721000014
The clock can be set automatically by using the signal from the
local RDS stations. Refer to “Digital clock” on page 3-17.
REG (Regional) function
E00721100015
REG function limits to receive the stations broadcasting
regional programs.
Regional programming and regional networks are organized
differently depending on the country or area (they may be
changed according to the hour, state, or broadcast area), so if
you don’t want to receive the regional programs automatically,
you can set up REG ON not to receive regional programs.
The REG function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-35.PI (Program Identification) search function
E00721200016
When travelling long distance and the recalled preset station is
weak, the radio searches another frequency broadcasting the
same programming with the same PI code in AF list.
If there are no frequencies broadcasting the same program-
ming, the radio searches a frequency broadcasting the regional
programming. The radio succeeds in searching the regional
programming, then the display shows the REG indicator (11).
If the radio does not succeed in searching the regional pro-
gramming, the radio returns to the recalled preset station.PTY (Program type)
E00721300192
RDS broadcasts are classified according to program type
(PTY) as follows. Use the TUNE/SEEK button (5 or 6) to
select your desired PTY.
