2008 MITSUBISHI GRANDIS display

Overview
Instruments and Controls (Instrument panel)
E00100102658
LHD
Multi centre display*
p. 3-15
Ventilators p. 5-2
Rear window demister
switch p. 3-45
Hazard warning flasher
switch p. 3-38
Ashtray (fixed position)
p. 5-54
Cup holder (for front seats)
p. 5-68 Gearshift or selector lever p. 4-23, 4-26
Parking brake lever p. 4-6
Cigarette lighter*
p. 5-55Supplemental restraint
system - air bag (for
front passenger’s seat)
p. 2-53
Front automatic air con-
ditioning p. 5-7
Audio p. 5-21 Instrument panel upper box p. 5-65
Heated seat switch* p. 2-8Front passenger’s air
bag ON-OFF switch
p. 2-59 Front passenger’s air
bag off indication
lamp p. 2-62Multi display station*
Refer to the separate
“Multi display station
owner’s manual”BK-XP08E1ENUK.en-uk.book Page 3 Monday, August 13, 2007 2:20 PM

Overview
RHD
Instrument panel upper box p. 5-65
Ventilators p. 5-2
Supplemental restraint
system - air bag (for
front passenger’s seat)
p. 2-53
Rear window demister
switch p. 3-45
Front passenger’s air bag
ON-OFF switch p. 2-59
Gearshift or selector lever
p. 4-23, 4-26
Ashtray (fixed position)
p. 5-54
Cup holder (for front seats)
p. 5-68
Heated seat switch* p. 2-8Hazard warning flasher switch p. 3-38
Parking brake lever p. 4-6Front automatic air
conditioning p. 5-7
Audio p. 5-21Multi centre display*
p. 3-15
Front passenger’s air
bag off indication lamp
p. 2-62 Multi display station*
Refer to the separate
“Multi display station
owner’s manual”
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-5
1 Keyless entry system
*
E00300301440
Press the remote control switch, and all doors and the tailgate
will be locked or unlocked as desired. It is also possible to
operate the door mirrors.To l o c kPress the LOCK switch (1). All the doors and the tailgate will
be locked. If the interior lamp switch is in the middle position
(DOOR) at this time, the room lamp & map lamps, the rear
personal lamps, and the turn-signal lamps will blink once.
To unlockPress the UNLOCK switch (2). All the doors and the tailgate
will be unlocked. If the interior lamp switch is in the middle
position (DOOR) at this time, the room lamp & map lamps and
the rear personal lamps will come on for approximately 15 sec-
onds and the turn-signal lamps will blink twice.NOTE●The indication lamp (3) comes on each time a switch is
pressed.
●If the UNLOCK switch (2) is pressed and no door or tail-
gate is opened within approximately 30 seconds: relock-
ing will automatically occur.
●It is possible to modify functions as follows:
For further information, please contact your MITSUBI-
SHI MOTORS Authorized Service Point.
On a vehicle equipped with a Multi Display Station
(MDS), the functions can be adjusted on the screen. For
details, refer to a separate operation manual.
• The time from pressing of the UNLOCK switch (2) to
the moment of automatic locking can be changed.
• The confirmation function (flashing of the turn-signal
lamps) can be set to operate only when the doors and
tailgate are locked or only when the doors and tailgate
are unlocked.
• The confirmation function (this indicates locking or
unlocking of the doors and tailgate with the flash of the
turn-signal lamps) can be deactivated.
• The number of times the turn-signal lamps are flashed
by the confirmation function can be changed.
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
BK-XP08E1ENUK.en-uk.book Page 5 Monday, August 13, 2007 2:20 PM

3
Instruments and controls
Instruments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Indicator and warning lamps . . . . . . . . . . . . . . . . .3- 8
Indicator lamps. . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 10
Multi centre display . . . . . . . . . . . . . . . . . . . . . . . .3- 15
Combination headlamps and dipper switch . . . . . .3- 32
Headlamp levelling . . . . . . . . . . . . . . . . . . . . . . . .3- 35
Turn/Lane-change signals . . . . . . . . . . . . . . . . . . .3- 37
Hazard warning flasher switch. . . . . . . . . . . . . . . .3- 38
Fog lamp switch . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 39
Wiper and washer switch . . . . . . . . . . . . . . . . . . . .3- 41
Headlamp washer switch* . . . . . . . . . . . . . . . . . . .3- 45
Rear window demister switch . . . . . . . . . . . . . . . .3- 45
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 46
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM

3-4 Instruments and controls
3
Odometer/Tripmeter
E00500600897
When the ignition key is turned to the “ON” position, odometer
and tripmeter indications are given.Odometer The odometer indicates the total distance the vehicle has trav-
elled.
TripmeterThe tripmeter indicates the distance travelled during a particu-
lar trip or period.
There are two tripmeter displays: TRIP and .
TRIP can be used to measure the distance travelled since
the current trip began. At the same time, TRIP can be used
to measure the distance from an intermediate location.
Every time the reset button (3) is pressed lightly (less than
1 second), tripmeter indications (TRIP and ) are
changed.
To reset the tripmeter
To return the display to “0”, press the reset button for more
than 1 second. Only the currently displayed value will be reset.
If TRIP is displayed, for example, only TRIP will be
reset.
1- Odometer
2- Tripmeter
3- Reset button
TRIP TRIP
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-5
3
NOTE●Display TRIP and each have a maximum distance
of 999.9 km (999.9 miles).
●Even when the ignition switch has been turned to the
“LOCK” position, pressing the tripmeter reset button
causes the odometer/tripmeter indication to appear for
approximately 30 seconds.
●When disconnecting the battery terminal for a long time,
the memory of tripmeter display TRIP and are
cleared, and the display returns to “0”.

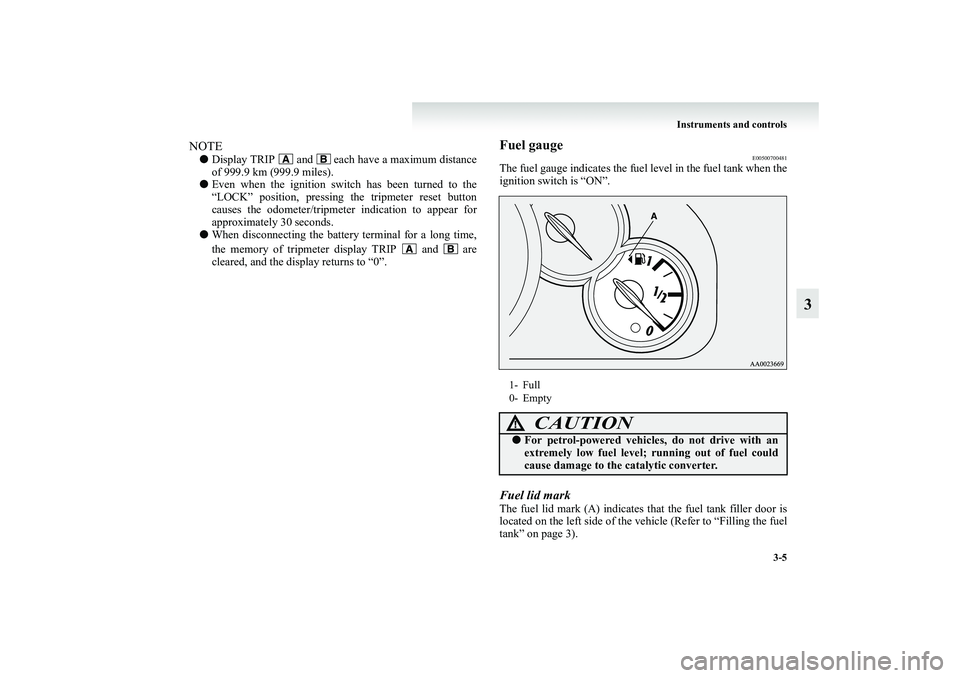

Fuel gauge
