2008 MITSUBISHI GRANDIS Owner's Manual (in English)

Seat and seat belts
2-41
2
Caution for installing the child restraint on vehi-
cle with front passenger air bagThe label shown here is attached on vehicles with front passen-
ger air bag.
WARNING
!●Extreme Hazard!
Do not use a rearward facing child restraint on a
seat protected by an air bag in front of it!
WARNING
!●A REARWARD FACING CHILD RESTRAINT
must NOT be used in the front passenger seat if the
front passenger’s air bag has not been deactivated.
The force of an inflating air bag could kill or cause
serious injuries to the child. A rearward facing child
restraint should be used in the rear seat.Front passenger’s air bag ON
BK-XP08E1ENUK.en-uk.book Page 41 Monday, August 13, 2007 2:20 PM

2-42 Seat and seat belts
2
NOTE●If you have a rearward facing child restraint system that
cannot be fitted to any seat other than the front passenger
seat, be sure to turn OFF the front passenger’s air bag ON-
OFF switch before using it. (Refer to “To turn an air bag
off” on page 2-60.)Front passenger’s air bag OFF
WARNING
!●A FORWARD FACING CHILD RESTRAINT
should be used in the rear seat whenever possible; if
used in the front seat, adjust the seat to the most
rearward position.
BK-XP08E1ENUK.en-uk.book Page 42 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-43
2
Infants and small children
E00406600579
When transporting infants and small children in your vehicle,
follow the instruction given below.Instruction:●For small infants, an infant carrier should be used. For
small children whose height when seated allows the
shoulder belt to lie in contact with the face or the throat, a
child seat should be used.
●The child restraint system should be appropriate for your
child’s weight and height and properly fit the vehicle. For
a higher degree of safety: THE CHILD RESTRAINT
SYSTEM SHOULD BE INSTALLED IN THE REAR
SEAT.
WARNING
!●When installing a child restraint system, refer to the
instructions provided by the manufacturer of the
restraint system. Failure to do so can result in severe
or fatal injury to your child.●After installation, push and pull the child restraint
system back and forth, and side to side, to see that it
is positively secured. If the child restraint system is
not installed securely, it may cause injury to the
child or other occupants in the case of accident or
sudden stops.●When the child restraint system is not in use, keep
your child or infant seat secured with the seat belt or
remove it from the vehicle in order to prevent injury
to your child.
BK-XP08E1ENUK.en-uk.book Page 43 Monday, August 13, 2007 2:20 PM

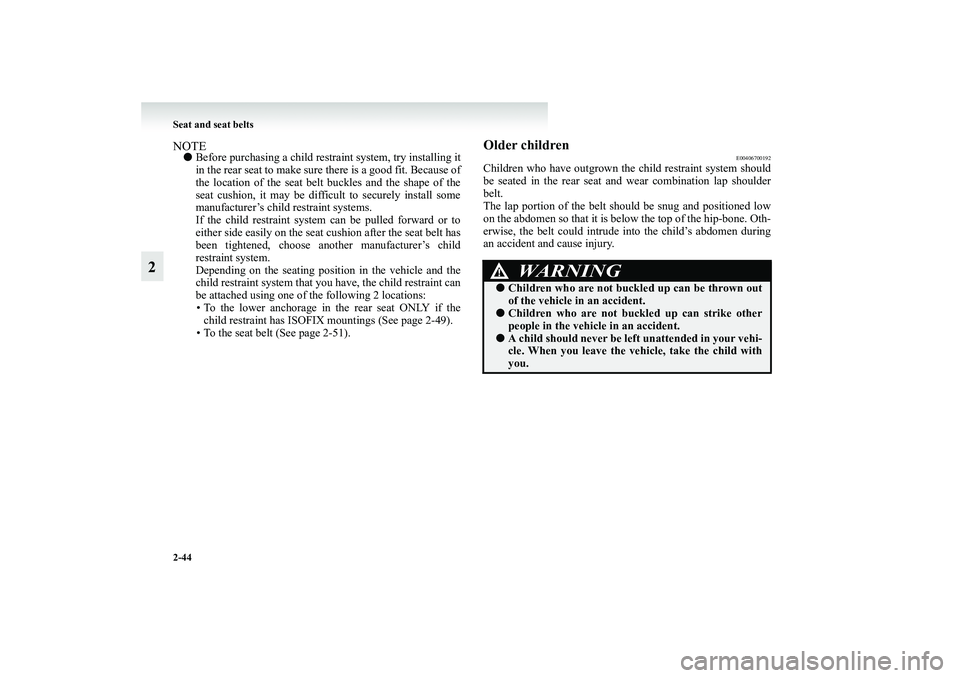

2-44 Seat and seat belts
2
NOTE●Before purchasing a child restraint system, try installing it
in the rear seat to make sure there is a good fit. Because of
the location of the seat belt buckles and the shape of the
seat cushion, it may be difficult to securely install some
manufacturer’s child restraint systems.
If the child restraint system can be pulled forward or to
either side easily on the seat cushion after the seat belt has
been tightened, choose another manufacturer’s child
restraint system.
Depending on the seating position in the vehicle and the
child restraint system that you have, the child restraint can
be attached using one of the following 2 locations:
• To the lower anchorage in the rear seat ONLY if the
child restraint has ISOFIX mountings (See page 2-49).
• To the seat belt (See page 2-51).
Older children
E00406700192
Children who have outgrown the child restraint system should
be seated in the rear seat and wear combination lap shoulder
belt.
The lap portion of the belt should be snug and positioned low
on the abdomen so that it is below the top of the hip-bone. Oth-
erwise, the belt could intrude into the child’s abdomen during
an accident and cause injury.
WARNING
!●Children who are not buckled up can be thrown out
of the vehicle in an accident.●Children who are not buckled up can strike other
people in the vehicle in an accident.●A child should never be left unattended in your vehi-
cle. When you leave the vehicle, take the child with
you.
BK-XP08E1ENUK.en-uk.book Page 44 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-45
2
Suitability for various seating positions
E00406800601
6-person seat*1: With front passenger’s air bag deactivated by means of front passenger’s air bag ON-OFF switchKey of letters to be inserted in the above table:●U- Suitable for “universal” category restraints approved for use in this mass group.
●UF- Suitable for forward-facing “universal” category restraints approved for use in this mass group.
●L- Suitable for particular child restraints (MITSUBISHI MOTORS genuine parts).
●B- Built-in restraint approved for this mass group.
●X- Seat position not suitable for children in this mass group.
Mass Group
Seating Position
Front Passenger
Rear Outboard
Intermediate Outboard
Activated
Air Bag
Deactivated
Air Bag*
1
Left side
Right side
0 - Up to 10 kg (0-9 months) X X U U U
0+ - Up to 13 kg (0-2 years) X
L*
2
U, L*
2
U, L*
2
U, L*
2
I- 9 to 18 kg
(9 months-4 years)L*
3
L*
3
U, L*
3
U, L*
3
U, L*
3
II & III - 15 to 36 kg (4–12 years)
L*
4
L*
4
U, L*
4
U, L*
4
U, L*
4
BK-XP08E1ENUK.en-uk.book Page 45 Monday, August 13, 2007 2:20 PM

2-46 Seat and seat belts
2
L (Genuine part information)


NOTE●The above suitability table applies to retention of child restraints using seat belts.
●When MITSUBISHI MOTORS genuine part No. MZ313045 is used on the intermediate outboad seat, it can also be retained
by means of ISOFIX child restraint mountings.
●There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0- Up to 10 kg (0-9 months)”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detail information, consult your MITSUBISHI MOTORS Authorized Service Point.
Genuine parts No.
ECE No.
*2
MZ312807 E1-04301146
*
3
MZ312745 E1-04301136
MZ313045 E1-04301133
*
4
MZ312808 E1-04301148
BK-XP08E1ENUK.en-uk.book Page 46 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-47
2
7-person seat*1: With front passenger’s air bag deactivated by means of front passenger’s air bag ON-OFF switchKey of letters to be inserted in the above table:●U- Suitable for “universal” category restraints approved for use in this mass group.
●UF- Suitable for forward-facing “universal” category restraints approved for use in this mass group.
●L- Suitable for particular child restraints (MITSUBISHI MOTORS genuine parts).
●B- Built-in restraint approved for this mass group.
●X- Seat position not suitable for children in this mass group.
Mass Group
Seating Position
Front Passenger
Rear
Outboard
Intermediate Outboard
Intermediate
Centre
Activated
Air Bag
Deactivated
Air Bag*
1
Left side
Right side
0- Up to 10 kg (0-9 months)XXUUUX
0+ - Up to 13 kg (0-2 years) X
L*
2
U, L*
2
U, L*
2
U, L*
2
L*
2
I- 9 to 18 kg
(9 months-4 years)L*
3
L*
3
U, L*
3
U, L*
3
U, L*
3
L*
3
II & III - 15 to 36 kg (4–12 years)
L*
4
L*
4
U, L*
4
U, L*
4
U, L*
4
X
BK-XP08E1ENUK.en-uk.book Page 47 Monday, August 13, 2007 2:20 PM

2-48 Seat and seat belts
2
L (Genuine part information)


NOTE●The above suitability table applies to retention of child restraints using seat belts.
●When MITSUBISHI MOTORS genuine part No. MZ313045 is used on the intermediate outboad seat, it can also be retained
by means of ISOFIX child restraint mountings.
●There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0- Up to 10 kg (0-9 months)”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detail information, consult your MITSUBISHI MOTORS Authorized Service Point.
Genuine parts No.
ECE No.
*2
MZ312807 E1-04301146
*
3
MZ312745 E1-04301136
MZ313045 E1-04301133
*
4
MZ312808 E1-04301148
BK-XP08E1ENUK.en-uk.book Page 48 Monday, August 13, 2007 2:20 PM
