2008 MITSUBISHI GRANDIS Owner's Manual (in English)

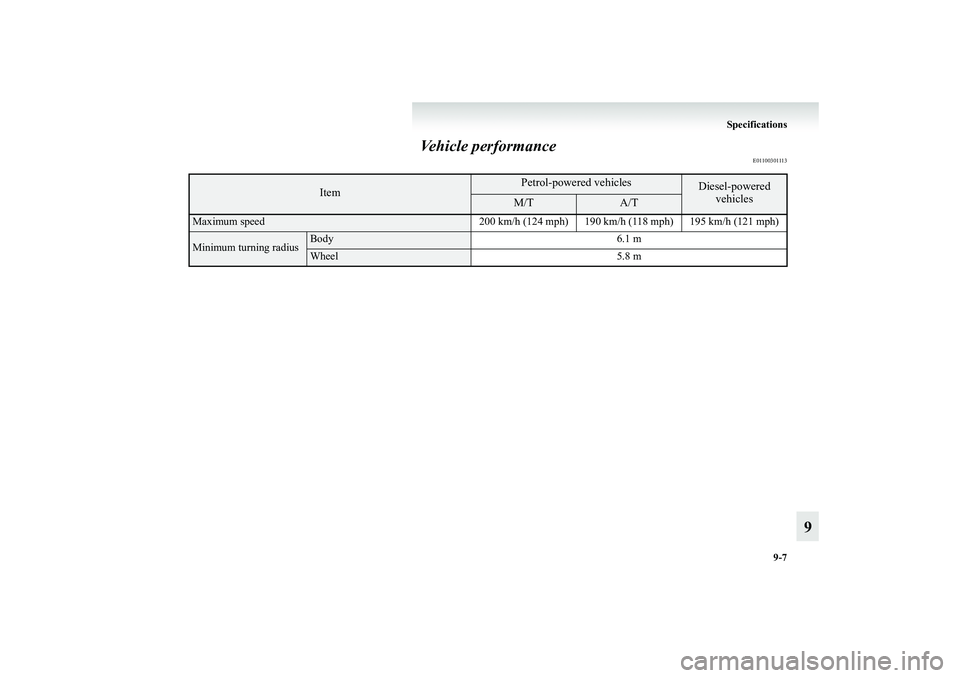

Specifications
9-7
9 Vehicle performance
E01100301113
Item
Petrol-powered vehicles
Diesel-powered
vehicles
M/T
A/T
Maximum speed 200 km/h (124 mph) 190 km/h (118 mph) 195 km/h (121 mph)Minimum turning radius
Body 6.1 mWheel 5.8 m
BK-XP08E1ENUK.en-uk.book Page 7 Monday, August 13, 2007 2:20 PM

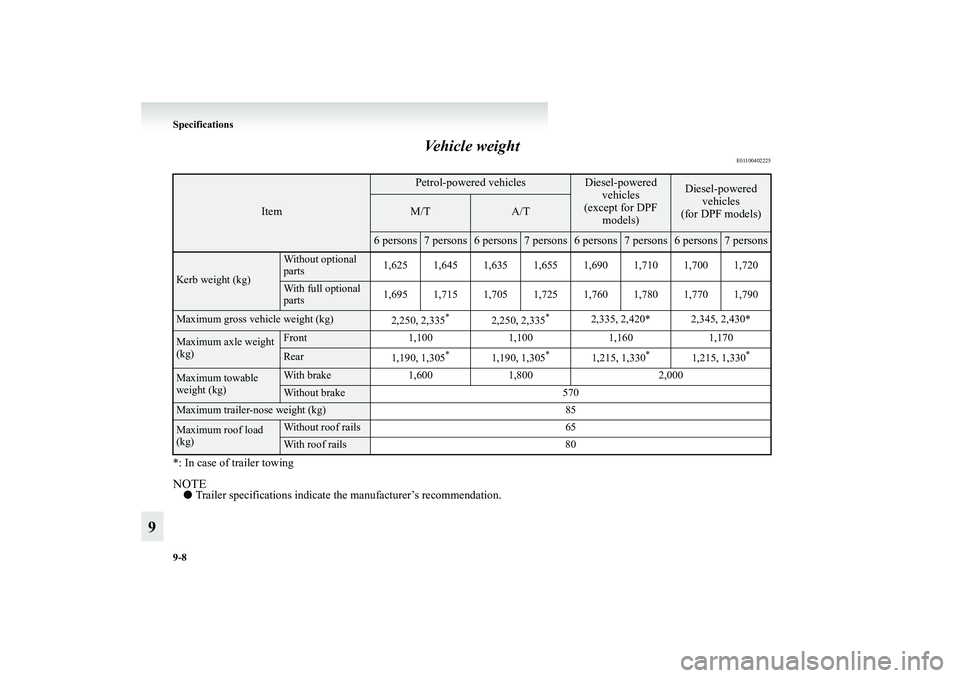

9-8 Specifications
9Vehicle weight
E01100402225
*: In case of trailer towingNOTE●Trailer specifications indicate the manufacturer’s recommendation.
Item
Petrol-powered vehicles
Diesel-powered
vehicles
(except for DPF
models)
Diesel-powered
vehicles
(for DPF models)
M/T
A/T
6 persons
7 persons
6 persons
7 persons
6 persons
7 persons
6 persons
7 persons
Kerb weight (kg)
Without optional
parts1,625 1,645 1,635 1,655 1,690 1,710 1,700 1,720With full optional
parts1,695 1,715 1,705 1,725 1,760 1,780 1,770 1,790
Maximum gross vehicle weight (kg)
2,250, 2,335
*
2,250, 2,335
*
2,335, 2,420* 2,345, 2,430*
Maximum axle weight
(kg)
Front 1,100 1,100 1,160 1,170Rear
1,190, 1,305
*
1,190, 1,305
*
1,215, 1,330
*
1,215, 1,330
*
Maximum towable
weight (kg)
With brake 1,600 1,800 2,000Without brake 570
Maximum trailer-nose weight (kg) 85Maximum roof load
(kg)
Without roof rails 65With roof rails 80
BK-XP08E1ENUK.en-uk.book Page 8 Monday, August 13, 2007 2:20 PM

Specifications
9-9
9 Engine specifications
E01100601334
Item
Petrol-powered vehicles
Diesel-powered vehicles
(except for DPF models)
Diesel-powered vehicles
(for DPF models)
Engine typeFour-cylinder, in line, water
cooled, four-cycle, single
overhead camshaftFour-cylinder, in line, water cooled, four-cycle, double overhead
camshaft with intercooler and turbochargerEngine model
Total displacement
Bore
Stroke
Compression ratio4G69
2,378 cc
87.0 mm
100.0 mm
9.5BSY BWC
1,968 cc
81.0 mm
95.5 mm
18.0Valve clear-
ance
Intake 0.20 mm (hot) AutomaticallyExhaust 0.30 mm (hot) Automatically
Firing order 1-3-4-2 1-3-4-2Maximum output (EEC net) 121 kW/6,000 r/min 100 kW/4,000 r/min 103 kW/4,000 r/minMaximum torque (EEC net) 217 Nm/4,000 r/min 310 Nm/1,750 r/min
BK-XP08E1ENUK.en-uk.book Page 9 Monday, August 13, 2007 2:20 PM

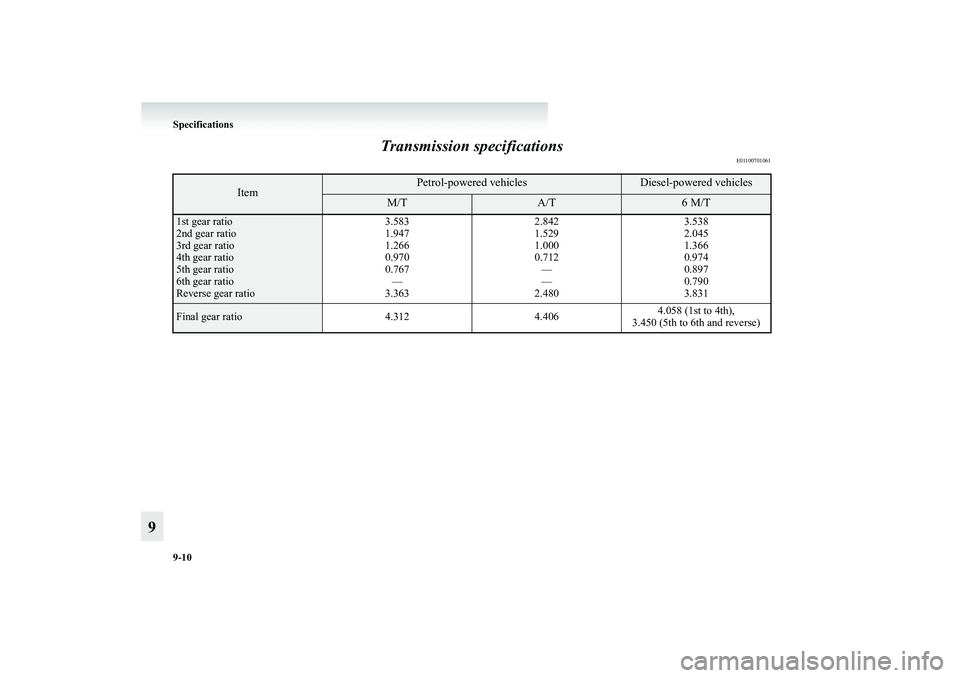

9-10 Specifications
9Transmission specifications
E01100701061
Item
Petrol-powered vehicles
Diesel-powered vehicles
M/T
A/T
6 M/T
1st gear ratio
2nd gear ratio
3rd gear ratio
4th gear ratio
5th gear ratio
6th gear ratio
Reverse gear ratio3.583
1.947
1.266
0.970
0.767
—
3.3632.842
1.529
1.000
0.712
—
—
2.4803.538
2.045
1.366
0.974
0.897
0.790
3.831Final gear ratio 4.312 4.4064.058 (1st to 4th),
3.450 (5th to 6th and reverse)BK-XP08E1ENUK.en-uk.book Page 10 Monday, August 13, 2007 2:20 PM

Specifications
9-11
9 Electrical system
E01100801192
Item
Petrol-powered vehicles
Diesel-powered vehicles
Voltage 12 V 12 VBattery
Type (JIS) 75D23L 95D31LCapacity (5HR) 52 Ah 64 Ah
Alternator capacity 110 A 140 ASpark plug type
NGK LZFR6AI —
BK-XP08E1ENUK.en-uk.book Page 11 Monday, August 13, 2007 2:20 PM

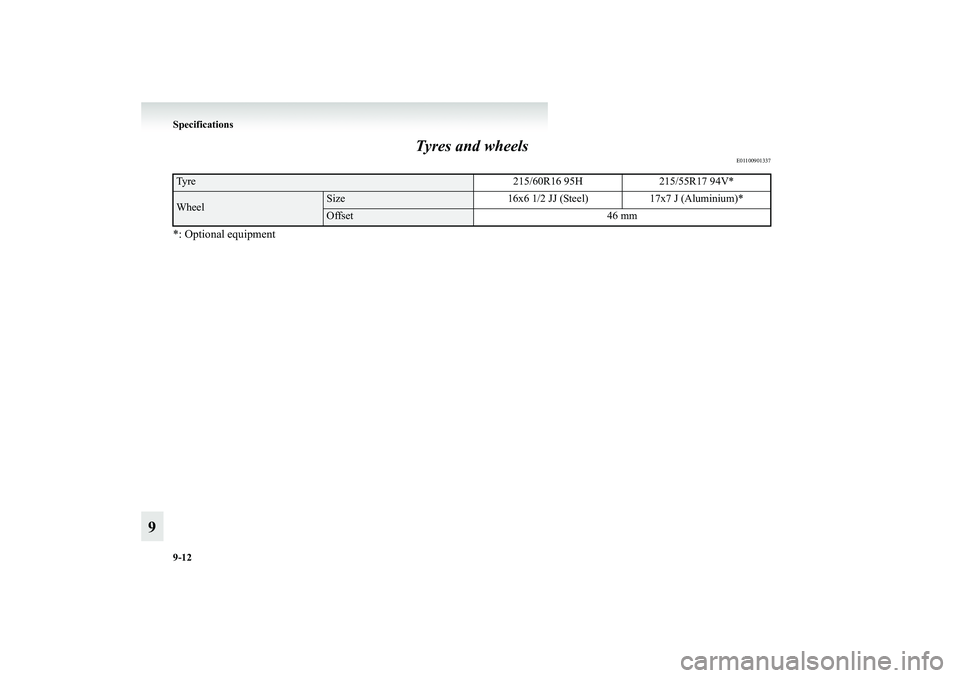

9-12 Specifications
9Tyres and wheels
E01100901337
*: Optional equipmentTyre 215/60R16 95H 215/55R17 94V*Wheel
Size 16x6 1/2 JJ (Steel) 17x7 J (Aluminium)*Offset 46 mm
BK-XP08E1ENUK.en-uk.book Page 12 Monday, August 13, 2007 2:20 PM

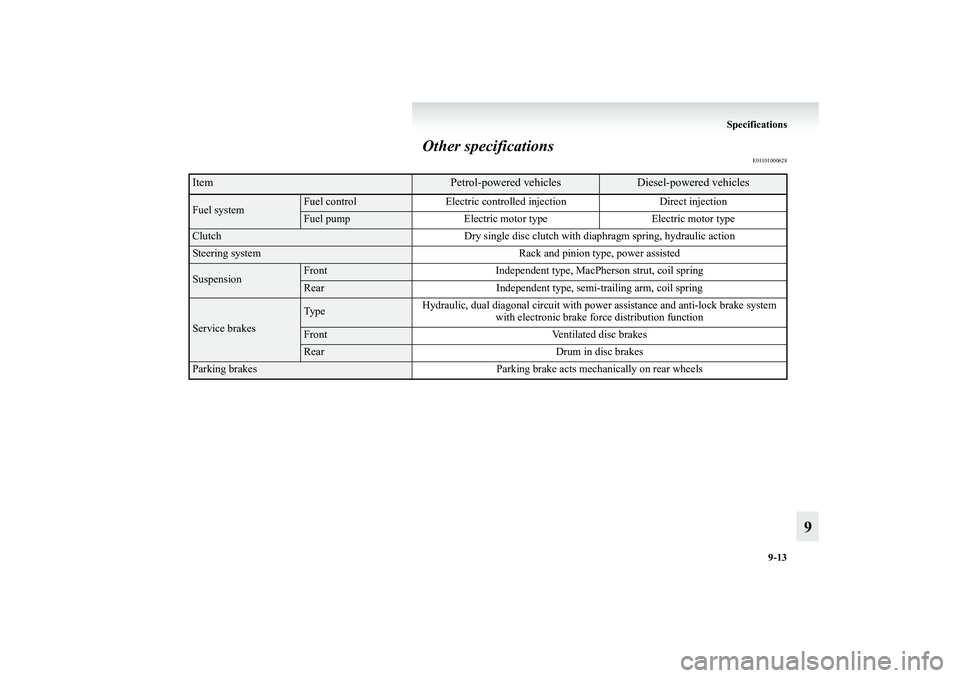

Specifications
9-13
9 Other specifications
E01101000628
Item
Petrol-powered vehicles
Diesel-powered vehicles
Fuel system
Fuel control Electric controlled injection Direct injectionFuel pump Electric motor type Electric motor type
Clutch Dry single disc clutch with diaphragm spring, hydraulic actionSteering system Rack and pinion type, power assistedSuspension
Front Independent type, MacPherson strut, coil springRear Independent type, semi-trailing arm, coil spring
Service brakes
TypeHydraulic, dual diagonal circuit with power assistance and anti-lock brake system
with electronic brake force distribution functionFront Ventilated disc brakesRear Drum in disc brakes
Parking brakes Parking brake acts mechanically on rear wheels
BK-XP08E1ENUK.en-uk.book Page 13 Monday, August 13, 2007 2:20 PM

9-14 Specifications
9Fuel consumption
E01101100355
NOTE●The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In
addition, this vehicle may incorporate particular modifications. Furthermore, the driver’s style and road and traffic conditions,
as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.
Item
Combined
Urban conditions
Extra-urban
conditions
CO
2 (g/km)
Fuel consumption
(L/100 km)
Fuel consumption
(L/100 km)
Fuel consumption
(L/100 km)
Standard
Petrol-powered vehicles
M/T 221.2 9.3 12.6 7.3A/T 234.3 9.9 13.2 8.0
Diesel-powered vehicles
(except for DPF models)175.0 6.6 8.4 5.6Diesel-powered vehicles
(for DPF models)175.0 6.6 8.5 5.6
Full option
Petrol-powered vehicles
M/T 223.3 9.4 12.8 7.4A/T 236.6 10.0 13.3 8.1
Diesel-powered vehicles
(except for DPF models)175.0 6.6 8.4 5.6Diesel-powered vehicles
(for DPF models)175.0 6.6 8.5 5.6
BK-XP08E1ENUK.en-uk.book Page 14 Monday, August 13, 2007 2:20 PM
