2008 MERCEDES-BENZ S600 Owner's Manual

704 Practical hints
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the component(s) and
systems secured by that fuse will stop op-
erating.
If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Center.
A fuse chart explains the fuse allocation
and fuse amperages. It is located in the
trunk with the vehicle tool kit
(
page 668).
Depending on vehicle production date, the
following aids are available to help you re-
place fuses. If so equipped, they are locat-
ed in the trunk with the vehicle tool kit
(
page 668):

Spare fuses

Fuse extractorThe electrical fuses are located in different
fuse boxes:

in the dashboard on the passenger side
(
page 706)

in the dashboard on the driver’s side
(
page 706)

behind the rear center armrest
(
page 707)

on the driver’s side of the engine com-
partment (
page 705)

on the passenger side of the engine
compartment (
page 706)
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an
authorized Mercedes-Benz Center.
!Switch off the vehicle’s internal electrical
functions (
page 695) when you are working on
the fuses.
iA blown fuse must be replaced by an appro-
priate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.iShould your vehicle not be equipped with a
fuse extractor or spare fuses please contact a
Mercedes-Benz Center or Roadside Assistance
in case of a blown fuse.

705 Practical hints
Fuses
Before replacing fuses:
Engage the electronic parking brake
(
page 395).
Make sure the automatic transmission
is set to P (
page 399).
The gear position indicator in the multi-
function display should be on P.
Turn off all electrical consumers.
Turn off the engine (page 397).
Switch off the vehicle’s internal electri-
cal functions (
page 695).
Fuse boxes in engine compartment
Open the hood (page 541).
Box on the driver’s side
Example illustration from S 550
14 screws
2Cover
3JumperOpening
Take the crank from the Operator’s
Manual pouch.
Loosen screws1 with crank.
Remove jumper3.
Remove cover2.
Closing
Attach cover2.
Attach jumper3.
Tighten screws1 with crank.
!The cover must fit properly, as otherwise
moisture or dirt may impair the functionality of
the fuses.

706 Practical hints
Fuses
Box on the front passenger side
Example illustration from S 550
1Retaining lugs
2Cover
Opening
Press retaining lugs1.
Remove cover2.
Closing
Attach cover2.
Press cover2 down manually.
Fuse boxes in passenger compartment
Fuse boxes in dashboard
1Cover1Cover
Opening
Open the respective door.
Using your hands, pull cover1 in the
direction of the arrow and remove.
Closing
Hook cover1 into the opening at the
front.
Press cover1 back on until it engag-
es.
!The cover must fit properly, as otherwise
moisture or dirt may impair the functionality of
the fuses.
!Do not use sharp objects such as a screw
driver to open the fuse box cover in the dash-
board, as this could damage it.

707 Practical hints
Fuses
Fuse box in the rear passenger
compartment
1CoverOpening
Swing down center armrest.
Open cover behind center armrest.
Pull cover1 forward in direction of ar-
row.
Closing
Press cover1 backward and engage.
Emergency engine shut-down
If the engine cannot be turned off as de-
scribed in the “Turning off the engine” sec-
tion (
page 397), you may use the
following emergency procedure.
Take the fuse chart and the fuse extrac-
tor (if equipped, depending on vehicle
production date) from the vehicle from
the vehicle tool kit (
page 668).
Find row “Emergency engine
shut-down” in the fuse chart table to
identify the fuses that have to removed
as well as their locations.
Remove the respective fuses.
!Make sure that the seal in the cover is not
damaged during opening or closing.

708

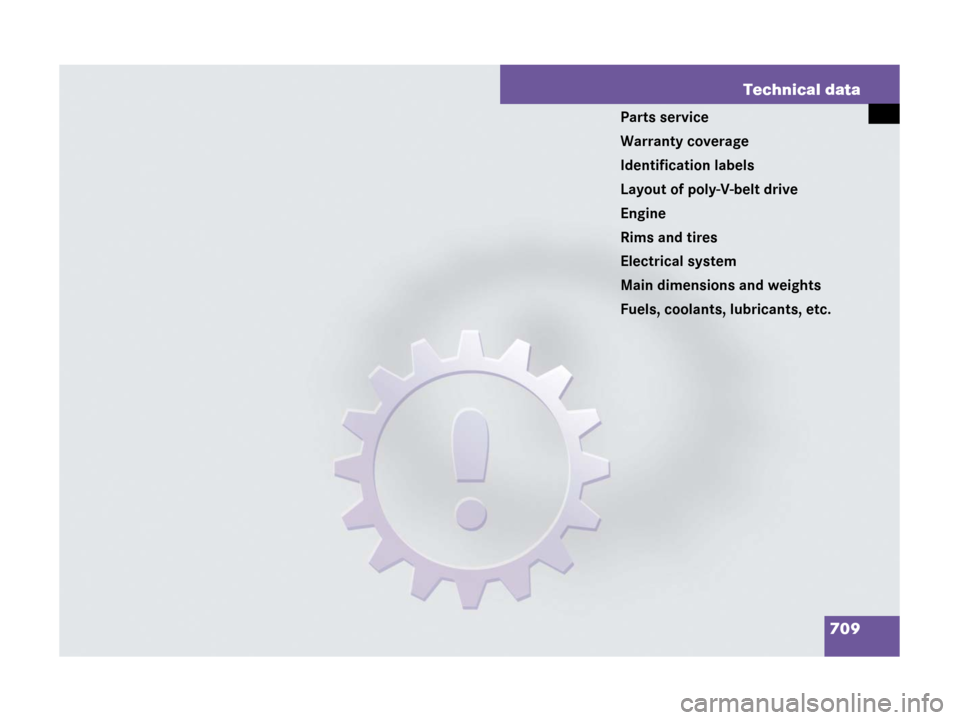

709 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

710 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.

711 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally in-
stalled on the vehicle in accordance with
the terms of the following warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.
