48 Safety and Security
Occupant safety
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings fromthe seat, remain illuminated or go out. With
the 59indicator lamp illumi-
nated, the front passenger front air bag is
deactivated. With the 59 indi-
cator lamp out, the front passenger front air
bag is activated.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the side impact air
bags
If the front passenger air bag is deployed,
the rate of inflation will be influenced by:

the rate of relevant vehicle deceleration
as assessed by the air bag control unit

front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.


49 Safety and Security
Occupant safety
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a rear-
facing child restraint in the back seat.

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59 indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59 indicator lamp not
illuminate or go out while the restraint is
installed, please check installation. Peri-
odically check the 59 indi-
cator lamp while driving to make sure
the 59 indicator lamp is il-
luminated.
If the 59indicator lamp
goes out or remains out, do not trans-
port a child on the front passenger seat
until the system has been repaired. A
child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.

If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 48).

50 Safety and Security
Occupant safety
The 59 indicator lamp is lo-
cated on the dashboard to the right of the
instrument cluster.
1Front passenger front air bag indicator
lamp
The 59indicator lamp1 will
be illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0
(
page 346).
iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 47)
may have determined:

that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.

that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.
Warning!G
If the =indicator lamp and the
59 indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case.
In order to ensure proper operation of the
air bag system and OCS:

Have the system checked as soon as
possible by qualified technicians.
Contact an authorized Mercedes-Benz
Center.

Do not place more than 4.4 lbs (2 kg)
into the ruffled storage bag on the back
of the front passenger seat. Otherwise,
the OCS may not be able to properly
approximate the occupant weight
category.

Do not place objects under and/or
around the front passenger seat.

Do not hang anything from or attach any
items to the seats.

51 Safety and Security
Occupant safety
Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice (
page 346), the 59
indicator lamp1 located in the center
console illuminates. If an adult occupant is
properly sitting on the front passenger
seat and the system senses the occupant
as being an adult, the 59 indi-
cator lamp will illuminate and go out after
approximately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 59indicator lamp
will illuminate and not go out.For more information, see the “Practical
hints” section (
page 610).
Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.

Do not move the front passenger seat
backwards against stiff objects.

Sit properly belted in a position that is
as upright as possible with your back
against the seat backrest.

Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.

Only have the seat repaired or replaced
by an authorized Mercedes-Benz Cen-
ter.

Read and observe all warnings in this
chapter.
Warning!G
If the 59 indicator lamp should
not illuminate, the system is not functioning.
You must contact an authorized
Mercedes-Benz Center before seating any
child on the front passenger seat.
Warning!G
Never place anything between seat cushion
(e.g. pillow), since it reduces the effective-
ness of the Occupant Classification System.
The bottom of the child seat must make full
contact with the passenger seat cushion. An
incorrectly mounted child seat could cause
injuries to the child in case of an accident,
instead of increasing protection for the
child.
Follow the manufacturer’s instructions for
installation of child seats.

52 Safety and Security
Occupant safety
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.For more information, see “Fastening the
seat belts” (
page 368).
iFor information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 57).
Warning!G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled.
Without your seat belt buckled, you are
much more likely to hit the interior of the ve-
hicle or be ejected from it. You can be seri-
ously injured or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause se-
rious or even fatal injuries. The seat back-
rest and seat belt provide the best restraint
when the wearer is in a nearly upright posi-
tion and the seat belt is properly positioned
on the body.

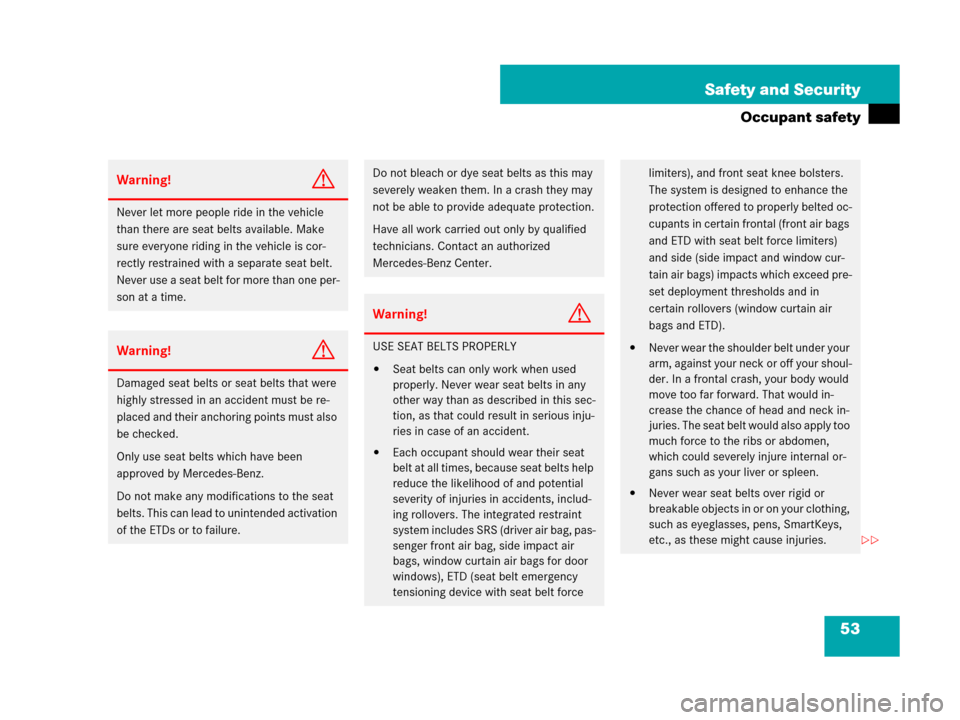

53 Safety and Security
Occupant safety
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.
Warning!G
Damaged seat belts or seat belts that were
highly stressed in an accident must be re-
placed and their anchoring points must also
be checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.

Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag, pas-
senger front air bag, side impact air
bags, window curtain air bags for door
windows), ETD (seat belt emergency
tensioning device with seat belt force
limiters), and front seat knee bolsters.
The system is designed to enhance the
protection offered to properly belted oc-
cupants in certain frontal (front air bags
and ETD with seat belt force limiters)
and side (side impact and window cur-
tain air bags) impacts which exceed pre-
set deployment thresholds and in
certain rollovers (window curtain air
bags and ETD).

Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The seat belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.

Never wear seat belts over rigid or
breakable objects in or on your clothing,
such as eyeglasses, pens, SmartKeys,
etc., as these might cause injuries.


54 Safety and Security
Occupant safety
Enhanced seat belt reminder system
When the engine is started, the seat belt
telltale< will always illuminate for
6 seconds to remind you and your passen-
gers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’ s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with front doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened.

and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
intensity for a maximum of 60 seconds
or until the driver’s and the front pas-
senger’s seat belt are fastened.
If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a front door is opened.
For more information, see “Practical hints”
(
page 605).

Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the seat belt is positioned across
your abdomen, it could cause serious in-
juries in a crash.

Never use a seat belt for more than one
person at time. Do not fasten a seat belt
around a person and another person or
other objects.

Seat belts should not be worn twisted.
In a crash, you wouldn’t have the full
width of the seat belt to distribute im-
pact forces. The twisted seat belt
against your body could cause injuries.

Pregnant women should also always use
a lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.

Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

When using a seat belt to secure infant
restraint, toddler restraint, or booster
seat, always follow the child seat manu-
facturer’s instructions.

55 Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and seat belt force limit-
ers.
The ETD is designed to activate in the
following cases:

in frontal or rear-end impacts exceed-
ing the system deployment threshold

in certain vehicle rollovers

if the restraint systems are operational
and functioning correctly,
see=indicator lamp (
page 607)
In an impact, emergency tensioning
devices remove slack from the seat belts in
such a way that the seat belts fit more
snugly against the body. Seat belt force limiters, when activated, are employed to
help reduce the peak force exerted by the
seat belts on occupants during a crash.
Automatic comfort-fit feature seat belt
An automatic comfort-fit feature for the
front seats and for the rear outer seats*
(only for vehicles with rear power seat*)
reduces the retracting force of the seat
belts when they are in normal use.
Active head restraints
The active head restraints are intended to
offer the driver and front passenger in-
creased protection from whiplash type in-
juries. In the event of a rear-end collision,
the active head restraints on the driver’s
and front passenger’s seats are designed
to move forward in the direction of travel,
providing the head with increased support
earlier on in the collision sequence. The ac-
tive head restraints move forward whether
the seat is occupied or not.
iThe ETDs for the front seats will only acti-
vate if the front seat belt is fastened (latch plate
properly inserted into buckle).
The ETDs for the rear outer seats will activate
with or without the respective seat belt fastened.
Warning!G
A pyrotechnic emergency tensioning device
(ETD) that was activated must be replaced.
When disposing of the pyrotechnic emer-
gency tensioning device, our safety instruc-
tions must be followed. These are available
at any authorized Mercedes-Benz Center.
PRE-SAFE
® has electrically operated
reversible pre-tensioners that do not require
replacement after activation.
Warning!G
Do not attach any objects (e.g. hangers) to
the head restraint posts. Otherwise, the ac-
tive head restraints may not function prop-
erly or offer the degree of protection they
were designed for in the event of an acci-
dent.
