680 Practical hints
Replacing bulbs
Notes on bulb replacement
Only use 12-volt-bulbs of the same
type and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, contact an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:

the Bi-Xenon lamps

the front turn signal lamps

the front fog lamps

the additional turn signal lamps in the
exterior rear view mirrors

the parking and standing lamps

the front side marker lamps

the high mounted brake lamps

the brake, tail and rear standing lamps

the rear side marker lamps

the rear fog lamp

the rear turn signal lamps

the rear side marker lamps

the license plate lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to M
(
page 371).
Open the hood (page 541).

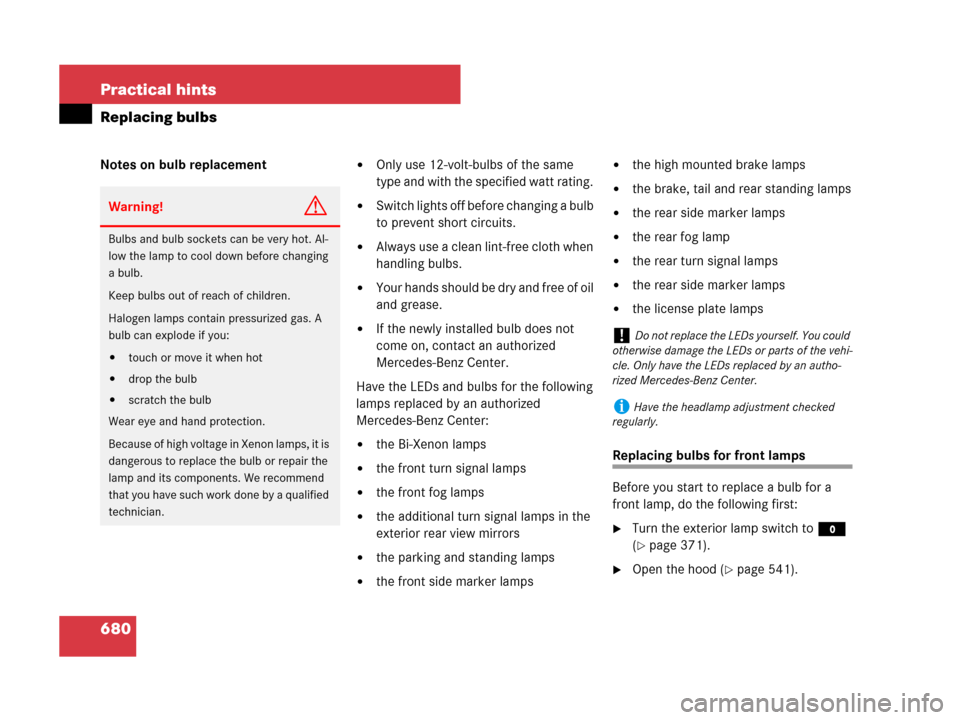

Warning!G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced by an autho-
rized Mercedes-Benz Center.
iHave the headlamp adjustment checked
regularly.

681 Practical hints
Replacing bulbs
1Cover 1
2Cover 2
3Cover 3
Removing and installing washer fluid
reservoir on left-hand side
Vehicles with Airmatic*
You must remove the washer fluid reser-
voir in order to change the bulbs of the
front headlamp on the left-hand side. The
washer fluid reservoir is on the front
left-hand side of the engine compartment.Washer fluid reservoir (example illustration
from S 550)
1Retaining screw
Removing
Turn retaining screw1 counterclock-
wise.
Take washer fluid reservoir out of
mounting.
Place washer fluid reservoir to the side
and do not disconnect any wires or ca-
bles.Installing
Guide washer fluid reservoir into
mounting so that the bottom retaining
lug slides into the rubber sleeve on the
longitudinal member.
Turn retaining screw1 clockwise.
Bi-Xenon headlamps
Warning!G
Do not remove the cover for the Bi-Xenon
headlamp. Because of high voltage in Xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
o mm e nd that y ou ha ve s uc h wo rk do ne b y a
qualified technician.

682 Practical hints
Replacing bulbs

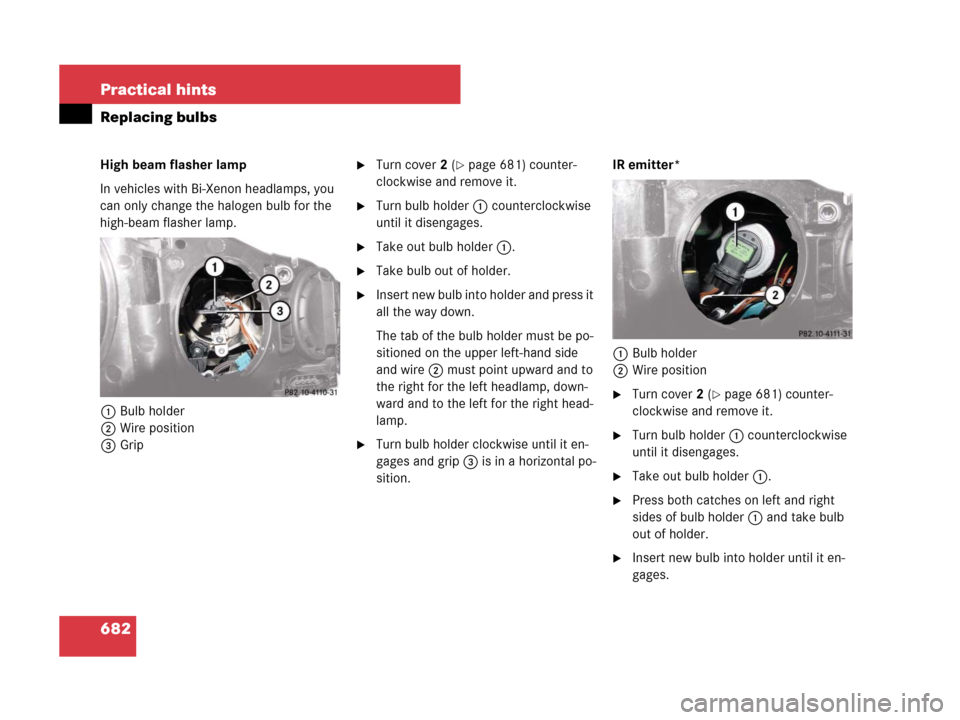

High beam flasher lamp
In vehicles with Bi-Xenon headlamps, you
can only change the halogen bulb for the
high-beam flasher lamp.
1Bulb holder
2Wire position
3GripTurn cover2 (page 681) counter-
clockwise and remove it.
Turn bulb holder1 counterclockwise
until it disengages.
Take out bulb holder1.
Take bulb out of holder.
Insert new bulb into holder and press it
all the way down.
The tab of the bulb holder must be po-
sitioned on the upper left-hand side
and wire2 must point upward and to
the right for the left headlamp, down-
ward and to the left for the right head-
lamp.
Turn bulb holder clockwise until it en-
gages and grip3 is in a horizontal po-
sition.IR emitter*
1Bulb holder
2Wire position
Turn cover2 (page 681) counter-
clockwise and remove it.
Turn bulb holder1 counterclockwise
until it disengages.
Take out bulb holder1.
Press both catches on left and right
sides of bulb holder1 and take bulb
out of holder.
Insert new bulb into holder until it en-
gages.

683 Practical hints
Replacing bulbs
Insert bulb holder1 into guide in
headlamp. Wire2 must point down-
ward and to the right.
Turn bulb holder1 clockwise until it
engages and wire2 points downward
and to the left.

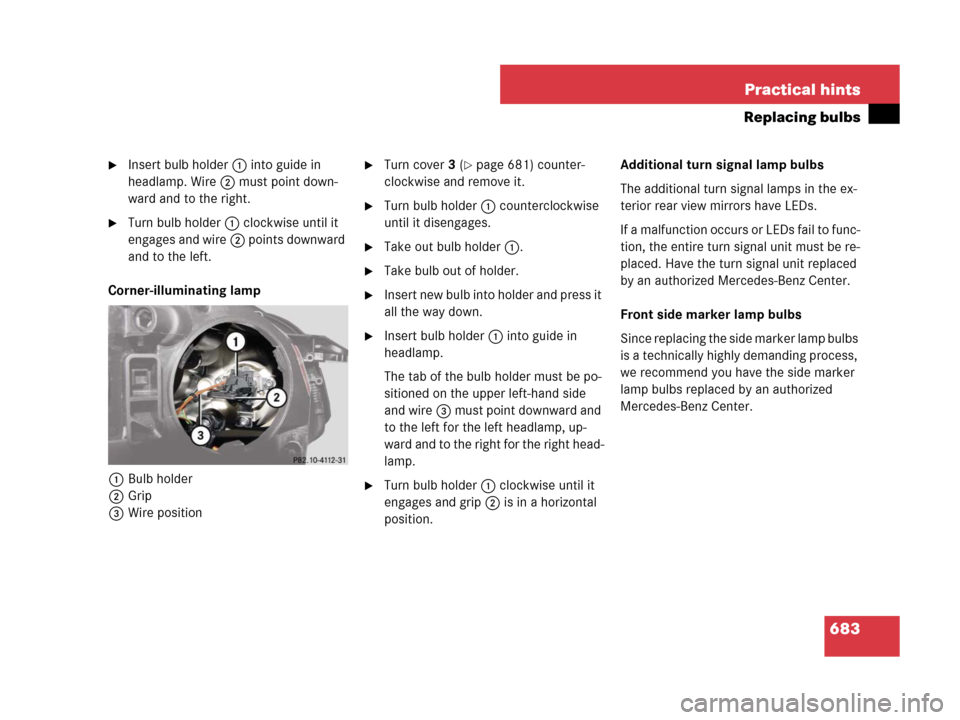

Corner-illuminating lamp
1Bulb holder
2Grip
3Wire position
Turn cover3 (page 681) counter-
clockwise and remove it.
Turn bulb holder1 counterclockwise
until it disengages.
Take out bulb holder1.
Take bulb out of holder.
Insert new bulb into holder and press it
all the way down.
Insert bulb holder1 into guide in
headlamp.
The tab of the bulb holder must be po-
sitioned on the upper left-hand side
and wire3 must point downward and
to the left for the left headlamp, up-
ward and to the right for the right head-
lamp.
Turn bulb holder1 clockwise until it
engages and grip2 is in a horizontal
position.Additional turn signal lamp bulbs
The additional turn signal lamps in the ex-
terior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the turn signal unit replaced
by an authorized Mercedes-Benz Center.
Front side marker lamp bulbs
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.

684 Practical hints
Replacing wiper blades
Placing wiper arms in vertical position
Wiper blades in vertical position
Make sure the hood is fully closed.
Vehicles with SmartKey
Turn SmartKey in starter switch
position1.
Turn combination switch to wiper
settingu (
page 381).
With wiper arm in vertical position, turn
the SmartKey in starter switch to
position0.
Warning!G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise, the wiper motor could suddenly
turn on and cause injury.
Warning!G
Wiper blades are components that are sub-
ject to wear and tear. Replace the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the front window will not
be properly wiped. As a result, you may not
be able to observe surrounding traffic condi-
tions and could cause an accident.
!To avoid damage to the hood:

The wiper arms should only be folded for-
ward when in the vertical position.

Never open the hood when the wiper arm is
folded forward.
!Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the wind-
shield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Center.

685 Practical hints
Replacing wiper blades
Vehicles with KEYLESS-GO*
Make sure the vehicle’s on-board elec-
tronics have status 1 (
page 346).
Turn combination switch to wiper
settingu (
page 381).
Press KEYLESS-GO start/stop button
repeatedly until windshield wipers
start.
Press KEYLESS-GO start/stop button
when the wiper arms are in a vertical
position.
Removing wiper blades

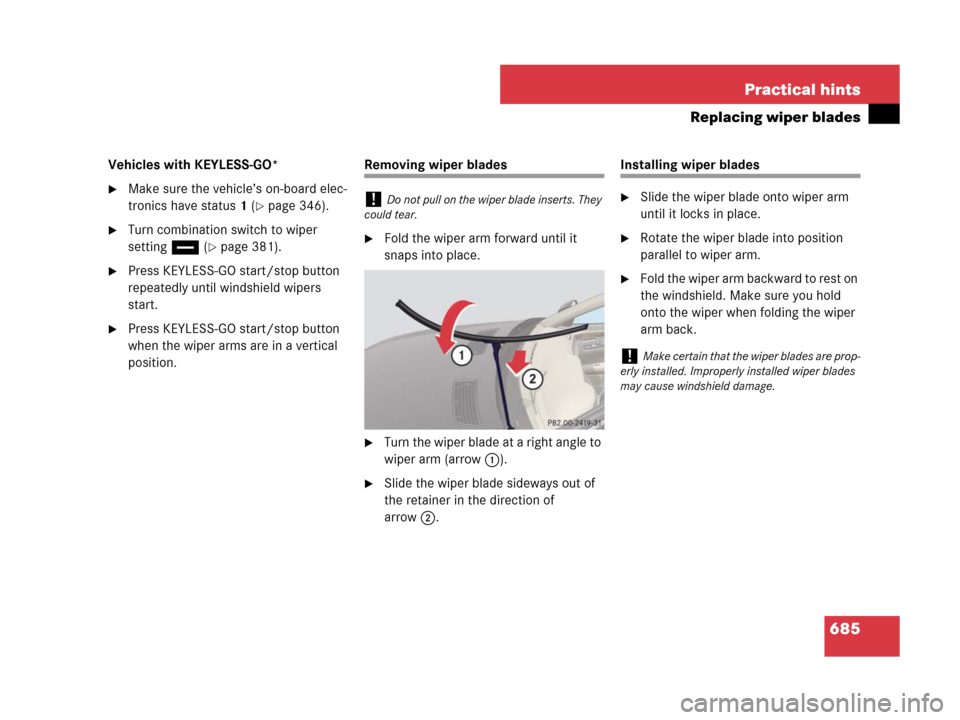

Fold the wiper arm forward until it
snaps into place.
Turn the wiper blade at a right angle to
wiper arm (arrow 1).
Slide the wiper blade sideways out of
the retainer in the direction of
arrow2.
Installing wiper blades
Slide the wiper blade onto wiper arm
until it locks in place.
Rotate the wiper blade into position
parallel to wiper arm.
Fold the wiper arm backward to rest on
the windshield. Make sure you hold
onto the wiper when folding the wiper
arm back.
!Do not pull on the wiper blade inserts. They
could tear.
!Make certain that the wiper blades are prop-
erly installed. Improperly installed wiper blades
may cause windshield damage.

686 Practical hints
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.
Turn on the hazard warning flasher
(
page 377).
Turn the steering wheel so that the
front wheels are in a straight ahead
position.
Shift the automatic transmission to
park positionP.
Engage the electronic parking brake.
Turn off the engine.
Have any passenger exit the vehicle at
a safe distance from the roadway.
Vehicles with SmartKey: Remove the
SmartKey from the starter switch.
Vehicles with KEYLESS-GO*: Open the
driver’s door (this puts the starter
switch in position0, same as with the
SmartKey removed from the starter
switch). The driver’s door then can be
closed again.
Remove the KEYLESS-GO*
start/stop button from the starter
switch.
Mounting the spare wheel
iOpen the door only when conditions are safe
to do so.
Warning!G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a spare wheel
mounted. Adapt your driving style accord-
ingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted,
ensure proper tire inflation pressure and
do not exceed a vehicle speed
of 50 mph (80 km/h).
Contact the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a spare
wheel is mounted.

687 Practical hints
Flat tire
Preparing the vehicle
Prepare the vehicle as described
(
page 686).
Take vehicle tool kit tray and vehicle
jack out of trunk (
page 668).
Take the spare wheel from the wheel
well under the trunk floor
(
page 670).
Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.
One wheel chock is included with the
vehicle tool kit (
page 670).
When changing wheel on a level surface:
Place the wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.Always try lifting the vehicle using the jack
on a level surface. However, should cir-
cumstances require you to do so on a hill,
place the wheel chock and another size-
able object as follows:
Place the wheel chock and another
sizeable object on the downhill side
blocking both wheels on the side of the
vehicle not being worked on.

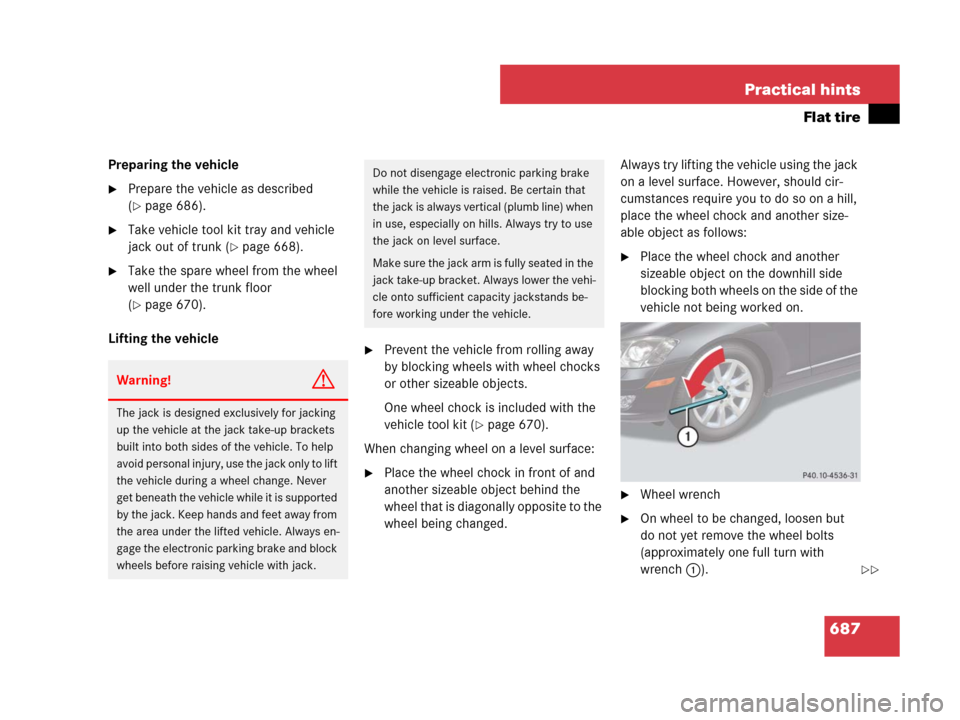

Wheel wrench
On wheel to be changed, loosen but
do not yet remove the wheel bolts
(approximately one full turn with
wrench 1).
Warning!G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always en-
gage the electronic parking brake and block
wheels before raising vehicle with jack.
Do not disengage electronic parking brake
while the vehicle is raised. Be certain that
the jack is always vertical (plumb line) when
in use, especially on hills. Always try to use
the jack on level surface.
Make sure the jack arm is fully seated in the
jack take-up bracket. Always lower the vehi-
cle onto sufficient capacity jackstands be-
fore working under the vehicle.
