2008 MERCEDES-BENZ S600 Owner's Manual

448 Controls in detail
Driving systems
Switching off the Parktronic sys-
tem: Press button 1.
Indicator lamp 2 comes on.
Switching on the Parktronic system:
Press button 1 again.
Indicator lamp 2 goes out.
Parktronic system malfunction
If only the red distance segments illumi-
nate and an acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.
Have the Parktronic system checked
by an authorized Mercedes-Benz Cen-
ter as soon as possible.
If only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty or
there is an interference from other radio or
ultrasonic signals. The Parktronic system
will automatically switch off after 20 sec-
onds and the indicator lamp in the Park-
tronic switch comes on.
Switch off the ignition (page 344).
Clean the Parktronic system sensors
(
page 589).
Switch on the ignition.
or
Check the Parktronic system operation
at another location to rule out interfer-
ence from outside radio or ultrasonic
signals.
Park Assist*
iThe Parktronic system is automatically
switched on when the ignition is switched on
(
page 344).
Warning!G
Park Assist is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always remains with the driver.
Warning!G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.
!Special attention must be paid to objects
with smooth surfaces or low silhouettes (e.g.
trailer couplings, painted posts, elevated cross-
bars or road curbs). Such objects may not be de-
tected by the system and can damage the
vehicle.

449 Controls in detail
Driving systems
Park Assist is an electronic parking aid
with radar sensors that helps you while
parking.When travelling in Canada in a vehicle not
registered in Canada, you must switch off
the radar sensor system* (
page 282).
Canadian law does not permit the use of
the radar sensor system* (
page 282) for
vehicles from outside of Canada. When you
switch off the radar sensor system*, the
following functions are deactivated:

BAS Plus* (page 69)

DISTRONIC Plus* (page 424)

Park Assist

PRE-SAFE® Brake* (page 76)
It visually and audibly indicates the relative
distance between the vehicle and an ob-
stacle.
Park Assist is automatically activated
when the engine is running and the trans-
mission is in position D, R or N.
The Park Assist system deactivates at
speeds over approximately 11 mph. At
lower speeds the Parktronic system turns
on again.
iUSA only:
This device has been approved by the FCC as a
“Vehicular Radar System”. The radar sensor is
intended for use in an automotive radar system
only. Removal, tampering, or altering of the de-
vice will void any warranties, and is not permitted
by the FCC. Do not tamper with, alter, or use in
any non-approved way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Removal, tampering, or altering of the device will
void any warranties, and is not permitted. Do not
tamper with, alter, or use in any non-approved
way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
!The operational function of the Park Assist
system can be affected by dirty sensors, espe-
cially at times of snow and ice.
Make sure that the area on the bumpers around
the sensors is free of dirt, ice and/or slush,
otherwise Park Assist may not function properly,
see “Cleaning the Park Assist* system sensors
(USA only)” (
page 590).
!High-frequency sources such as toll sta-
tions, speed measuring systems, etc. can cause
the Park Assist system to malfunction. You can
switch off the Park Assist using the Park Assist
button (
page 452) or switch off the radar sen-
sors (
page 282) to prevent possible malfunc-
tion.

450 Controls in detail
Driving systems
Park Assist is also switched off when you
set the automatic transmission to P or
switch off the engine.
While the transmission is in neutral
positionN, Park Assist is switched off if
you secure the vehicle in place with the
electronic parking brake.
The Park Assist system monitors the sur-
roundings of your vehicle with four sensors
in the front bumper and two sensors in the
rear bumper.Range of the sensors
The sensors of the Park Assist system are
integrated in the front and rear bumpers.
Make sure that the bumpers are clear of
dirt, ice and slush in the area of the sen-
sors, as otherwise, Park Assist may not
function properly, see “Cleaning the Park
Assist* system sensors (USA only)”
(
page 590).

451 Controls in detail
Driving systems
Front sensors
Rear sensorsWarning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle.
The warning indicator for the front area is
in the instrument cluster. The warning indi-
cator for the rear area is on the roof liner in
the rear.
1Left side of the vehicle
2Right side of the vehicle
3Indicator
Each warning indicator is divided into five
yellow and two red distance segments for
either side of the vehicle.
If yellow indicators 3 under the segments
are lit, Park Assist is ready to measure.The position of the gear selector lever de-
termines which warning indicators will be
activated.
As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the sev-
enth distance segment illuminates, you
have reached the minimum distance.
iDue to the sensors’ broad detection range,
it is possible that Park Assist also detects the fol-
lowing obstacles and issues a warning:

obstacles in the ground, e.g. sewer canal
covers, rails, bumps in the road or gutters

obstacles moving upward quickly, e.g. rolling
garage doors
Centerapprox. 40 in (100 cm)
Cornersapprox. 24 in (60 cm)
Centerapprox. 50 in (125 cm)
Cornersapprox. 24 in (60 cm)
!While parking, pay particular attention to ob-
jects over or underneath the sensors, e.g. flower
boxes, an elevated crossbar or a trailer tow
hitch. Park Assist does not detect such nearby
objects. You could otherwise damage the vehicle
or the objects.
Gear selector
lever positionWarning indicator
DFront area activated
RFront and rear area
activated
NWith the electronic
parking brake engaged:
neither activated.
With the electronic
parking brake released:
front and rear area acti-
vated.
PNeither activated

452 Controls in detail
Driving systems

Front area:
As soon as the first red segment lights
up, you will hear an intermittent warn-
ing tone for approximately two sec-
onds. Once the second red segment
lights up, you will hear a continuous
warning tone. You have reached the
minimum distance.

Rear area:
As soon as the first red segment lights
up, you will hear an intermittent warn-
ing tone for approximately two sec-
onds. Once the second red segment
lights up, you will hear a continuous
warning tone. You have reached the
minimum distance.Collision warning
Park Assist can detect obstacles from a
considerable distance. If you drive in re-
verse towards an obstacle, you will hear a
warning tone. You must then brake in or-
der to avoid a collision. The warning tone
for a collision will not sound when the vehi-
cle is at a standstill very close to the obsta-
cle. In this case, you will hear a
corresponding tone for the warning indica-
tor in the rear area.Switching Park Assist system on/off
The Park Assist system can be switched off
manually.
The Park Assist button with the indicator
lamp is located on the control panel on the
right-hand side of the instrument cluster.
1Park Assist button
2Indicator lamp
iDuring strong rainfall, the warning indicators
and warning tones may be triggered, for exam-
ple, by water splashing into the area of the sen-
sors.
iDuring strong rainfall, the collision warning
may be triggered, for example, by water splash-
ing into the area of the sensors.
iWhen the indicator lamp is on, the Park
Assist system is switched off.

453 Controls in detail
Driving systems
Switching off Park Assist system:
Press button 1.
Indicator lamp 2 comes on.
Switching on Park Assist system:
Press button 1 again.
Indicator lamp 2 goes out.
Dynamic Rear View Monitor*
The Dynamic Rear View Monitor is an elec-
tronic and visual parking aid. It shows you
the area behind the vehicle on the
COMAND display.
In addition, the Dynamic Rear View Moni-
tor contains guide lines to help you with re-
verse parking (back-in parking) and
parallel parking.
The area behind the vehicle is displayed as
a reverse-mirror image similar to the view
in a rear-view mirror.The Dynamic Rear View Monitor is in the
handle strip of the trunk lid.
1Dynamic Rear View Monitor
iThe Park Assist system is automatically
switched on when the ignition (
page 344) and
radar sensors are switched on (
page 282).
iThe Dynamic Rear View Monitor is also
called “Park Assist” in COMAND display.

454 Controls in detail
Driving systems
View through the camera
iThe image from the Dynamic Rear View
Monitor is shown on the COMAND display
(
page 31).

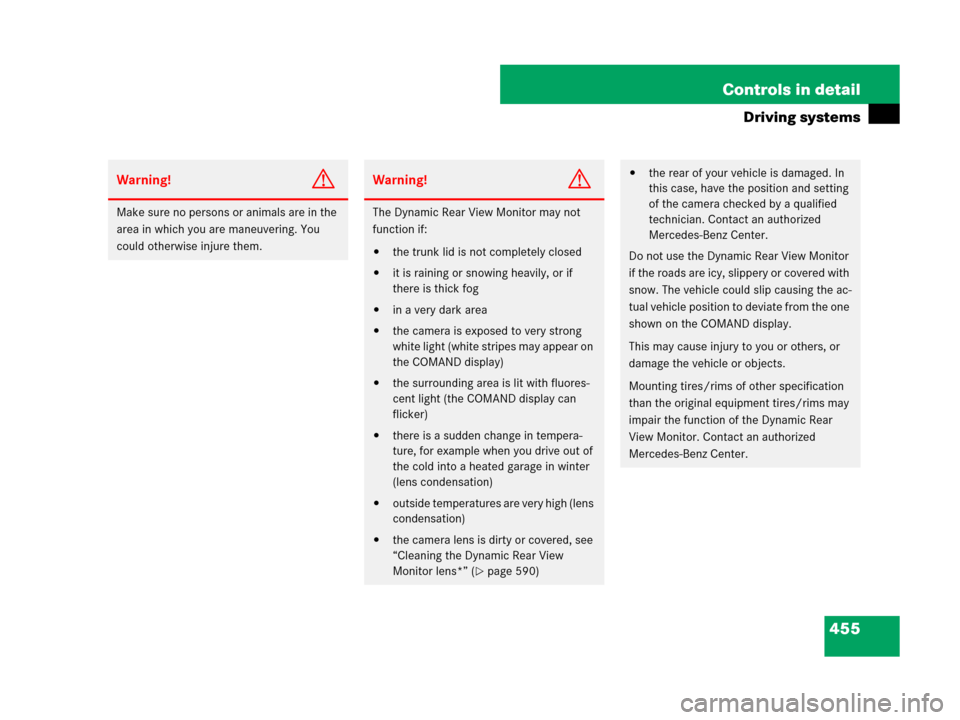

Warning!G
Please note that objects which do not touch
the ground, such as the bumper of a vehicle
parked behind you, a trailer hitch, or the
back of a truck, may appear to be further
away than they actually are. In this case, you
should not use the guide lines to judge dis-
tance. The use of the guide lines to judge
distance increases the risk of impacting the
objects.
Warning!G
The Dynamic Rear View Monitor is a supple-
ment system. It is not intended to, nor does
it replace, the need for extreme care. The re-
sponsibility during parking and other driving
maneuvers always remains with the driver.
The Dynamic Rear View Monitor may show
obstacles with a distorted perspective, in-
correctly or not at all.
Special attention must be paid to objects
outside of the camera’s field of view such as
those located very close to or below the rear
bumper, or above the recessed grip of the
luggage compartment lid. Such objects may
not be detected by the system and can dam-
age the vehicle.
The Dynamic Rear View Monitor does not
warn you about impending collisions with
objects. The driver is always responsible for
safety and must continue to pay attention to
the immediate surroundings while parking
or maneuvering the vehicle. This applies not
only to the area behind the vehicle, but also
to the area in front of and to the sides of the
vehicle. Failure to do so could result in injury
to persons and/or damage to the vehicle or
other property. We also recommend that the
driver use the Parktronic system* or Park
Assist* when parking or maneuvering the
vehicle.

455 Controls in detail
Driving systems
Warning!G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.
Warning!G
The Dynamic Rear View Monitor may not
function if:

the trunk lid is not completely closed

it is raining or snowing heavily, or if
there is thick fog

in a very dark area

the camera is exposed to very strong
white light (white stripes may appear on
the COMAND display)

the surrounding area is lit with fluores-
cent light (the COMAND display can
flicker)

there is a sudden change in tempera-
ture, for example when you drive out of
the cold into a heated garage in winter
(lens condensation)

outside temperatures are very high (lens
condensation)

the camera lens is dirty or covered, see
“Cleaning the Dynamic Rear View
Monitor lens*” (
page 590)

the rear of your vehicle is damaged. In
this case, have the position and setting
of the camera checked by a qualified
technician. Contact an authorized
Mercedes-Benz Center.
Do not use the Dynamic Rear View Monitor
if the roads are icy, slippery or covered with
snow. The vehicle could slip causing the ac-
tual vehicle position to deviate from the one
shown on the COMAND display.
This may cause injury to you or others, or
damage the vehicle or objects.
Mounting tires/rims of other specification
than the original equipment tires/rims may
impair the function of the Dynamic Rear
View Monitor. Contact an authorized
Mercedes-Benz Center.
