2008 LEXUS RX400H Owners Manual

79
1-6. Refueling
1
Before driving
RX400h_U

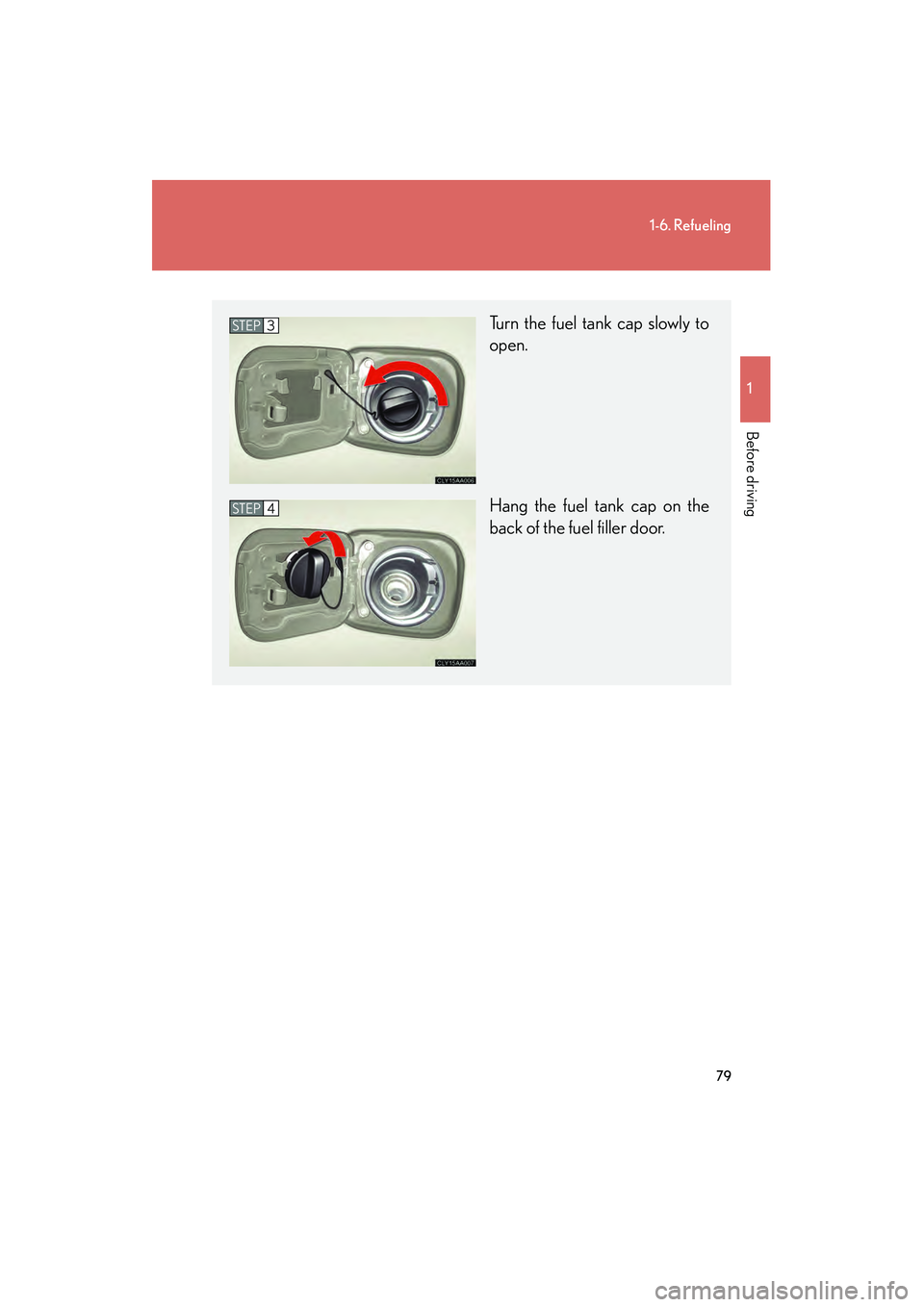

Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.STEP3
STEP4

80
1-6. Refueling
RX400h_U
Closing the fuel tank capWhen replacing the fuel tank cap,
turn it until one clicking sound is
heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
■Fuel types
Use unleaded gasoline. (91 Octane rating [Research Octane Number 96] or
higher)
■Fuel tank capacity
Approximately 17.2 gal. (65 L, 14.3 Imp. gal.)
■Open fuel filler door warning
→ P. 4 0 7
■When the fuel filler door opener is inoperable
The handle can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch because the battery is
discharged or for any other reason.

81
1-6. Refueling
1
Before driving
RX400h_U
CAUTION
■Refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
■When opening the fuel cap
Do not remove the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler neck if the cap is suddenly removed.

82
1-6. Refueling
RX400h_U
NOTICE
■Refueling the vehicle
●Finish refueling within 30 minutes. If more than 30 minutes passes, the internal
valve closes. In this condition, fuel may spill out if you continue to refuel the vehi-
cle. About 5 minutes after the valve is closed, a message CLOSE FUEL LID will
appear on the multi-information display. To refuel the vehicle again, tighten the
fuel tank cap and close the fuel filler door, and then push the fuel filler door
opener switch again.
●Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the exhaust systems to oper-
ate abnormally or damaging fuel system components or the vehicle’s painted sur-
face.

83
1
Before driving
RX400h_U
1-7. Theft deterrent system
Hybrid vehicle immobilizer system
■System maintenance
The vehicle has a maintenance-free type of immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with
a built-in transponder chip) of another vehicle
The vehicle's keys have built-in transponder chips that prevent the hybrid
system from starting if the key has not been previously registered in the
vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the key has been removed from
the engine switch to indicate
that the system is operating.

84
1-7. Theft deterrent system
RX400h_U
■Certifications for the hybrid vehicle immobilizer systemFor vehicles sold in the U.S.A.
FCC ID: MOZRI-20BTY (Made in Japan)
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. For vehicles sold in Canada
This device complied with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
CAUTION
Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
NOTICE
■To prevent damage to the key
Do not modify, remove or disable the hybrid vehicle immobilizer system. If any
unauthorized changes or modifications are made, the proper operation of the sys-
tem cannot be guaranteed.

85
1
1-7. Theft deterrent system
Before driving
RX400h_U
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggered of the alarm
The alarm is triggered in the following situations.
●A locked door is unlocked or opened in any way other than using
the key or wireless remote co ntrol with the alarm being set.
● The hood is opened with the alarm being set.
■ Setting the alarm system
Close the doors, hood, and lock
all doors using the key or wire-
less remote door lock function.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors using the key or wireless remote control.
● Turn the engine switch to the ON position. (The alarm will be
deactivated or stopped after a few seconds.)

86
1-7. Theft deterrent system
RX400h_U
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following.
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations.
Stopping the alarm deactivates the alarm system.
●The doors is unlocked using the key.
●A person inside the vehicle opens a door or hood.
●The battery is recharged or replaced when the vehicle is locked.
■Pa n ic m o d eVehicles with power back door
Vehicles without power back door
When PANIC is pushed for longer than
about one second, an alarm will sound for
about 30 seconds and the vehicle lights will
flash to deter any person from trying to break
into or damage your vehicle.
To stop the alarm, push any button on the
wireless remote control.
