2008 LEXUS RX400H Owners Manual

47
1-3. Opening, closing and locking the doors
1
Before driving
RX400h_U
■The power back door can be opened when
The engine switch is in the ON position, and the shift lever is in P.
■Jam protection function
If anything obstructs the power back door while it is closing/opening, the back door
will automatically operate in the opposite direction.
■If the power back door does not work
The back door must be initialized. To initialize, close the back door completely by
hand.
■Customization that can be configured at Lexus dealer
Settings (e.g. beep sound) can be changed. (Customizable features →P. 4 5 8 )
CAUTION
Observe the following precautions.
Falling to do so may result in death or serious injury.
■Keep the back door closed while driving
If the back door is opening, the luggage will be thrown out and exhaust gases will be
entered in the vehicle.
■When the back door is opened while parking
The open back door hides the rear lights. Other road users must be warned of the
presence of your vehicle by a warning triangle or other device.
■Operating the power back door
●Check to make sure that passengers do not have any part of their body in a posi-
tion where it could be caught or hit when the back door is being operated.
●Careful attention is needed so as not to get your fingers trapped as the back door
automatically closes when it has not been fully closed.
●Do not allow children to operate the back door.
Closing the back door on someone can cause serious injury, and in some
instances, even death.

48
1-3. Opening, closing and locking the doors
RX400h_U

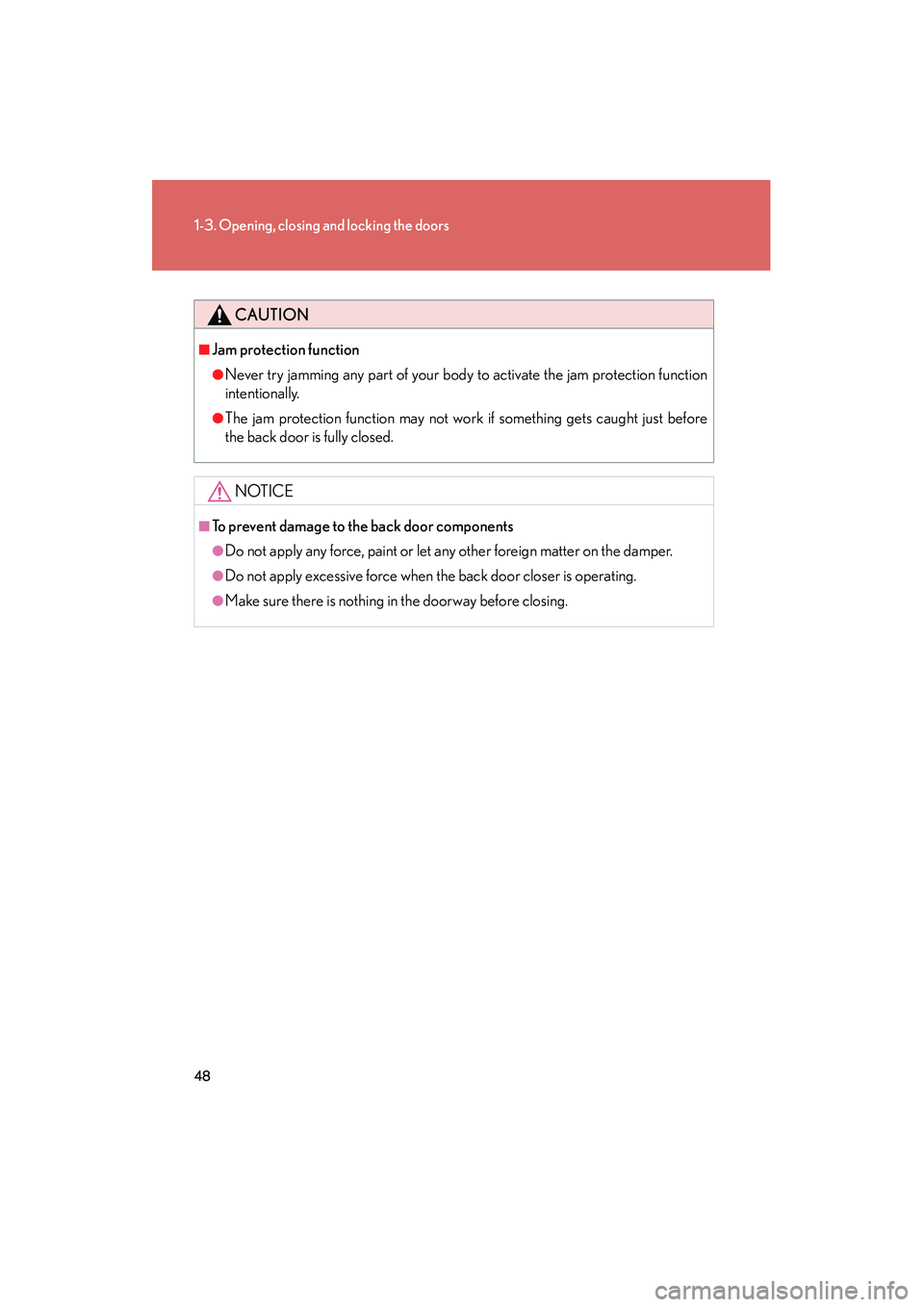

CAUTION
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the back door is fully closed.
NOTICE
■To prevent damage to the back door components
●Do not apply any force, paint or let any other foreign matter on the damper.
●Do not apply excessive force when the back door closer is operating.
●Make sure there is nothing in the doorway before closing.

49
1
Before driving
RX400h_U
1-4. Adjustable components (seats, mirrors, steering wheel)
Front seats
Flattening seatback■ Before flattening seatbacks
Slide the rear seats as far back as possible. ( →P. 5 2 )
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

50
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U■
Flattening seatbacks
Move the seat forward, raise the
seat, and remove the head-
restraint.
After returning the seat to its origi-
nal position, be certain to replace
the head restraint.
Move the seatback angle control
switch backward to flatten the
seatback.
Push the vertical height adjustment
switch downward.
STEP1
STEP2
STEP3

51
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt, increas-
ing the risk of death or serious injury in the event of an accident.
■While driving
●Do not allow passengers to ride on the flattened seat.
●Do not drive with the head restraints removed.

52
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Rear seats
Folding down rear seatbacks■ Before folding down rear seatbacks
Stow the rear seat belt buckles.
Seat position lever
Seatback angle lever

53
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_UUse the seat belt hangers to pre-
vent the belts from being tangled.
■ Folding down rear seatbacks
Pulling the seatback angle lever
and fold them down until they lock.
When return the rear seatbacks to
their original positions, unlock the
seatbacks by pulling the seatback
angle lever and lift them up until
they lock.
■Folding down rear center seatback
Pulling the center seatback angle
lever behind the seatback and fold
it down.
When return the rear center
seatback to its original position, lift
it up until it locks.

54
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
CAUTION
■Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion to
reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt
may slide past the hips and apply restraint forces directly to the abdomen or your
neck may contact the shoulder belt, increasing the risk of death or serious injury
in the event of an accident.
●Be careful not to get hands or feet pinched between the rear console box and the
rear seat when folding down the rear seatback.
■When returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Press forward and rearward on the top of the seatback.
●Check that the seat belts are not twisted or caught under the seat.
●Arrange the seat belts in the proper positions for ready use.
NOTICE
■Stowing the seatbelts
The seat belts and the buckles must be stowed before you fold down the rear
seatbacks.
