2008 LEXUS RX400H Owners Manual

63
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
CAUTION
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, which prevents the sensor from detecting
the passenger's weight properly. As a result, the seat belt pretensioner for the
front passenger's seat may not activate in the event of a collision.
●If the pretensioner has activated, the seat belt becomes locked: it cannot be fur-
ther extended, nor will it return to the stowed position. The seat belt cannot be
used again and must be replaced at your Lexus dealer.
■Child restraint lock function belt
Do not allow children to play with the child restraint lock function belt.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.

64
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U

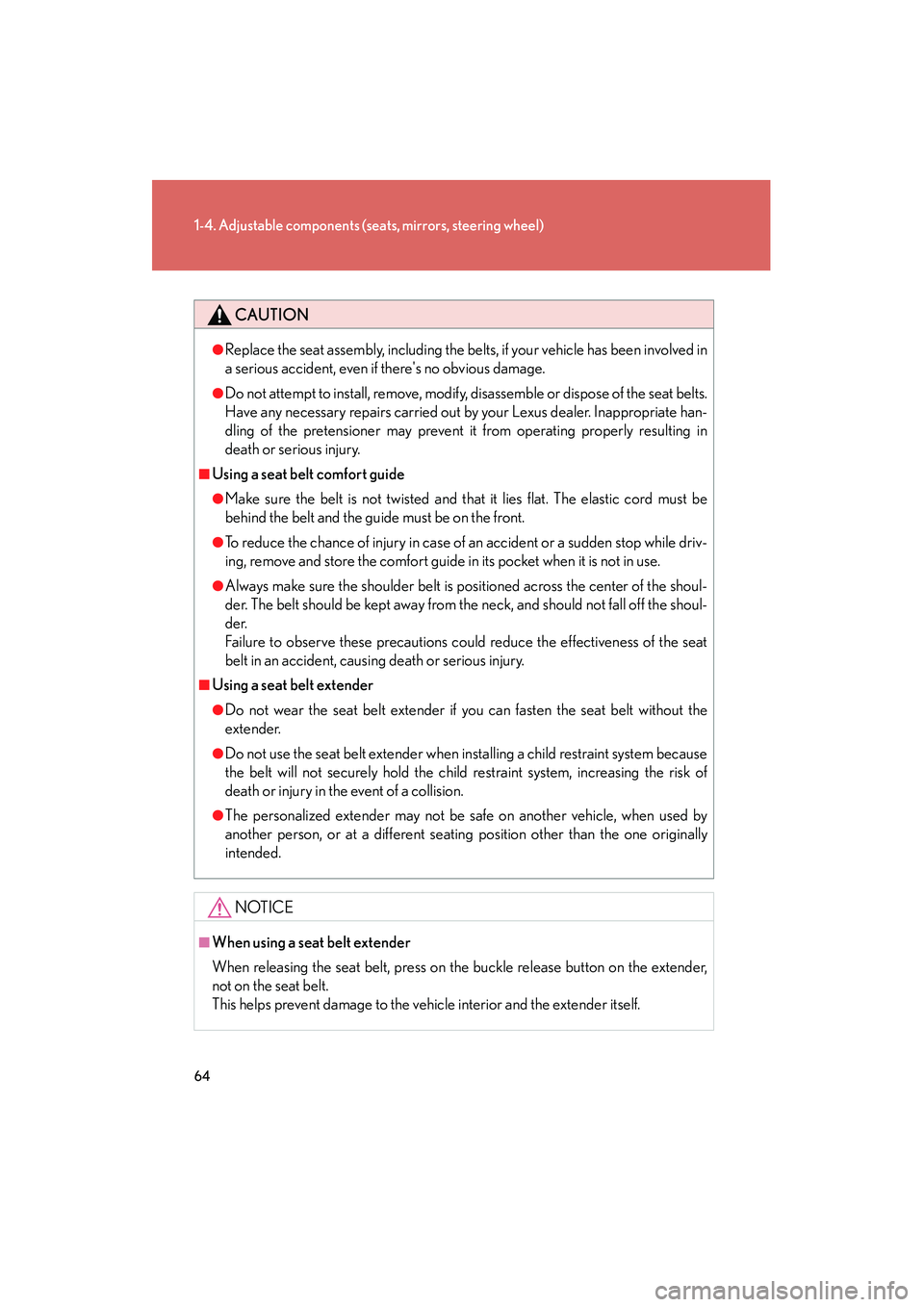

CAUTION
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there's no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may prevent it from operating properly resulting in
death or serious injury.
■Using a seat belt comfort guide
●Make sure the belt is not twisted and that it lies flat. The elastic cord must be
behind the belt and the guide must be on the front.
●To reduce the chance of injury in case of an accident or a sudden stop while driv-
ing, remove and store the comfort guide in its pocket when it is not in use.
●Always make sure the shoulder belt is positioned across the center of the shoul-
der. The belt should be kept away from the neck, and should not fall off the shoul-
der.
Failure to observe these precautions could reduce the effectiveness of the seat
belt in an accident, causing death or serious injury.
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or injury in the event of a collision.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seatin g position other than the one originally
intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

65
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U

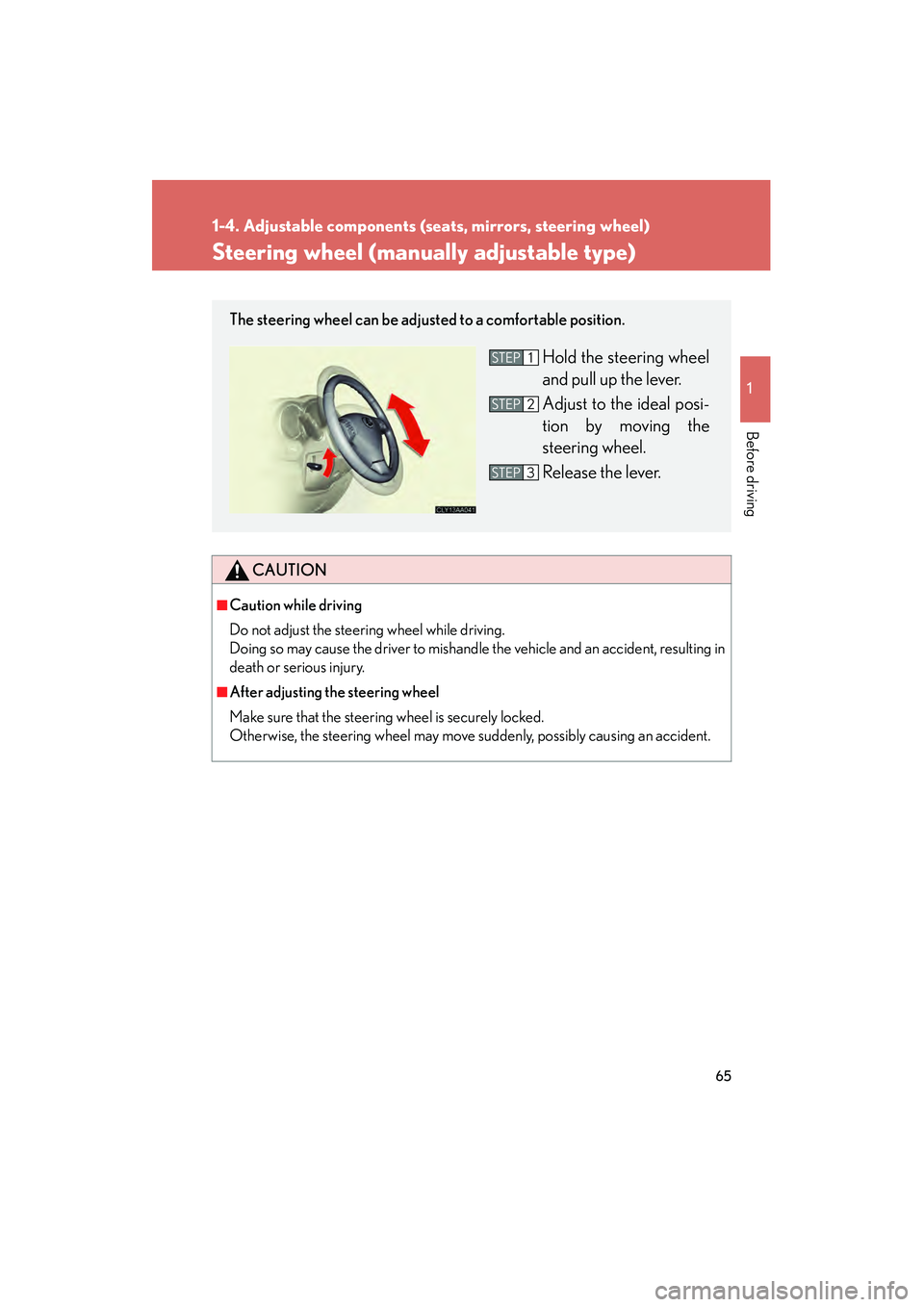

Steering wheel (manually adjustable type)
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel
and pull up the lever.
Adjust to the ideal posi-
tion by moving the
steering wheel.
Release the lever. STEP1
STEP2
STEP3

66
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Steering wheel (power-adjustable type)
Auto tilt awayWhen the key is removed from the
engine switch, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.
Inserting the key into the engine
switch returns the steering wheel
to its original position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver
■Customization that can be configured at Lexus dealer
Setting of the auto tilt-away function can be disabled. (Customizable features
→P. 4 5 8 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

67
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Anti-glare inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
To turn automatic mode on/
off, press and hold the switch
for 3 seconds.
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic mode. The
anti-glare mirror is automati-
cally set to automatic mode
whenever the engine switch is in
the ON position.
To ensure that the sensors operate properly,
do not touch or cover them.

68
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Outside rear view mirrors
■When the mirrors are fogged up
Turn on the outside rear view mirror defoggers to defog the mirrors. (→P. 2 0 4 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→ P. 5 5 )
Mirror angle can be adjusted using the switch when the engine switch is in
the ACC or ON position.
Pull down the cover
Select a mirror to adjust
(L: left or R: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

69
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between L and
R).
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 6 7 )
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded back.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When the mirror defoggers are operating
Do not touch the surface of the mirror, as it may be hot.

70
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U

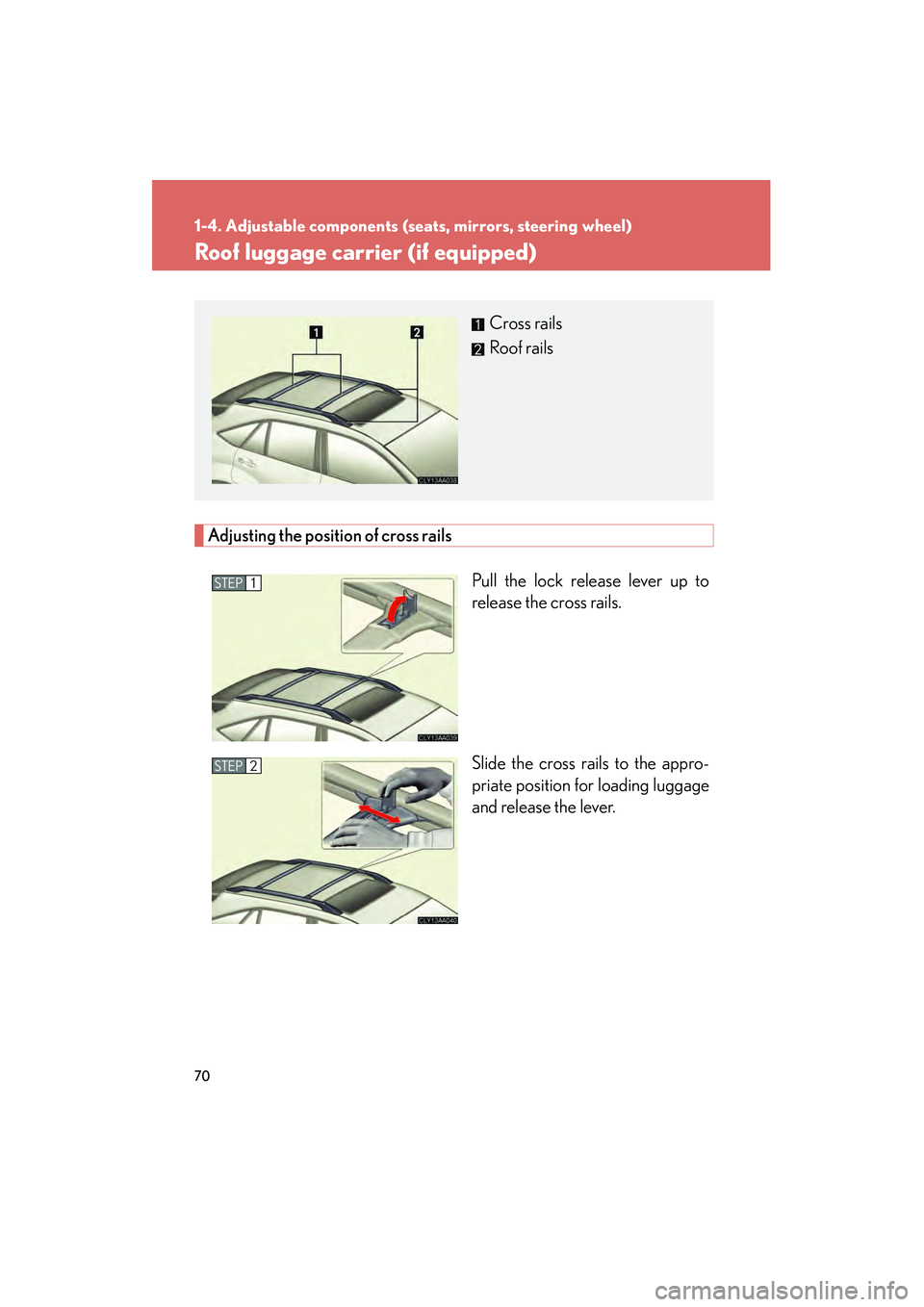

Roof luggage carrier (if equipped)
Adjusting the position of cross railsPull the lock release lever up to
release the cross rails.
Slide the cross rails to the appro-
priate position for loading luggage
and release the lever.
Cross rails
Roof rails
STEP1
STEP2
