2008 LEXUS RX400H Owners Manual

135
2-1. Driving procedures
2
When driving
RX400h_U
Transmission
■If the shift lever cannot be shifted from P
→P. 4 1 9
Select a shift position appropri ate for the driving conditions.
■Shifting the shift lever
While the engine switchis in the ON position,
depress the brake pedal
and move the shift lever.
■ Shift position uses
Shift positionFunction
PParking the vehicle or starting the hybrid system
RReversing
NNeutral
DNormal driving
BEngine braking

136
2-1. Driving procedures
RX400h_U
Turn signal lever
■Turn signals can be operated when
The engine switch is in the ON position.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.

137
2-1. Driving procedures
2
When driving
RX400h_U

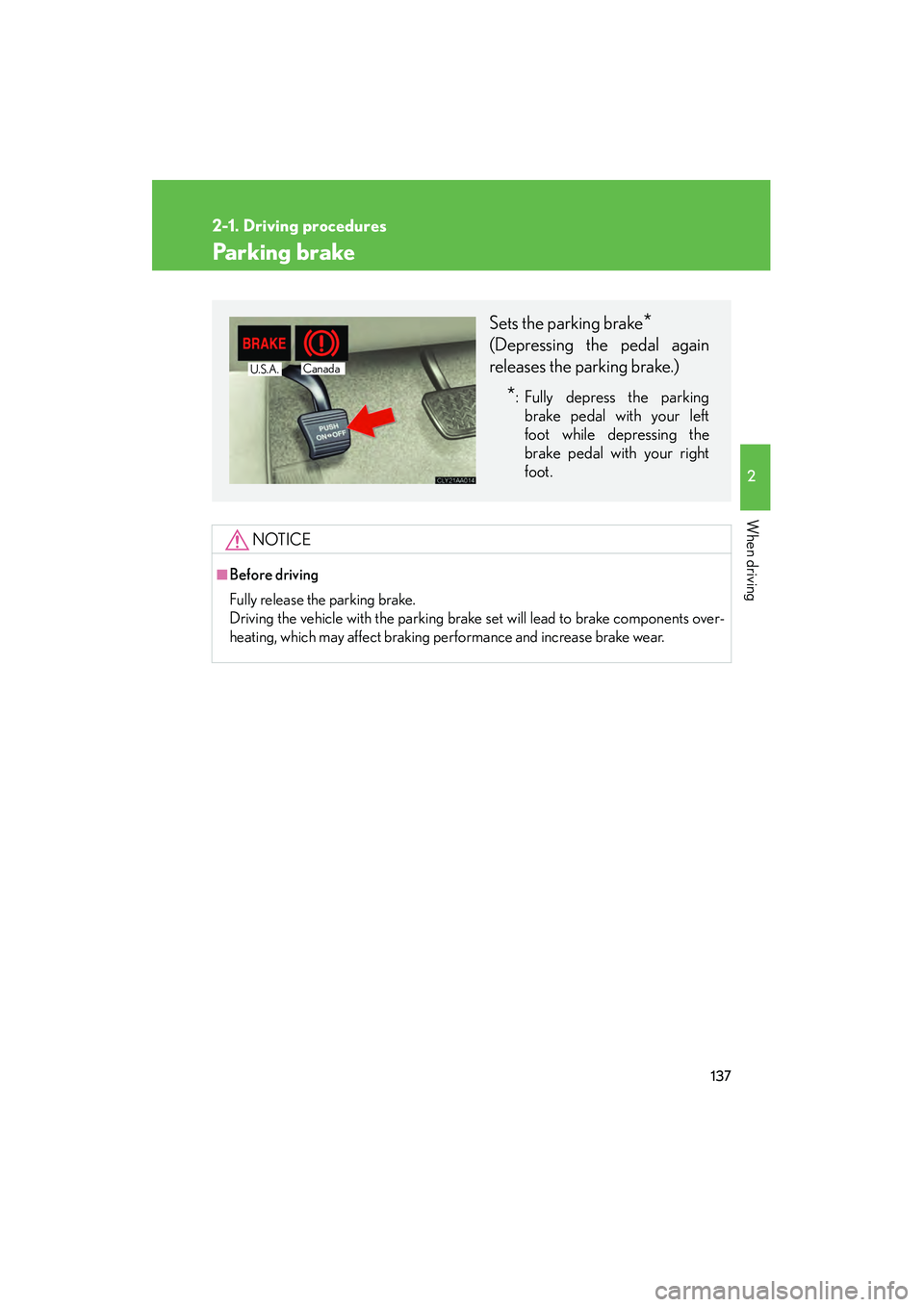

Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parkingbrake pedal with your left
foot while depressing the
brake pedal with your right
foot.
Canada
U.S.A.

138
RX400h_U
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the power meter gauge display may
differ depending on the model/type.

The following gauges and meters illuminate when the engine switch is
in the ON position.Power meter
Displays the instantaneous output from the hybrid system in approximate
kilowatts.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display ( →P. 143)
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.

139
2-2. Instrument cluster
2
When driving
RX400h_U
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Darker
Brighter
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 4 2 4 )

140
2-2. Instrument cluster
RX400h_U
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and the power meter gauge display may
differ depending on the model/type.

Center panel

141
2-2. Instrument cluster
2
When driving
RX400h_U
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle's various systems.
Turn signal indicator
(→ P. 136)Slip indicator
(→ P. 1 7 0 )
Headlight high beam indi-
cator ( →P. 1 4 8 )(vehicles
with
discharge
headlights)AFS OFF indicator
(→ P. 1 4 9 )
(U.S.A.)
Headlight indicator
(→ P. 1 4 8 )Driving ready indicator
(→ P. 131)
(Canada)
Tail light indicator
(→ P. 1 4 8 )AIR BAG ON indicator
(→ P. 1 0 3 )
Cruise control indicator
(→ P. 157, 160) AIR BAG OFF indicator
(→ P. 1 0 3 )
Shift position indicator ( →P. 1 3 5 )
*
*

142
2-2. Instrument cluster
RX400h_U
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you start the hybrid system, this could mean that these systems are
not available to help protect you in an accident, which could result in death or seri-
ous injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.
■Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle's systems.
*: These lights turn on when the engine switch is turned to the ON position
to indicate that a system check is being performed. They will turn off
after the hybrid system is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do not
turn off. Have the vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)(U.S.A.)(Canada)
********
*****
