2008 LEXUS RX400H Owners Manual

271
3-5. Using the storage features
3
Interior features
RX400h_U

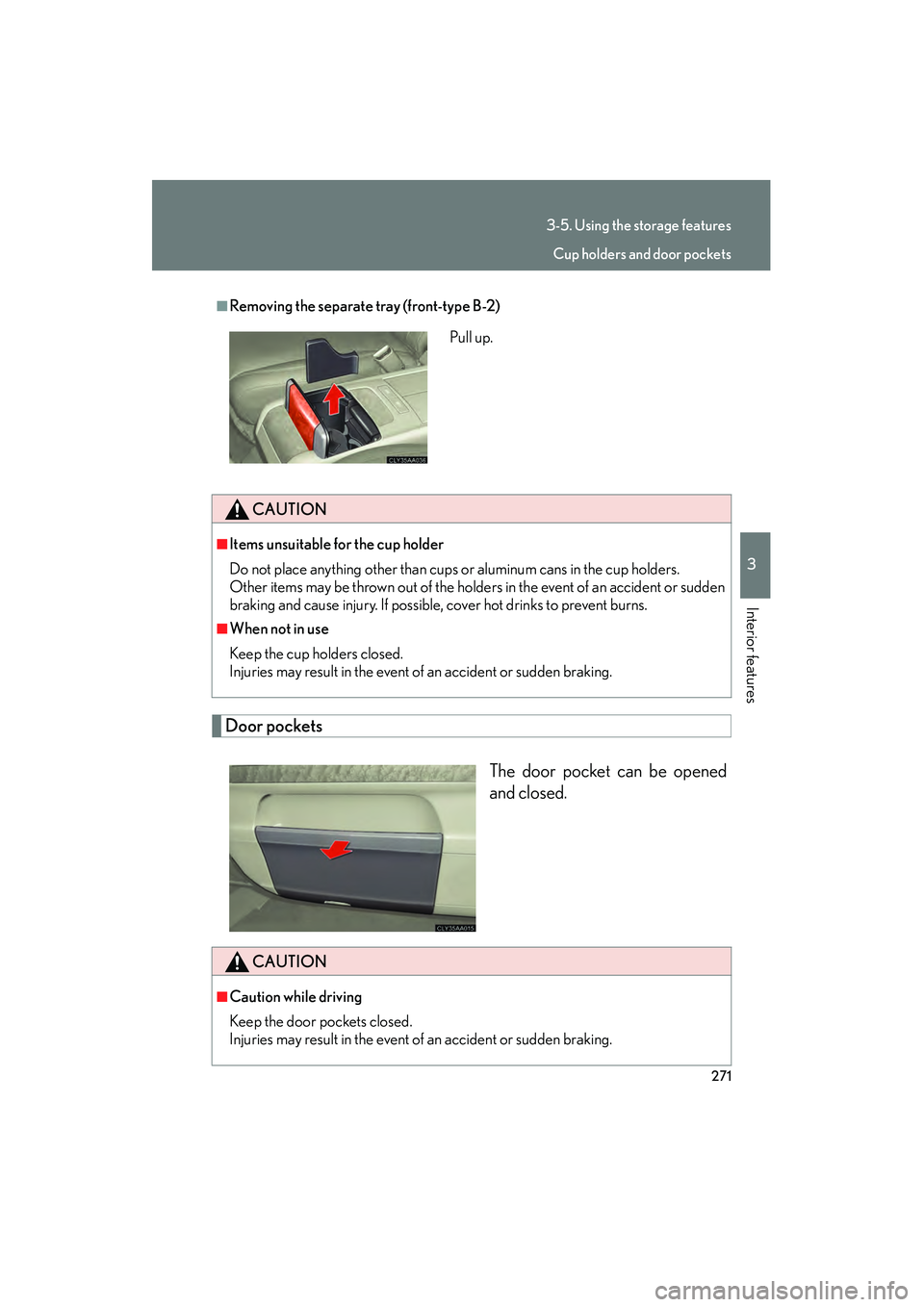

Door pocketsThe door pocket can be opened
and closed.
■Removing the separate tray (front-type B-2)
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Pull up.
CAUTION
■Caution while driving
Keep the door pockets closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders and door pockets

272
RX400h_U
3-6. Other interior features

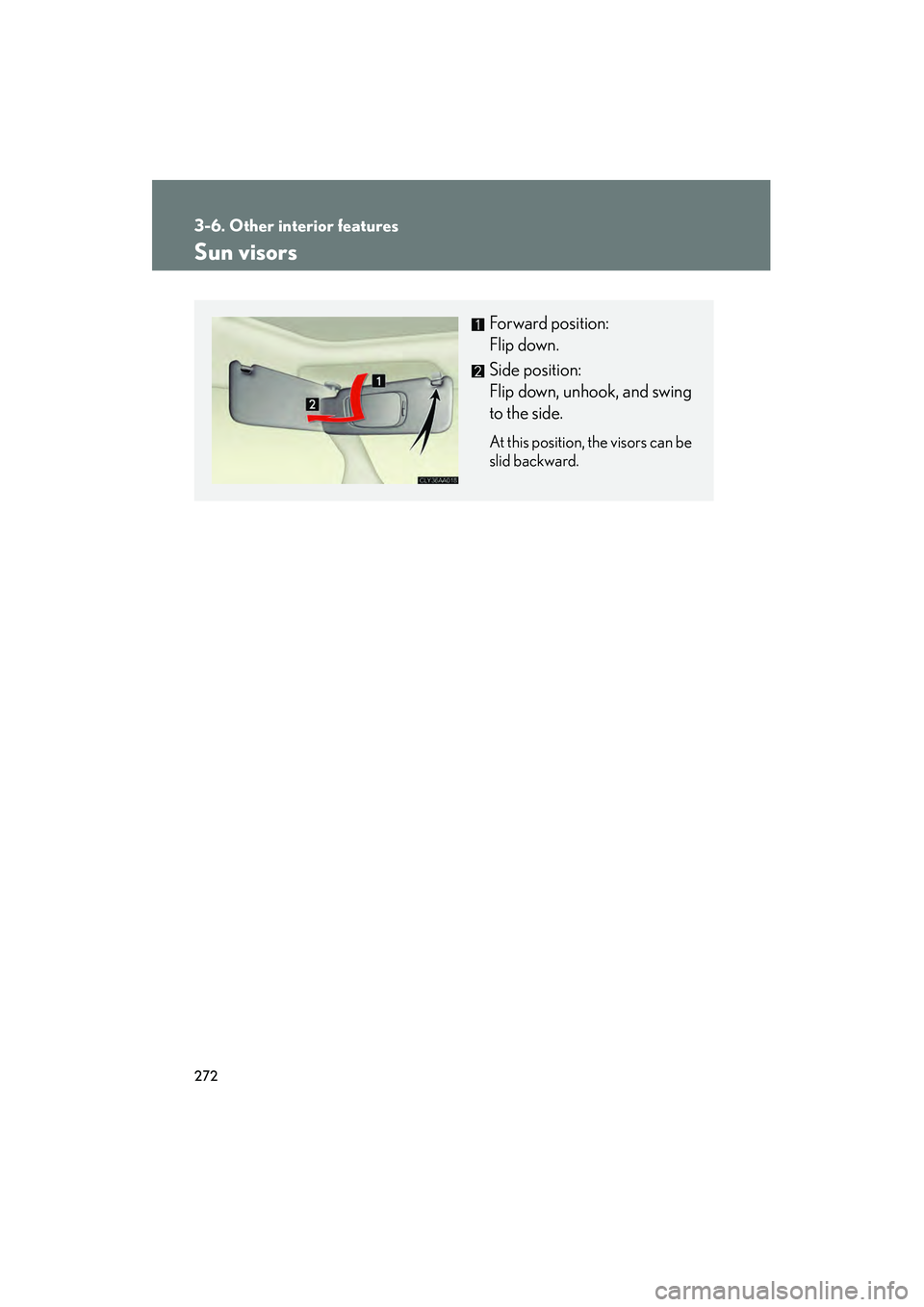

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.
At this position, the visors can be
slid backward.

273
3-6. Other interior features
3
Interior features
RX400h_U

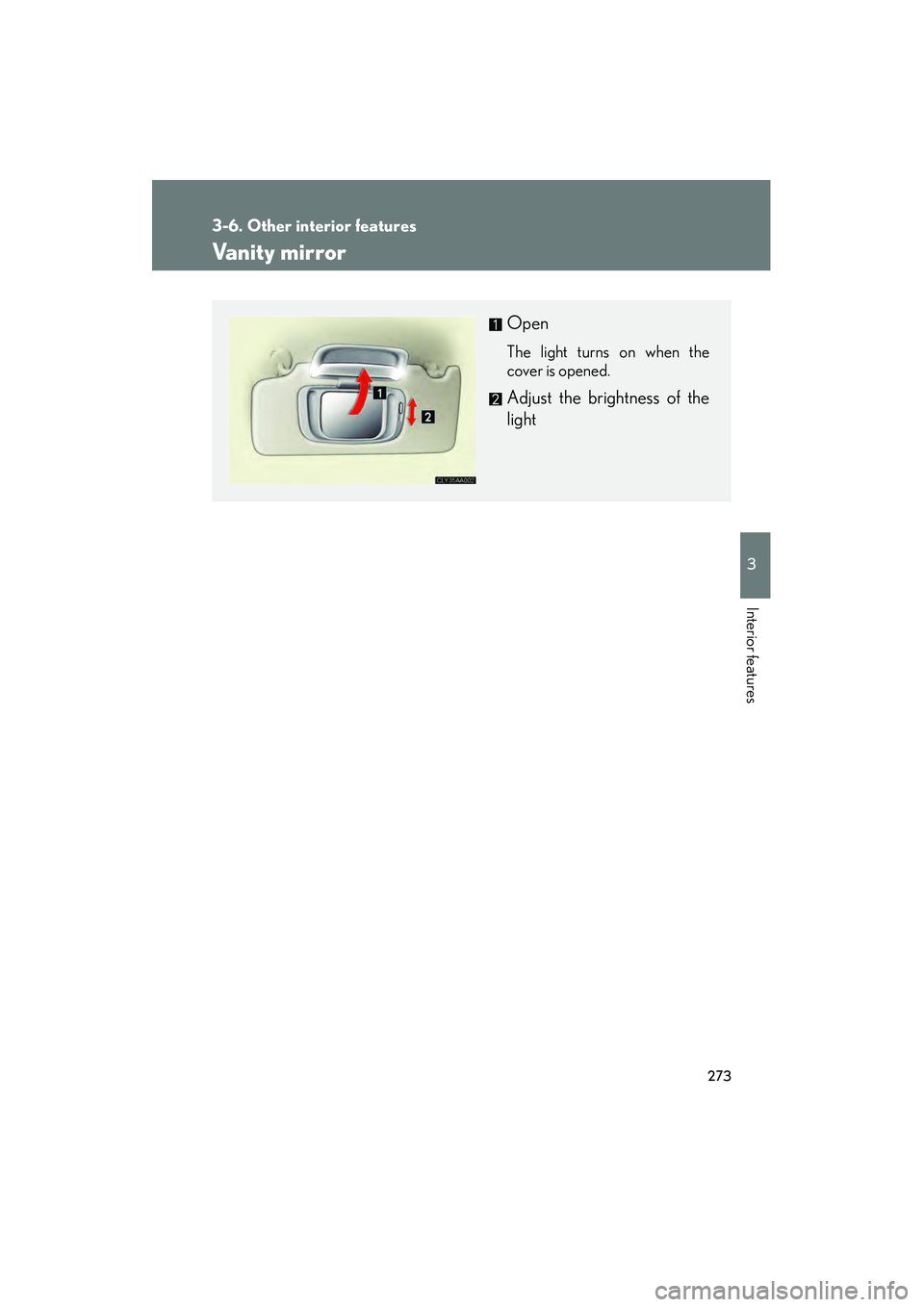

Vanity mirror
Open
The light turns on when the
cover is opened.
Adjust the brightness of the
light

274
3-6. Other interior features
RX400h_U
Clock
■The clock is displayed when
The engine switch is in the ACC or ON position.
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

275
3-6. Other interior features
3
Interior features
RX400h_U
Outside temperature display
■If the temperature does not appear or it shows
Have the vehicle inspected by your Lexus dealer.
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system Displays the outside air tem-
perature
The temperature range that can
be displayed is from -22°F
(-30°C) to 122°F (50°C).

276
3-6. Other interior features
RX400h_U
Multi-display light control
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system Adjusts the brightness of the
light
Push and release the button until
the desired brightness is
obtained.

277
3-6. Other interior features
3
Interior features
RX400h_U

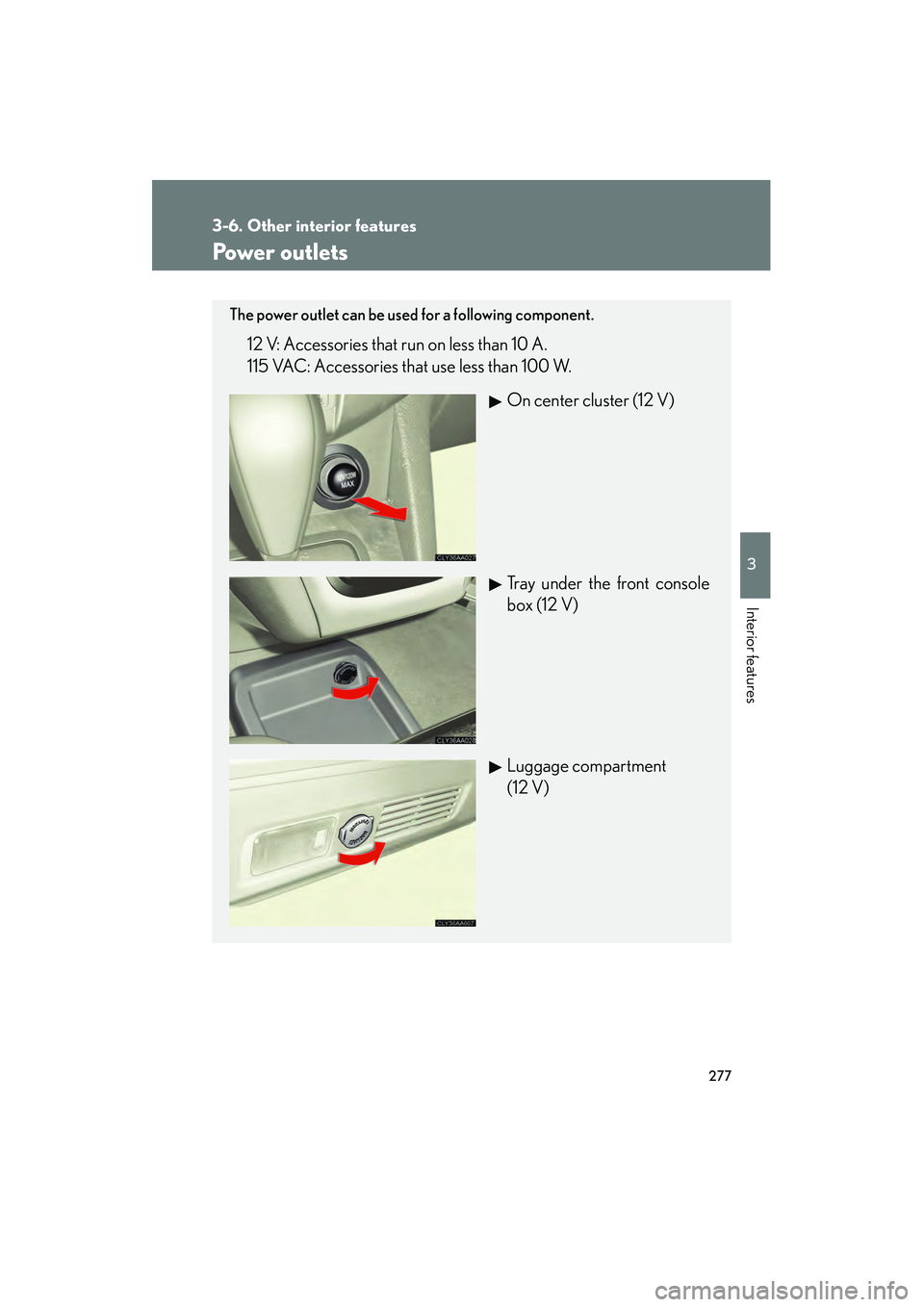

Power outlets
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 VAC: Accessories that use less than 100 W.On center cluster (12 V)
Tray under the front console
box (12 V)
Luggage compartment
(12 V)

278
3-6. Other interior features
RX400h_U
■The power outlet can be used when12 V
The engine switch is in the ACC or ON position.
115 VAC
The engine switch is in the ON position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 VAC
Do not use a 115 VAC appliance that requires more than 100 W.
If a 115 VAC appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.
Luggage compartment
(115 VAC*)
Main switch
To use the power outlet, turn
on the main switch.
Power outlet socket
*: If equipped
