2008 LEXUS RX400H Owners Manual

5
When trouble arises
415
5-2. Steps to take in an emergency
RX400h_U
Stowing the flat tire, jack and all toolsInstall the inside spare tire cover on the outer side of the spare tire
cover. Put the flat tire in the spare tire
cover with the outer side facing up
and install the holding bracket.
Turn the spare tire clamp bolt clockwise with a jack handle and
adapter socket until you hear a click.
Stow all the tools and jack securely.
STEP1
STEP2
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 3 3 2 )
STEP3
STEP4

416
5-2. Steps to take in an emergency
RX400h_U
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the vehicle sud-
denly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious injury:
●Never use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a serious accident.
Remove any oil or grease on the wheel bolts or wheel nuts.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5
kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the wheels
may fall off, which could lead to an accident causing death or serious injury.

5
When trouble arises
417
5-2. Steps to take in an emergency
RX400h_U
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■To avoid damaging the tire pressure warning valves and transmitters
Do not use liquid sealants on flat tires.
■When stowing the flat tire
●Ensure that there is no object caught between the tire and the vehicle underbody.
●Tighten the spare tire clamp bolt to hold the spare wheel carrier by the hook
securely.

418
5-2. Steps to take in an emergency
RX400h_U
If the hybrid system will not start
If the hybrid system will not start, even though correct starting procedures
are being followed (
→P. 131), consider each of the following points.
■The hybrid system will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel your vehicle.
● The hybrid system may be flooded.
Try to restart the hybrid system once more following correct
starting procedures. ( →P. 131)
● There may be a malfunction in the hybrid vehicle immobilizer sys-
tem. (→ P. 8 3 )
■ The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
One of the following may be the cause of the problem.
● The 12-volt battery may be discharged. ( →P. 4 2 1 )
● The 12-volt battery terminal connections may be loose or cor-
roded.
■ The interior lights and headlights do not turn on, or the horn does
not sound.
One of the following may be the cause of the problem.
● One or both of the 12-volt battery terminals may be discon-
nected.
● The 12-volt battery may be discharged. ( →P. 4 2 1 )
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
419
5-2. Steps to take in an emergency
RX400h_U
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the engine switch to the ON position.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5

420
5-2. Steps to take in an emergency
RX400h_U

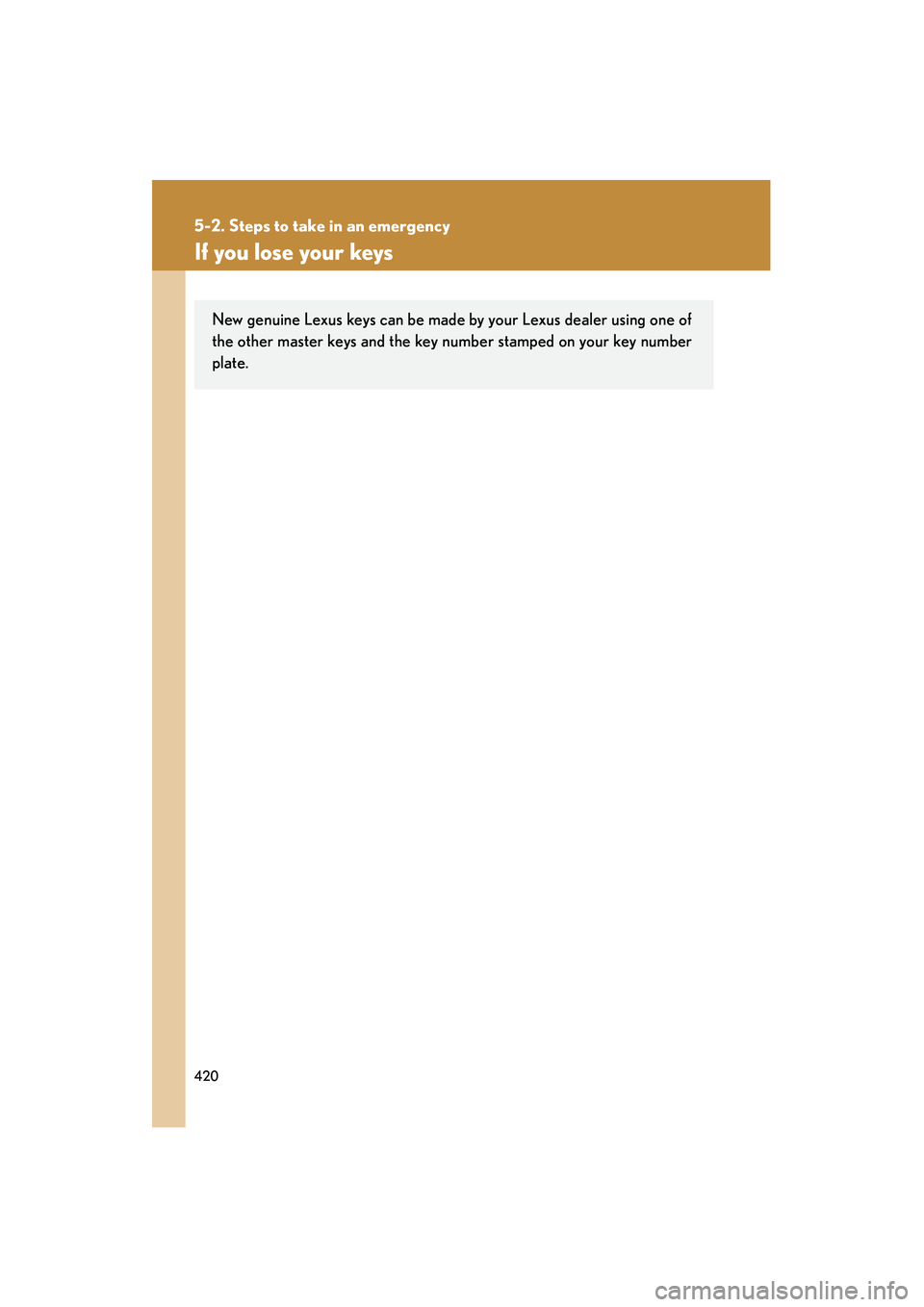

If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using one of
the other master keys and the key number stamped on your key number
plate.

5
When trouble arises
421
5-2. Steps to take in an emergency
RX400h_U
If the 12-volt battery is discharged
The following procedures may be used to start the hybrid system if the vehi-
cle’s battery is discharged.
You can call your Lexus dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your Lexus following the steps
below.Remove the engine compartment cover.
(→ P. 3 1 7 )
Connecting the jumper cables.
If required, remove all vent plugs from the booster battery. Lay a
cloth over the open vents on the booster battery. (This helps reduce
the explosion hazard, personal injuries and burns.)
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in the
illustration. Start the hybrid system of the second vehicle. Increase the gas-
oline engine speed slightly and maintain at that level for
approximately 5 minutes to recharge the battery of your vehi-
cle.
Maintain the gasoline engine speed on the second vehicle and
start the vehicle’s hybrid system.
STEP1
STEP2
STEP3
STEP4

422
5-2. Steps to take in an emergency
RX400h_U
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the hybrid system is turned off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■After recharging the 12-volt battery
(→ P. 3 2 8 )
■When the battery is removed or discharged
The power windows, power back door and moon roof must be initialized.
(→ P. 4 6 2 )
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse order in which they were
connected.
Once the hybrid system starts, have the vehicle checked at your Lexus
dealer as soon as possible.STEP5
