2008 LEXUS RX400H Owners Manual

239
3-3. Using the rear audio system
3
Interior features
RX400h_U
Using the DVD player (DVD video)
■Remote control
Turning on the DVD mode
Selecting a chapter
Reversing a screen
Turning on the menu screen
Turning on the title selection
screen
Searching the title
Changing the screen angle
Inputting the selected switch
Selecting a switch
Playing/pausing a screen
Fast forwarding a screen
Stopping a screen
Changing the subtitle lan-
guage
Changing the audio lan-
guage
■ Unit
Turning on the DVD mode
Skipping to the desired chap-
ter
Playing/pausing a screen
Selecting a switch/inputting
the selected switch

240
3-3. Using the rear audio system
RX400h_U

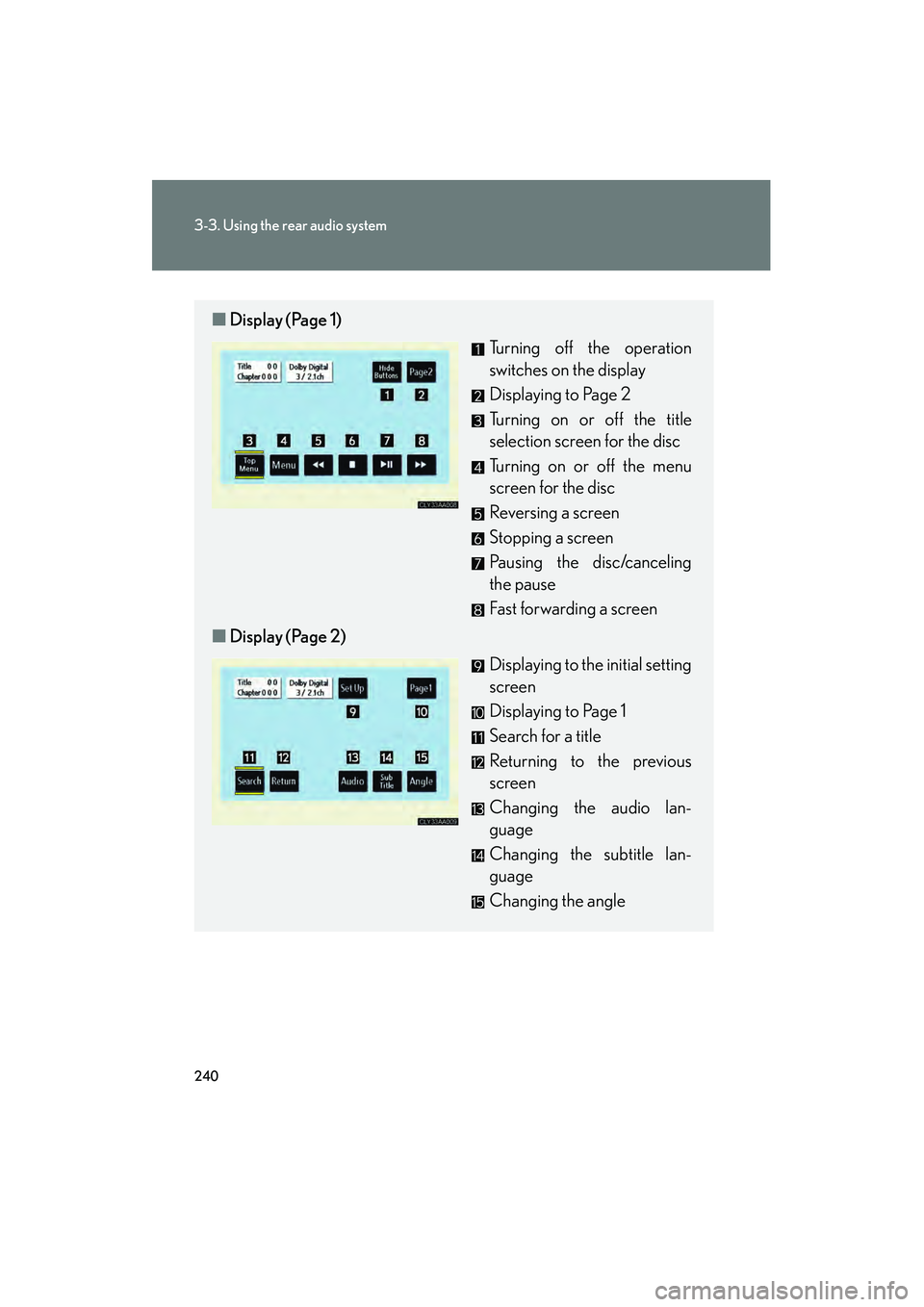

■Display (Page 1)
Turning off the operation
switches on the display
Displaying to Page 2
Turning on or off the title
selection screen for the disc
Turning on or off the menu
screen for the disc
Reversing a screen
Stopping a screen
Pausing the disc/canceling
the pause
Fast forwarding a screen
■ Display (Page 2)
Displaying to the initial setting
screen
Displaying to Page 1
Search for a title
Returning to the previous
screen
Changing the audio lan-
guage
Changing the subtitle lan-
guage
Changing the angle

241
3-3. Using the rear audio system
3
Interior features
RX400h_U
Turning on or off the operation switchesPress or to turn on the operation switches.
Press or once again or select to turn off the opera-
tion switches.
Turning on the title selection screenPress or select to turn on the title selection screen. For the
operation of the title selection screen, see the separate manual for the
DVD disc.
Turning on the menu screenPress or select to turn on the menu screen. For the opera-
tion of the menu screen, see the separate manual for the DVD disc.
NOTICE
■Cleaning the display
Wipe the display with a dry soft cloth.
If the screen is wiped with a rough cloth, the surface of the screen may be
scratched.
■To prevent damage to the remote control
●Keep the remote control away from direct sunlight, temperature heat and high
humidity.
●Do not drop or knock the remote control against hard objects.
●Do not sit on or place heavy objects on the remote control.
■DVD player
Never try to disassemble or oil any part of the DVD player. Do not insert anything
other than a disc into the slot.

242
3-3. Using the rear audio system
RX400h_U
Returning to the previous screenPress to return to the previous screen. For the operation of the
menu screen, see the separate manual for the DVD disc.
Searching for a title
Press or select to
display the screen to search for a
title.
Select the title number, and press
ENT to input it.
Select to return to the pre-
vious screen.
Changing the subtitle language
Press or select to
display the subtitle language
screen.
Each time is pressed or is selected, another lan-
guage stored on the disc is
selected.
Select to return to the pre-
vious screen.

243
3-3. Using the rear audio system
3
Interior features
RX400h_U
Changing the audio languagePress or select to
display the audio language screen.
Each time is pressed or is selected, another lan-
guage stored on the disc is
selected.
Select to return to the pre-
vious screen.
Changing the angle
Press or select to
display the screen to change the
angle.
Each time is pressed or is selected, the angle
changes.
Select to return to the pre-
vious screen.
■DVD player and DVD video discs
This DVD player is compatible NTSC color TV formats. DVD video discs conform-
ing to other formats such as PAL or SECAM cannot be used.
■Region codes
Some DVD video discs have a region code indicating where you can use them. If
the DVD video disc is not labeled ALL or 1, you cannot use it in this DVD player. If
you attempt to play an inappropriate DVD video disc in this player, REGION
CODE ERROR appears on the screen. Even if the DVD video disc does not have a
region code, in some cases you cannot use it.

244
3-3. Using the rear audio system
RX400h_U
■Marks shown on DVD video discs
■DVD video disc glossary
●DVD video discs: Digital Versatile Discs that holds world’s standard video. DVD
video discs have adopted “MPEG2”, one of the world standards of digital com-
pression technologies. The picture data is compressed by 1 /40 on average and
stored. Variable rate encoded technology has been adopted in which the volume
of data assigned to the picture is changed depending on the picture format.
Audio data is stored using PCM and Dolby digital, which enables higher sound.
Furthermore, multi-angle and multi-language features will also help you enjoy the
more advanced technology of DVD video.
●Viewer restrictions: This feature limits what can be viewed in conformity with the
level of restrictions of the country. The level of restrictions varies depending on
the DVD video disc. Some DVD video discs cannot be played at all, or violent
scenes are skipped or replaced with other scenes.
• Level 1: DVD video discs for children can be played.
• Level 2 - 7: DVD video discs for children and G-rated movies can be played.
• Level 8: All types of DVD video discs can be played.
Indicates NTSC format of color TV.
Indicates the number of audio tracks.
Indicates the number of language subtitles.
Indicates the number of angles.

Indicates the screen to be selected.
Wide screen: 16:9
Standard: 4:3

Indicates regions in which this video disc can be
played.
ALL: all countries
Number: region code

245
3-3. Using the rear audio system
3
Interior features
RX400h_U
●Multi-angle feature: Allows you to enjoy the same scene at different angles.
●Multi-language feature: Allows you to select the language of the subtitles and
audio.
●Region codes: Region codes are provided on DVD players and DVD discs. If the
DVD video disc does not have the same region code as the DVD player, you can-
not play the disc on the DVD player.
●Audio: This DVD player can play liner PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot be played.
●Title and chapter: Video and audio programs stored on DVD video discs are
divided into sections by title and chapter.
●Title: The largest unit of the video and audio programs stored on DVD video discs.
Usually, one piece of a movie, one album, or one audio program is assigned as a
title.
●Chapter: A unit smaller than a title. A title comprises multiple chapters.
■Audio
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”,
and are trademarks of Dolby
 Laboratories. Confidential unpublished works.
1992-1997 Dolby Laboratories. All rights reserved.
“dts” is a trademark of Digital Theater Systems, Inc.

246
3-3. Using the rear audio system
RX400h_U
Using the DVD player (video CD)
■Remote control
Selecting a switch
Selecting a chapter
Playing/pausing a screen
Reversing a screen
Displaying operation
switches
Inputting the selected switch
Fast forwarding a screen
Stopping a screen
Changing the initial setting
■ Unit
Skipping to the desired chap-
ter
Playing/pausing a screen
Selecting a switch
Inputting the selected switch
