2008 LEXUS RX400H Owners Manual

31
1-1. Hybrid system
1
Before driving
RX400h_U
■If a warning light comes on or a warning message is displayed, or the 12-volt bat-
tery is disconnected
The hybrid system may not start. In that case, try to start the system again. If the
READY light does not come on, contact your Lexus dealer.
■Emergency shut off system
The emergency shut off system blocks off the high voltage current and stops the
fuel pump to minimize the risk of the electric leakage and the fuel leakage when a
certain level of impact is detected by the impact sensor. If the system activates, your
vehicle will not restart. To restart the hybrid system, contact a Lexus dealer.
CAUTION
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a system. DC and AC
high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables and
their connectors.
●The hybrid system will become hot after starting as the system uses high voltage.
Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.
●Never try to open the service plug access hole located in the luggage compart-
ment. The service plug is used only when the vehicle is serviced and is subject to
high voltage.

32
1-1. Hybrid system
RX400h_U
CAUTION
■Road accident cautions
Observe the following precautions to reduce the risk of injury.
●Pull your vehicle off the road, put the shift lever in P, apply the parking brake, turn
the hybrid system off and remove the key.
●Do not touch the high voltage parts, cables and connectors.
●If electric wires are exposed inside or outside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
●If a fluid leak occurs, do not touch it as it may be strong alkaline electrolyte from
the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or if possible, boric
acid solution. Seek immediate medical attention.
●If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never
use a fire extinguisher that is not meant for electric fires. Using even a small
amount of water may be dangerous.
●If your vehicle needs to be towed, do so with the front wheels (for 2WD models)
or four wheels (for AWD models) raised. If the wheels with the electric motor
(traction motor) are on the ground when towing, the motor may continue to gen-
erate electricity. This may cause an electricity leakage leading to a fire.(
→P. 3 7 8 )
■Nickel-metal hydride battery
Your vehicle contains a sealed nickel-metal hydride battery. If disposed of improp-
erly, it is hazardous to the environment and there is a risk of severe burns and elec-
trical shock that may result in death or serious injury.
■If the system activates
●Carefully check to see if there are exposed high voltage parts or cables. Never
touch the parts or cables. (
→P. 2 7 )
●Carefully inspect the ground under the vehicle. If you find that liquid has leaked
onto the ground, the fuel system may have been damaged. Leave the vehicle as
soon as possible.

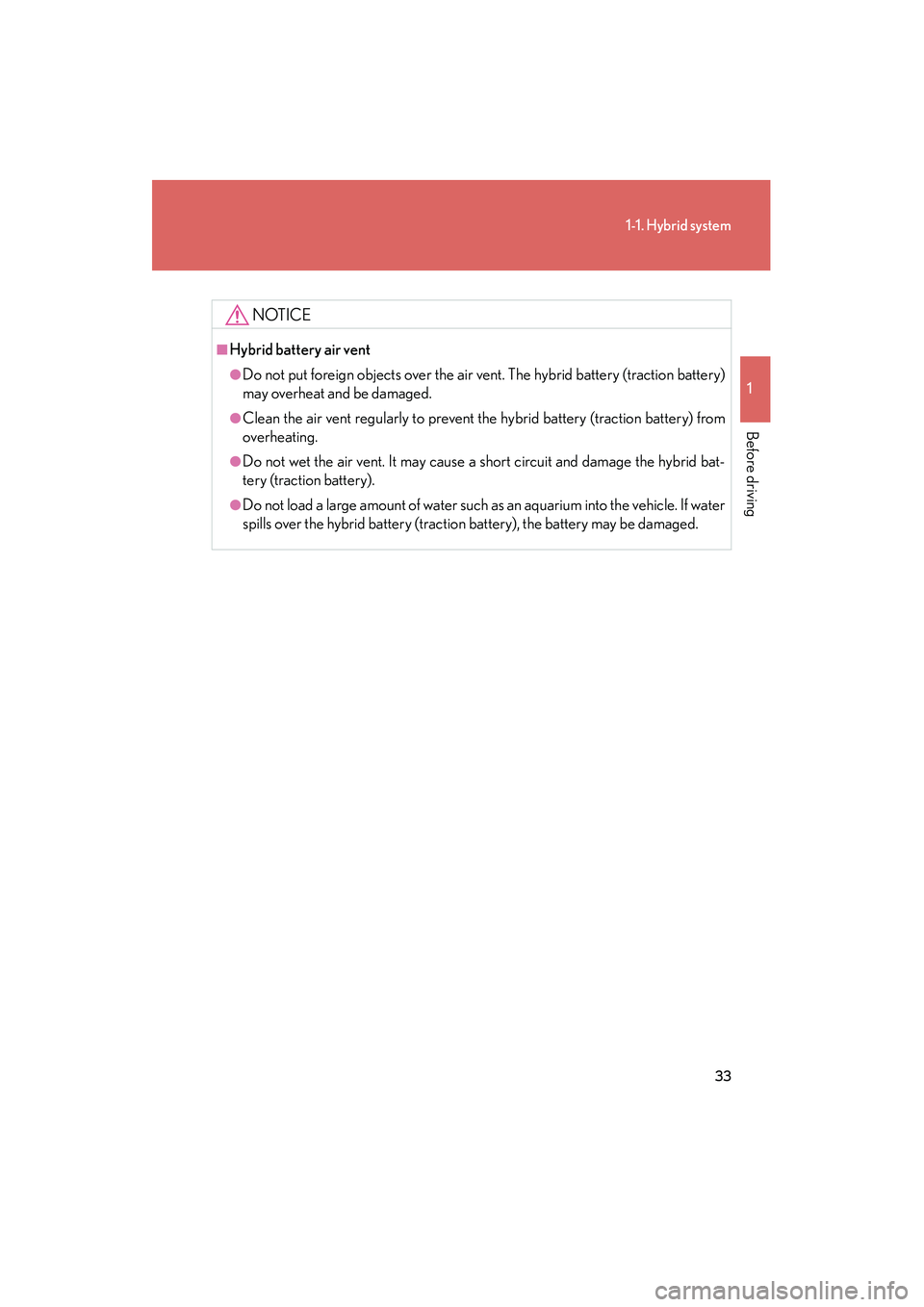

33
1-1. Hybrid system
1
Before driving
RX400h_U
NOTICE
■Hybrid battery air vent
●Do not put foreign objects over the air vent. The hybrid battery (traction battery)
may overheat and be damaged.
●Clean the air vent regularly to prevent the hybrid battery (traction battery) from
overheating.
●Do not wet the air vent. It may cause a short circuit and damage the hybrid bat-
tery (traction battery).
●Do not load a large amount of water such as an aquarium into the vehicle. If water
spills over the hybrid battery (traction battery), the battery may be damaged.

34
RX400h_U
1-2. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without power back door system
Vehicles with power back door system
Master keys
Va l e t k e y
Key number plate
Flat key

35
1-2. Key information
1
Before driving
RX400h_U
■When required to leave a key to the vehicle with a parking attendant
Lock the glove box as circumstances demand. (→ P. 2 6 5 )
Carry the master key for your own use and leave the valet key only with the atten-
dant.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a key is lost, a new key can be made at your Lexus dealer using the key number
plate. ( →P. 4 2 0 )
NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high temperatures by
placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any material that
blocks electromagnetic waves to the key surface.

36
RX400h_U
1-3. Opening, closing and locking the doors
Wireless remote control
The wireless remote control can be used to lock/unlock the vehicle and
open/close the back door from outside the vehicle.
Vehicles without power back doorLocks all doors
Unlocks all doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof
Push and hold.
Sounds alarm (→P. 8 5 )
Push and hold.
Vehicles with power back door
Locks all doors
Sounds alarm (→P. 8 5 )
Push and hold.
Unlocks all doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof
Push and hold.
Opens and closes the back
door
Push and hold.

37
1-3. Opening, closing and locking the doors
1
Before driving
RX400h_U
■Back door operation
The back door can be opened even if it is locked. Lock the back door again when
you leave the vehicle. The back door will not lock automatically after it has been
opened and then closed.
■Operation signals
Side doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Back door: A buzzer sounds twice and the emergency flashers flash twice to indi- cate that the back door has been opened/closed.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to stop the buzzer, and lock the vehicle once
more.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.
■Battery depletion
→ P. 3 4 8
■Customization that can be configured at Lexus dealer
Settings (e.g. door unlocking function) can be changed. (Customizable features
→P. 4 5 8 )
■Reversing the operation of the power back door
Pressing the wireless remote control switch again while the power back door is
operating will cause the operation to reverse. However, the reverse operation can-
not be performed for the first second after automatic operation starts, even if the
wireless remote control switch is pressed again.

38
1-3. Opening, closing and locking the doors
RX400h_U
■Certification for wireless remote controlFor vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
●Consult the dealer or an experienced radio-TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
