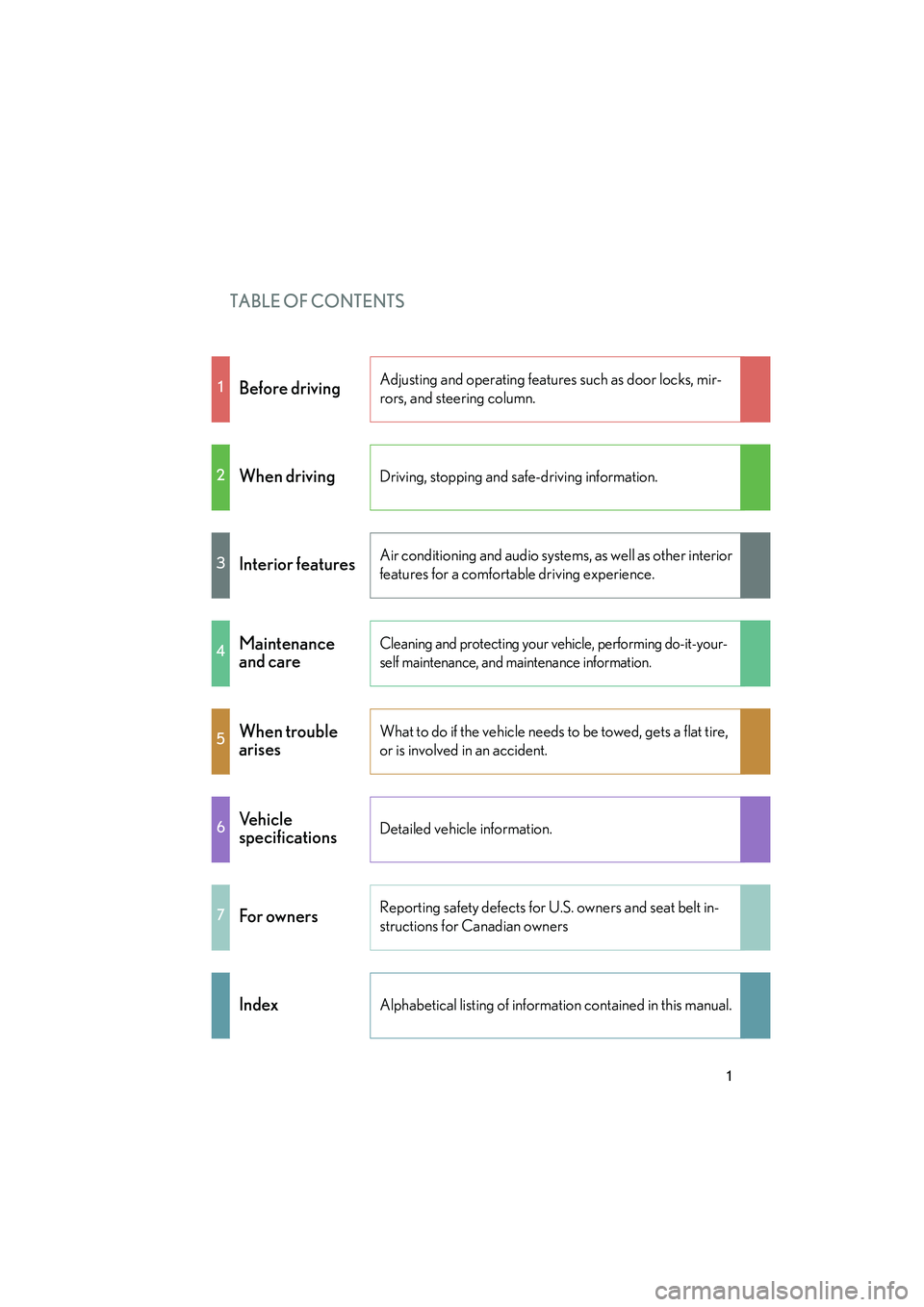

Page 3 of 487
TABLE OF CONTENTS
RX400h_U
1
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.
6Ve h i c l e
specificationsDetailed vehicle information.
7For ownersReporting safety defects for U.S. owners and seat belt in-
structions for Canadian owners
IndexAlphabetical listing of information contained in this manual.
Page 6 of 487

TABLE OF CONTENTSIndex
RX400h_U
4
Using the DVD player (MP3 discs) ................................. 249
Using the video mode ................. 251
Changing the initial setting ...... 253
3-4. Using the interior lights .......... 260 Interior lights list........................... 260
• Interior lights ............................... 263
• Personal lights ............................ 264
3-5. Using the storage features .... 265 List of storage features............... 265
• Glove box..................................... 265
• Console boxes ........................... 266
• Coin holder................................. 268
• Overhead console.................... 269
• Cup holders................................. 269
• Door pockets ............................... 271
3-6. Other interior features........... 272 Sun visors......................................... 272
Vanity mirror .................................. 273
Clock ................................................. 274
Outside temperature display ............................................ 275
Multi-display light control ......... 276
Power outlets ................................. 277
Seat heaters ................................... 280
Armrest ............................................ 282
Floor mat......................................... 283
Luggage compartment features......................................... 284
Garage door opener.................. 287
Compass.......................................... 292 4-1. Maintenance and care............ 298
Cleaning and protecting the vehicle exterior ......................... 298
Cleaning and protecting the vehicle interior............................. 301
4-2. Maintenance............................. 304 Maintenance requirements .... 304
General maintenance ............... 306
Emission inspection and maintenance (I/M)
programs ..................................... 309
4-3. Do-it-yourself maintenance ... 310 Do-it-yourself service precautions ................................... 310
Hood................................................... 313
Positioning a floor jack................ 314
Engine compartment................... 316
Tires .................................................... 331
Tire inflation pressure................ 340
Wheels.............................................. 344
Air conditioning filter.................. 346
Wireless remote control battery ........................................... 348
Rear seat entertainment system controller...................... 350
Checking and replacing fuses ................................................ 352
4Maintenance and care
Page 7 of 487

1
2
3
4
5
6
7
RX400h_U
5
Headlight aim (vehicles with discharge
headlights).................................... 364
Light bulbs ....................................... 365
5-1. Essential information .............. 378 If your vehicle needs to be towed.............................................. 378
If you think something is wrong ............................................ 385
Event data recorder................... 386
5-2. Steps to take in an emergency .............................. 388
If a warning light turns on or a warning buzzer
sounds... ....................................... 388
If a warning message is displayed...................................... 398
If you have a flat tire.................... 408
If the hybrid system will not start........................................... 418
If the shift lever cannot be shifted from P ............................... 419
If you lose your keys .................... 420
If the 12-volt battery is discharged .................................... 421
If your vehicle overheats ........... 424
If the vehicle becomes stuck ... 427 6-1. Specifications............................ 430
Maintenance data (fuel, oil level, etc.).................... 430
Fuel information............................ 442
Tire section names....................... 445
6-2. Customization .......................... 458 Customizable features ............. 458
6-3. Initialization ............................... 462 Items to initialize ........................... 462
Reporting safety defects for U.S. owners........................... 464
Seat belt instructions for Canadian owners
(in French) .................................... 465
Abbreviation list .................................. 470
Alphabetical index.............................. 472
What to do if... ...................................... 482
5When trouble arises
6Vehicle specifications
7For owners
Index
Page 9 of 487
7
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 331
P. 408
P. 439
P. 445
Tail lights P. 148
Side marker lights P. 148
Back door P. 44
Rear window defogger P. 204
Side doors P. 39
Fuel filler door P. 78
Turn signal lights P. 136
License plate lights P. 148
Rear window wiper P. 155
Roof luggage carrier ∗ P. 70
∗: If equipped

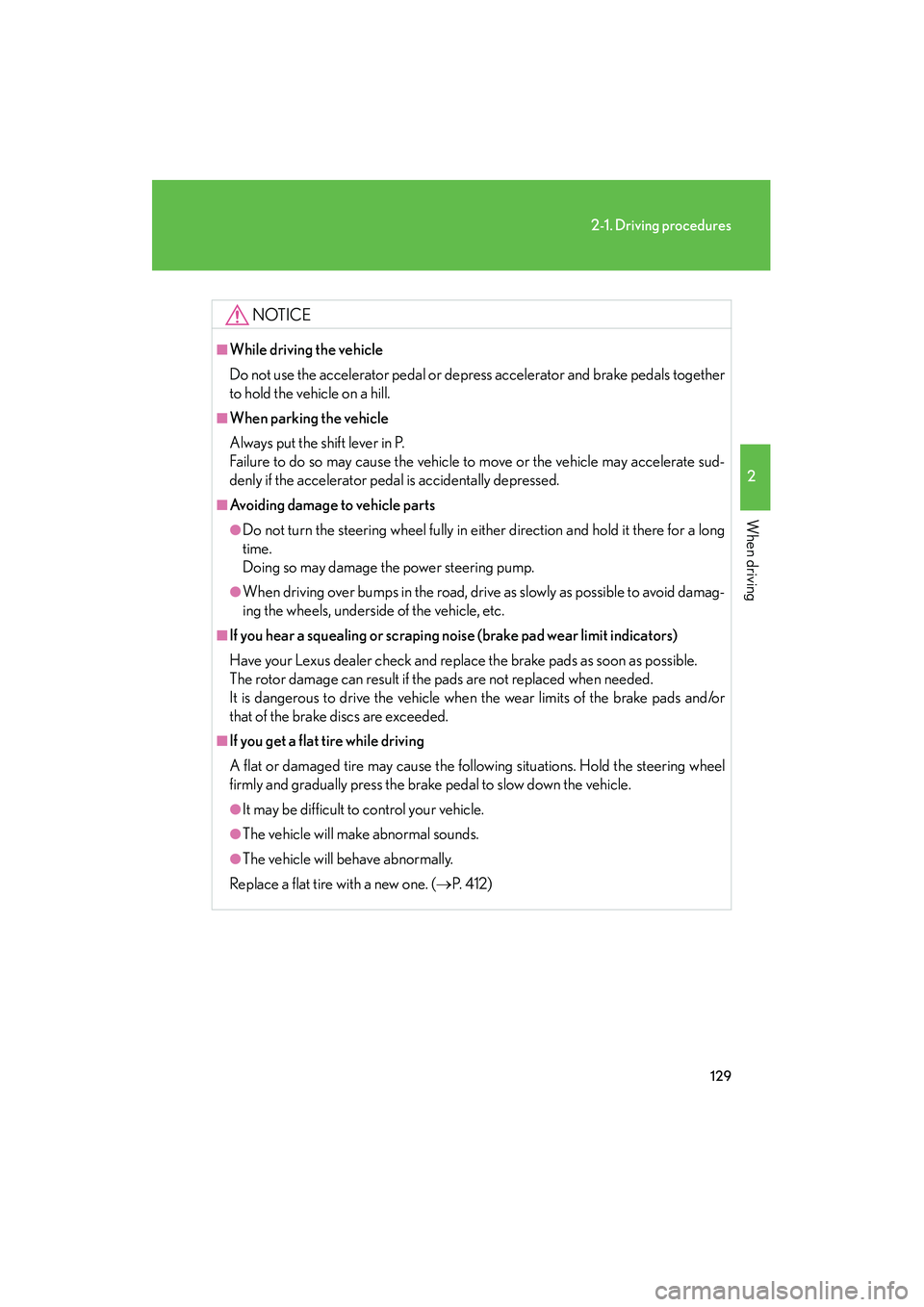

Page 131 of 487

129
2-1. Driving procedures
2
When driving
RX400h_U
NOTICE
■While driving the vehicle
Do not use the accelerator pedal or depress accelerator and brake pedals together
to hold the vehicle on a hill.
■When parking the vehicle
Always put the shift lever in P.
Failure to do so may cause the vehicle to move or the vehicle may accelerate sud-
denly if the accelerator pedal is accidentally depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for a long
time.
Doing so may damage the power steering pump.
●When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
that of the brake discs are exceeded.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 4 1 2 )
Page 174 of 487
172
2-4. Using other driving systems
RX400h_U
CAUTION
■When the slip indicator flashes and a warning buzzer sounds
This situation occurs immediately while VSC is activated. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the indica-
tor light flashes and a buzzer sounds.
■Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the tires are inflated to the recommended tire
pressure level.
The ABS and VSC systems will not function correctly if different tires are fitted on
the vehicle.
Contact your Lexus dealer for further information when replacing tires or wheels.
■Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect the
VDIM, and may cause the system to malfunction.
Page 184 of 487
182
2-5. Driving information
RX400h_U
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
• Have a service technician inspect the level and specific gravity
of battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
●Tire pressure falls in winter as the outside temperature falls. Add
2.9 to 4.3 psi (20 to 30 kPa, 0.2 to 0.3 kgf/cm2 or bar) to the
standard tire inflation pressure.
Page 192 of 487

190
2-5. Driving information
RX400h_U
Connecting trailer lightsWith tow hitch receiver
Use the socket located under the rear bumper.
Without tow hitch receiver
Use the wire harness stored in the rear end under body.
■Front Emblem
■Before towing
Check that the following conditions are met:
●The vehicle's tires are properly inflated. ( →P. 3 4 0 )
●Trailer tires are inflated according to the trailer manufacturer's recommendation.
●All trailer lights work
●All lights work each time you connect them.
●The trailer ball is set up at the proper height for the coupler on the trailer.
●The vehicle remains level when a loaded or unloaded trailer is hitched. Do not
drive if the vehicle is not level, and check for improper tongue load, overloading,
worn suspension, or other possible causes.
●The trailer cargo is securely loaded.
●The rear view mirrors conform to all applicable federal, state/provincial or local
regulations. If they do not, install rear view mirrors appropriate for towing pur-
poses.
With towing package
Without towing package
On vehicles with a towing package, the
front emblem has openings, which are
designed to improve the cooling perfor-
mance.
