2008 LEXUS RX400H remote control

TABLE OF CONTENTSIndex
RX400h_U
2
1-1. Hybrid system ............................... 24Hybrid system................................... 24
1-2. Key information ........................... 34 Keys ...................................................... 34
1-3. Opening, closing and locking the doors...................................... 36
Wireless remote control .............. 36
Side doors .......................................... 39
Back door ........................................... 44
1-4. Adjustable components (seats, mirrors,
steering wheel) .......................... 49
Front seats .......................................... 49
Rear seats ........................................... 52
Driving position memory ............. 55
Head restraints................................. 57
Seat belts ........................................... 58
Steering wheel (manually adjustable type) ....... 65
Steering wheel (power-adjustable type)............ 66
Anti-glare inside rear view mirror ................................................ 67
Outside rear view mirrors ........... 68
Roof luggage carrier ..................... 70 1-5. Opening and closing the
windows and moon roof .......... 72
Power windows................................ 72
Moon roof .......................................... 75
1-6. Refueling ........................................ 78 Opening the fuel tank cap........... 78
1-7. Theft deterrent system.............. 83 Hybrid vehicle immobilizer system ............................................... 83
Alarm................................................... 85
Theft prevention labels (U.S.A.) ............................................ 88
1-8. Safety information ...................... 89 Correct driving posture ............... 89
SRS airbags ........................................ 91
Front passenger occupant classification system .................. 103
Child restraint systems ............... 108
Installing child restraints ............... 112
2-1. Driving procedures................... 122 Driving the vehicle ........................ 122
Engine (ignition) switch ................ 131
Transmission ................................... 135
Turn signal lever............................. 136
Parking brake ................................. 137
1Before driving
2When driving

TABLE OF CONTENTSIndex
RX400h_U
4
Using the DVD player (MP3 discs) ................................. 249
Using the video mode ................. 251
Changing the initial setting ...... 253
3-4. Using the interior lights .......... 260 Interior lights list........................... 260
• Interior lights ............................... 263
• Personal lights ............................ 264
3-5. Using the storage features .... 265 List of storage features............... 265
• Glove box..................................... 265
• Console boxes ........................... 266
• Coin holder................................. 268
• Overhead console.................... 269
• Cup holders................................. 269
• Door pockets ............................... 271
3-6. Other interior features........... 272 Sun visors......................................... 272
Vanity mirror .................................. 273
Clock ................................................. 274
Outside temperature display ............................................ 275
Multi-display light control ......... 276
Power outlets ................................. 277
Seat heaters ................................... 280
Armrest ............................................ 282
Floor mat......................................... 283
Luggage compartment features......................................... 284
Garage door opener.................. 287
Compass.......................................... 292 4-1. Maintenance and care............ 298
Cleaning and protecting the vehicle exterior ......................... 298
Cleaning and protecting the vehicle interior............................. 301
4-2. Maintenance............................. 304 Maintenance requirements .... 304
General maintenance ............... 306
Emission inspection and maintenance (I/M)
programs ..................................... 309
4-3. Do-it-yourself maintenance ... 310 Do-it-yourself service precautions ................................... 310
Hood................................................... 313
Positioning a floor jack................ 314
Engine compartment................... 316
Tires .................................................... 331
Tire inflation pressure................ 340
Wheels.............................................. 344
Air conditioning filter.................. 346
Wireless remote control battery ........................................... 348
Rear seat entertainment system controller...................... 350
Checking and replacing fuses ................................................ 352
4Maintenance and care

14
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 148
P. 136
P. 151
Power back door main switch ∗ P. 45
Tilt steering lock release lever ∗ P. 65
Tilt and telescopic steering control switch ∗ P. 66
Parking brake pedal P. 137
Tire pressure warning reset switch P. 332
Hood release lever P. 313
Gauges and meters P. 138
Audio remote control switches P. 231
Glove box P. 265
Tire pressure warning select switch P. 335
Engine (ignition) switch P. 131

RX400h_U
19

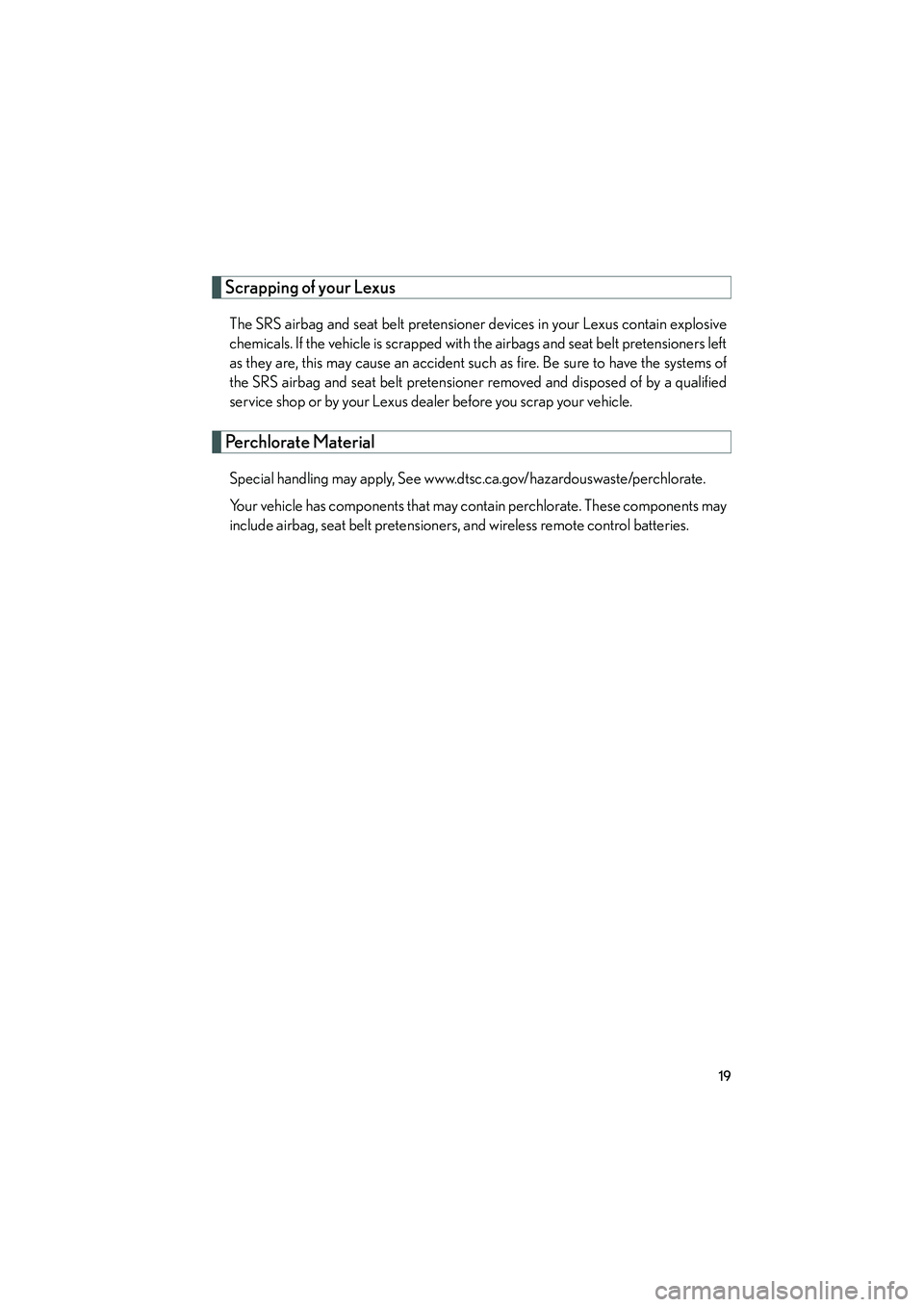

Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.

Before driving1
23
RX400h_U
1-1. Hybrid system .................. 24Hybrid system ............................ 24
1-2. Key information ............... 34 Keys ............................................... 34
1-3. Opening, closing and locking the doors ........... 36
Wireless remote control ......... 36
Side doors.................................... 39
Back door .................................... 44
1-4. Adjustable components (seats, mirrors,
steering wheel) .............. 49
Front seats ................................... 49
Rear seats .................................... 52
Driving position memory ........ 55
Head restraints .......................... 57
Seat belts .................................... 58
Steering wheel (manually adjustable type) ...................... 65
Steering wheel (power-adjustable type) ....... 66
Anti-glare inside rear view mirror ......................................... 67
Outside rear view mirrors ...... 68
Roof luggage carrier................ 70 1-5. Opening and closing the
windows and
moon roof ........................ 72
Power windows .......................... 72
Moon roof ................................... 75
1-6. Refueling .......................... 78 Opening the fuel tank cap ..... 78
1-7. Theft deterrent system ... 83 Hybrid vehicle immobilizer system ........................................ 83
Alarm............................................ 85
Theft prevention labels (U.S.A.)...................................... 88
1-8. Safety information........... 89 Correct driving posture ......... 89
SRS airbags ................................. 91
Front passenger occupant classification system............ 103
Child restraint systems ......... 108
Installing child restraints........ 112

36
RX400h_U

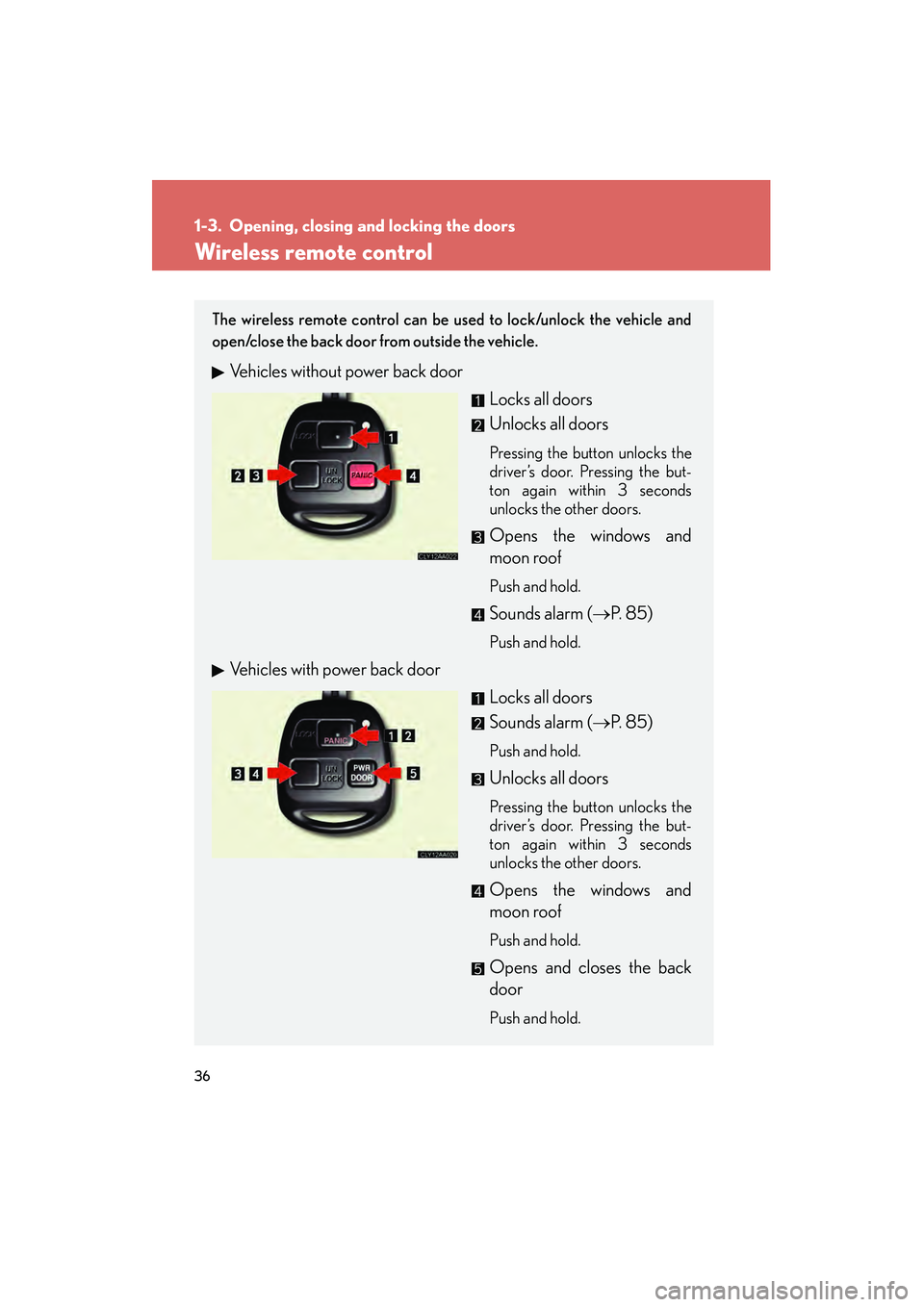

1-3. Opening, closing and locking the doors
Wireless remote control
The wireless remote control can be used to lock/unlock the vehicle and
open/close the back door from outside the vehicle.
Vehicles without power back doorLocks all doors
Unlocks all doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof
Push and hold.
Sounds alarm (→P. 8 5 )
Push and hold.
Vehicles with power back door
Locks all doors
Sounds alarm (→P. 8 5 )
Push and hold.
Unlocks all doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof
Push and hold.
Opens and closes the back
door
Push and hold.

37
1-3. Opening, closing and locking the doors
1
Before driving
RX400h_U
■Back door operation
The back door can be opened even if it is locked. Lock the back door again when
you leave the vehicle. The back door will not lock automatically after it has been
opened and then closed.
■Operation signals
Side doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Back door: A buzzer sounds twice and the emergency flashers flash twice to indi- cate that the back door has been opened/closed.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to stop the buzzer, and lock the vehicle once
more.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.
■Battery depletion
→ P. 3 4 8
■Customization that can be configured at Lexus dealer
Settings (e.g. door unlocking function) can be changed. (Customizable features
→P. 4 5 8 )
■Reversing the operation of the power back door
Pressing the wireless remote control switch again while the power back door is
operating will cause the operation to reverse. However, the reverse operation can-
not be performed for the first second after automatic operation starts, even if the
wireless remote control switch is pressed again.

38
1-3. Opening, closing and locking the doors
RX400h_U
■Certification for wireless remote controlFor vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
●Consult the dealer or an experienced radio-TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
