4-3. Do-it-yourself maintenance
RX400h_U
77RADIO NO.27. 5
Instrument cluster lights, instrument
panel lights, navigation system, audio
system
78MIR HTR10Outside rear view mirror defogger
79PWR30
Power window, multiplex communica-
tion system (power door lock system,
wireless remote control system), out-
side rear view mirror
80P/ S E AT30Po w e r s e a t s
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 3 6 5 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
FuseAmpereCircuit

458
RX400h_U

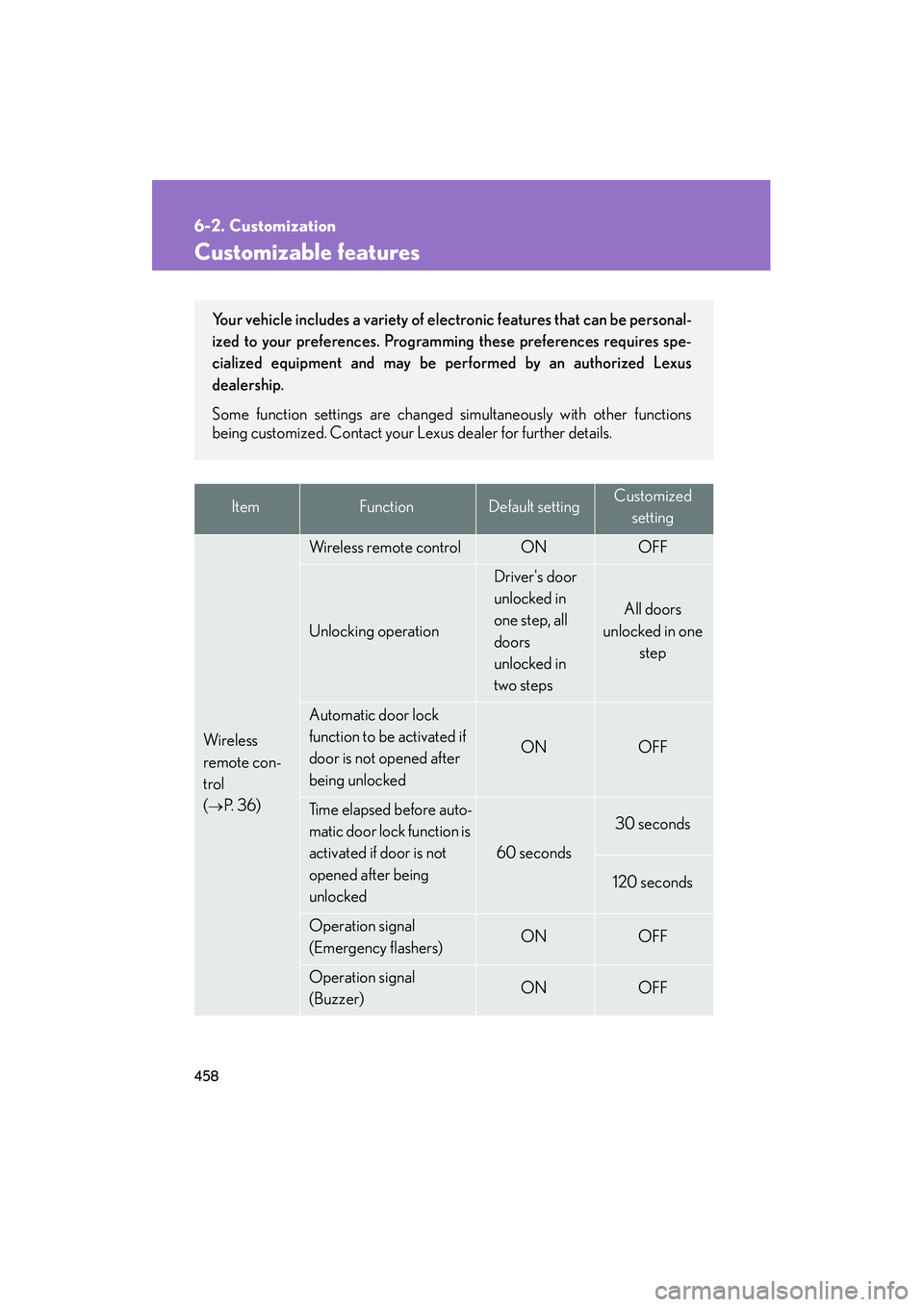

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Wi re le ss
remote con-
trol
(
→P. 36)
Wireless remote controlONOFF
Unlocking operation
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one step
Automatic door lock
function to be activated if
door is not opened after
being unlocked
ONOFF
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer) ONOFF
Your vehicle includes a variety of electr onic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

459

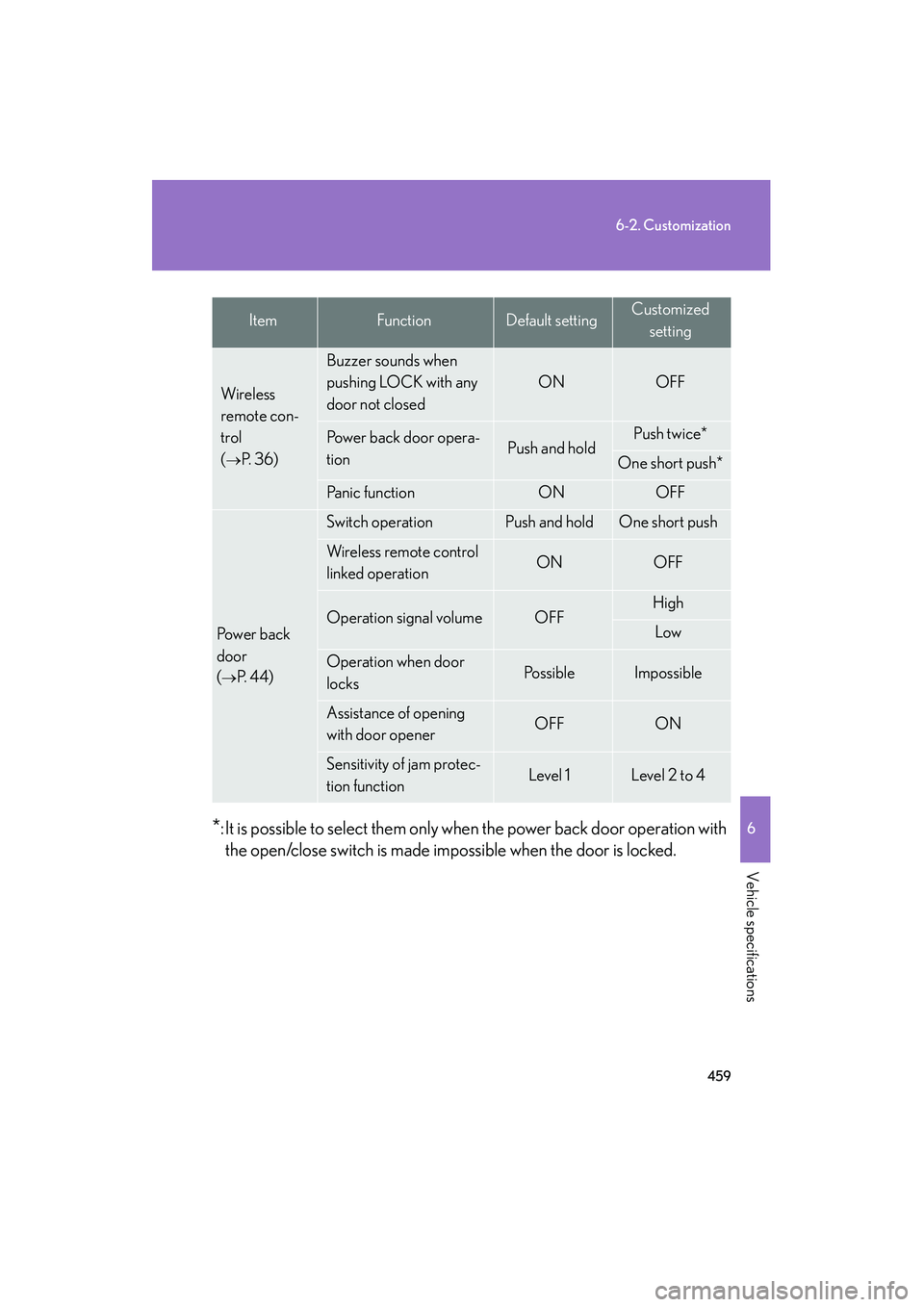

6-2. Customization
6
Vehicle specifications
RX400h_U
*: It is possible to select them only when the power back door operation withthe open/close switch is made impossible when the door is locked.
Wireless
remote con-
trol
(
→P. 36)
Buzzer sounds when
pushing LOCK with any
door not closed
ONOFF
Power back door opera-
tionPush and holdPush twice*
One short push*
Pa n i c f u n c t i o nONOFF
Pow e r b a c k
door
(
→P. 44)
Switch operationPush and holdOne short push
Wireless remote control
linked operationONOFF
Operation signal volumeOFFHigh
Low
Operation when door
locksPo s s i b l eImpossible
Assistance of opening
with door openerOFFON
Sensitivity of jam protec-
tion functionLevel 1Level 2 to 4
ItemFunctionDefault settingCustomized
setting

460
6-2. Customization
RX400h_U
ItemFunctionDefault settingCustomizedsetting
Door lock
(
→P. 3 9 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors
ONOFF
Pow e r
windows
(
→P. 7 2 )
Linked door lock/unlock
operationONOFF
Wireless remote control
linked operationON
(open only)OFF
Moon roof
(
→P. 7 5 )
Linked door lock/unlock
operationONOFF
Wireless remote control
linked operationON
(open only)OFF
Automatic
light control
system
(
→P. 1 4 8 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 second
60 seconds
90 seconds

472
RX400h_U
Alphabetical index
Alphabetical index
A/C ............................................................. 198
ABS.............................................................. 169
Adaptive front lighting system ......... 149
AFS .............................................................. 149
Air conditioning filter ..........................346
Air conditioning systemAir conditioning filter ....................... 346
Automatic air conditioning system ................................................... 198
Air bags
Air bag operating conditions ......... 93
Air bag precautions for your child.......................................................... 98
Air bag warning light .......................389
Curtain shield airbag operating conditions.............................................. 94
Curtain shield airbag precautions .......................................... 98
Front passenger occupant classification system....................... 103
General airbag precautions ........... 98
Locations of airbags.............................. 91
Modification and disposal of airbags ...................................................102
Proper driving posture .............89, 98
Side airbag operating conditions.............................................. 94
Side airbag precautions .................... 98
SRS airbags ............................................... 91
Alarm ............................................................85
Antenna ....................................................... 211
Anti-lock brake system ....................... 169
Armrest .....................................................282
Audio system
Antenna ......................................................211 Audio visual input................................ 251
A/V input adapter .............................. 251
CD player/changer ........................... 214
MP3/WMA disc............................... 220
Optimal use ......................................... 228
Radio ........................................................207
Steering wheel audio switch.......... 231
Audio visual input ...................................251
Automatic air conditioning system ..................................................... 198
Automatic headlight leveling system ..................................................... 150
Automatic light control system........ 148
A/V input adapter..................................251
Back door Back door ................................................. 44
Wireless remote control ...................36
Back-up lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Battery
Checking................................................327
If the 12-volt battery is discharged ......................................... 421
Preparing and checking
before winter...................................... 182
Brake
Fluid.......................................................... 325
Parking brake........................................ 137
Brake assist ...............................................169
Break-in tips..............................................123
Brightness control Multi-display light control .............. 276A
B

473
Alphabetical index
RX400h_U
CareExterior ................................................... 298
Interior.......................................................301
Seat belts ............................................... 302
Cargo capacity ....................................... 178
Cargo hooks .......................................... 284
CD changer CD .............................................................. 214
MP3 disc ............................................... 220
WMA disc ............................................ 220
CD player.................................................. 214
Chains......................................................... 184
Child restraint system Booster seats, definition.................. 108
Booster seats, installation ..................113
Convertible seats, definition ......... 108
Convertible seats, installation .........113
Front passenger occupant
classification system .......................103
Infant seats, definition ....................... 108
Infant seats, installation........................113
Installing CRS with lower
anchorages ...........................................116
Installing CRS with seat belts ..........113
Installing CRS with top straps ........ 118
Child safety
Air bag precautions ............................ 98
Battery precautions.............. 328, 423
Child restraint system ...................... 108
Child-protectors................................... 40
How your child should wear the seat belt ...........................................62
Installing child restraints ..................... 112
Moon roof precautions ...................... 77
Power window lock switch .............. 72
Power window precautions............. 74 Removed rear seat entertainment
system controller battery............. 351
Removed wireless remote control battery precautions .......................349
Seat belt comfort guide .....................59
Seat belt extender precautions...... 64
Seat belt precautions .......................... 62
Seat heater precautions................. 280
Child-protectors ...................................... 40
Cleaning Exterior................................................... 298
Interior ...................................................... 301
Seat belts ................................................302
Clock ......................................................... 274
Coin holder .............................................268
Compass .................................................. 292
Condenser .............................................. 325
Console box ........................................... 266
Cooling system Engine overheating........................... 424
Cruise control Cruise control........................................157
Dynamic laser cruise control ........ 160
Cup holder .............................................. 269
Curtain shield airbags............................. 91
Customizable features .......................458
Daytime running light system ........... 149
Defogger Rear window ........................................204
Side mirror.............................................204
Dimension................................................430
Dinghy towing ......................................... 196
Display
Dynamic laser cruise control ........ 160
Trip information ................................... 146C
D

474
Alphabetical index
RX400h_U
Do-it-yourself maintenance .............. 310
Door courtesy lightsDoor courtesy lights.........................260
Wattage.................................................... 441
Door lock Back door................................................. 44
Side door .................................................. 39
Wireless remote control................... 36
Door pockets............................................271
Doors Back door................................................. 44
Door glasses ............................................72
Door lock......................................... 36, 39
Power back door ................................. 44
Side door .................................................. 39
Side mirrors ............................................. 68
Driver's seat belt reminder light ...... 391
Driving Break-in tips ........................................... 123
Correct posture .................................... 89
Procedures ............................................. 122
Winter driving tips...............................182
Driving position memory ......................55
DVD player Audio CD/CD text .......................... 248
DVD video ........................................... 239
Initial setting .......................................... 253
MP3 discs ............................................. 249
Video CD.............................................. 246
Electric power steering ....................... 169
Emergency, in case of If the back door opener is in operative................................................ 46
If the hybrid system will not start ................................................ 418 If the shift lever cannot be
shifted from P..................................... 419
If the 12-volt battery is discharged ......................................... 421
If the warning buzzer sounds......388
If the warning light turns on..........388
If you have a flat tire ........................408
If you lose your keys ........................ 420
If you think something is wrong .................................................. 385
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ................................................... 378
If your vehicle overheats.................424
Energy monitor ......................................28
Engine
Compartment ....................................... 316
Engine switch .......................................... 131
Hood ......................................................... 313
How to start the hybrid system ...... 131
Identification number ........................ 431
If the hybrid system will not start .................................................418
Ignition switch ......................................... 131
Overheating .........................................424
Engine compartment cover ............... 317
Engine coolant Capacity ................................................ 435
Checking................................................323
Preparing and checking
before winter...................................... 182
Engine coolant temperature
gauge ...................................................... 138
Engine oil
Capacity .................................................434
Checking................................................. 318
E

476
Alphabetical index
RX400h_U
Hybrid systemEnergy monitor...................................... 28
High voltage cautions .........................27
High voltage components ................27
Operating condition ........................... 28
Road accident cautions......................32
Starting procedure................................131
Hybrid vehicle immobilizer
system........................................................83
I/M test ..................................................... 309
Identification Engine ....................................................... 431
Vehicle ...................................................... 431
Ignition Keys ............................................................. 34
Ignition switch............................................131
Illuminated entry system ..................... 261
Indicator lights......................................... 140
Initialization Items to initialize ................................. 462
Inside door handle lights ....................260
Inside rear view mirror .......................... 67
Interior lights
Interior lights.........................................260
Switch ...................................................... 263
Wattage.................................................... 441
Jack Positioning a floor jack...................... 314
Replacing the wheel........................ 408
Jack handle ............................................. 408 Keyless entry ............................................. 36
Keys
Engine switch .......................................... 131
Flat key............................................. 34, 133
If you lose your keys ........................ 420
Ignition switch ......................................... 131
Key number.............................................. 34
Keyless entry............................................36
Keys.............................................................. 34
Wireless remote control key...........36
Laser cruise control.............................. 160
Licence plate lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Light bulbs
Replacing .............................................. 365
Wattage ................................................... 441
Lights Door courtesy lights ........................ 260
Engine switch light............................ 260
Fog light switch ...................................... 151
Headlights switch................................ 148
Inside door handle lights ............... 260
Interior light switch ............................263
Luggage compartment light ...........46
Meter ring light ................................... 260
Overhead courtesy light ............... 260
Personal light switch .........................264
Replacing light bulbs ....................... 365
Scuff lighting......................................... 260
Turn signal lever................................... 136
Vanity lights........................................... 273
Wattage ................................................... 441
Load capacity............................................ 181
Lock steering column ...........................132
I
J
K
L
