Page 51 of 487
49
1
Before driving
RX400h_U
1-4. Adjustable components (seats, mirrors, steering wheel)

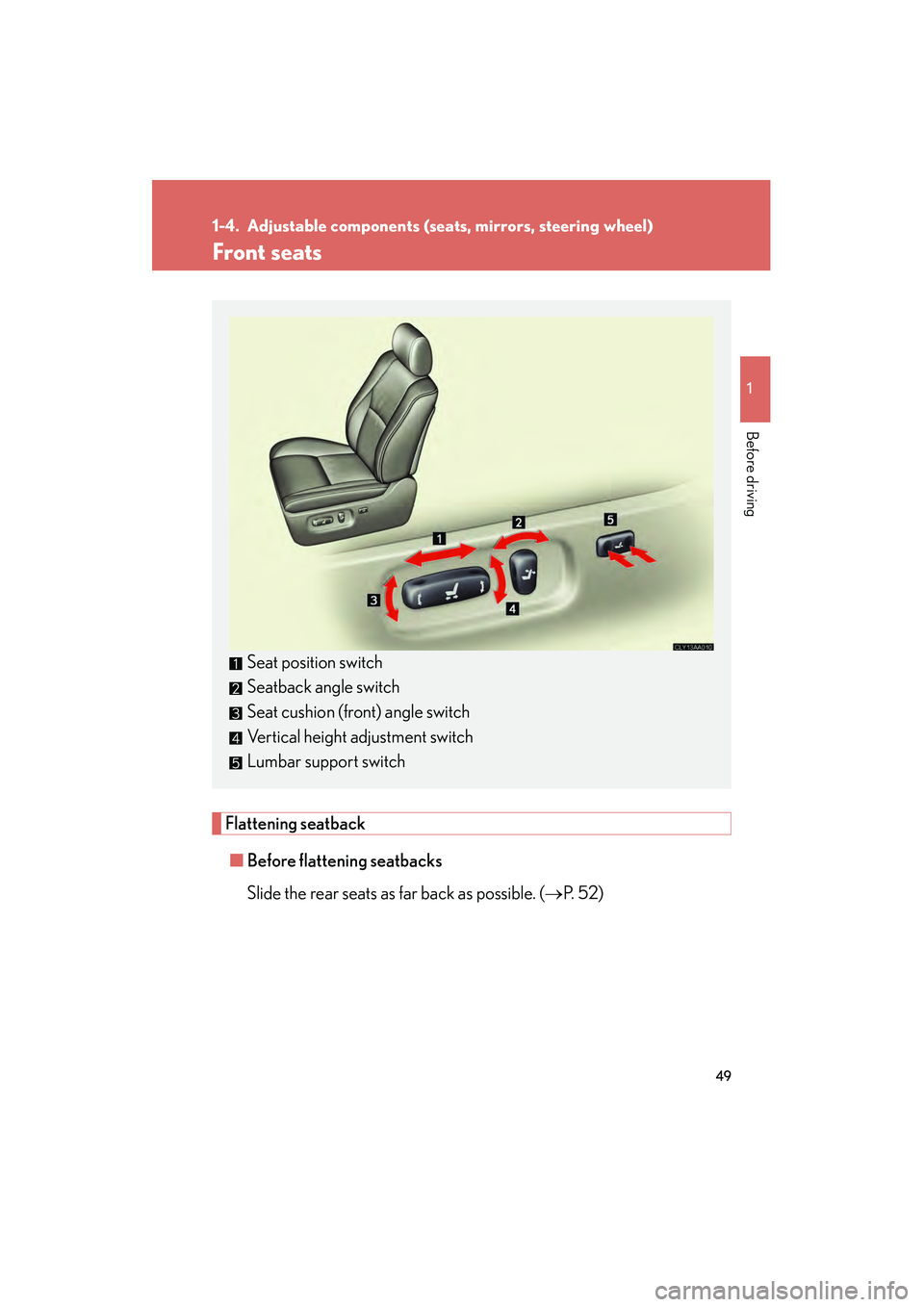

Front seats
Flattening seatback■ Before flattening seatbacks
Slide the rear seats as far back as possible. ( →P. 5 2 )
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch
Page 52 of 487
50
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U■

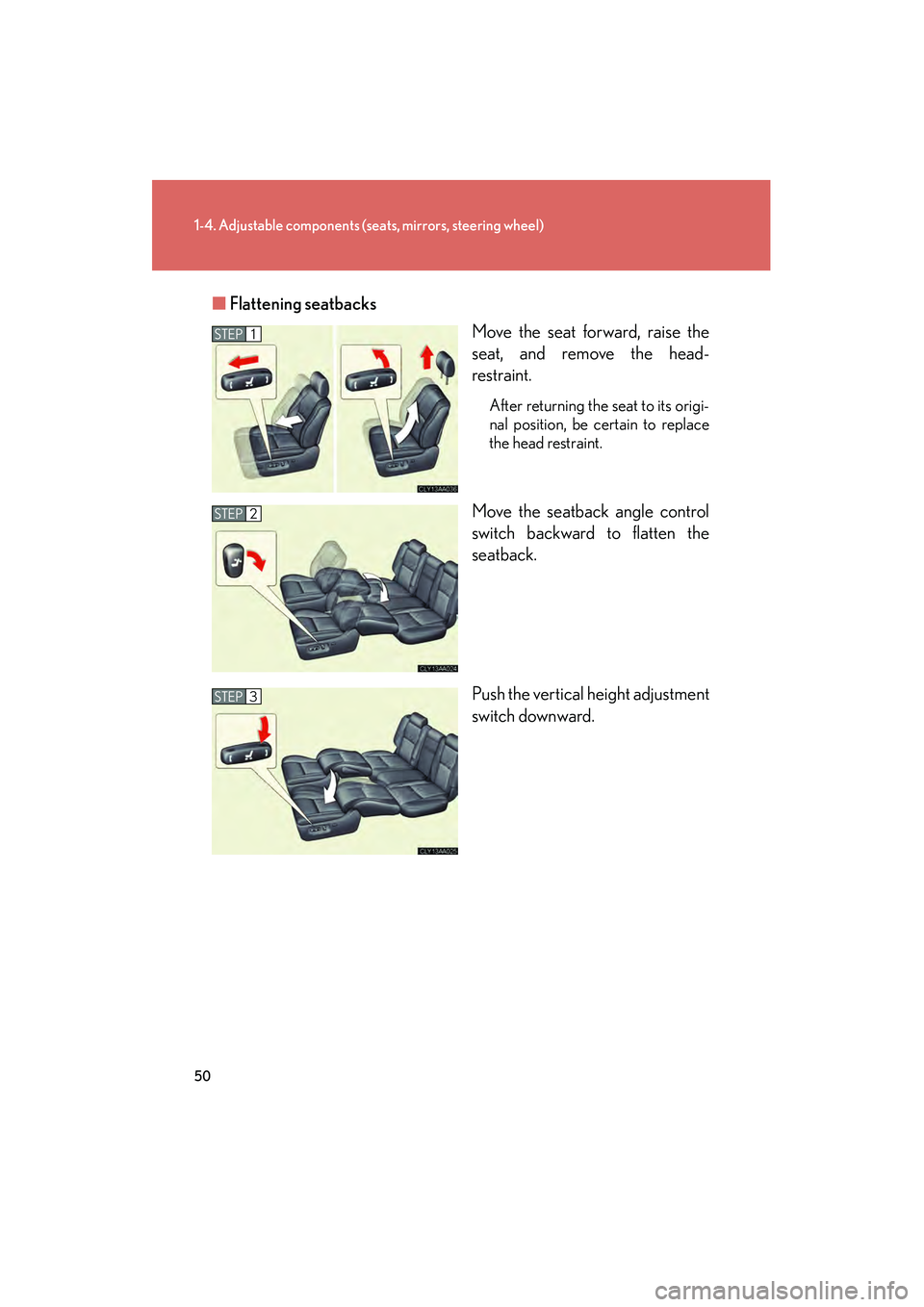

Flattening seatbacks
Move the seat forward, raise the
seat, and remove the head-
restraint.
After returning the seat to its origi-
nal position, be certain to replace
the head restraint.
Move the seatback angle control
switch backward to flatten the
seatback.
Push the vertical height adjustment
switch downward.
STEP1
STEP2
STEP3
Page 53 of 487
51
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U

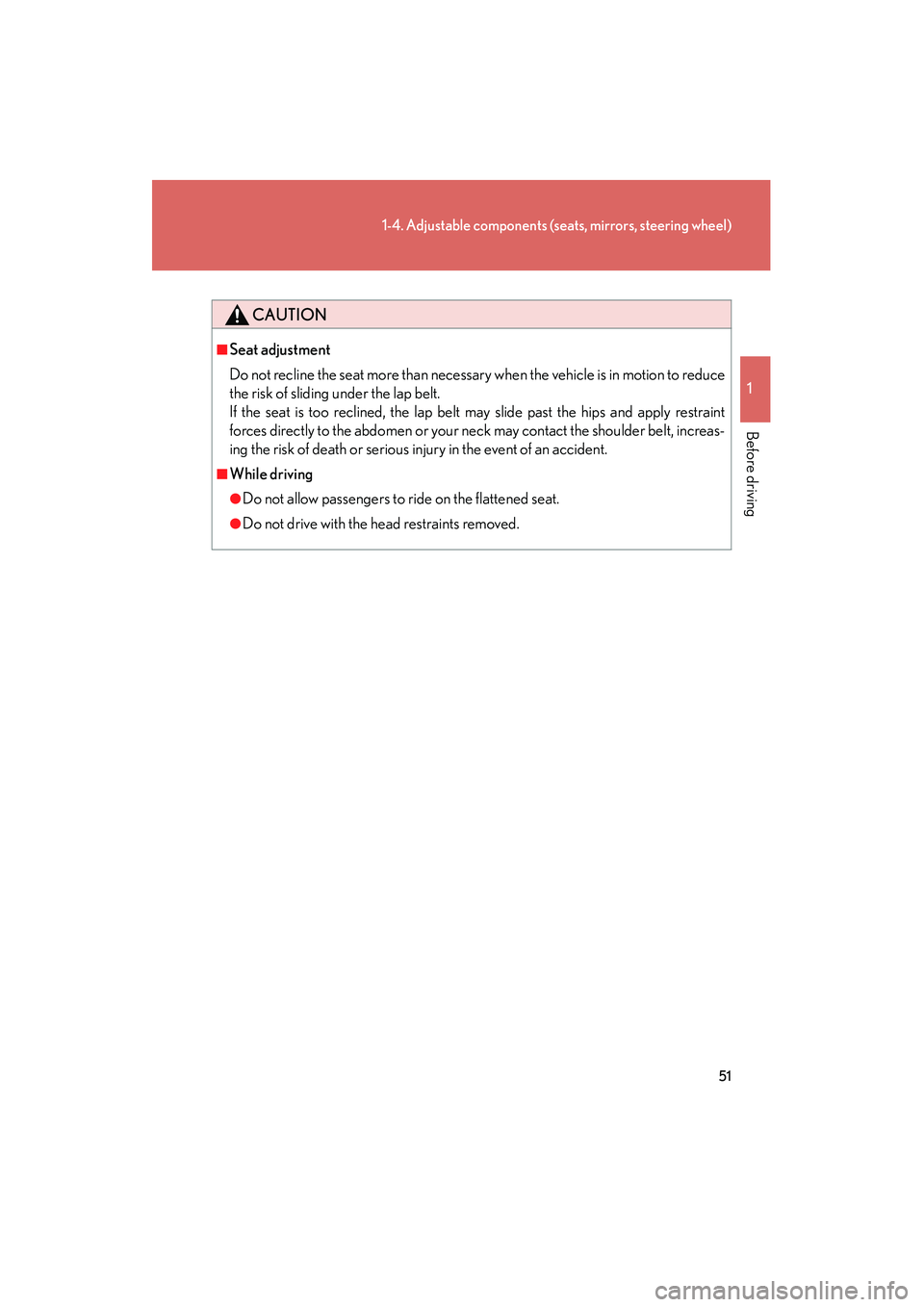

CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt, increas-
ing the risk of death or serious injury in the event of an accident.
■While driving
●Do not allow passengers to ride on the flattened seat.
●Do not drive with the head restraints removed.
Page 56 of 487

54
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
CAUTION
■Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion to
reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt
may slide past the hips and apply restraint forces directly to the abdomen or your
neck may contact the shoulder belt, increasing the risk of death or serious injury
in the event of an accident.
●Be careful not to get hands or feet pinched between the rear console box and the
rear seat when folding down the rear seatback.
■When returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Press forward and rearward on the top of the seatback.
●Check that the seat belts are not twisted or caught under the seat.
●Arrange the seat belts in the proper positions for ready use.
NOTICE
■Stowing the seatbelts
The seat belts and the buckles must be stowed before you fold down the rear
seatbacks.
Page 58 of 487
56
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
■Retained accessory power
Memorized positions (except for the steering wheel positions) can be activated up
to 30 seconds after the driver's door is opened, even if the key is removed from the
engine switch.
■If any position memory button is push ed while the adjustments are being mode
The operation will stop. To reactivate the system, push the desired button (1 or 2)
again.
■If the battery is disconnected
The memorized are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
Page 59 of 487
57
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Head restraints
■Adjusting the height of the head restraints
■Adjusting the rear center seat head restraints
Always raise the head restraint to the lock position when using.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●Do not drive with the head restraints removed.
Vertical adjustment
Push and hold the lock release
button when lowering the head
restraint.
Angle adjustment *
Removal
Pull the head restraint up while
pushing the lock release button.
*: Front seats only
Lock
release
button
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Page 70 of 487
68
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Outside rear view mirrors
■When the mirrors are fogged up
Turn on the outside rear view mirror defoggers to defog the mirrors. (→P. 2 0 4 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→ P. 5 5 )
Mirror angle can be adjusted using the switch when the engine switch is in
the ACC or ON position.
Pull down the cover
Select a mirror to adjust
(L: left or R: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.
Page 73 of 487

71
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
CAUTION
■Cross rail adjustment
Make sure the cross rails are locked securely by pushing forward and rearward
them.
Failure to do so may cause an unexpected accident or severe injury in the event of
emergency braking or a collision.
■When loading cargo
Observe the following precautions.
●Place the cargo so that its weight is distributed evenly between the front and rear
axles.
●If loading long or wide cargo, never exceed the vehicle overall length or width.
(→ P. 4 3 0 )
●Before driving, make sure the cargo is securely fastened on the roof luggage car-
rier.
●Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correctly.
●If driving for a long distance, on rough roads, or at high speeds, stop the vehicle
now and then during the trip to make sure the cargo remains in its place.
●Do not exceed 165 lb. (75 kg) cargo weight on the roof luggage carrier.
NOTICE
■When loading the luggage
Be careful not to scratch the surface of the moon roof.
