2008 LEXUS RX400H seat adjustment

90

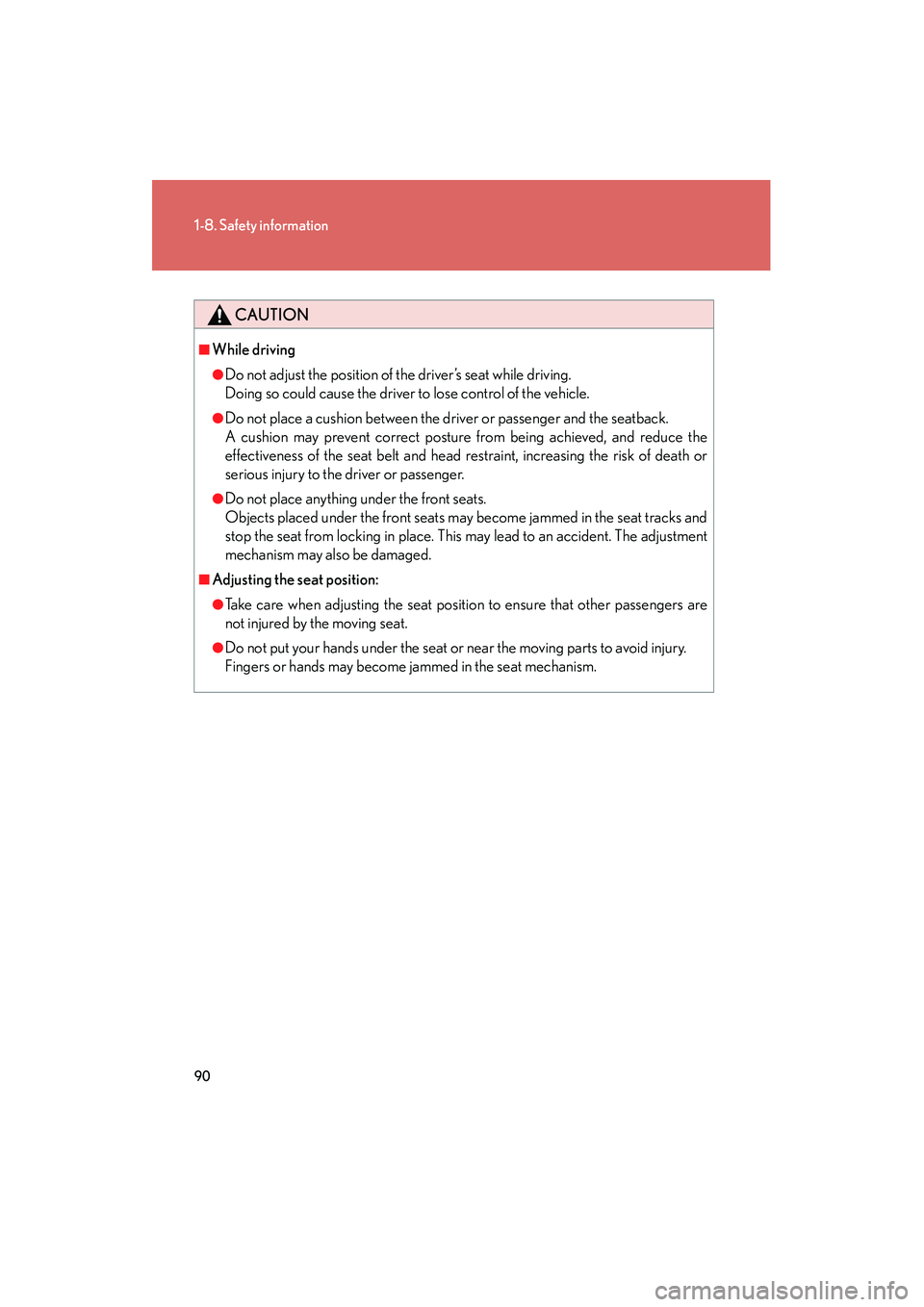

1-8. Safety information
RX400h_U
CAUTION
■While driving
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint, increasing the risk of death or
serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident. The adjustment
mechanism may also be damaged.
■Adjusting the seat position:
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.

267

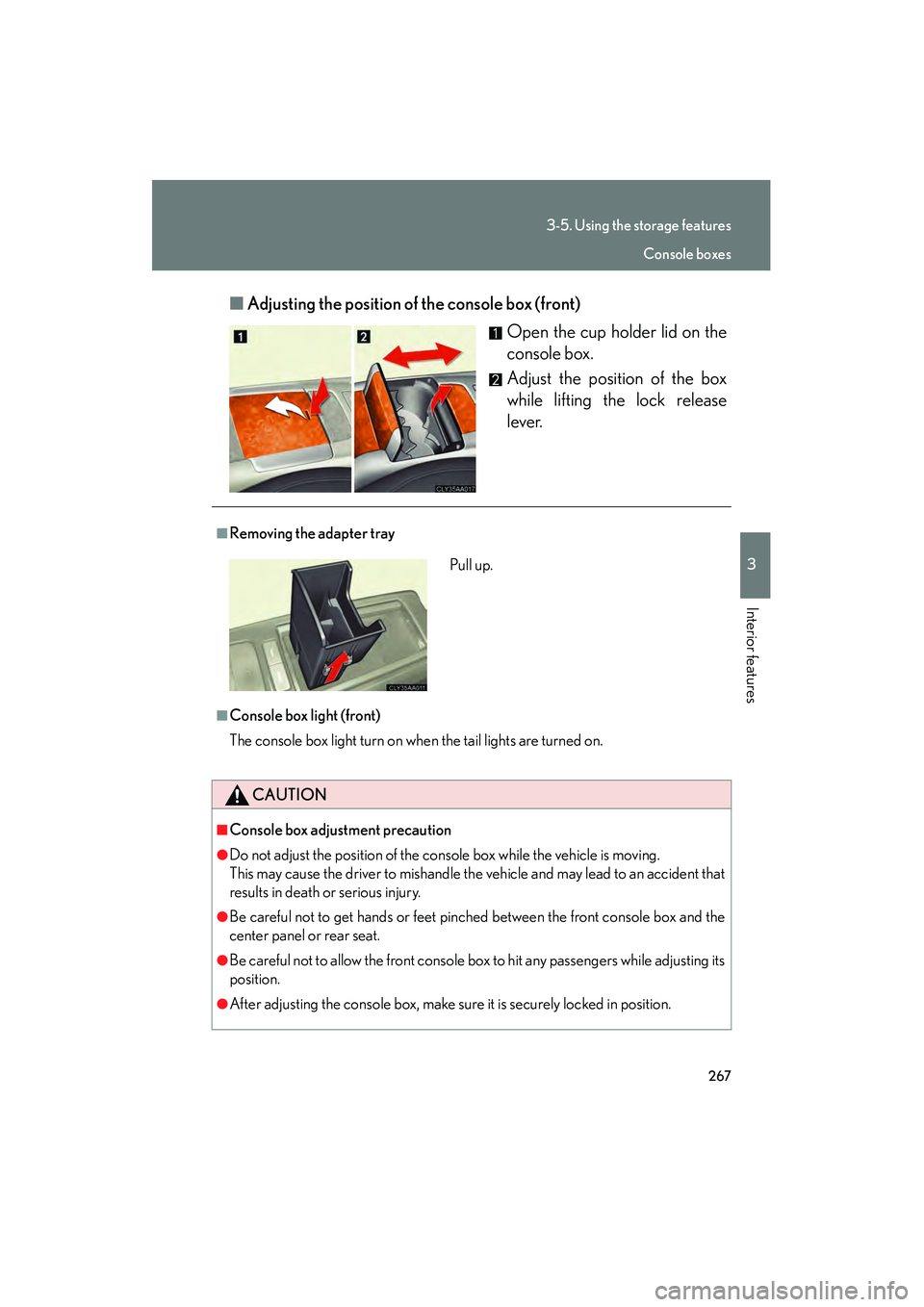

3-5. Using the storage features
3
Interior features
RX400h_U■
Adjusting the position of the console box (front)
Open the cup holder lid on the
console box.
Adjust the position of the box
while lifting the lock release
lever.
■Removing the adapter tray
■Console box light (front)
The console box light turn on when the tail lights are turned on.
CAUTION
■Console box adjustment precaution
●Do not adjust the position of the console box while the vehicle is moving.
This may cause the driver to mishandle the vehicle and may lead to an accident that
results in death or serious injury.
●Be careful not to get hands or feet pinched between the front console box and the
center panel or rear seat.
●Be careful not to allow the front console box to hit any passengers while adjusting its
position.
●After adjusting the console box, make sure it is securely locked in position.
Pull up.
Console boxes

364
4-3. Do-it-yourself maintenance
RX400h_U
Headlight aim (vehicles with discharge headlights)
■Vertical movement adjusting screw and bolt
Adjustment screw
Adjustment bolt
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Turn the screw in either direc-
tion using a Phillips-head screw-
driver.
Remember the turning direction
and the number of turns in mind.
Turn the bolt the same number
of turns and in the same direc-
tion as step 1 using a Phillips-
head screwdriver.
If the error is over the value
specified above, take the vehicle
to your Lexus dealer to adjust
the headlight aim.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2

475
Alphabetical index
RX400h_U
Preparing and checking before winter ...................................... 182
Engine oil maintenance data ............. 321
Engine switch............................................ 131
Engine switch light ............................... 260
EPS............................................................... 169
Event data recorder............................ 386
Floor mat.................................................. 283
Fluid Brake ....................................................... 325
Washer ................................................... 329
Fog lights Replacing light bulbs ....................... 365
Switch ..........................................................151
Wattage ................................................... 441
Foot well lighting .................................. 260
Front fog lights Replacing light bulbs ....................... 365
Switch ..........................................................151
Wattage ................................................... 441
Front passenger's seat belt
reminder light ....................................... 391
Front seats
Adjustment ...............................................49
Driving position memory ................. 55
Flattening seatbacks ........................... 50
Front side marker light
Replacing light bulbs ....................... 365
Wattage ................................................... 441
Front turn signal lights Replacing light bulbs ....................... 365
Wattage ................................................... 441 Fuel
Capacity .................................................433
Fuel gauge.............................................. 138
Gas station information ................. 484
Information ............................................ 442
Refueling.................................................... 78
Type .......................................................... 442
Fuel door ..................................................... 78
Fuel filler door ........................................... 78
Fuses ..........................................................352
Garage door opener .......................... 287
Gas station information......................484
Gauges ...................................................... 138
Glove box ................................................ 265
Glove box light ...................................... 266
Head restraints
Adjusting .................................................. 57
Headlight aim ......................................... 364
Headlight cleaner .................................. 156
Headlights
Discharge headlights precautions........................................375
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Heaters
Seat heaters ......................................... 280
Side mirror.............................................204
Hood ........................................................... 313
Hooks Cargo hook ..........................................284
Shopping bag hook..........................284
F
G
H

477
Alphabetical index
RX400h_U
Luggage compartment lightsSwitch ..........................................................46
Wattage ................................................... 441
Luggage cover ...................................... 284
Maintenance
Do-it-yourself maintenance ...........310
General maintenance .....................306
Maintenance data ............................. 430
Maintenance requirements .......... 304
Meter Instrument panel light control ....... 139
Meters .......................................................138
Meter ring light ..................................... 260
Mirrors Inside rear view mirror .......................67
Side mirror heater ............................. 204
Side mirrors............................................. 68
Vanity mirrors ......................................273
Moon roof ...................................................75
MP3 disc ................................................. 220
Multi-display
Brightness control..............................276
Multi-information display
Energy monitor ..................................... 28
Odometer .................................................138
Oil Engine oil .................................................318
Opener
Back door .................................................44
Fuel filler door ........................................ 78
Hood ......................................................... 313
Outside rear view mirrors
Adjusting and folding ......................... 68
Driving position memory ................. 55 Outside temperature display .......... 275
Overhead console ............................... 269
Overhead courtesy lights .................260
Overheating, Engine........................... 424
Parking brake ...........................................137
Parking lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Personal lights Personal lights .................................... 260
Switch.......................................................264
Wattage ....................................................441
Power meter ............................................ 138
Power outlet............................................ 277
Power windows ........................................ 72
Radiator .................................................... 325
Radio .......................................................... 207
RDS ........................................................... 208
Rear audio system ................................ 233
Rear seat entertainment system Audio CD/CD text ..........................248
DVD video ............................................239
Initial setting ..........................................253
MP3 discs.............................................. 249
Rear seat entertainment
system .................................................. 233
Replacing controller battery........ 350
Video ........................................................ 251
Video CD ..............................................246
Rear seats Adjustment ............................................... 52
Folding down .......................................... 52
M
O
P
R

478
Alphabetical index
RX400h_U
Rear side marker lightsWattage.................................................... 441
Rear turn signal lights Replacing light bulbs........................365
Wattage.................................................... 441
Rear window de fogger.......................204
Rear window wiper ............................... 155
Replacing Fuses ........................................................ 352
Light bulbs.............................................365
Rear seat entertainment system controller battery............................350
Tires ......................................................... 408
Wireless remote control battery ..................................................348
Reporting safety defects for
U.S.A. owners ..................................... 464
RSE
Replacing controller battery ........350
RSE ........................................................... 233
Road accident cautions......................... 32
Roof luggage carrier .............................. 70
Scuff lighting ...........................................260
Seat belts Adjusting the seat belt........................ 59
Automatic Locking Retractor .......... 61
Child restraint system
installation ..............................................112
Cleaning and maintaining
the seat belts ..................................... 302
Emergency Locking Retractor........ 61
How to wear your seat belt............. 58
How your child should wear
the seat belt .......................................... 62 Pregnant women,
proper seat belt use .......................... 61
Reminder light....................................... 391
Seat belt extenders...............................62
Seat belt pretensioners ..................... 60
Seat heaters ............................................280
Seating capacity....................................... 181
Seats
Adjustment ...................................... 49, 52
Adjustment precautions ............ 51, 54
Child seats/child restraint system installation .............................. 112
Cleaning .................................................. 301
Driver's seat position memory ...... 55
Flattening seatbacks ........................... 50
Head restraint .........................................57
Properly sitting in the seat................ 89
Seat heaters ......................................... 280
Service reminder indicators ............ 140
Shift lever Transmission.......................................... 135
If the shift lever cannot be shifted from P..................................... 419
Shopping bag hooks ........................... 284
Side airbags ................................................. 91
Side marker lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ................................................... 441
Side mirror
Adjusting and folding ......................... 68
Mirror position memory ................... 55
S
