3-6. Other interior features
3
Interior features
RX400h_U■
Programming a Rolling Code sy stem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmit ter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

291
3-6. Other interior features
3
Interior features
RX400h_U
■Before programming
●Install a new battery in the transmitter.
●The battery side of the transmitter must be pointed away from the HomeLink.
■Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC
Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
CAUTION
■When programming a garage door or other remote control device
The garage door may operate, so ensure people and objects are out of danger to
prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an obstruction object. A door or
device without these features increases the risk of death or serious injury.

Maintenance and care4
297
RX400h_U
4-1. Maintenance and care ............................... 298
Cleaning and protecting the vehicle exterior............ 298
Cleaning and protecting the vehicle interior ............... 301
4-2. Maintenance .................. 304 Maintenance requirements ....................... 304
General maintenance .......... 306
Emission inspection and maintenance (I/M)
programs............................... 309 4-3. Do-it-yourself
maintenance ................. 310
Do-it-yourself service precautions ............................ 310
Hood ........................................... 313
Positioning a floor jack .......... 314
Engine compartment ............ 316
Tires............................................. 331
Tire inflation pressure........... 340
Wheels ...................................... 344
Air conditioning filter ........... 346
Wireless remote control battery .................................... 348
Rear seat entertainment system controller ................ 350
Checking and replacing fuses ........................................ 352
Headlight aim (vehicles with discharge
headlights) ............................ 364
Light bulbs................................ 365

348
4-3. Do-it-yourself maintenance
RX400h_U

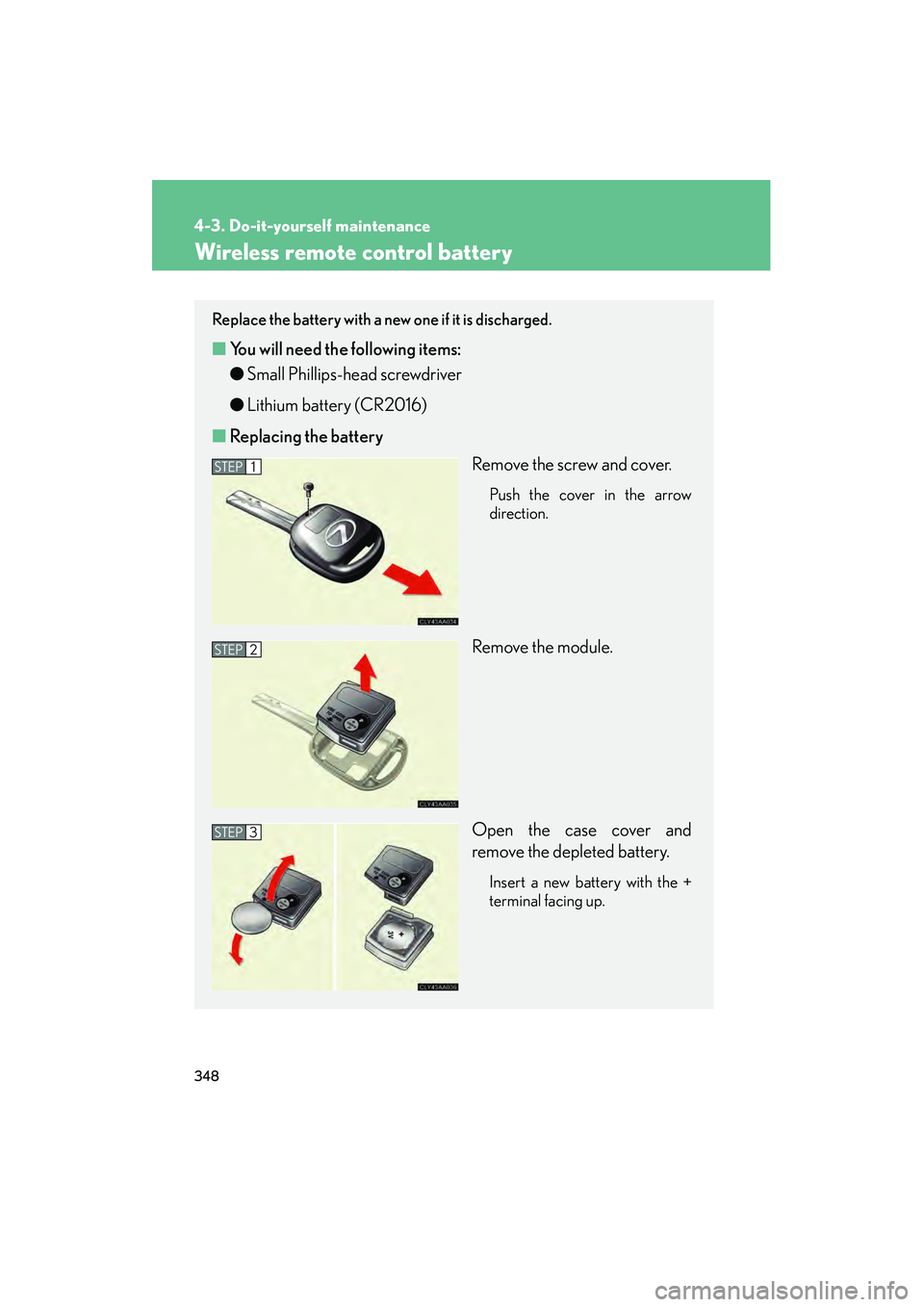

Wireless remote control battery
Replace the battery with a new one if it is discharged.
■You will need th e following items:
● Small Phillips-head screwdriver
● Lithium battery (CR2016)
■ Replacing the battery
Remove the screw and cover.
Push the cover in the arrow
direction.
Remove the module.
Open the case cover and
remove the depleted battery.
Insert a new battery with the +
terminal facing up.
STEP1
STEP2
STEP3

349
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U

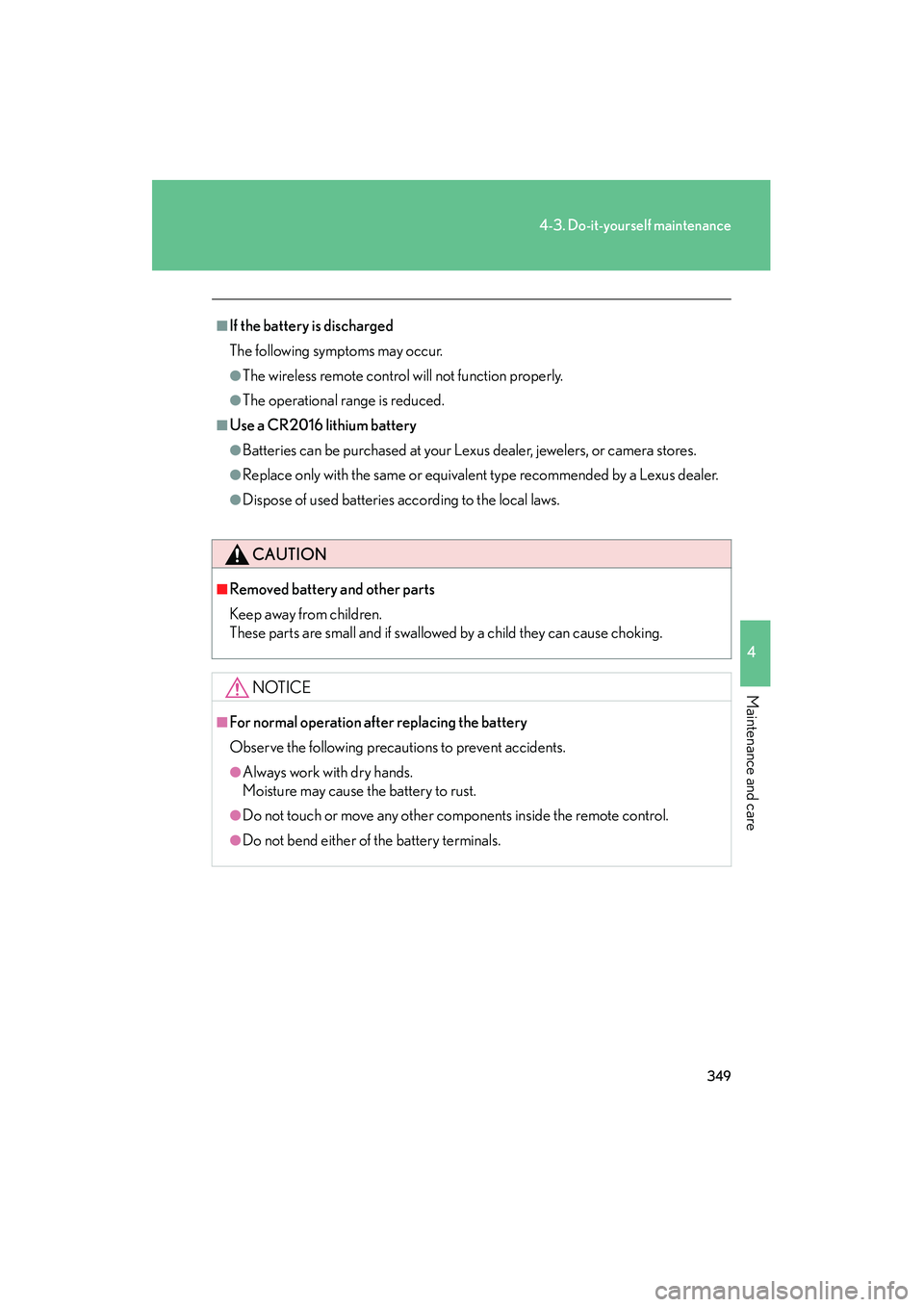

■If the battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
●The operational range is reduced.
■Use a CR2016 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

351
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U

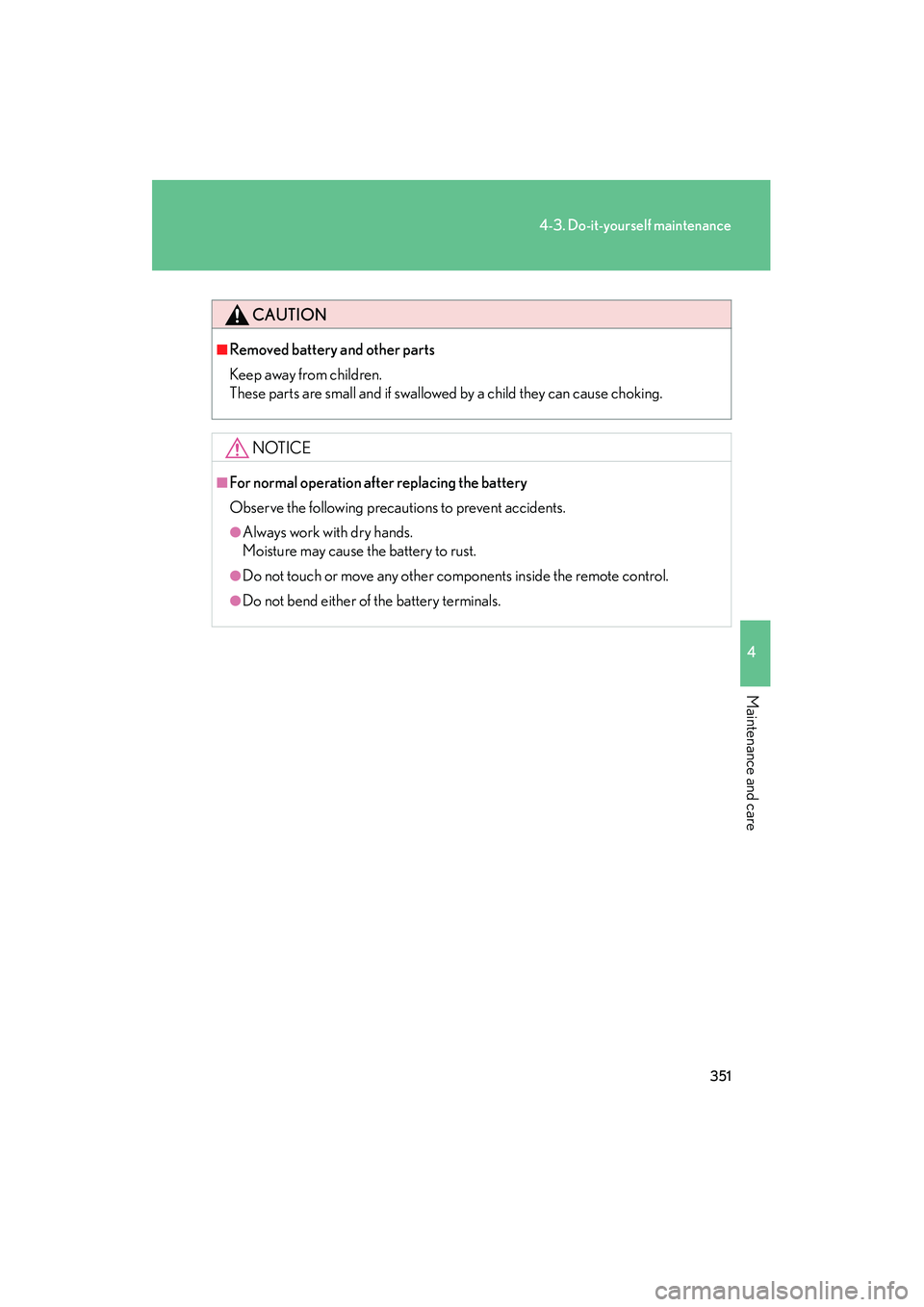

CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

357
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
24RDI FAN NO.240Electric cooling fan
25HAZ15Turn signal lights, emergency flashers
26MPX-B17. 5Electric power steering system
27AM2 NO.130“GAUGE NO.2”, “IGN”, “INJ” and
“ST” fuses
28HORN10Horns
29MAIN40
“H-LP L LWR”, “H-LP L UPR”, “H-LP
R LWR”, “H-LP R UPR” and “DRL”
fuses
30IGCT NO.150
“INV W/P”, “IGCT NO.2”, “IGCT
NO.3”, “IGCT NO.4” and “IGCT
NO.5” fuses
31RADIO NO.115Audio system
32ECU-B NO.17. 5
Theft deterrent system, air condition-
ing system, gauges and meters, moon
roof, multiplex communication system
33DOME7. 5
Personal lights, interior lights, vanity
lights, engine switch light, gauges and
meters, navigation system
34ECU-B NO.27. 5Wireless remote control
35AMP30Audio system
36DOOR NO.1 25Power door lock system
37A/F25Air/fuel control system
38CRT7. 5Navigation system screen, rear seat
entertainment system
39H-LP R LWR15Right-hand headlight (low beam)
40INV W/P15Hybrid system
FuseAmpereCircuit

360
4-3. Do-it-yourself maintenance
RX400h_U
57RR FOG 7. 5No circuit
58AIR SUS7. 5No circuit
59DOOR NO.225Multiplex communication system
60S/ROOF 30Moon roof
61TA I L10
Front fog lights, instrument cluster
lights, instrument panel lights, front
side marker lights, tail lights, license
plate lights, towing converter
62PA N E L7. 5
Glove box light, instrument cluster
lights, instrument panel lights, console
box light, audio system, power outlet,
garage door opener switch, transmis-
sion system, headlight cleaner, seat
heaters, steering switches, power
back door
63ECU-IG NO.17. 5
Power rear view mirror control, moon
roof, multiplex communication system,
shift lock control system, multiplex
communication system (power door
lock system, wireless remote control
system), driving position memory sys-
tem, vehicle dynamics integrated
management, windshield wipers,
transmission, seat heaters, power
seats, tilt and telescopic steering,
power back door
64ECU-IG NO.210
Automatic headlight leveling system,
vehicle dynamics integrated manage-
ment, dynamic laser cruise control,
headlight cleaner, adaptive front-light-
ing system
FuseAmpereCircuit
