2008 LEXUS RX400H remote start

37
1-3. Opening, closing and locking the doors
1
Before driving
RX400h_U
■Back door operation
The back door can be opened even if it is locked. Lock the back door again when
you leave the vehicle. The back door will not lock automatically after it has been
opened and then closed.
■Operation signals
Side doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Back door: A buzzer sounds twice and the emergency flashers flash twice to indi- cate that the back door has been opened/closed.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to stop the buzzer, and lock the vehicle once
more.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.
■Battery depletion
→ P. 3 4 8
■Customization that can be configured at Lexus dealer
Settings (e.g. door unlocking function) can be changed. (Customizable features
→P. 4 5 8 )
■Reversing the operation of the power back door
Pressing the wireless remote control switch again while the power back door is
operating will cause the operation to reverse. However, the reverse operation can-
not be performed for the first second after automatic operation starts, even if the
wireless remote control switch is pressed again.

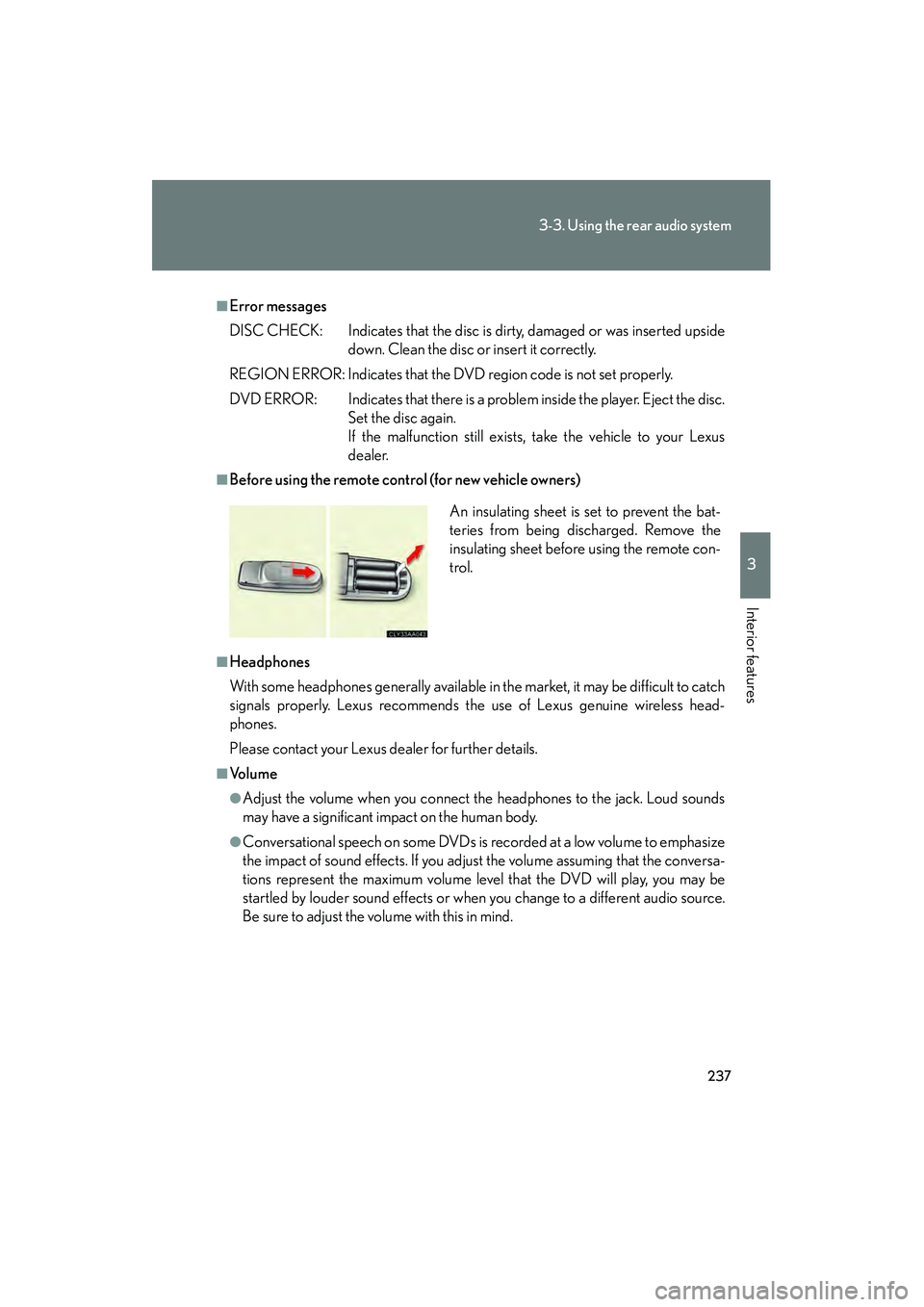

237
3-3. Using the rear audio system
3
Interior features
RX400h_U
■Error messages
DISC CHECK: Indicates that the disc is dirty, damaged or was inserted upsidedown. Clean the disc or insert it correctly.
REGION ERROR: Indicates that the DVD region code is not set properly.
DVD ERROR: Indicates that there is a problem inside the player. Eject the disc. Set the disc again.
If the malfunction still exists, take the vehicle to your Lexus
dealer.
■Before using the remote control (for new vehicle owners)
■Headphones
With some headphones generally available in the market, it may be difficult to catch
signals properly. Lexus recommends the use of Lexus genuine wireless head-
phones.
Please contact your Lexus dealer for further details.
■Vo l u m e
●Adjust the volume when you connect the headphones to the jack. Loud sounds
may have a significant impact on the human body.
●Conversational speech on some DVDs is recorded at a low volume to emphasize
the impact of sound effects. If you adjust the volume assuming that the conversa-
tions represent the maximum volume level that the DVD will play, you may be
startled by louder sound effects or when you change to a different audio source.
Be sure to adjust the volume with this in mind. An insulating sheet is set to prevent the bat-
teries from being discharged. Remove the
insulating sheet before using the remote con-
trol.

289
3-6. Other interior features
3
Interior features
RX400h_U■
Programming a Rolling Code sy stem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmit ter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

474
Alphabetical index
RX400h_U
Do-it-yourself maintenance .............. 310
Door courtesy lightsDoor courtesy lights.........................260
Wattage.................................................... 441
Door lock Back door................................................. 44
Side door .................................................. 39
Wireless remote control................... 36
Door pockets............................................271
Doors Back door................................................. 44
Door glasses ............................................72
Door lock......................................... 36, 39
Power back door ................................. 44
Side door .................................................. 39
Side mirrors ............................................. 68
Driver's seat belt reminder light ...... 391
Driving Break-in tips ........................................... 123
Correct posture .................................... 89
Procedures ............................................. 122
Winter driving tips...............................182
Driving position memory ......................55
DVD player Audio CD/CD text .......................... 248
DVD video ........................................... 239
Initial setting .......................................... 253
MP3 discs ............................................. 249
Video CD.............................................. 246
Electric power steering ....................... 169
Emergency, in case of If the back door opener is in operative................................................ 46
If the hybrid system will not start ................................................ 418 If the shift lever cannot be
shifted from P..................................... 419
If the 12-volt battery is discharged ......................................... 421
If the warning buzzer sounds......388
If the warning light turns on..........388
If you have a flat tire ........................408
If you lose your keys ........................ 420
If you think something is wrong .................................................. 385
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ................................................... 378
If your vehicle overheats.................424
Energy monitor ......................................28
Engine
Compartment ....................................... 316
Engine switch .......................................... 131
Hood ......................................................... 313
How to start the hybrid system ...... 131
Identification number ........................ 431
If the hybrid system will not start .................................................418
Ignition switch ......................................... 131
Overheating .........................................424
Engine compartment cover ............... 317
Engine coolant Capacity ................................................ 435
Checking................................................323
Preparing and checking
before winter...................................... 182
Engine coolant temperature
gauge ...................................................... 138
Engine oil
Capacity .................................................434
Checking................................................. 318
E

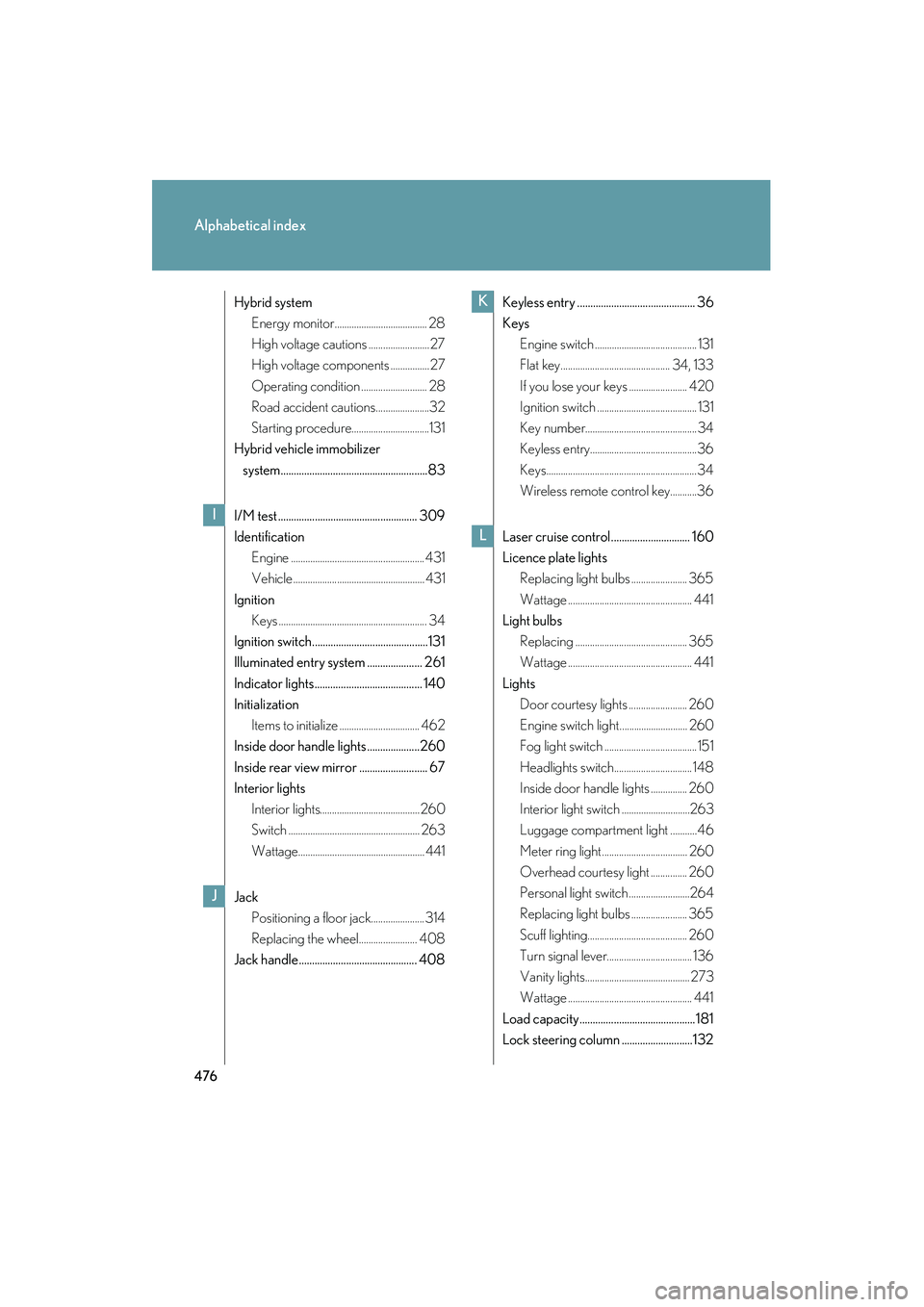

476
Alphabetical index
RX400h_U
Hybrid systemEnergy monitor...................................... 28
High voltage cautions .........................27
High voltage components ................27
Operating condition ........................... 28
Road accident cautions......................32
Starting procedure................................131
Hybrid vehicle immobilizer
system........................................................83
I/M test ..................................................... 309
Identification Engine ....................................................... 431
Vehicle ...................................................... 431
Ignition Keys ............................................................. 34
Ignition switch............................................131
Illuminated entry system ..................... 261
Indicator lights......................................... 140
Initialization Items to initialize ................................. 462
Inside door handle lights ....................260
Inside rear view mirror .......................... 67
Interior lights
Interior lights.........................................260
Switch ...................................................... 263
Wattage.................................................... 441
Jack Positioning a floor jack...................... 314
Replacing the wheel........................ 408
Jack handle ............................................. 408 Keyless entry ............................................. 36
Keys
Engine switch .......................................... 131
Flat key............................................. 34, 133
If you lose your keys ........................ 420
Ignition switch ......................................... 131
Key number.............................................. 34
Keyless entry............................................36
Keys.............................................................. 34
Wireless remote control key...........36
Laser cruise control.............................. 160
Licence plate lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Light bulbs
Replacing .............................................. 365
Wattage ................................................... 441
Lights Door courtesy lights ........................ 260
Engine switch light............................ 260
Fog light switch ...................................... 151
Headlights switch................................ 148
Inside door handle lights ............... 260
Interior light switch ............................263
Luggage compartment light ...........46
Meter ring light ................................... 260
Overhead courtesy light ............... 260
Personal light switch .........................264
Replacing light bulbs ....................... 365
Scuff lighting......................................... 260
Turn signal lever................................... 136
Vanity lights........................................... 273
Wattage ................................................... 441
Load capacity............................................ 181
Lock steering column ...........................132
I
J
K
L
