2008 LEXUS RX400H remote control

39
1
1-3. Opening, closing and locking the doors
Before driving
RX400h_U
Side doors
The vehicle can be locked and unlocked using a key, wireless remote con-
trol or door lock switch.
■Key
Locks all doors
Closes the windows and
moon roof (turn and hold)
Unlocks all doors
Turning the key unlocks the
driver’s door. Turning the key
again unlocks the other doors.
Opens the windows and
moon roof (turn and hold)
■ Wireless remote control
→ P. 36
■ Door lock switch
Locks all doors
Unlocks all doors

44
1-3. Opening, closing and locking the doors
RX400h_U

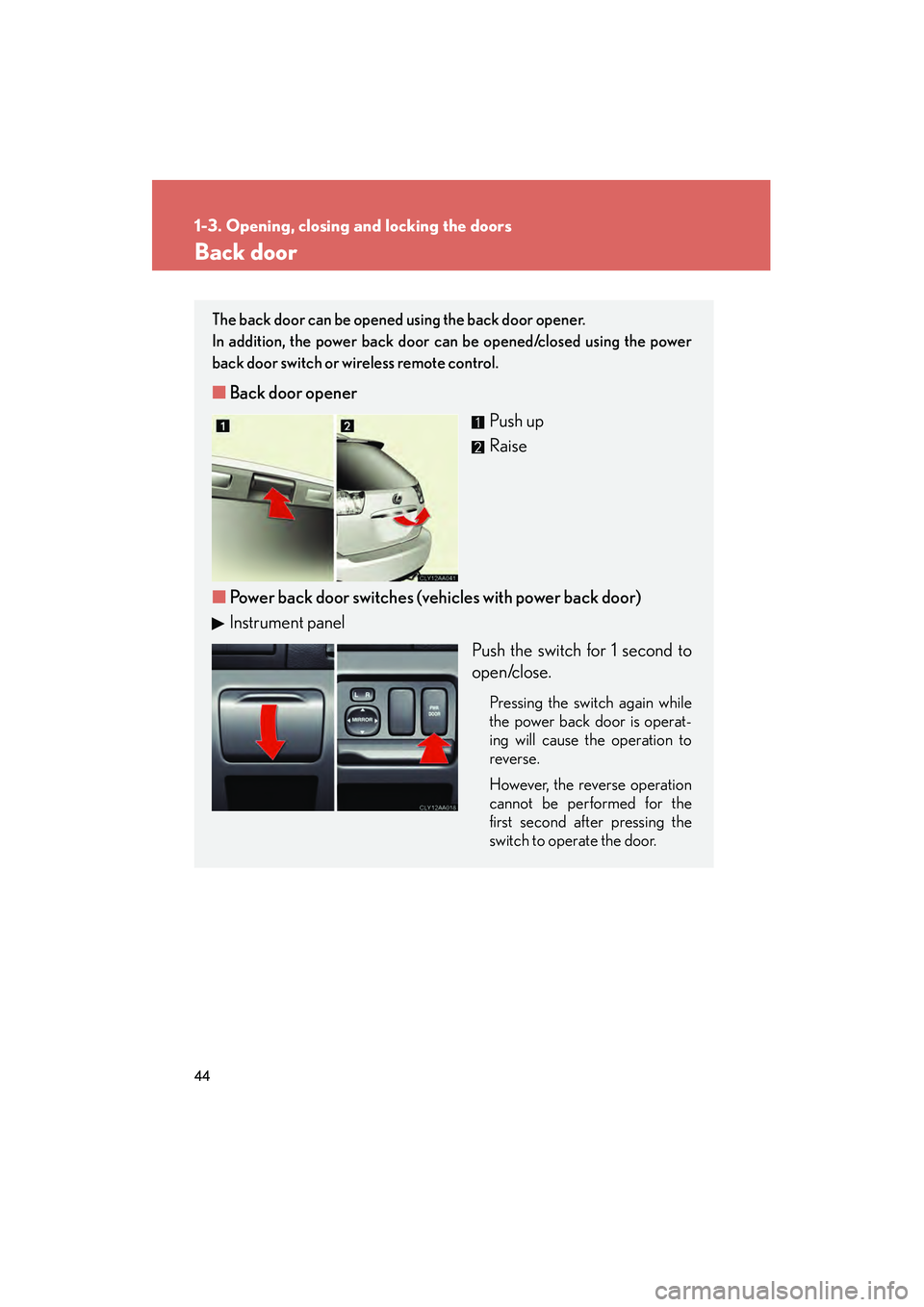

Back door
The back door can be opened using the back door opener.
In addition, the power back door can be opened/closed using the power
back door switch or wireless remote control.
■Back door opener
Push up
Raise
■ Power back door switches (vehicles with power back door)
Instrument panel
Push the switch for 1 second to
open/close.
Pressing the switch again while
the power back door is operat-
ing will cause the operation to
reverse.
However, the reverse operation
cannot be performed for the
first second after pressing the
switch to operate the door.

45
1-3. Opening, closing and locking the doors
1
Before driving
RX400h_U
Canceling the power back door system (vehicles with power back door)
Turn off the main switch in the
glove box to disable the power
back door system. ON
OFF
The back door cannot be opened
even with the wireless remote con-
trol or power back door switch.
Back door
Push the switch to close.
Pressing the switch again while
the power back door is closing
will cause it to open again.
However, the reverse operation
cannot be performed for the
first second after pressing the
switch to close the door.
The back door can be opened even if it is locked. Lock the back door
again when you leave the vehicle. The back door will not lock automat-
ically after it has been opened and then closed.
A buzzer sounds twice and the emer gency flashers flash twice to indi-
cate that the back door has been opened/closed.
■ Wireless remote control (vehicles with power back door)
→ P. 36

73
1-5. Opening and closing the windows and moon roof
1
Before driving
RX400h_U
■The power windows can be operated when
The engine switch must be in the ON position.
■Door lock linked window operation
●The power windows can be opened and closed using the key. (→P. 3 9 )
●The power windows can be opened using the wireless remote control. ( →P. 3 6 )
■Retained accessory power
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to the ACC or LOCK position. They cannot, however, be
operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■If the power window does not work correctly
The power windows must be initialized in order to ensure proper operation. (Per-
form for each window with the switch for each seat.)
Open the window halfway.
Fully close the window by pulling the switch up and continue holding the
switch for one second.
The indicator on the switch changes from a flashing pattern to being on when initial
settings are complete.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable features
→ P. 4 5 8 )
STEP1
STEP2

76
1-5. Opening and closing the windows and moon roof
RX400h_U
■The moon roof can be operated when
The engine switch must be in the ON position.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the key. (→P. 3 9 )
●The moon roof can be opened using the wireless remote control. ( →P. 3 6 )
■Operating the moon roof after turning the engine switch to the ACC or LOCK
position
The moon roof can be operated for approximately 45 seconds even after the
engine switch is turned to the ACC or LOCK position. It cannot, however, be oper-
ated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■To reduce moon roof wind noise
Drive with the moon roof where it has stopped when opening automatically.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable features
→P. 4 5 8 )

85
1
1-7. Theft deterrent system
Before driving
RX400h_U
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggered of the alarm
The alarm is triggered in the following situations.
●A locked door is unlocked or opened in any way other than using
the key or wireless remote co ntrol with the alarm being set.
● The hood is opened with the alarm being set.
■ Setting the alarm system
Close the doors, hood, and lock
all doors using the key or wire-
less remote door lock function.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors using the key or wireless remote control.
● Turn the engine switch to the ON position. (The alarm will be
deactivated or stopped after a few seconds.)

86
1-7. Theft deterrent system
RX400h_U
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following.
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations.
Stopping the alarm deactivates the alarm system.
●The doors is unlocked using the key.
●A person inside the vehicle opens a door or hood.
●The battery is recharged or replaced when the vehicle is locked.
■Pa n ic m o d eVehicles with power back door
Vehicles without power back door
When PANIC is pushed for longer than
about one second, an alarm will sound for
about 30 seconds and the vehicle lights will
flash to deter any person from trying to break
into or damage your vehicle.
To stop the alarm, push any button on the
wireless remote control.

237
3-3. Using the rear audio system
3
Interior features
RX400h_U
■Error messages
DISC CHECK: Indicates that the disc is dirty, damaged or was inserted upsidedown. Clean the disc or insert it correctly.
REGION ERROR: Indicates that the DVD region code is not set properly.
DVD ERROR: Indicates that there is a problem inside the player. Eject the disc. Set the disc again.
If the malfunction still exists, take the vehicle to your Lexus
dealer.
■Before using the remote control (for new vehicle owners)
■Headphones
With some headphones generally available in the market, it may be difficult to catch
signals properly. Lexus recommends the use of Lexus genuine wireless head-
phones.
Please contact your Lexus dealer for further details.
■Vo l u m e
●Adjust the volume when you connect the headphones to the jack. Loud sounds
may have a significant impact on the human body.
●Conversational speech on some DVDs is recorded at a low volume to emphasize
the impact of sound effects. If you adjust the volume assuming that the conversa-
tions represent the maximum volume level that the DVD will play, you may be
startled by louder sound effects or when you change to a different audio source.
Be sure to adjust the volume with this in mind. An insulating sheet is set to prevent the bat-
teries from being discharged. Remove the
insulating sheet before using the remote con-
trol.
