2007 NISSAN 350Z Audio Visual, Navigation And Telephone System

TELEPHONE
AV-113
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
ERROR ITEM (ERROR NAME)
Error Count

Error count is read out simultaneously when reading out the error name.

The errors are read out continuously when some errors occur at the same time.

The error count guides “0” when the error occurs. The next time it counts up “1” if it is normal with the igni-
tion switch ON.

It continues the count up unless the initialization of hands free phone system is performed.
VEHICLE SPEED SIGNAL

Check the input status of the vehicle speed pulse count after ignition switch turns ON.

The guidance announces the type of error name and then the vehicle speed pulse count.
MICROPHONE TEST
Input the voice spoken into the microphone to the speaker, and checks the microphone function.
Error name Detection condition Trouble-shooting method
There are no failure records to
reportSystem is normal —
Internal error Error inside TEL adapter unit Replace TEL adapter unit.
Bluetooth
® antenna open Open in the Bluetooth® antenna is detectedCheck the Bluetooth® antenna feeder for
open.
Bluetooth
® antenna short Short in the Bluetooth® antenna is detected Check the Bluetooth® antenna feeder for
short.
Bluetooth
® antenna unplugged Disconnected Bluetooth® antenna Check the connection Bluetooth® antenna.
Phone button stuck
Stuck switch
Check the steering switch.
Refer to AV-115, "
Component Inspection" .
Phone end button stuck
Stuck switch

AV-114
TELEPHONE
Revision: 2006 November2007 350Z
Symptom ChartNKS0056K
Indicator
statusSymptom Check item Diagnosis procedure
ON
(Normal)Voice is not heard on the
other end.—

Check the TEL microphone signal circuit
between TEL adapter unit to the TEL
microphone.

Check the TEL microphone power sup-
ply circuit between TEL adapter unit to
the microphone.
Voice guidance does not
activate, or the volume of
voice guidance is too low
when pressing switch.
(“PHONE” is indicated on
LCD screen of the audio
unit)—Check TEL voice signal circuit between
TEL adapter unit to the audio unit.
Voice guidance does not
activate, when pressing
switch. (“PHONE” is not indi-
cated on LCD screen of the
audio unit)Dial the cellular phone. The front speaker
RH outputs a dial tone.1. Check “VOLUME UP” and “SEEK UP”
switches function.
2. Replace steering switch, if “VOLUME
UP” and “SEEK UP” switches function is
normal. If not, go to 3.
3. Check if remote control signal A circuit
between steering switch and TEL
adapter unit is not open or short.
4. Check voltage of remote control signal A
between steering switch and TEL
adapter unit when operating steering
switch.
Dial the cellular phone. The front speaker
RH does not outputs a dial tone.1. Check TEL ON signal circuit. Go to the
next step if normal.
2. Disconnect TEL adapter unit connector.
Measure audio unit #28 terminal volt-
age. Replace TEL adapter unit if the
voltage approx. 5 V. Replace audio unit
if the voltage approx. 0 V.
None of the steering switch
operations work.—

Check control signal 1circuit.

Check steering switch signal ground cir-
cuit.
OFFBluetooth
® communication
does not perform.The indicator blinks for approx. 5 sec.
when pressing switch.Perform the error history mode with self-
diagnosis. Refer to AV- 111 , "
Self-Diagno-
sis Function" .
The indicator continue turning OFF when
pressing switch.Check TEL adapter unit power supply, and
ground circuit.

TELEPHONE
AV-115
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

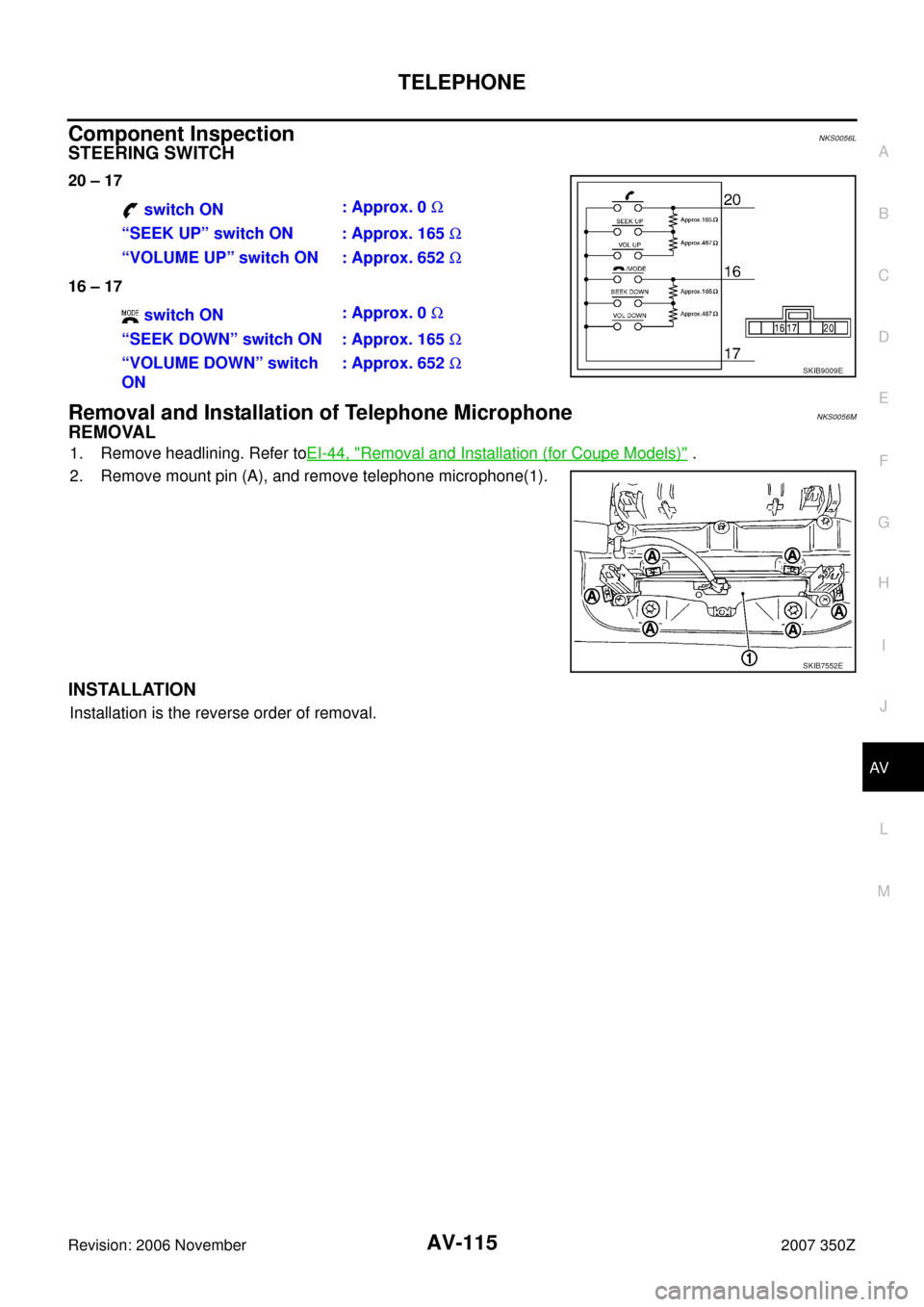

Component InspectionNKS0056L
STEERING SWITCH
20 – 17
16 – 17
Removal and Installation of Telephone MicrophoneNKS0056M
REMOVAL
1. Remove headlining. Refer toEI-44, "Removal and Installation (for Coupe Models)" .
2. Remove mount pin (A), and remove telephone microphone(1).
INSTALLATION
Installation is the reverse order of removal. switch ON: Approx. 0 Ω
“SEEK UP” switch ON : Approx. 165 Ω
“VOLUME UP” switch ON : Approx. 652 Ω
switch ON: Approx. 0 Ω
“SEEK DOWN” switch ON : Approx. 165 Ω
“VOLUME DOWN” switch
ON: Approx. 652 Ω
SKIB9009E
SKIB7552E
